B-25J Mitchell from 3D LabPrint

Details

The really first 3d printable bomber plane. This even bigger evolution including some revolutionary features. For the second time this model uses new method of joining parts, really, now on most of parts – stronger, easier to assemble and more precise. This plane can be recommended to medium skilled pilots. We hope you enjoy printing, building and flying it, although this build will truly test your abilities and quality of your printer.
Welcome to the thin wall printing!

The first fully printable airplanes with files prepared for your 3Dprinter, with flight characteristics, comparable or even supperior to classic build model airplane. This is not a dream, now you can print this HI-TECH at home. Simply download and print the whole plane or spare parts anytime you need just for a cost of filament only about $40

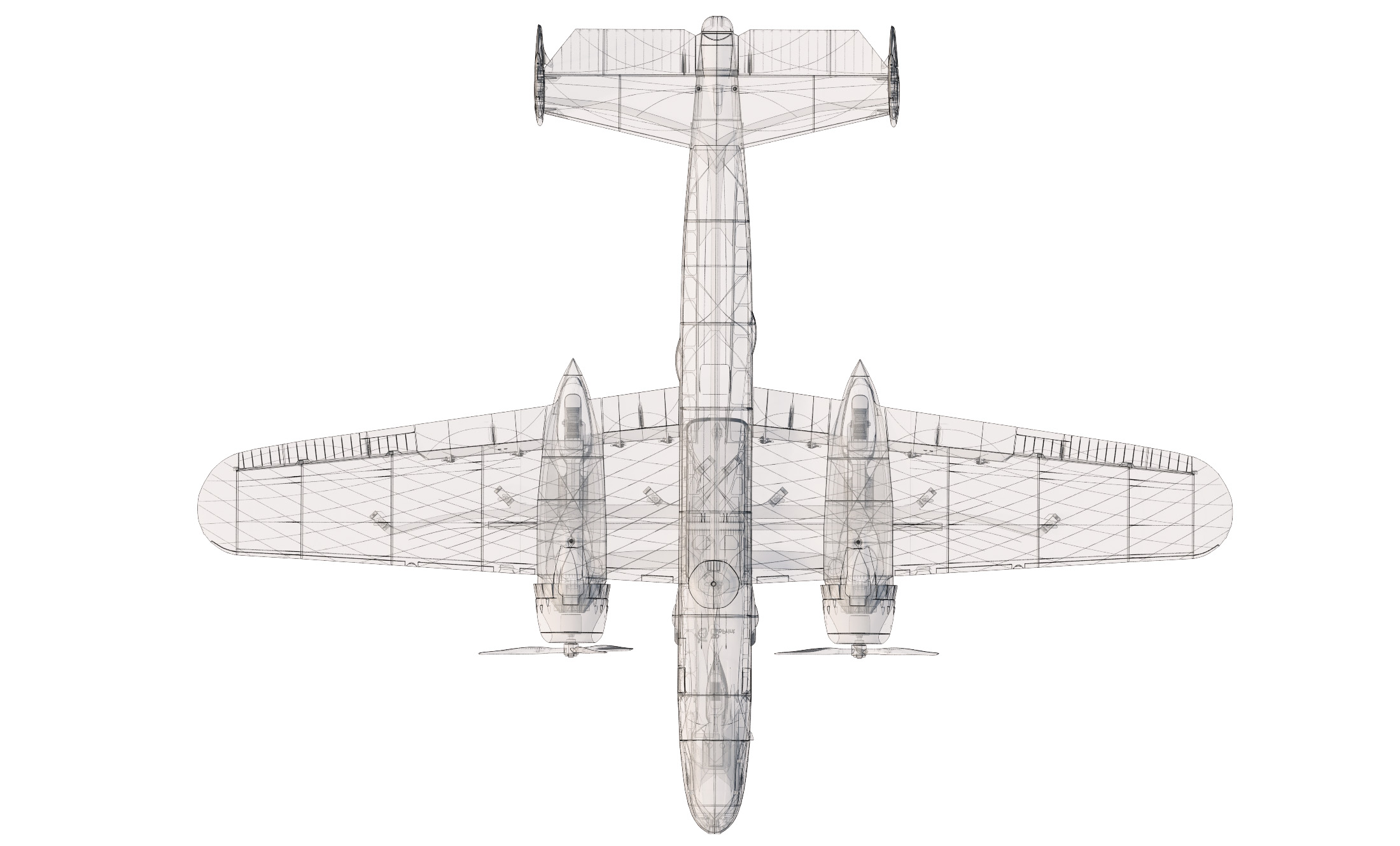

Extensive hi-tech 3d structural reinforcement making the model very rigid while maintaining a lightweight airframe and exact airfoil even it’s just a plastic. This perfect and exact 3d structure is possible only thanks to additive 3dprinting technology. So welcome to the 21st century of model flying and be the first at your airfield.

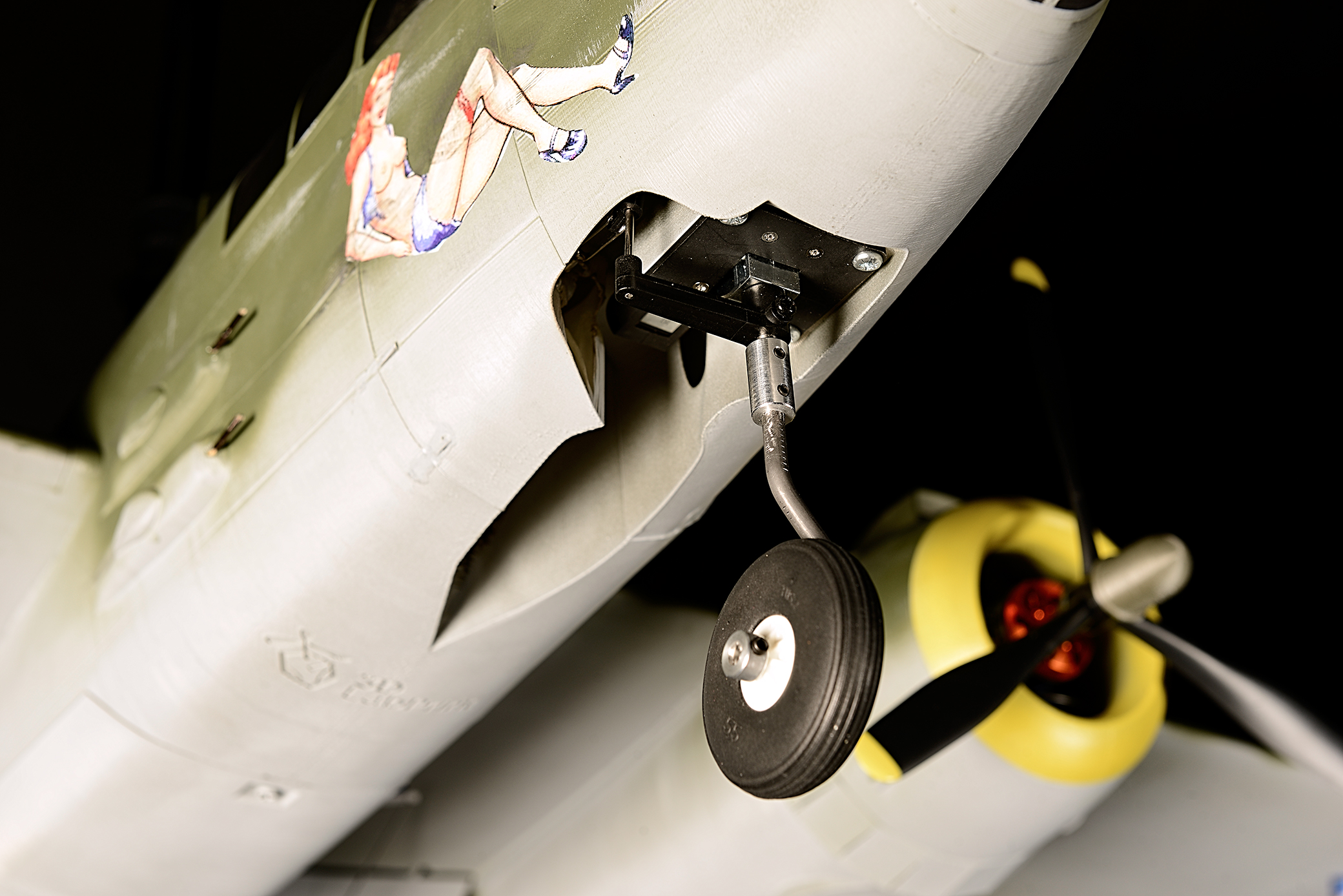

Easy to assemble, you don’t need any extra tools or hardware. Just glue the printed parts together. The most complicated operation is probably shaping the landing gear legs, the rest of the assembly is very easy. Simply add brushless motor, ESC, servos and radio system. Detailed step by step PDF/VIDEO is included. You will get a superb performing precise and detailed legendary plane.

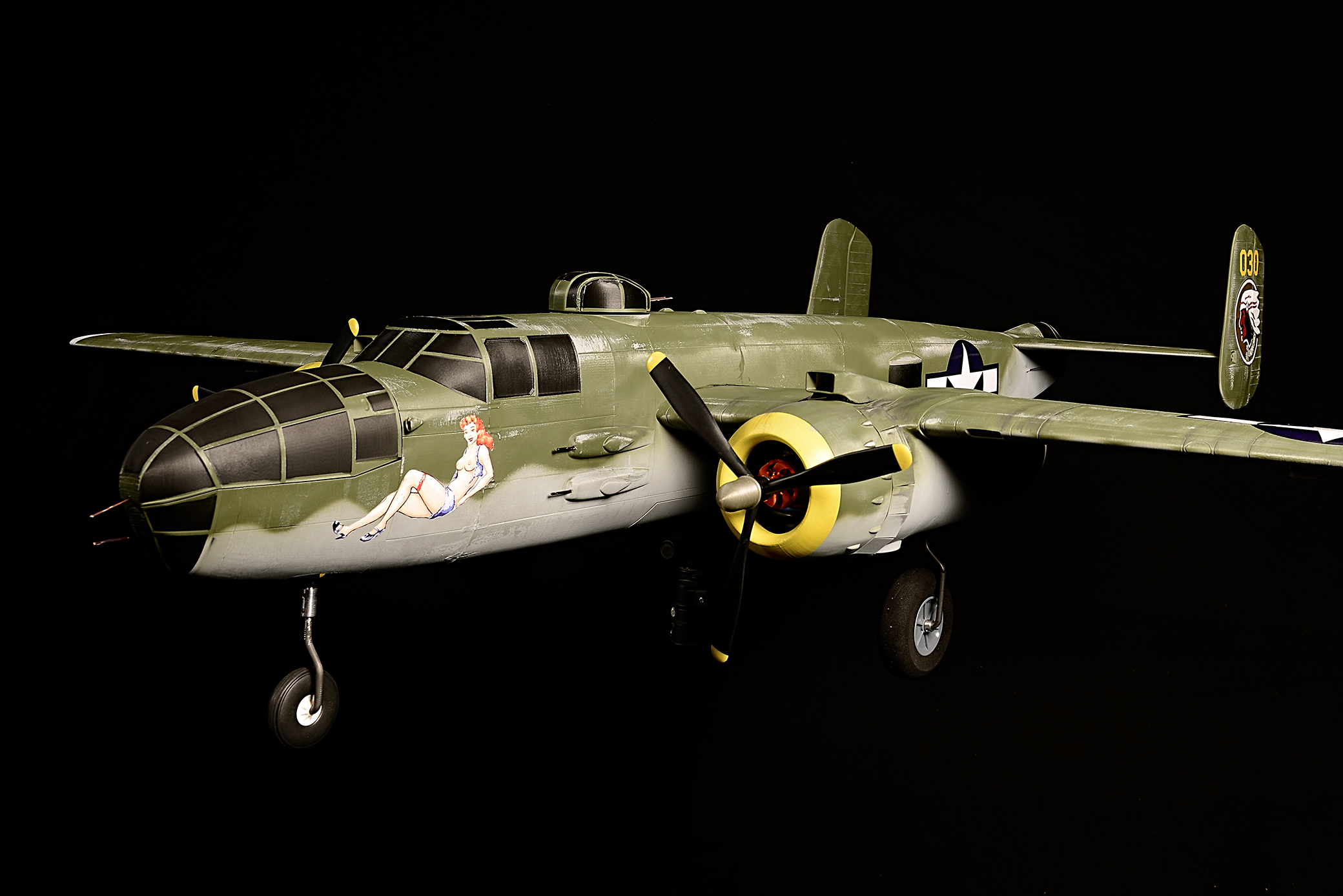

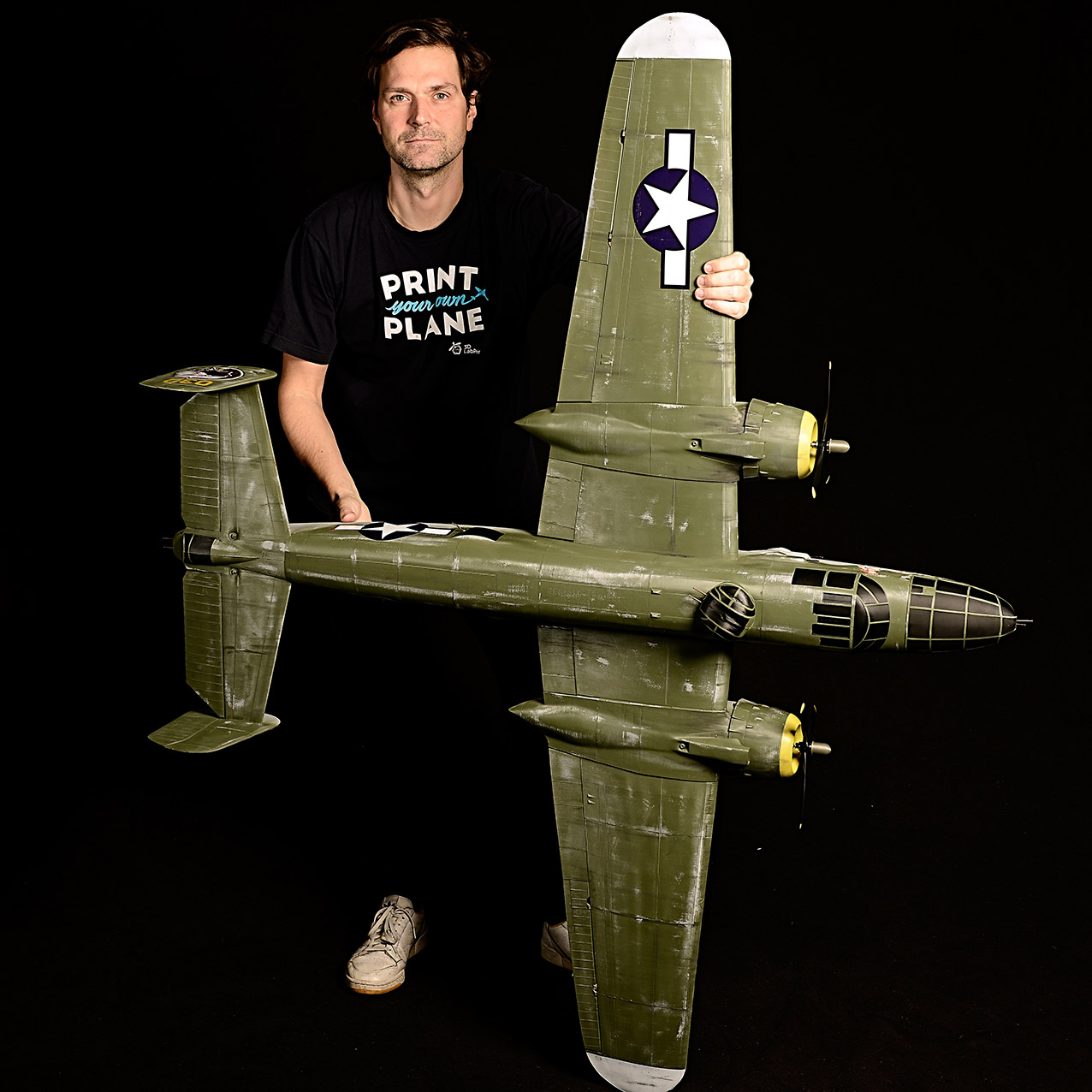

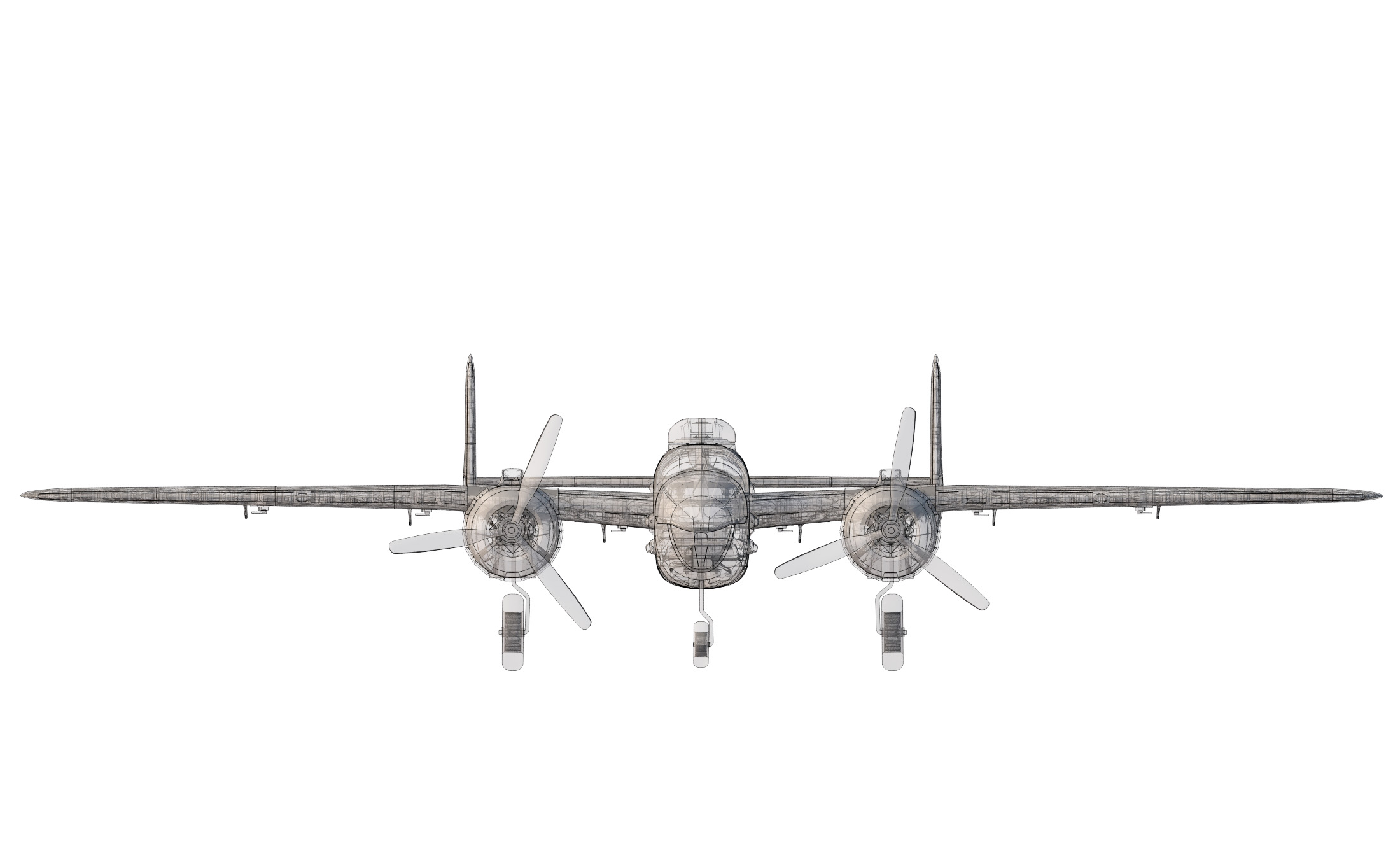

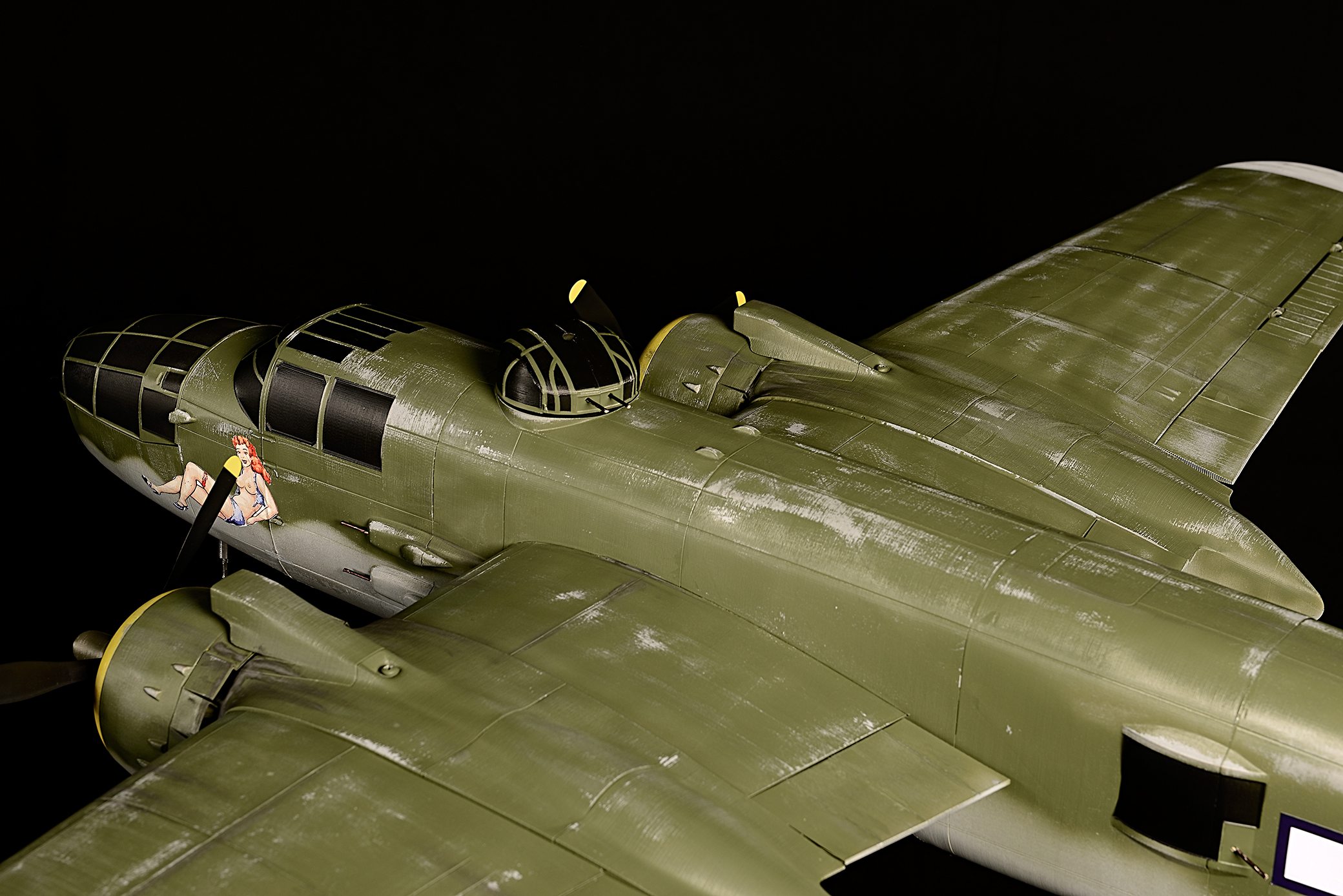

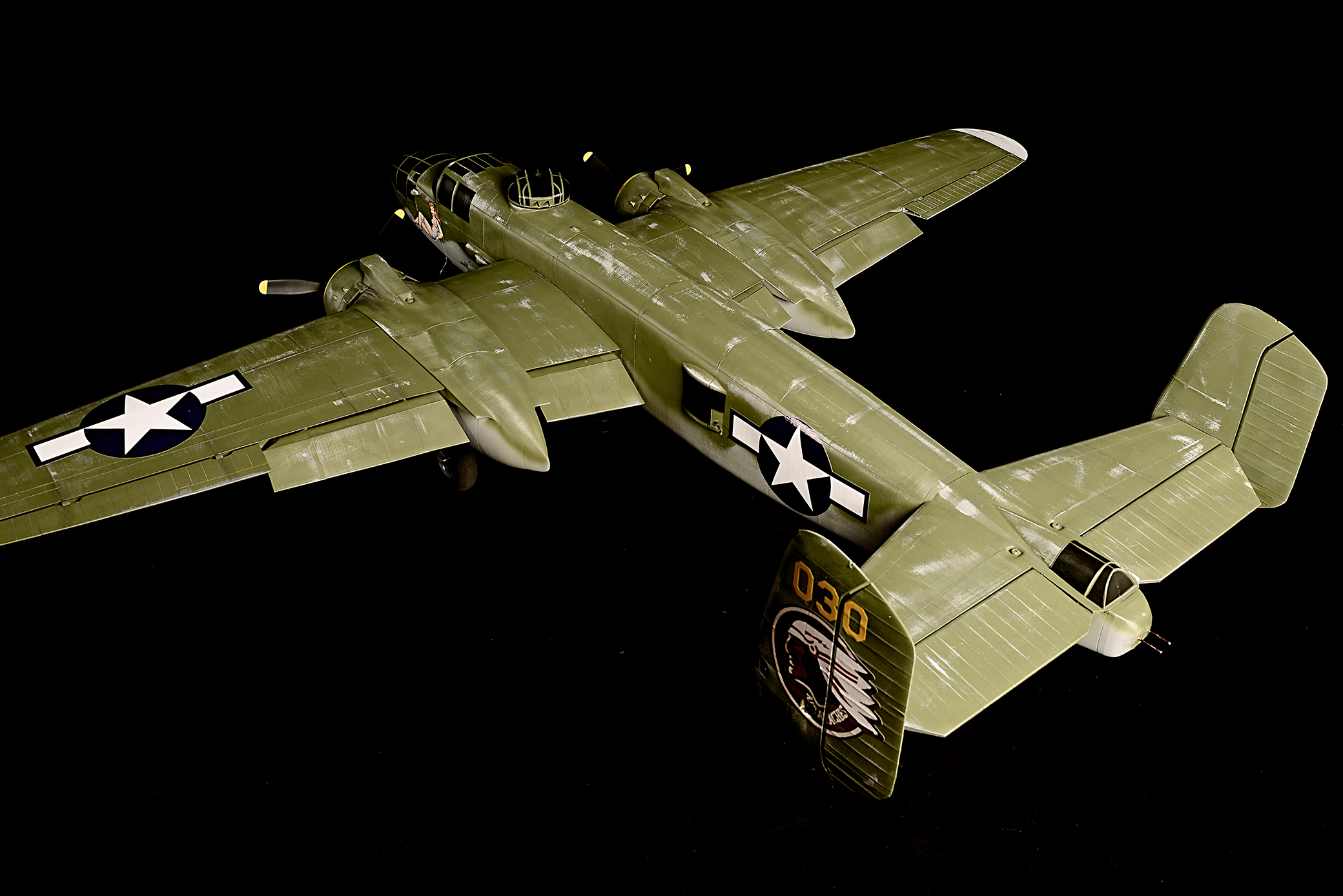

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

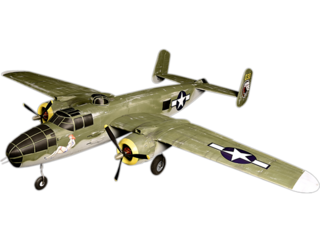

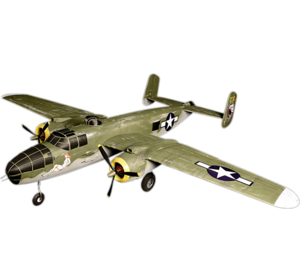

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the B-25J Mitchell in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 1720mm (67.7 in)
Length: 1360mm (53.5 in)

Weight: 3600 g (7.9 lbs)

Wingspan: 1720 mm / 68 inch
Length: 1360 mm / 53,6 inch
Height: 400 mm / 15,7 inch
Wing area: 43 dm2 / 4.7 sq ft
Wing loading: 83.2 g/dm2 / 27.3 oz at sq ft
Center of gravity: 83mm / 3.27 in from Leading Edge
Airfoil: 3DLabPrint semi 04
Weight of printed parts (w/o wheels): 1980 g / 72.7 oz
Takeoff weight (4s 5000mAh Li-Pol): 3600 g / 160.5 oz
Max takeoff weight: 4200 g / 194 oz
Never exceed speed, Vne: 120 km/h / 93 mph
Design max maneuvering speed, Va: 75 km/h / 46 mph
Stall speed Vs: 32 km/h / 17mph
