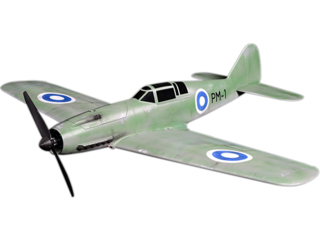

VL Pyörremyrsky from 3D LabPrint

Details

Fully 3D printable RC model of the finish attack plane, specially designed to meet ACES and EPA aircombat requirements, but also as a cheap and easy to build RC model for everyday flying. Many scale details such as armament, airframe plating or exhausts encourages to create realistic paint jobs. This plane has been designed for printing from foaming LW-PLA filament, that allow even the small printed planes to be as light as any other RC plane building technique. Get ready for battle with this great performing flying legend!

This model has been completely designed with a new LW PLA material by ColorFabb in mind. Parts printed from this LW PLA are light, easily sanded and glued together. This model requires only about 220 g of this material, that means it’s a very cheap build. In case of accident, parts can be easily reprinted with just a filament cost. We’ve been testing this material for half a year before this plane was released… The material is using an active foaming technology to achieve lightweight, low density PLA parts. At around 230°C this material will start foaming, increasing its volume by nearly 3 times. All parts of this plane should be printed from LWPLA. Possibly VL Pyörremyrsky can be printed from normal PLA but the plane will be too heavy for relaxed flying. Standard PLA printed model therefore could not be recommended for beginners. You should use heavyer battery also to compensate Center of Gravity of the plane in this case.

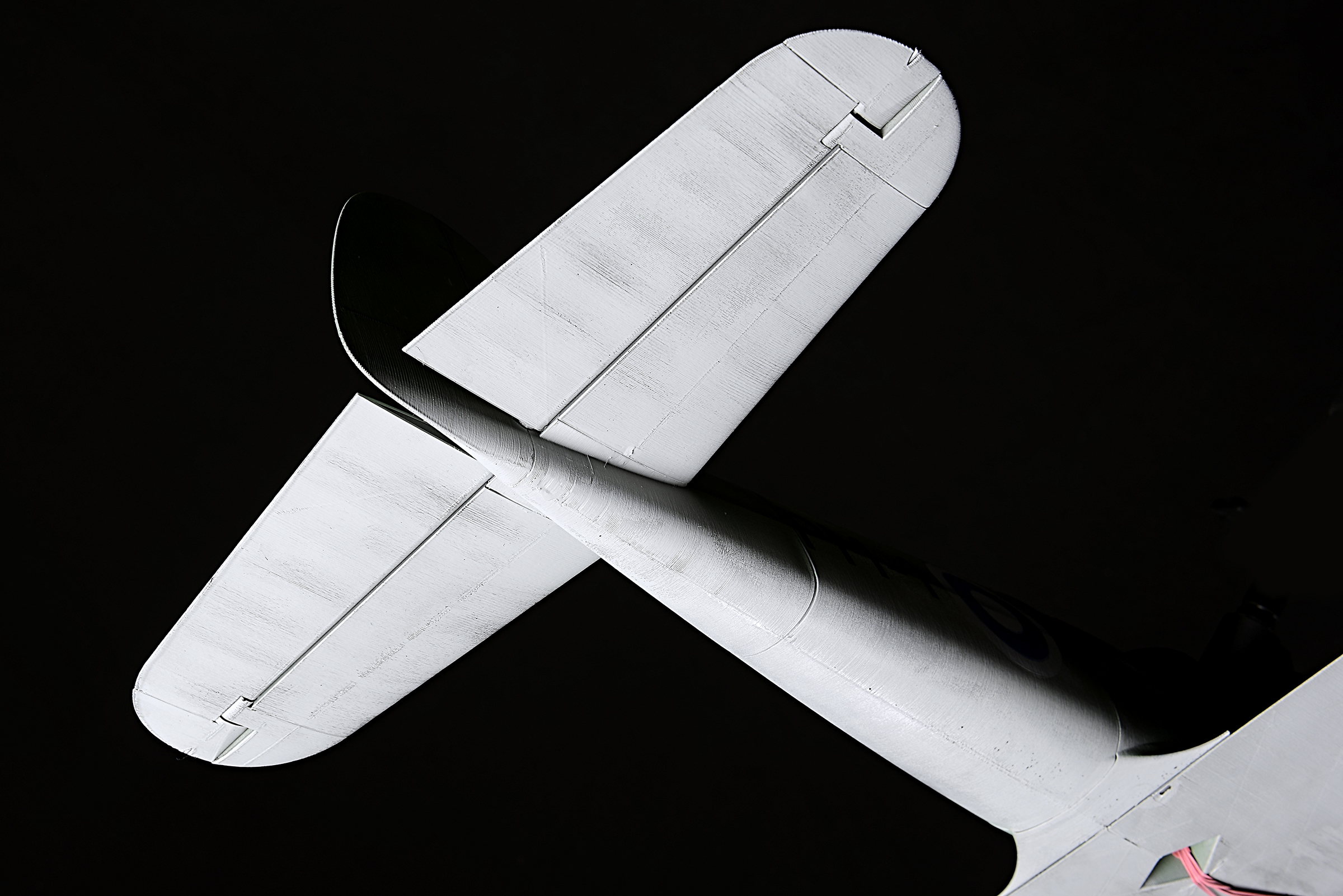

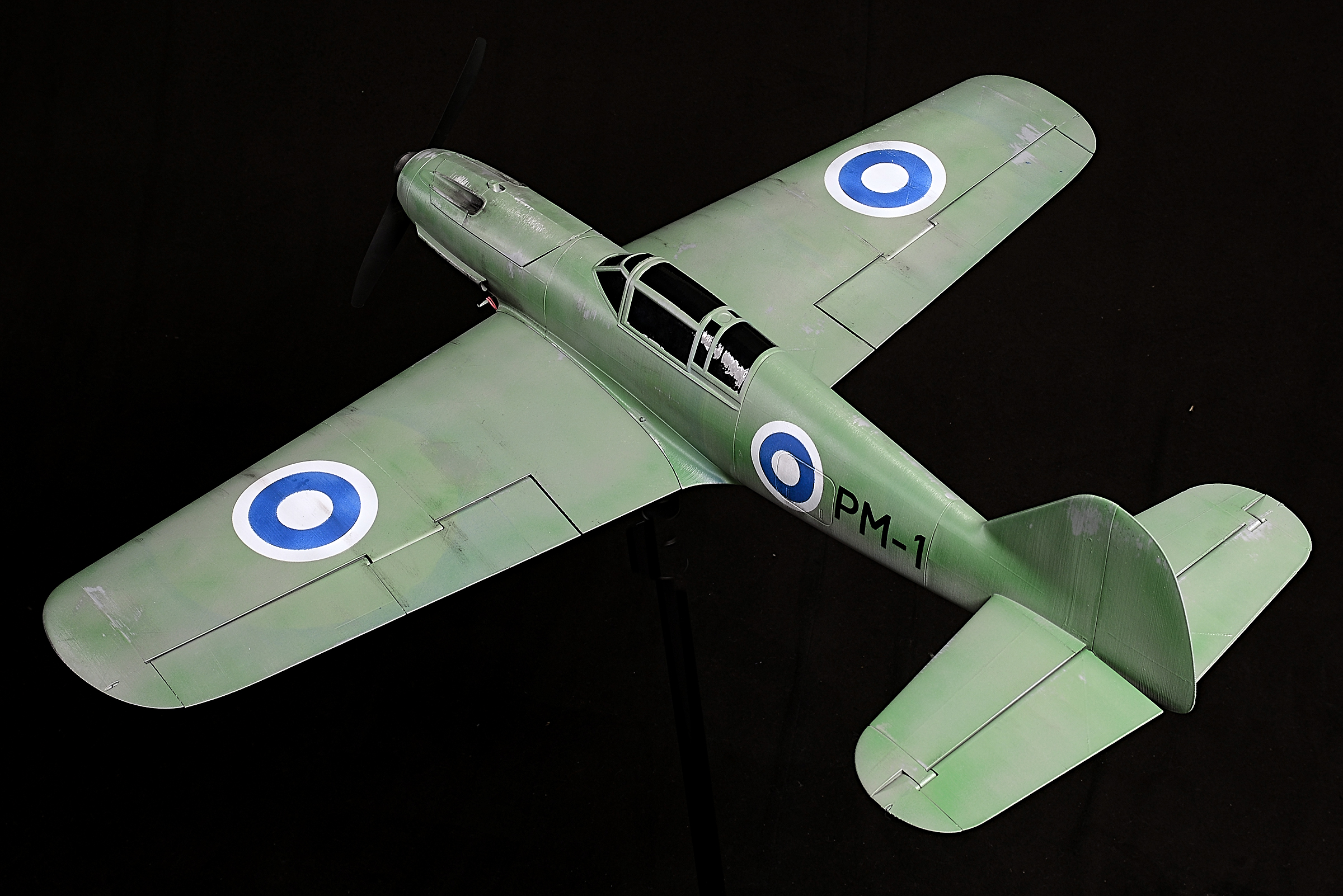

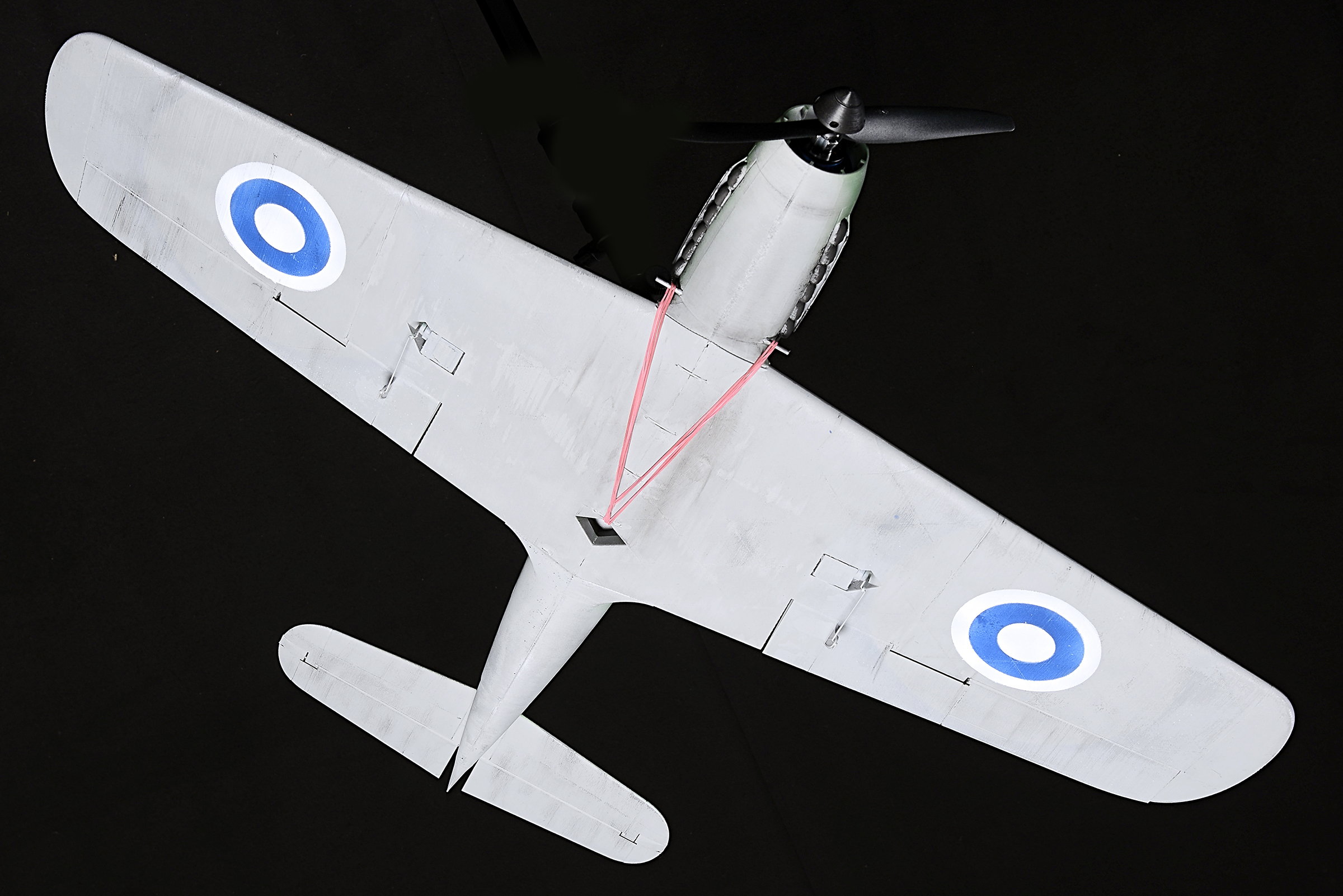

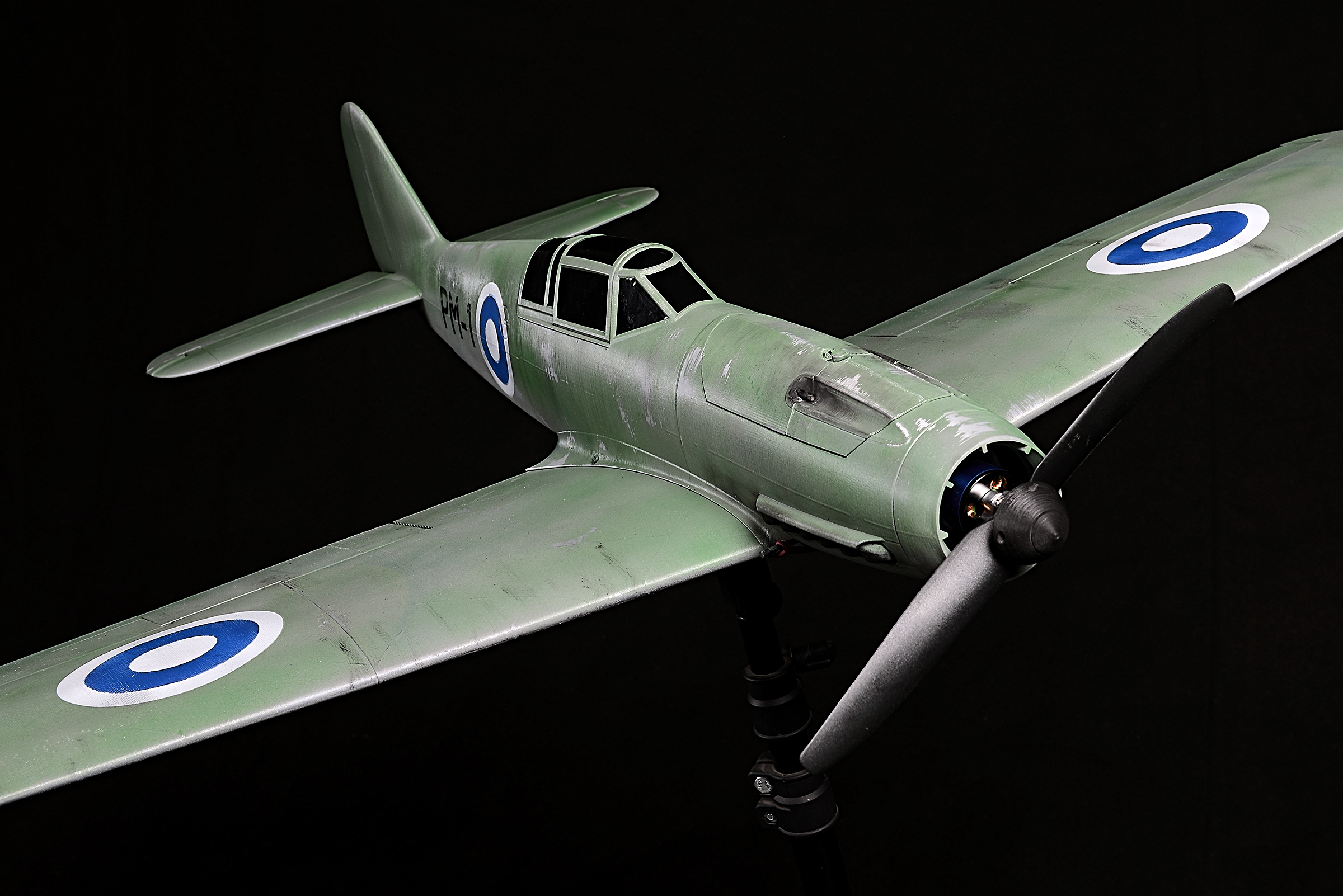

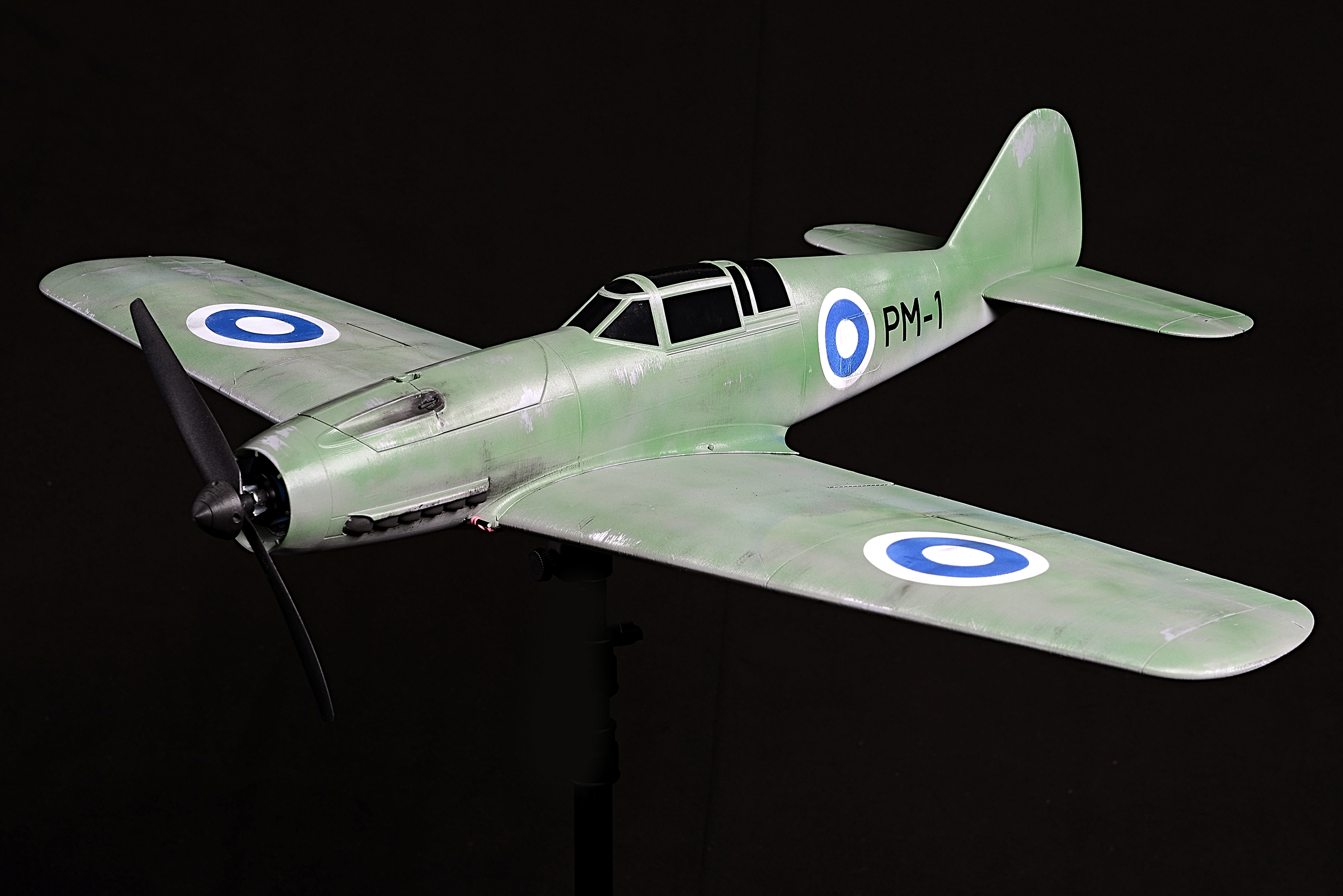

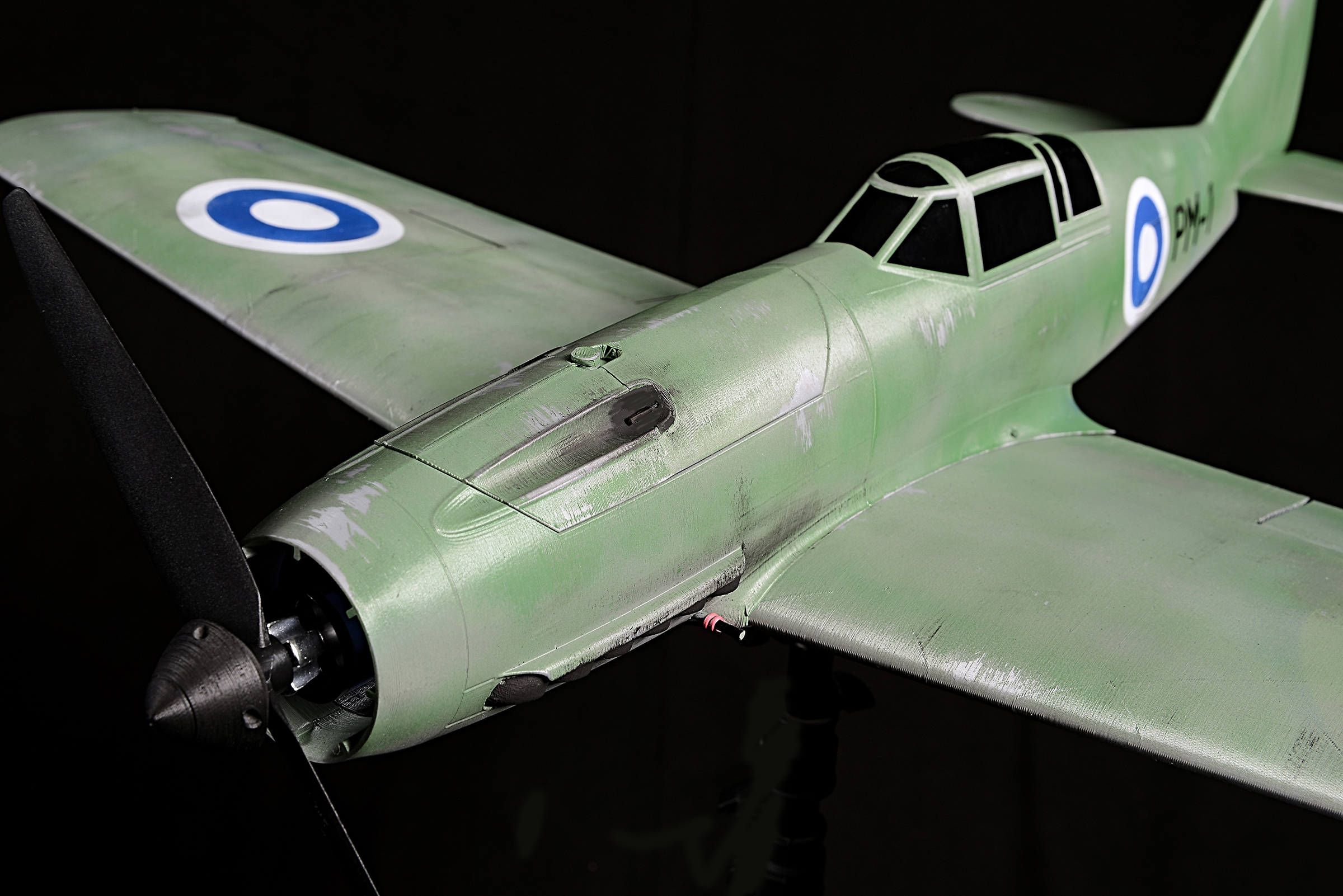

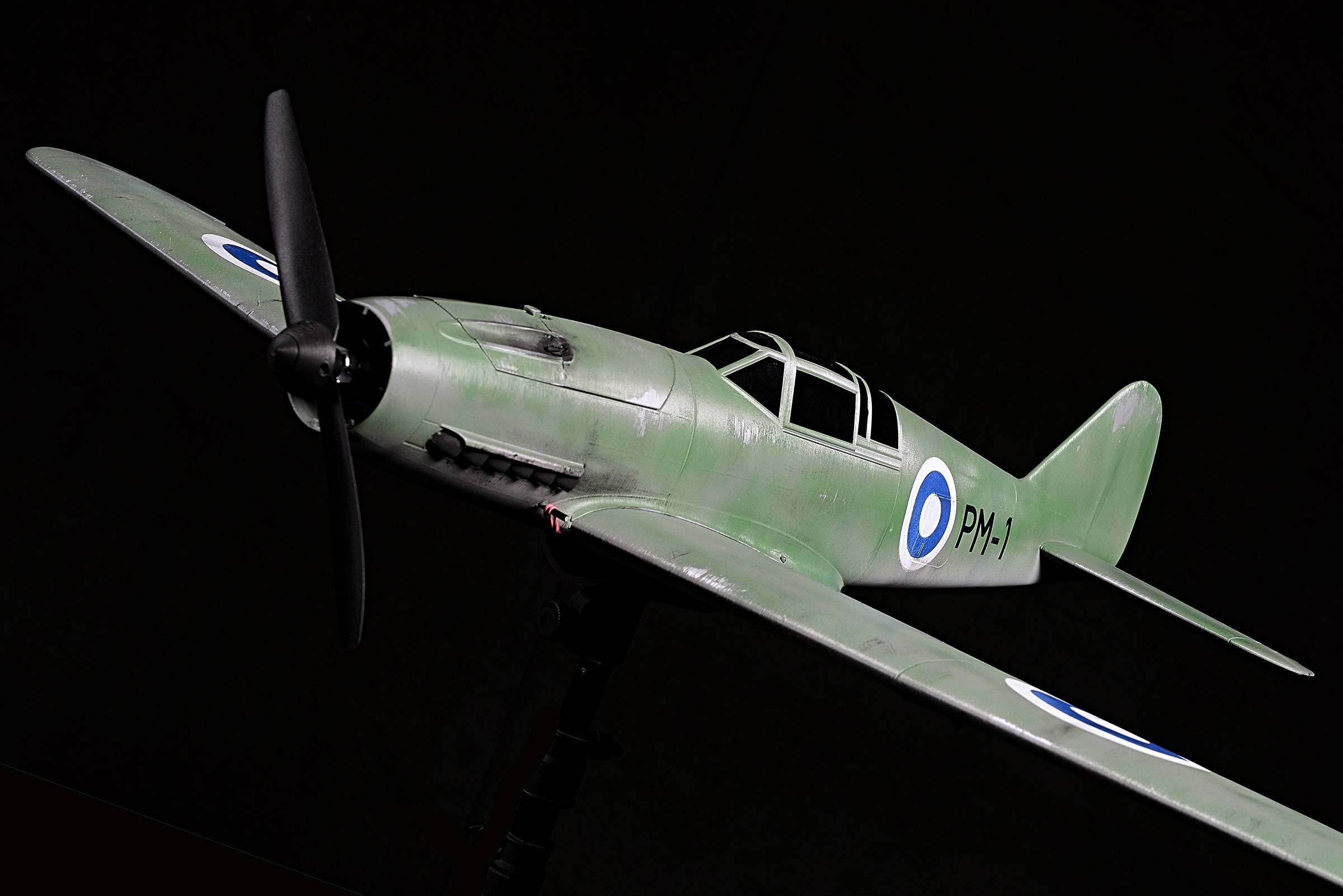

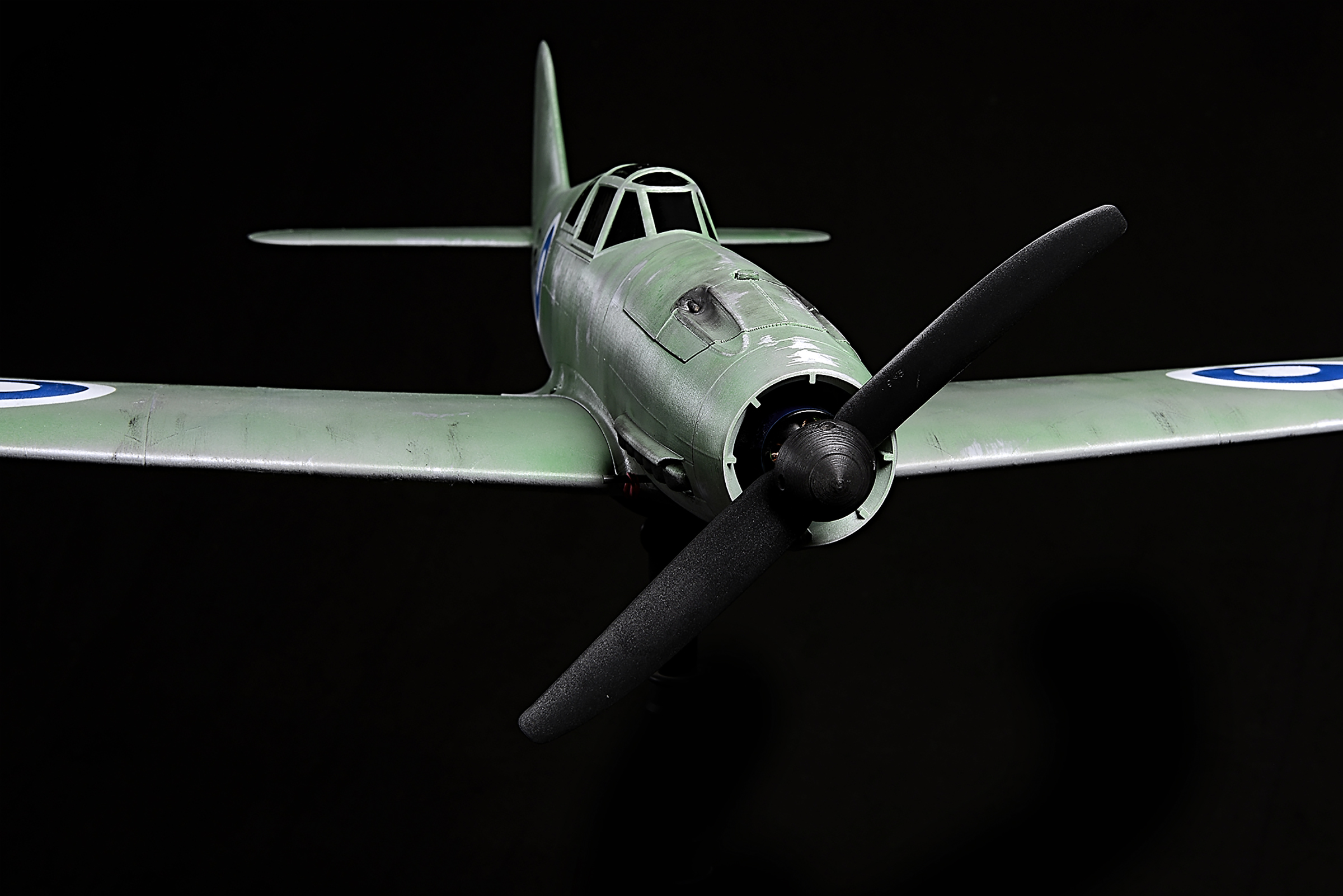

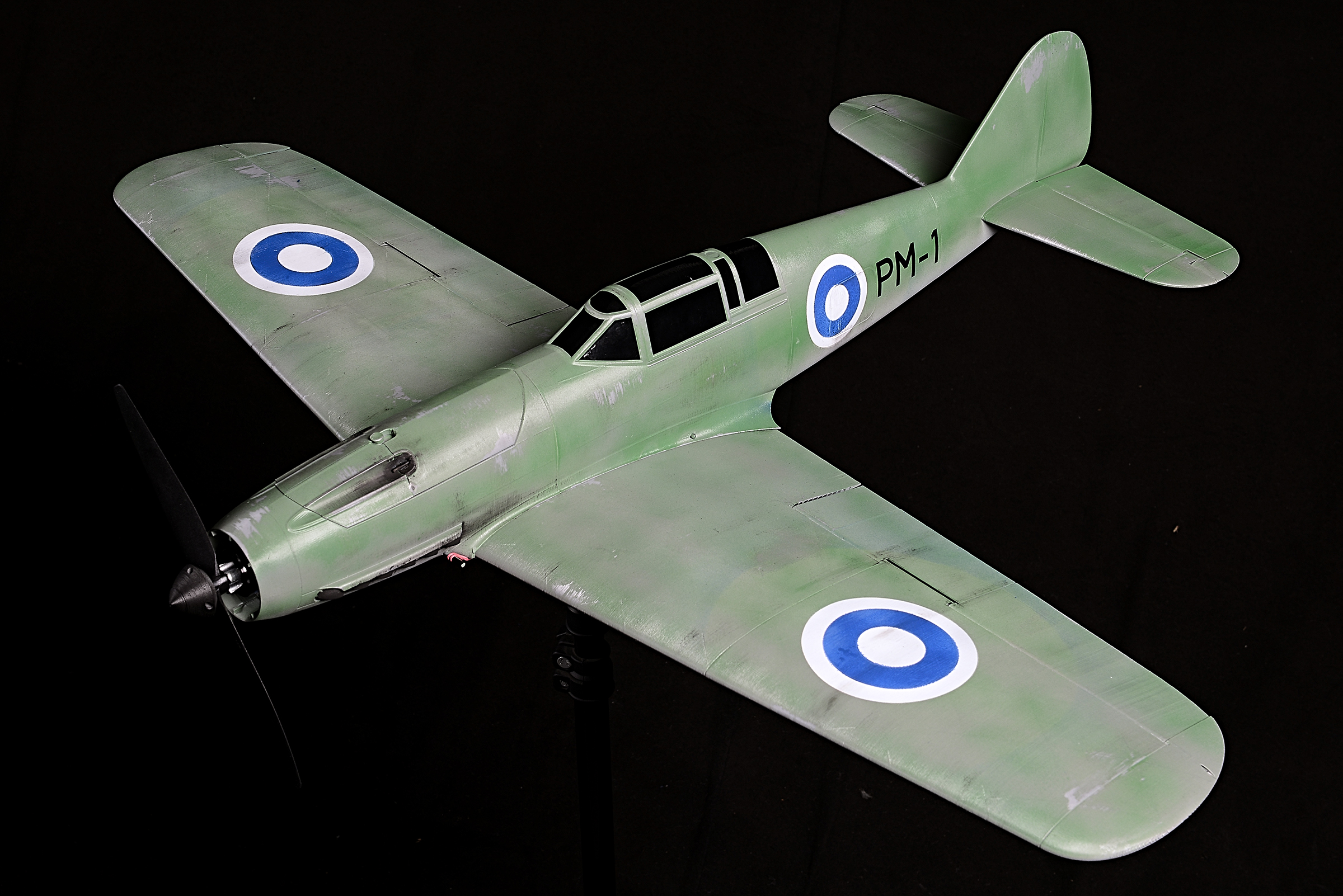

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

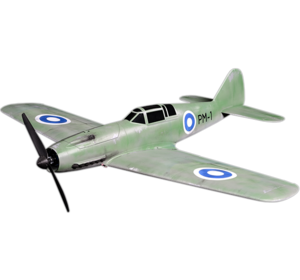

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the VL Pyörremyrsky in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 850mm (33.5 in)
Length: 750mm (29.5 in)

Weight: 500 g (1.1 lbs)
  • Wingspan: 850 mm / 33.5 inch
  • Length: 750 mm / 29.5 inch
  • Height: 170 mm / 6.7 inch
  • Wing area: 15,9 dm2 / 1.61 square foot
  • Wing loading: 31 g/dm2 / 15.3 oz/square foot
  • Center of gravity: 60 mm / 2.34 inch from leading edge
  • Airfoil: LHK508 modified by 3DLabPrint
  • Print weight (LW PLA): 224 g / 7.90 oz
  • Empty weight (w/o battery): 380 g / 13.40 oz
  • Takeoff weight (3s 1300 lipo): 500 g / 17.63 oz
  • Max takeoff weight: 700 g / 24.70 oz
  • Never exceed speed, VNE: 100 km/h / 62 mph
  • Design maneuvering speed, VA: 50 km/h / 31 mph
  • Stall speed, VS: 15 km/h / 9.4 mph

Recommended setup Motor:

  • Leopard LC2830 980KV (for 3S setup)
  • ESC: Turnigy 20A / 3S or similar
  • Propeller: two blade GWS 9 x 7,5 (ugly orange)
  • Battery: LiPol 1300mAh / 3s
  • printed PET motor mount
