AOS 5 from AOS RC

Details

The AOS 5 uses a scientific approach to take high performance 5 inch freestyle frames to the next level. Designed from the ground up based on a combination of finite element simulation and real-world flight testing this frame boasts excellent vibration and resonance performance. This means you can run less filtering and higher PID gains for a smoother and more responsive feel with greatly improved mid-throttle oscillations and cool motors.

Features:

  • 115g with all hardware
  • Designed for up to 5.1 inch props
  • 6 mm Arms
  • 2.5 mm Top Plate, Bottom Plate and Sandwich Plates
  • Up to two 30.5x30.5 mm or 20x20 mm stacks
  • 32x32mm GoPro mounting holes in top plate
  • Fits the DJI Air Unit or Caddx Vista perfectly
  • Fits the DJI FPV camera or 19x19 mm camera (with 1 mm washers)
  • Recommended motor size 2306, 2207, 2208
  • Standoffs, frame and motor screws included

STL can be download here from AOS RC

Pictures

Radio icons

(Click on the icon you want to download)

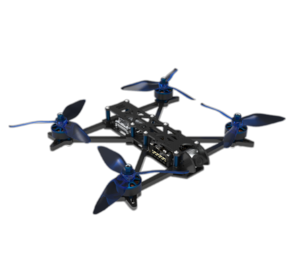

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ

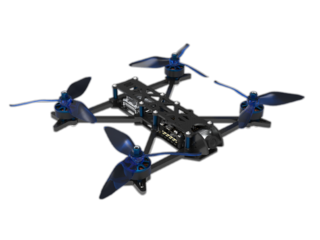

Jeti DS-24
