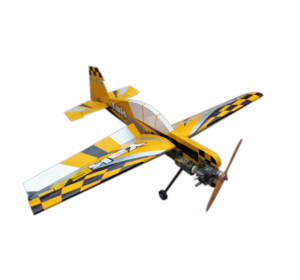

Yak 54 Profile 65" from Aerobeez

Details

Inspired by the great demand for the smaller gas engine and also 3D profile airplane, we have come to put a 20cc and a profile plane together. This is our all new 2015 Yak 54 Profile with new exclusive color scheme and upgrades that put this model a cut above past versions. Covered in High Quality Oracover, this NEW scheme really pops! We have also made structural modifications that will improve performance in 3D profile arenas and help it handle some of the most strenuous of manuevers.

Features:

  • Carbon fiber wing tube.
  • Upgraded hardware including ball joint linkages.
  • Pre-drilled control horns.
  • Pre-drilled control surface hinges slots.
  • Pre-cut servo slots.
  • All hardware included in package.
  • High Quality Oracover skin and exclusive custom designed scheme!

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.


Wingspan: 1655mm (65.2 in)
Length: 1568mm (61.7 in)

Weight: 3300 g (7.3 lbs)
  • Wing Span: 1655mm (65 in.)
  • Length: 1568 mm (61.7 in.)
  • Wing Area: 71.8 dm² (1 112.9 sq. in)
  • Fly Weight: 3250 to 3300 g (7.17-7.28 lbs)

Recommended setup :

  • Engine: DLE 20
  • Propeller:  XOAR 16 x 8
  • Servos:  HS5645MG x 5
  • Fuel Tank: 8oz

CG Position: For C.G., the ideal maiden flight C.G. position is 131.6 mm (5.18 in) behind the leading edge (Refer to Diagram One below). This is measured back from the leading edge at the wing tip. Please adjust accordingly to your own personal flying style and set-up.

Variants

YAK54-20CC-PRO-Y
Yak 54 Profile 65" (Yellow Black)
