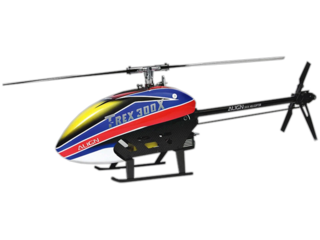

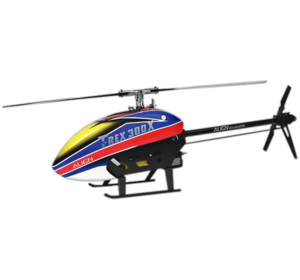

T-Rex 300X from Align

Details

T-REX 300X, small but all-in-perfect. It adopts DFC rotor head unit, low CG and low wind resistance providing direct flight responses. The carbon fiber main frame is made of composite material and with reinforcement plate and brace assembly effectively enhancing structural intensity' and torsion resistance. Narrow body design makes mechanical structure much stronger. The battery slider and top-mounted motor design with anodized bright red color brings pretty texture on this model. Thicken aluminum alloy tail boom for the best torsion resistance and increase the tail support rod lifetime. The progressive lightweight landing skid making this model the leader in this class. Plus the fiberglass painted canopy features lightweight and low in wind resistance.

T-REX 300X equipped with MiniGRS flybarless system special designed for ALIGN small helicopters (Under 500 series). It's light and simple with easy and quick settings, suitable for most pilots and beginners. Also the standard high torque and high efficiency 300MX 3700KV/2216 brushless motor not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. Allow to provide consistent power output and keep stable RPM in non-stop 3D flying presenting perfect performance. Also it pairs with digital HV DS450 and DS455 servos, supporting 8.4V output, fast response' and high torque. The new 25A brushless speed governor support 5~8.4V adjustable BEC voltage.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 525mm (20.7 in)
Length: 525mm (20.7 in)

Weight: 418 g (14.7 oz)
  • Length: 476mm
  • Height: 158mm
  • Width: 88mm
  • Main Blade Length: 230mm
  • Main Rotor Diameter: 525mm
  • Tail Rotor Diameter: 143mm
  • Motor Pinion Gear: 14T
  • Main Drive Gear: 115T
  • Main Drive Pulley: 40T
  • Tail Drive Gear: 13T
  • Drive Gear Ratio: 8.21:1:3.08
  • Weight(w/o battery): 418g
