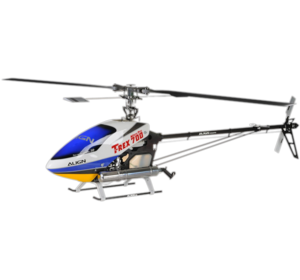

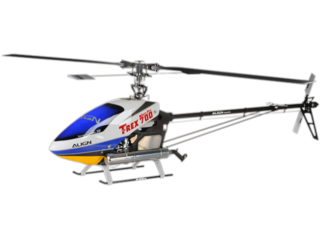

T-Rex 700 Nitro LE from Align

Details

This is the Align T-Rex 700 Nitro Limited Edition combo helicopter kit. The Limited Edition Combo kit features an all silver head system and includes a set of Align 690D Carbon fiber blades, the Align 2 In 1 Voltage regulator combo, three DS610 Digital cyclic servos, an Align GP750 Head lock Gyro and the Align RCE-G600 governor which all adds up to making this an unbeatable value!

Features:

  • Simple and light weight design provides awesome flight performance.
  • +-13°collective pitch is possible for extreme 3D performance.
  • Heavy duty tail with thrust bearings.
  • Clutch, Fan and Bell assembly provide a very smooth operation even at high RPM.
  • Forward mounted tail servo helps to keep exhaust oil from entering servo also improves the CG.
  • Battery tray designed for easy and clean radio gear installation.
  • Fuel Tank Capacity 630cc.
  • Heavy duty tail with thrust bearings.
  • Torque Tube driven tail for incredible 90 sized performance.
  • Rigid frame design that can also handle hard crashes without damage.
  • Super engine cooling system very efficient airflow to provide unequaled cooling and horsepower.
  • New main gear with one-way bearing design for high torque.
  • Ready to fly weight (no fuel) is an incredible 4.2Kg.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1602mm (63.1 in)
Length: 1602mm (63.1 in)

Weight: 3200 g (7.1 lbs)
  • Length: 1335mm
  • Height: 450mm
  • Main Blade Length: 690~710mm
  • Main Rotor Diameter: 1562~1602mm
  • Tail Rotor Diameter: 281mm
  • Engine Pinion Gear: 20T
  • Autorotation Tail Drive Gear: 150T
  • Drive Gear Ratio: 8.2:1:4.54(E:M:T)
  • Fuel Tank Capacity: 630cc.
  • Weight(Without Power System): Approx. 3200g
