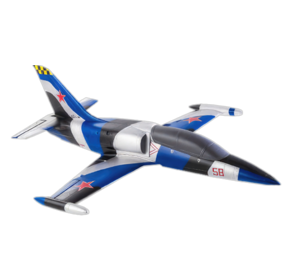

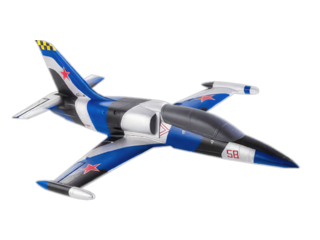

L39 from Arrows RC

Details

Given that the full-size L-39 Albatros was designed as a high-performance jet trainer, it is more than appropriate that this beautifully realised 1/14-scale version performs the same role in model form. Perfectly capturing the easy-on-the-eye appeal of the much loved "70s jet, Arrows" L-39 will be something of an eye-opener to anyone who still thinks EDF jets are difficult to fly. Experience the T-33 in action and you'll quickly realise that nothing could be further from the truth. Packing a sweet-sounding 50mm 11-blade fan that's spun by a precision 2627 4500KV brushless motor, this 3S-fuelled semi-scaler can't fail to delight with its flowing aerobatics, cloud punching performance and exceptional speed. But that's not the half of it, the L-39 is also a beautifully practical model that exhibits exceptional slow speed handling, is small enough to transport in one piece, is retract (hassle) free and, moreover, gets away beautifully from an underarm launch. Given that it's enticingly budget-friendly and such a good performer, there's outstanding value for money here and, for that alone, we just know you'll love it.

Features:

  • High quality pre-painted EPO foam airframe.
  • Pre-installed Vector 6-axis gyro.
  • Glue- and screw-together assembly.
  • Proven pre-installed hardware.
  • Superior ball joint control linkages.
  • Outstanding power-to-weight ratio.
  • Secure magnet-retained canopy.
  • Retract-free, fly anywhere simplicity.
  • Suits 3S 11.1V 1300 - 2200mAh 30C LiPo.
  • Three pre-installed high-quality digital servos.
  • Takes standard 4-channel radio (aileron, elevator, throttle).
  • Smooth-sounding 11-blade fan.
  • 30-minute assembly time.
  • 8 minute flight on a 2200mAh LiPo.

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.


Wingspan: 659mm (25.9 in)
Length: 808mm (31.8 in)

Weight: 480 g (16.9 oz)
  • Wingspan: 659 mm
  • Length: 808 mm
  • Motor: 4500 kV
  • Rec'd battery: 3S 2200mAh
  • ESC: 30A
  • All-up weight: 480g
  • Wing Area: 9dm² (136in²)
  • Material: EPO
  • Motor/Engine: 1x Brushless 2627 4500KV.
  • Servos: 3x 9g digital.
  • ESC: 1x 30A ESC with XT60 connector.

Variants

L39
L39 (Blue Grey Black)
