T-33 Shooting Star from Arrows RC

Details

Simplicity embodies beauty, and the Arrows Hobby 50mm T-33 embraces this philosophy. Without the burden of landing gear, this lightweight and streamlined aircraft is the perfect choice for those flying in tight spaces or on a limited budget.

Arrows Hobby invested in meticulous design to optimize the T-33's flight performance. The rigid single-piece wing structure and horizontal stabilizer minimize drag, increase flight time, and ensure precise flight characteristics. Despite its compact size, the T-33 delivers exceptional low-speed handling and flight time, setting it apart from other small EDF jets.

Equipped with a 50mm 11-blade fan unit, a 2627-4500KV brushless motor, and a high-performance 30A ESC (including a 3A BEC), the Arrows Hobby 50mm T-33 offers unparalleled speed and an impressive sound profile.

Arrows Hobby goes the extra mile with thoughtful details such as a servo protector on the bottom of the wings for convenient belly landings. Distinctive fuel tanks on the wingtips and detailed decals enhance the scale appearance.

Features:

  • Powerful 2627-4500KV brushless motor.
  • Highly efficient 50mm 11-bladed EDF unit.
  • Reliable high-performance 30A ESC with 3A BEC.
  • Simple lightweight design for extended flight times.
  • Highly attractive trim scheme for maximum visibility in the air.
  • New anti-corrosive water-based paint for enhanced color and gloss.
  • PNP with Vector system, offering three flying modes.
  • Uncompromised performance at an affordable price point!

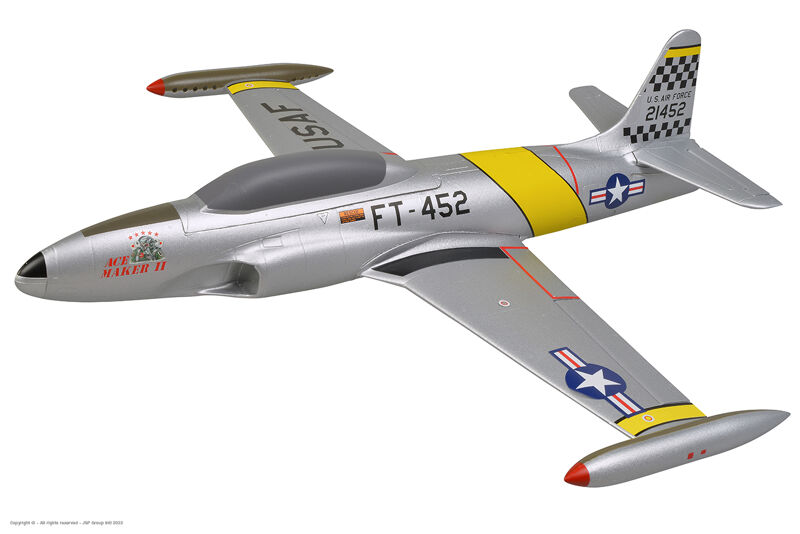

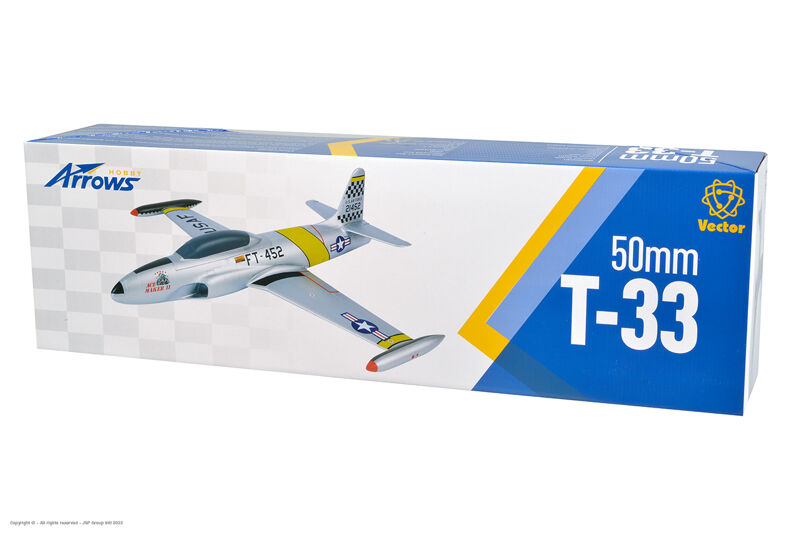

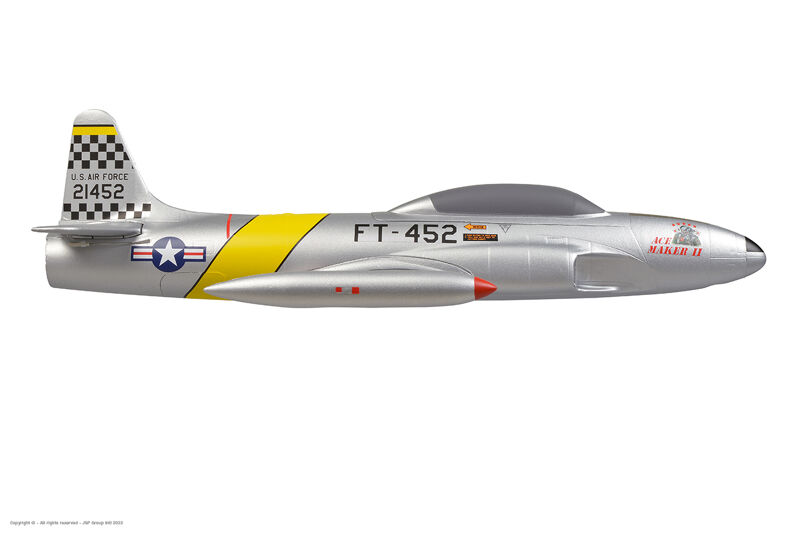

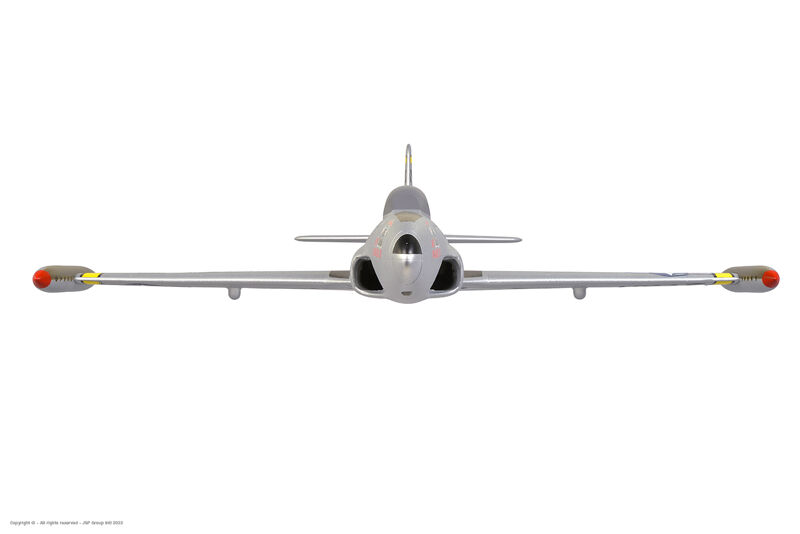

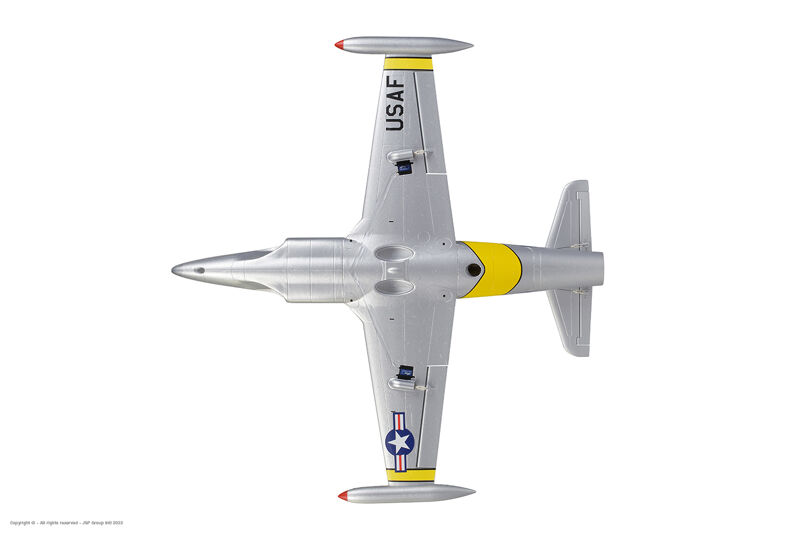

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 805mm (31.7 in)
Length: 750mm (29.5 in)

Weight: 495 g (17.5 oz)
  • Wing Area: 11.2d㎡
  • Wing Loading: 44.2g/d㎡
  • Approximate Flying Duration: 4 minutes
  • Wingspan: 800.5mm (31.5in)
  • Length: 750mm (29.5in)
  • Center of Gravity (CG): 60-70mm from the leading edge
  • Power System: Brushless 2627-KV4500
  • Electronic Speed Control: 30A (XT60 male connector)
  • Propeller / EDF: 50mm 11-blade
  • Servos: 9g plastic servo x 3pcs
  • Landing Gear: None
  • Required Battery: 11.1V 1300MAH 30C
  • Required Radio: 6 Channel transmitter and receiver required for default switch selection for Vector.
  • Control Surfaces: Ailerons, Elevator
  • Rudder: No
  • Flaps: No
  • Gyro: Vector
  • Weight: 495g
