QAV 105 from Aurora RC

Details

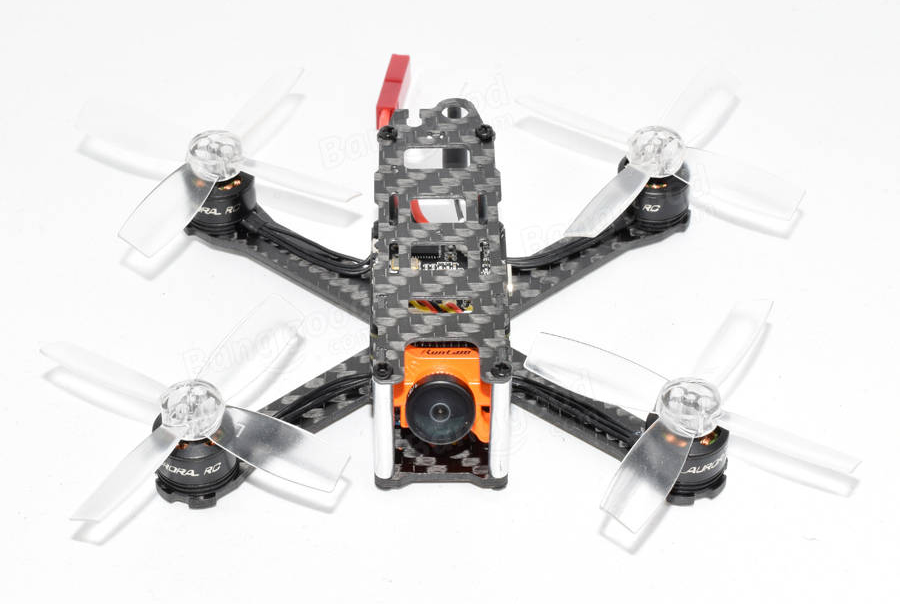

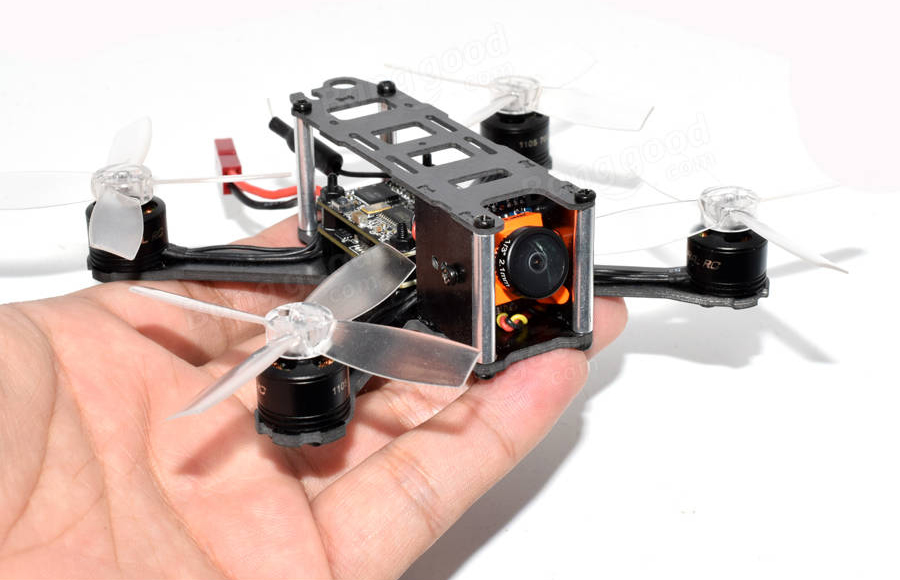

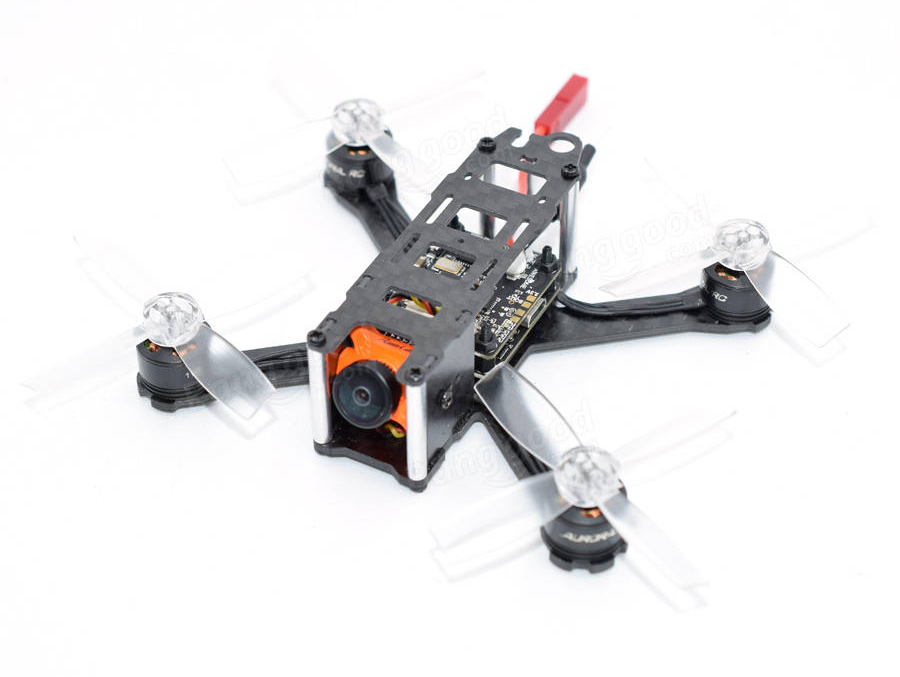

The AuroraRC QAV105 is a compact and agile FPV racing drone designed for enthusiasts seeking high performance in a small form factor. It is well-regarded for its robust build quality and impressive flight capabilities, making it a favored choice among micro FPV racing enthusiasts.

This nano racer looks like a Lumenier QAV-R, but smaller! It is built on the basis of a 10.5 cm diagonal motor-to-motor frame, with a 2 mm thick carbon lower plate.

The spacers are made of 2.3 cm aluminum. aurorarc QAV105. The motorization is based on 1105 to 7000KV motors driven by a 4 in 1 ESC of 10A BLheli_S for 2435 propellers. The FC is an F3 Omnibus with an active OSD

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

Wingspan: 105mm (4.1 in)
	Length: 105mm (4.1 in)
Weight: unknown

See Specs & Tech Details

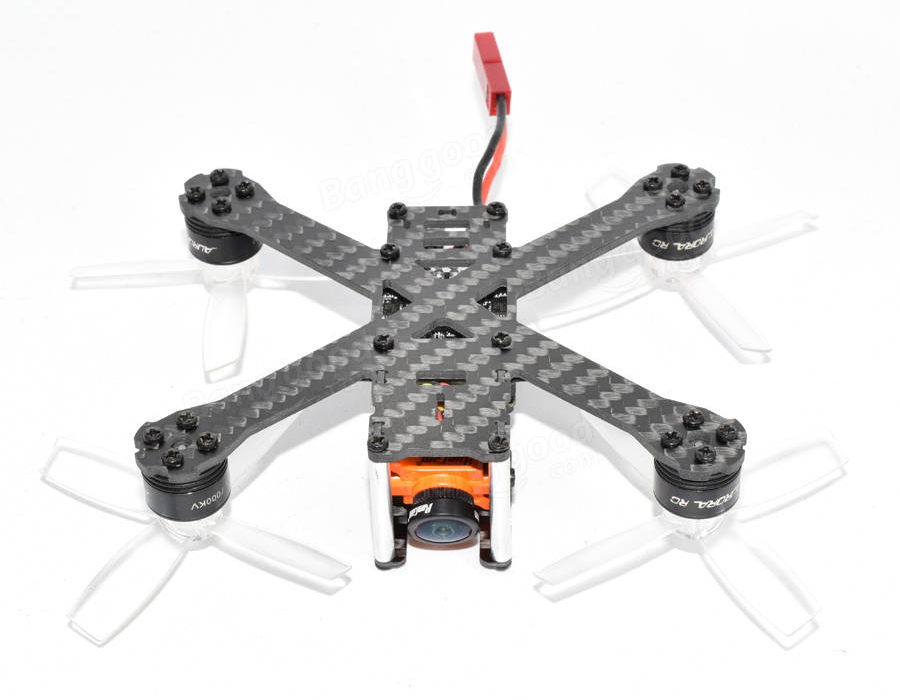

Frame: 105mm wheelbase constructed from carbon fiber, featuring 2mm thick arms and a 1mm thick top plate.
Motors: Equipped with four 1105 brushless motors, each with a 7000KV rating, delivering substantial thrust for dynamic flight.
Flight Controller: Utilizes an F3 flight controller, offering reliable flight stabilization and control.
Electronic Speed Controllers (ESCs): Features a 4-in-1 BLHeli-S 10A ESC supporting multiple protocols, including DShot150, DShot300, DShot600, Multishot, Oneshot125, and Oneshot42.
Camera: Comes with a RunCam Micro Swift FPV camera, providing a 600TVL resolution with a CCD sensor and a 2.1mm lens for clear video transmission.
Video Transmitter (VTX): Integrated 5.8 GHz VTX with 48 channels and a transmission power of 25 mW, ensuring compatibility with various FPV setups.
Dimensions and Weight: The drone measures approximately 83mm in length, 99mm in width, and 26mm in height, with a weight of around 60 grams (excluding battery).
Additional Features: Includes eight 2435 four-blade propellers, a rubber band for securing components, and a whip antenna for FPV transmission
