Extra 330LX V2 from Avios

Details

The all-new Avios Extra 330LX V2 builds on the foundations laid by the V1, but with some much-needed improvements. It's now not only a great introduction to 3D flying but a true, hardcore 3D performer!
Working in collaboration with top Belgium 3D pilot Tom De Weerdt, the Avios team has created in the V2, a model made BY 3D pilots, for 3D pilots. Improvements include a more powerful, out-of-the-box 4S set-up giving incredible sports aerobatics performance that's ideal for getting to grips with 3D maneuvers, and an option for a 5S set-up, delivering full-blown 3D power, control, and prowess with just the change of the ESC. The control surfaces have been refined over many hours of flying and tuning by Tom De Weerdt and the team, improving servo resolution and control. The airframe itself has been strengthened too, with a stronger/reinforced firewall design and tail wheel system, yet remains lightweight and rigid. And, most noticeably of all, the Avios Extra 330LX now sports a stunning new scheme, masterfully painted and with pre-applied decals that looks impressive from any angle.

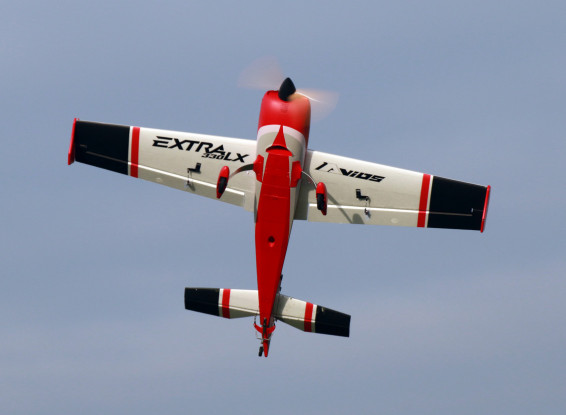

In-flight, the Extra 330LX V2 now tracks with great precision, rolls are axial and crisp, and on high throws the roll rate is phenomenal. There is next to no coupling in knife-edge, making it a perfect platform for classic/pattern flying. The out-of-the-box standard 4S set-up generates more than enough power for unlimited vertical performance, switch to high rates/3D throws and the 3D creature emerges! The stock set-up has ample power for most of the "low and slow" 3D maneuvers. With very little wing rock it's the perfect airplane to practice harriers, high alpha knife edge, hovering, and rolling circles, etc.

Want some extra power to practice modern-day extreme aerobatics? Then upgrade to a 70 or 80amp ESC, plug in a 5S LiPo, and you are ready to have some extreme fun. You will notice straight away the extra speed, but more importantly, you'll be able to use that extra pull-out power and throttle control during your maneuvers. This added power will make your pop tops, rifle rolls, and all the extreme 3D moves that much more aggressive, ideal for experienced 3D pilots.

The "Plug N Fly" Extra is made of EPO foam and is big enough to provide great presence in the air yet breaks down quickly for transport thanks to the 'click in' wing system. The new power set-up includes a more powerful 4248-600KV brushless outrunner with a lightweight 14x7 wood propeller and 60amp Aerostar ESC. Pre-installed 25g, metal-geared, digital high torque servos provide plenty of power and strength for the large control surfaces.

Want to get into 3D flying? Then the Extra 330LX V2 is the perfect choice, and the sky your playground. Start with the recommended set-up, and gradually increase your throws and expo. This way the plane's capabilities will grow with your own skills and progression. With strengthened firewall and landing gear, and the upgraded power system, the Extra will take a bit of a beating, it will be the go-to airplane in your hangar for a very long time!

Features:

  • Lightweight aerobatic 3D sports plane in EPO foam
  • Plug N Fly format for optimum performance and quick build time
  • V2 version has been refined over many hours of flying by Tom De Weerdt, and the Avios team
  • Upgraded 4S power system, 3D power out-of-the-box
  • Strengthened airframe, landing gear, and motor mount
  • The fit and finish of components has been improved
  • New striking color scheme
  • Option to run 5S for full raw 3D performance, with no changes other than the ESC (70amp recommended)

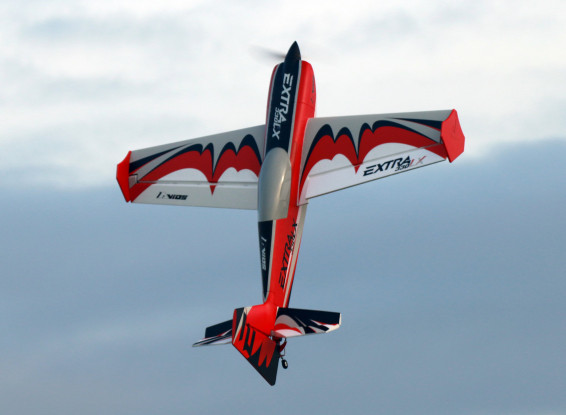

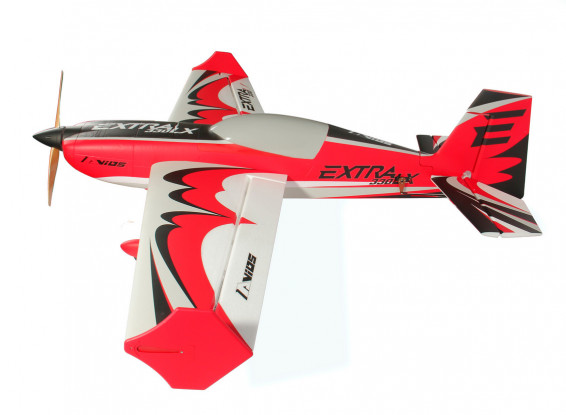

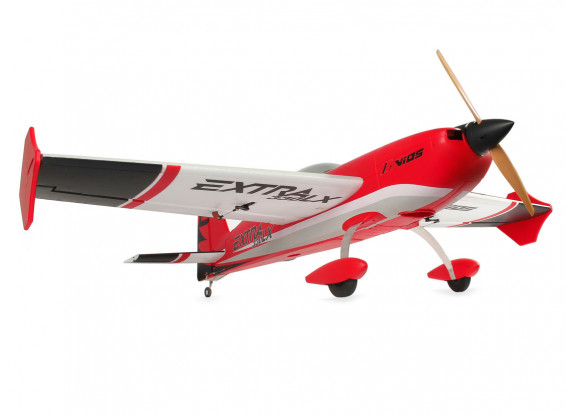

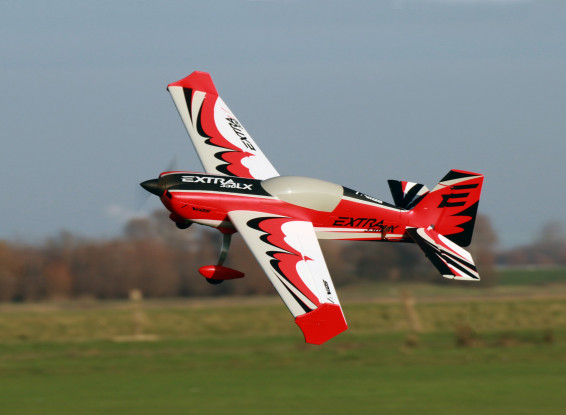

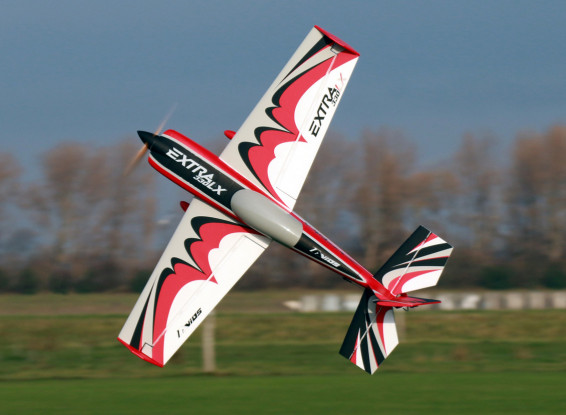

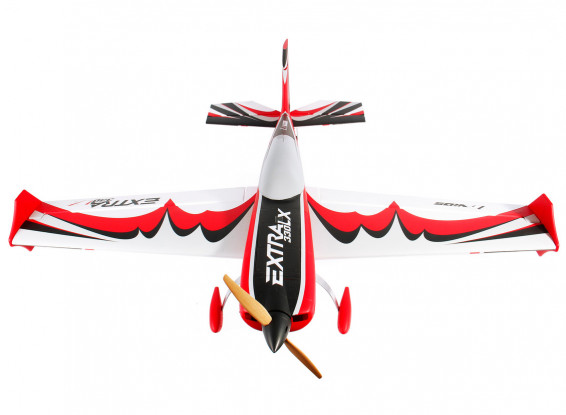

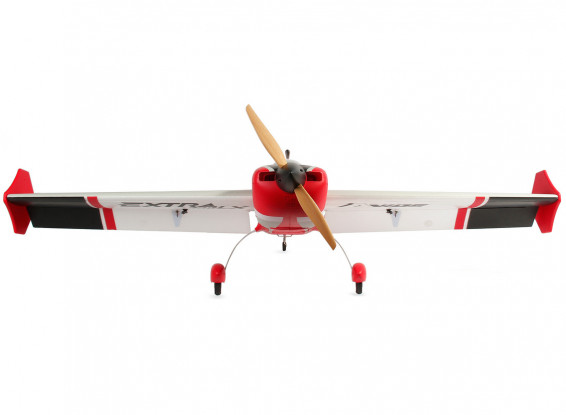

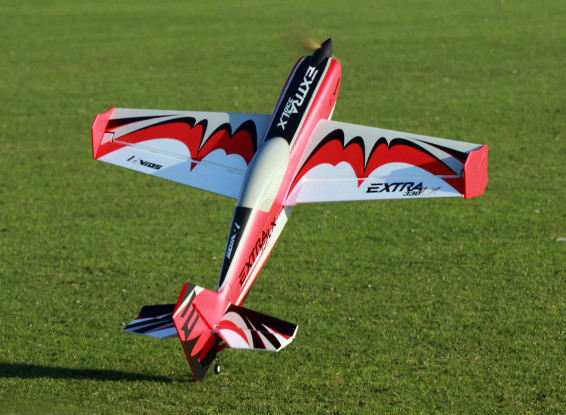

Pictures

Manual

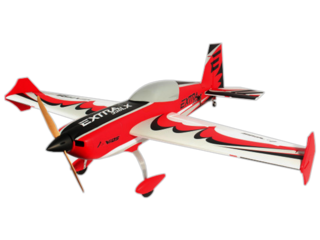

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Extra 330LX V2 in particular but at least we know they do distribute Avios.

Where to buy

Hong-kong
HobbyKing
check web site
Ship to: World

Wingspan: 1420mm (55.9 in)
Length: 1350mm (53.1 in)

Weight: 1950 g (4.3 lbs)
  • Wingspan: 1420mm (56")
  • Length: 1350mm (53")
  • Weight: 1950g (4.3lbs)
  • ESC: Aerostar 60A
  • Motor: 4248 600KV Brushless Outrunner
  • Servos: 4 x 25g high torque metal gear
  • Propeller: 14x7

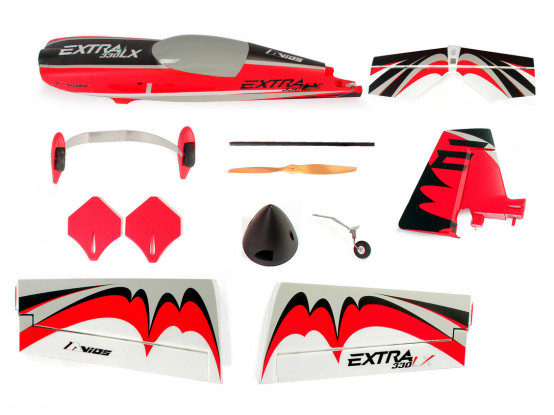

Supplied:

  • Avios Extra 330LX V2 EPO airframe
  • 4248-600KV brushless motor
  • 60A Aerostar brushless speed controller
  • 14x7 lightweight wood propeller and spinner
  • Main wheels and tailwheel assembly
  • Large diameter carbon wing joining tube
  • Complete hardware pack including horns, control rods, nuts, bolts, screws, etc

Required:

  • 4 Channel or more transmitter and receiver
  • 3000~4000mAh 4S LiPo battery 40C+ or 4S LiHV for stock set-up, 2700-3700mah 40C+ for option 5S set-up
  • 70~80A ESC for 5S set-up

Variants

9306000517-0
Extra 330LX V2 (Red Black White)
