Pavo25 from BETAFPV

Details

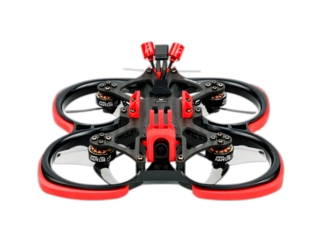

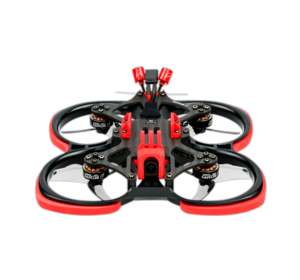

The Pavo25 Whoop Quadcopter is a 2.5-inch FPV pusher drone developed by BETAFPV. The new frame design optimizes its structure to decrease complex components and only requires 6 screws to assemble the whoop duct and drone, which is convenient to build. Made of high-quality PA12 material, it features a strong injected mold frame for durable use. What's more, it supports carrying many FPV cameras available in the market for FPV shots. Also, it adopts Caddx Nebula Pro Nano Vista Kit for the HD Digital version, and Caddx Baby Ratel2+A03 400mW 5.8G for the Analog VTX version. Pavo25 is the cinewhoop for you to fly both indoors and outdoors!

Features:

  • Only 6 screws to assemble the whoop duct and drone, convenient to build. The Pavo25 whoop quadcopter sports a reasonable design of structure assembly that is optimized to decrease complex components, making the build easy.
  • Equipped with a CNC Vista Adapter. It effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, ensuring a flight in a safe VTX RF power, especially which is important for long-distance flight.
  • The Pavo25 whoop quadcopter adopts an innovative pusher frame with a duct design, which generates more lift for the whole quadcopter, improving the ability of endurance and propulsion.
  • Made of high-quality PA12 material and 2.5mm carbon fiber. With a strong and durable frame kit, the Pavo25 whoop quadcopter grants more stable flight and optimizes the vibration damping structure for the camera mount, allowing pilots to get an excellent experience.
  • User-friendly designs. The USB port on the top of the frame makes it convenient to configure the quadcopter. Pavo25 whoop quadcopter features a rear LED with colorful lights, giving a cool and visual performance in the dark.
  • Balance layout for the whole quadcopter. When carrying an action camera like SMO 4K, or DJI Action 2, you can move the battery position and add the second battery strap to keep the center of gravity, preventing it from tilting to one side.
  • The HD digital VTX version boasts a colorful and excellent image with 720P/120FPS high frame rate video in Nebula Pro Nano camera, bringing the feast for the eyes.
  • The Analog VTX version comes with a Caddx Baby Ratel2 camera that has a 1/18" inch starlight HDR sensor with 1200TVL resolution, and A03 400mW VTX which is an open-source video transmitter with PIT/RCE/100mW/400mW adjustable output power.
  • Walksnail HD VTX version equips with Walksnail Avatar HD Kit. Provides 1080P recording with 22ms ultra-low latency. Dual-antenna design for up to 4 km long-range transmission. Build-in 8 GB storage, it is convenient for recording video and can be exported by USB cable. Supports Betaflight full OSD display through Canvas Mode on Avatar VTX.

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Pavo25 in particular but at least we know they do distribute BETAFPV.

Where to buy

France
Studio Sport
check web site
Ship to: Europe
Hong-Kong
Banggood
check web site
Ship to: International
China
AliExpress
check web site
Ship to: Worldwide

Wingspan: 108mm (4.3 in)
Length: 108mm (4.3 in)

Weight: 153 g (5.4 oz)
  • Weight: 153.3g (Caddx HD), 146g (Walksnail HD), 140g (Analog), Without battery and action camera
  • Wheelbase: 108mm
  • Frame: Pavo25 Frame Kit
  • Motor: 1404 4500KV Brushless motor
  • Battery Connector: XT30
  • Props: Gemfan D63-3B (Gray)
  • Flight Controller: F405 AIO 20A Toothpick V4 BMI270
  • VTX: Caddx Nebula Pro Nano Vista Kit (HD Digital)/Caddx Baby Ratel2+A03 400mW 5.8G (Analog), Walksnail Avatar HD Digital Kit (HD Digital)
  • Camera Adjustable Angle: 0°-50°
  • Receiver Version: PNP/ELRS 2.4G/TBS (Optional)
  • Recommend Battery: 4S 750mAh/4S 850mAh (Not included)
  • Recommend Mounted Cam: SMO 4K, DJI Action 2
  • Flight Time (Reference Only): 7.5 mins (HD)/8.5 mins (Analog), using 4S 750mAh battery without an action camera

Variants

pavo25
Pavo25 (Black Red)
