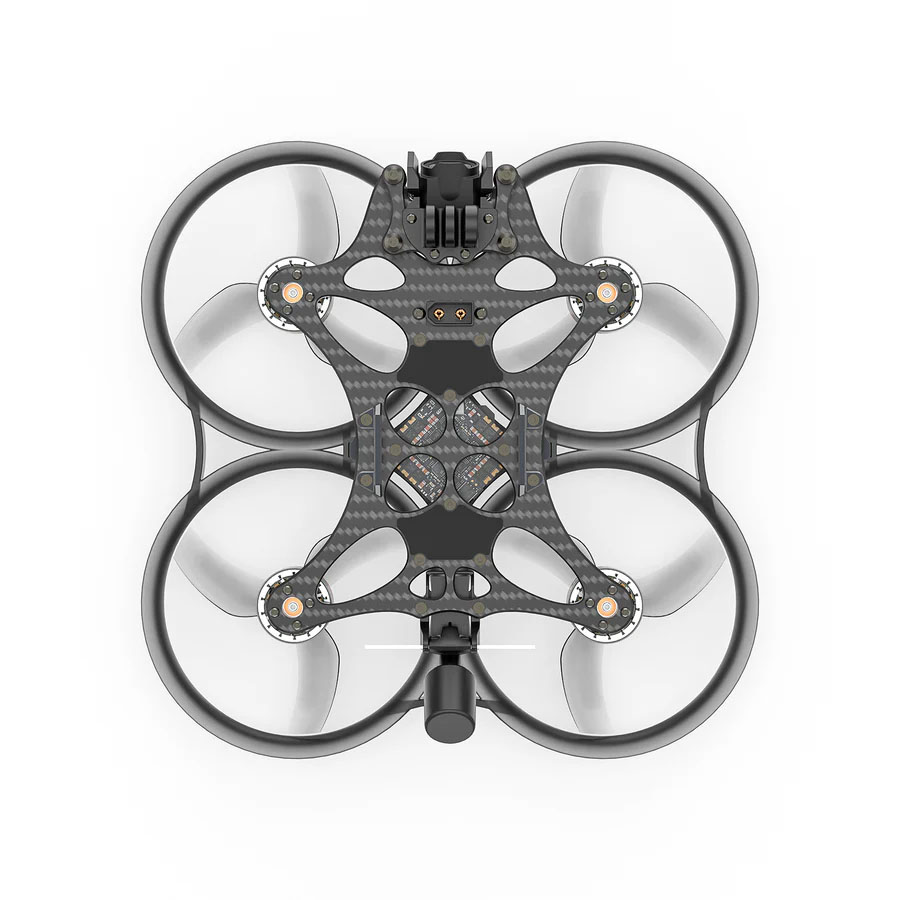

Pavo35 from BETAFPV

Details

Pavo35 is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 400g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Standard Action Cams. The new powerful propulsion system, boosts computational power for up to 12 minutes of flight time, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 3.5" cinewhoops.

Pavo35 whoop duct can enhance an additional 400g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.

Features:

  • With a 9:4:1 Trust-to-weight Ratio, it is a quad that can be compared to the power of a 5" quad. 12 minutes of flight time ensures the pilot flies and captures maximum footage in one go.
  • The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
  • Rocket engine-inspired duct design improves lateral stability and increases thrust by 400g compared to without a propeller guard, giving the Pavo35 stronger power and a better flying feel.
  • The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
  • It offers exceptional mounting capabilities and supports not only DJI O3, Walksnail, and HD VTX installations but also works seamlessly with standard action cameras such as GoPro 12, DJI Action 4, and Insta One R.
  • F722 35A AIO Brushless Flight Controller comes with an F722 chip this board provides a great performance capability and high processing speed of up to 128k PWM frequency,

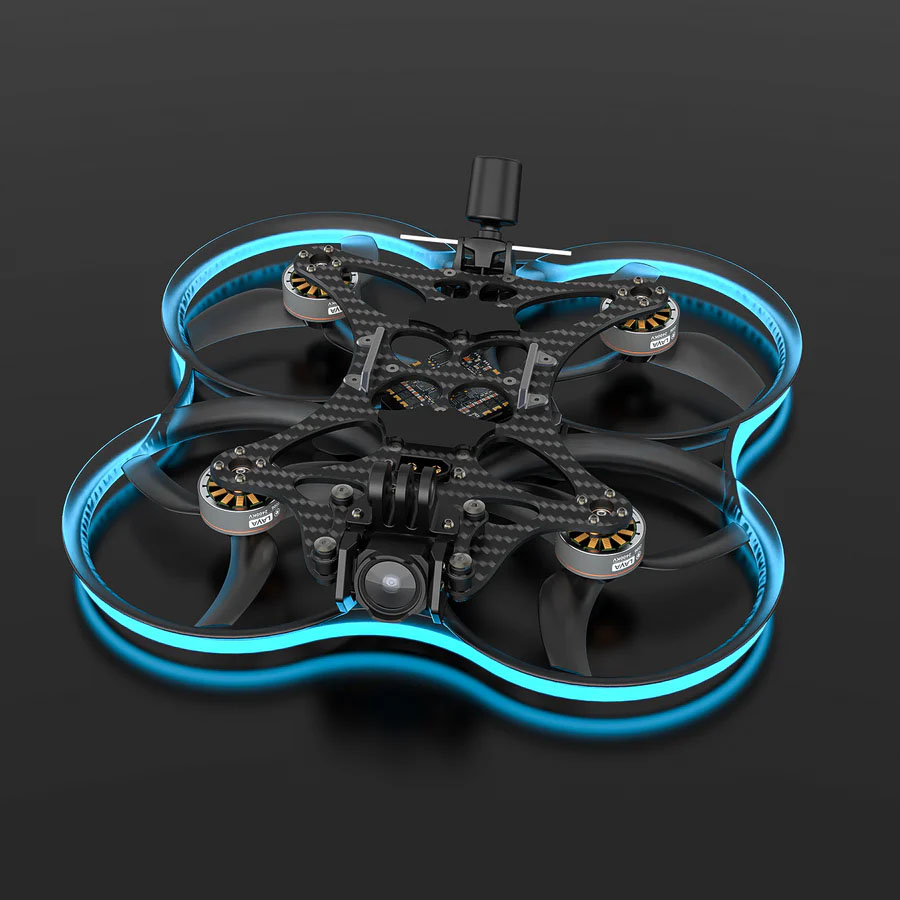

  • The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.



Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 148mm (5.8 in)
Length: 148mm (5.8 in)

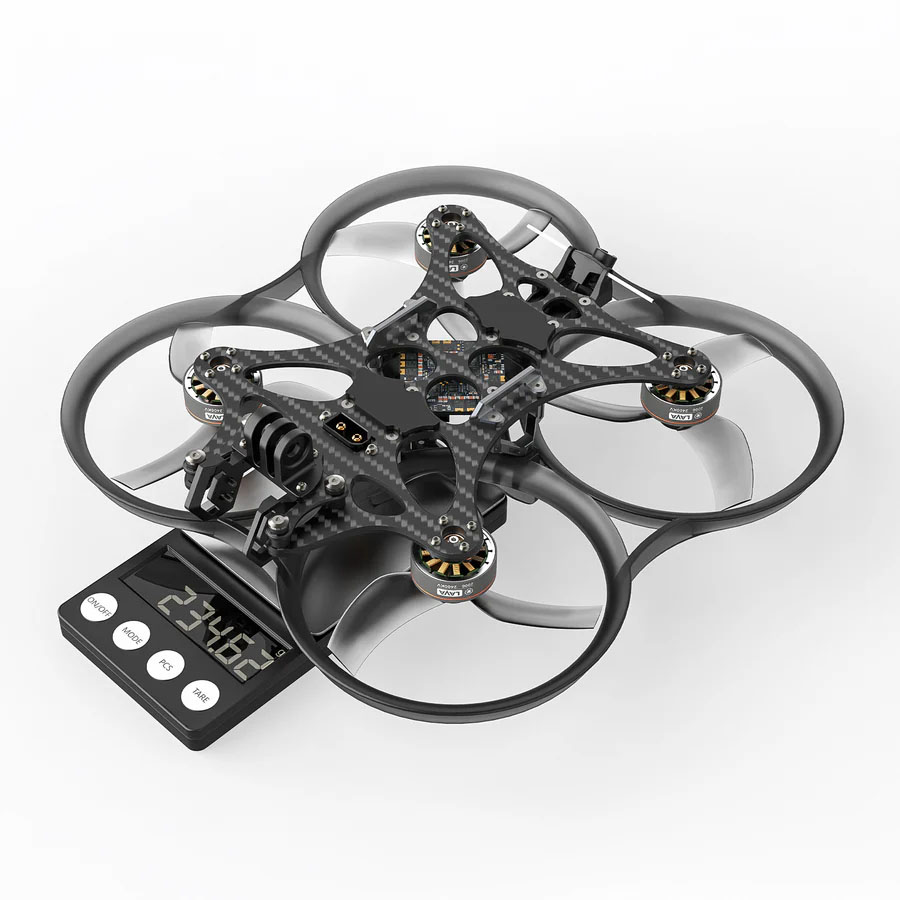

Weight: 275 g (9.7 oz)
Wheelbase 148mm
Motor 2006 | 2400KV
Props GF D90S-3
Battery Connector Fixed XT60
Weight(excluding DJI O3 Air Unit, Battery) 238g
Weight(including DJI O3 Air Unit) 275g
Battery 6S 1050mAh~1400mAh
Flight Time 10~12 mins
Recommend Camera GoPro12, DJI Action4, Insta One R
FC F722 35A AIO V2
Support VTX DJI O3 Air Unit
Walksnail Avatar HD Pro Kit
Caddx Vista Kit/RUNCAM Link
Analog camera
Support Camera DJI O3
Avatar HD Pro
Caddx, RUNCAM series 19mm&20mm HD
Analog 19mm
RX Version ELRS, TBS
Camera Mount GoPro Mount


Recommended Parts

  • FC: F722 35A AIO V2
  • Motor: LAVA Series 2006 Brushless Motors
  • Propellers: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
  • Battery: LAVA Series 6S 1100mAh LiPo Battery
  • Battery Strap: Pavo Series Battery Strap(2PCS)
  • Filter: BETAFPV ND Filter for DJI O3 Camera
  • VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog
