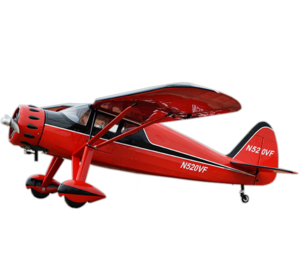

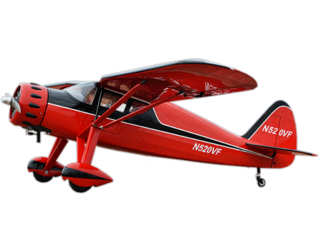

BH177-Fairchild 24W from Black Horse Model

Details

Designed for operations from relatively unimproved grass airfields, the sturdy undercarriage construction used a vertical oil dampened cylinder above the wheel with a pivoting strut attached to the lower fuselage. The result was a complex but robust undercarriage that could absorb the large loads imposed by rough field operations and could be adapted for the fitting of twin floats for water-based operations.

The model is scaled to approximately 1:4.7 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 30-35cc displacement.

Features:

  • High level of prefabrication right out of the box
  • Lightweight, strong, and scale open structure laser cut balsa and plywood construction
  • Covered in high quality Oracover
  • Heavy-duty pin hinges on all control surfaces
  • Pre-drilled hinge mounting holes
  • Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
  • Painted and detailed dummy radial engine, cockpit and interior included
  • Fiberglass control horns with ball link connector
  • comprehensive control and fitting accessories included
  • Two-piece, plug-in wings simplify transportation and assembly
  • Fiberglass cowl and glass reinforced landing gear covers/pants
  • Mounts for both electric and gas power options included
  • Fully illustrated instruction manual included and also available for download (see tab above)



Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2357mm (92.8 in)
Length: 1610mm (63.4 in)

Weight: 7000 g (15.4 lbs)

Wingspan: 2,357 mm (92.79 in).
Length: 1,610 mm (63.38 in).
Weight:  7 kg (15.4 lbs).
Wing area: 78.1 dm²
Wing loading:  89.62 g/dm²
Servo mount: 42mm x 21mm.
Wing type: Naca Airfoil.
Spinner: scale type (not included).
Main gear type: Oleo struts, for tail gear (included).
