P-47 Thunderbolt 80" from Black Horse Model

Details

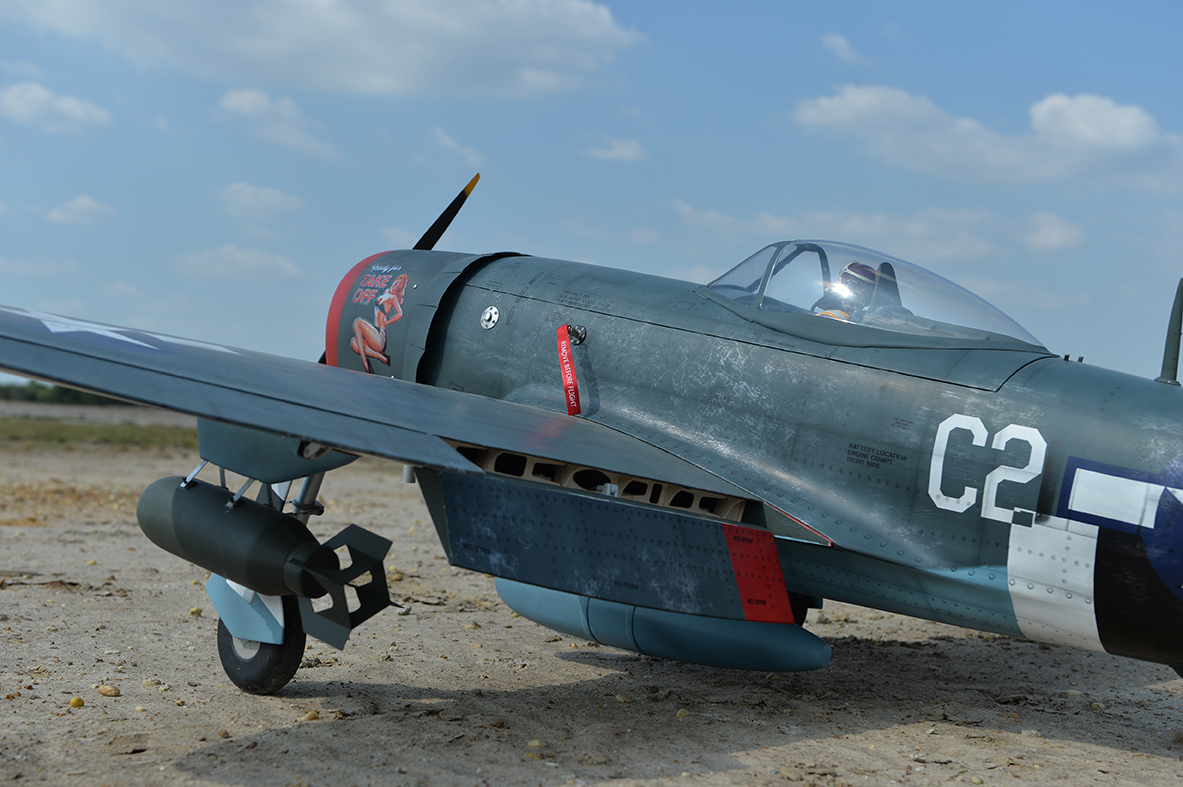

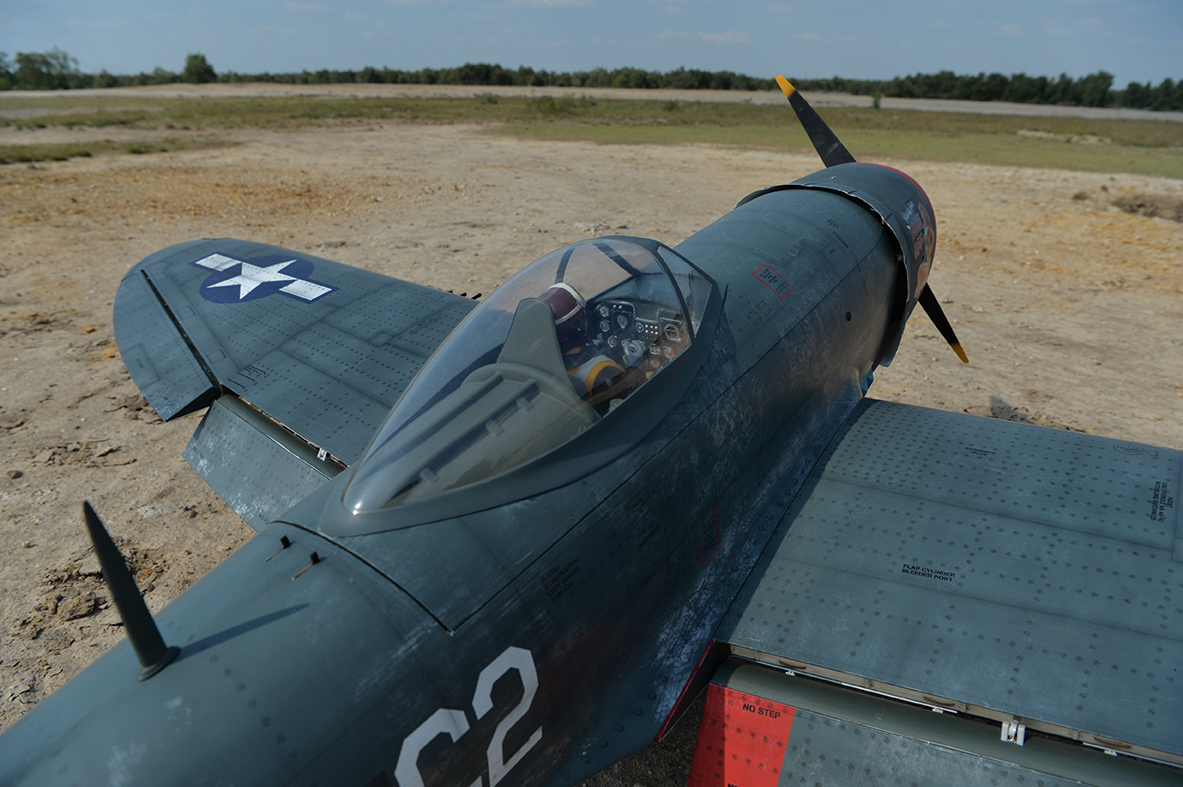

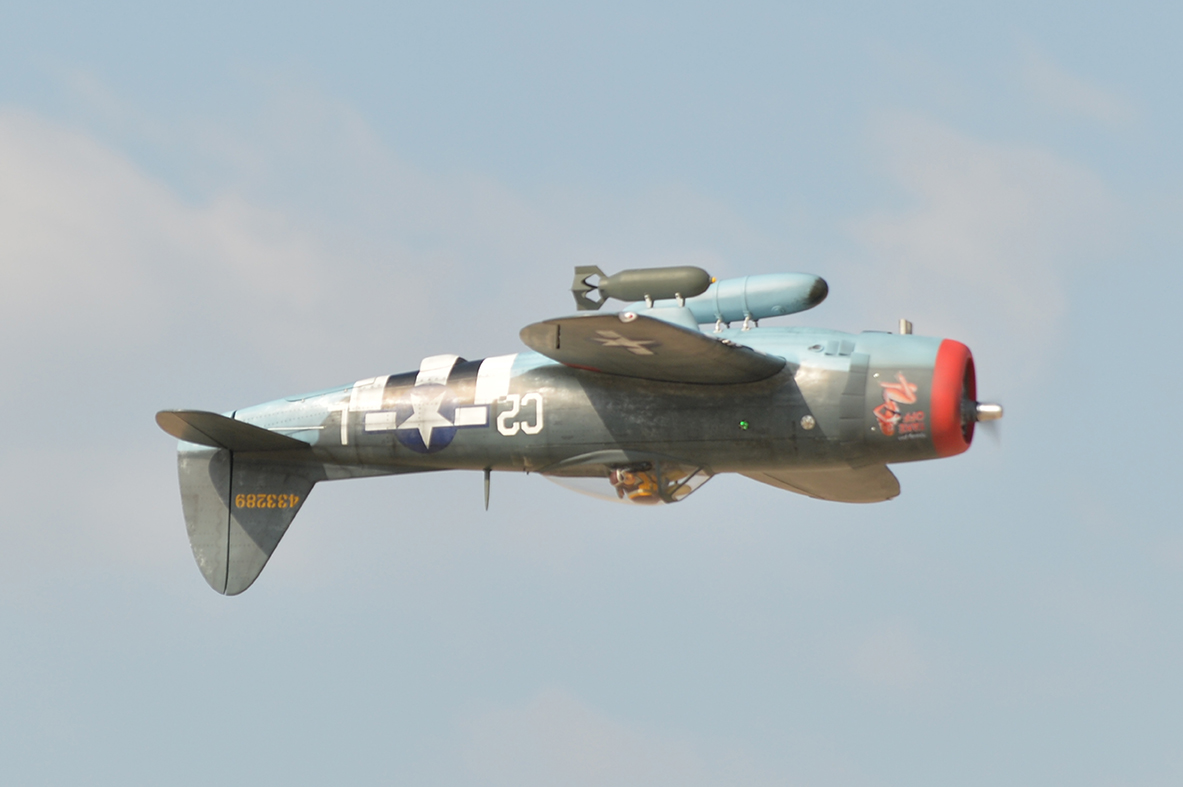

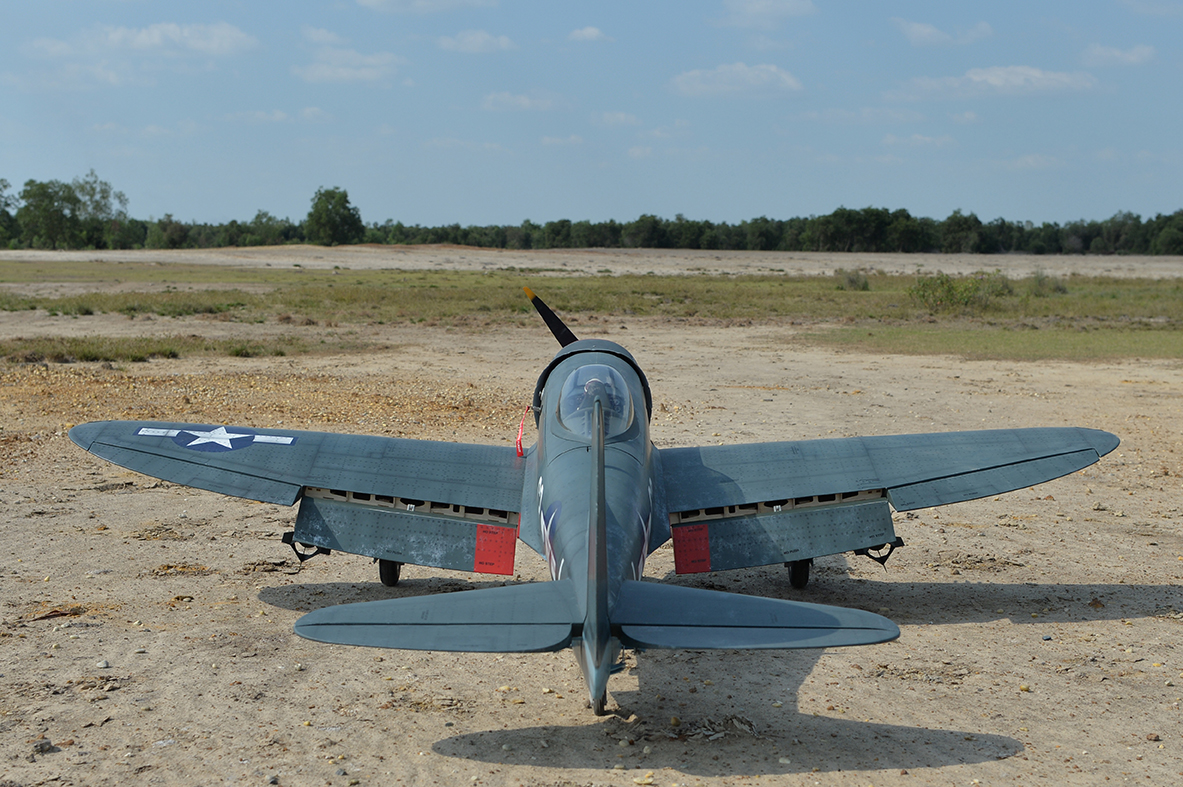

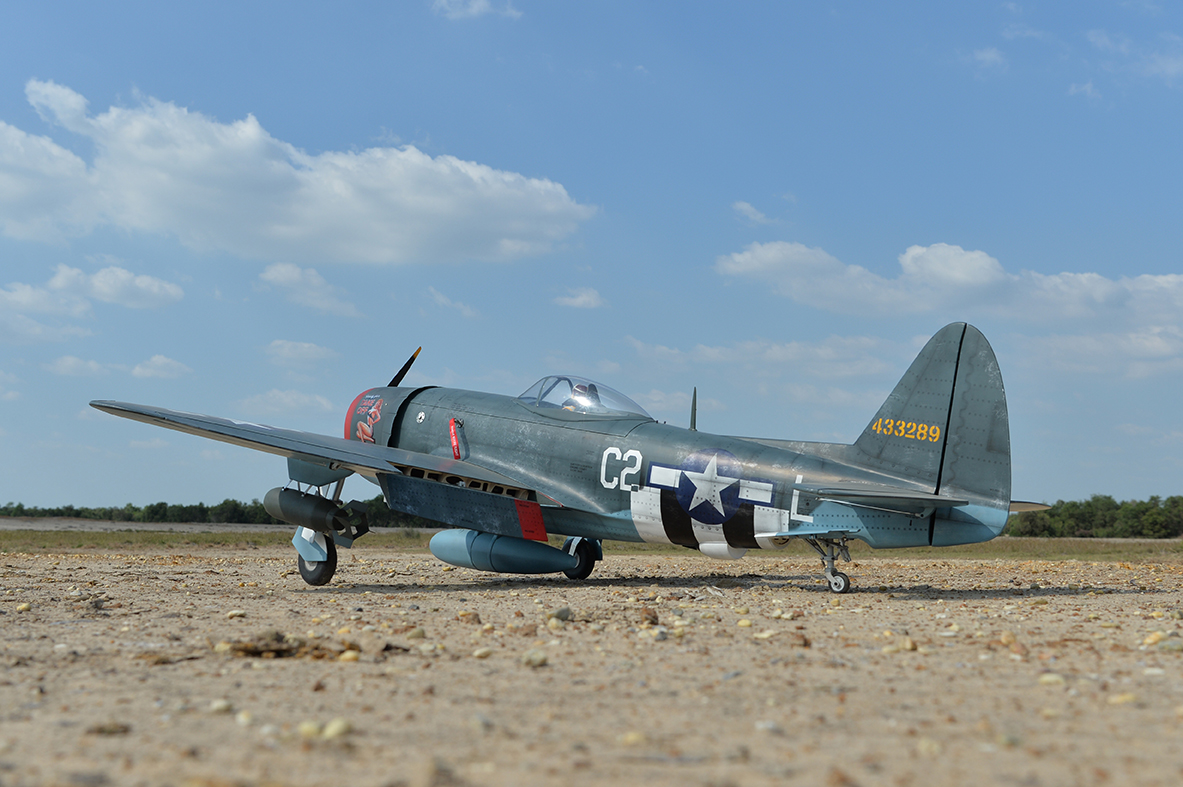

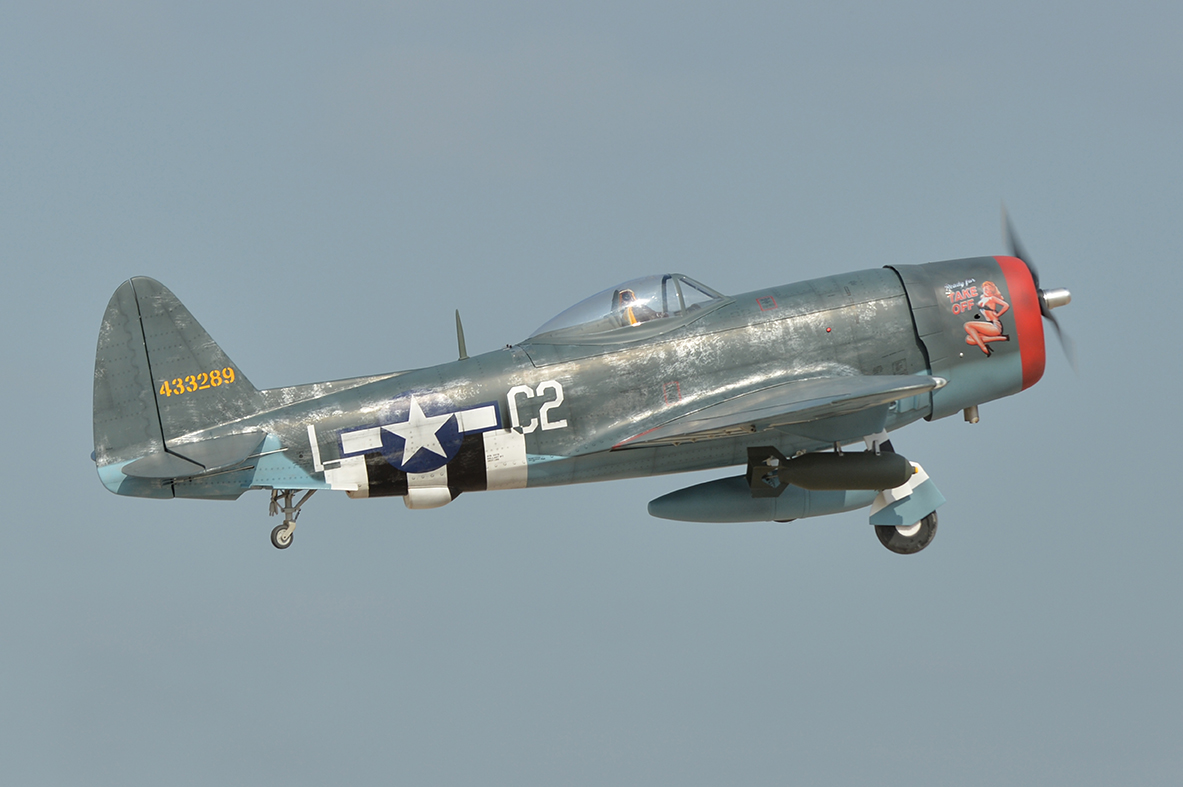

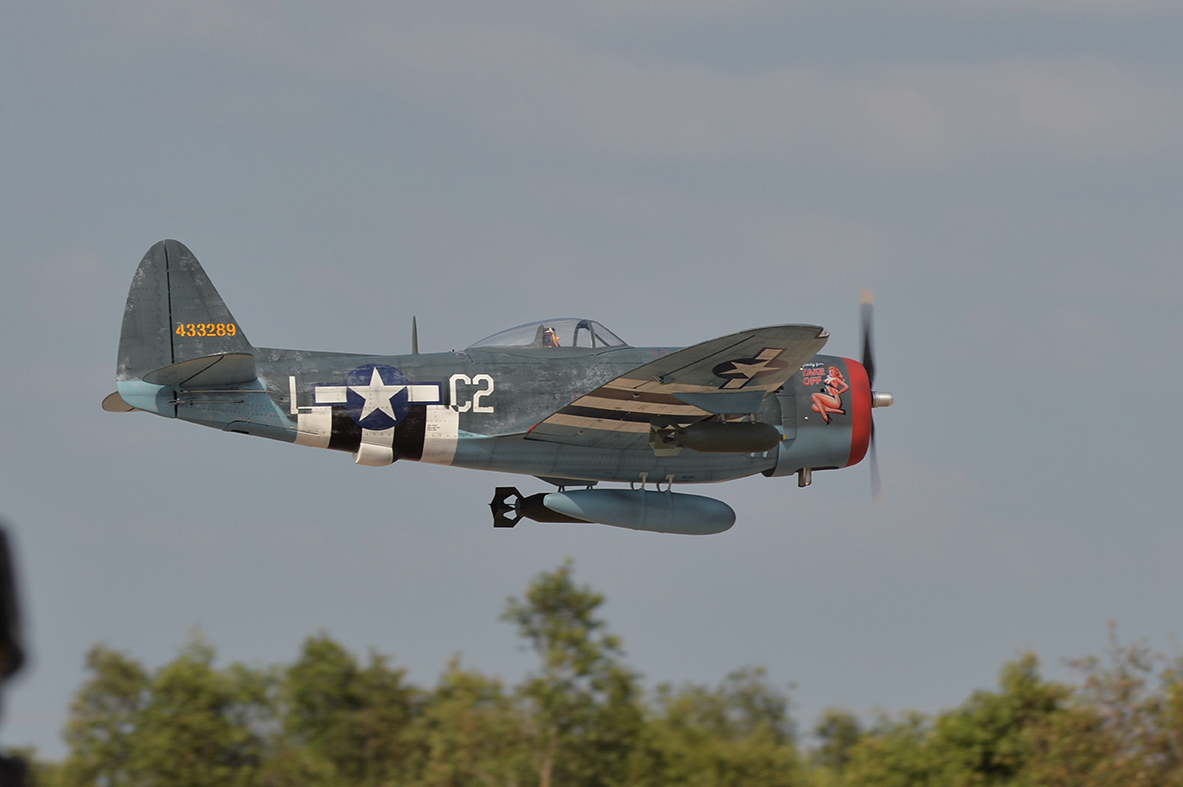

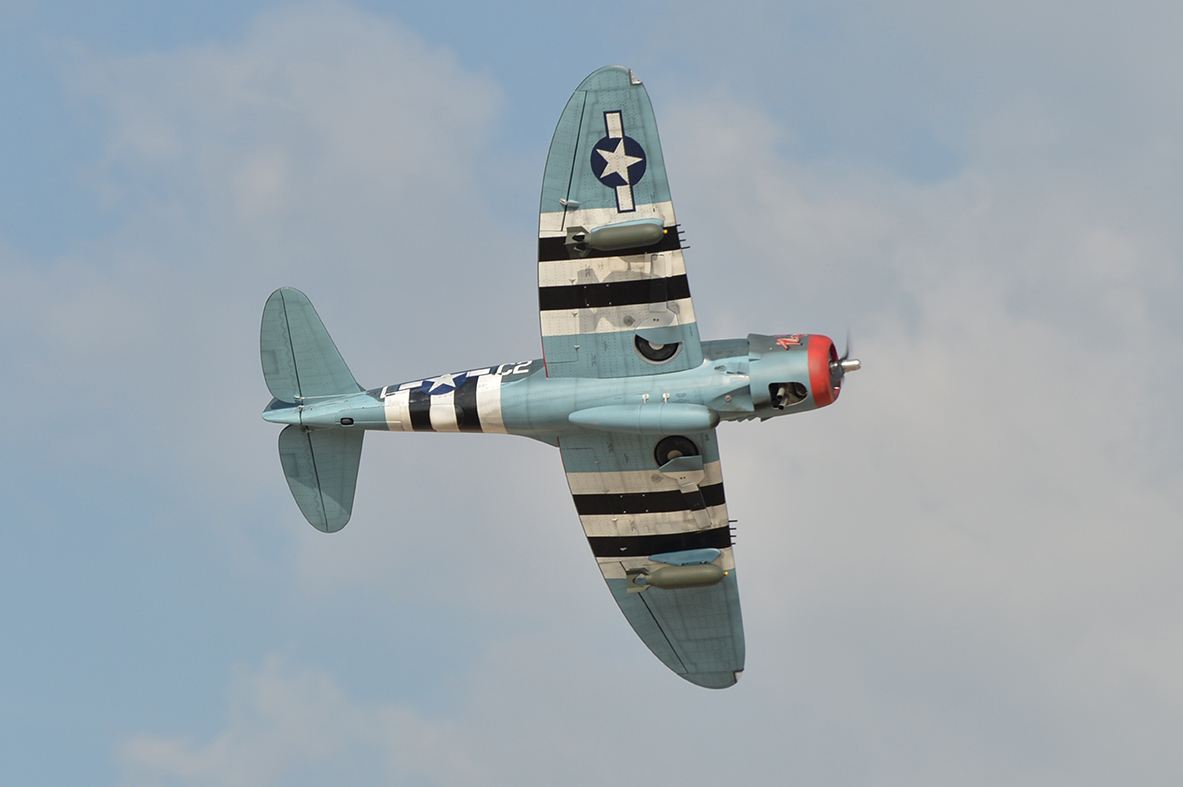

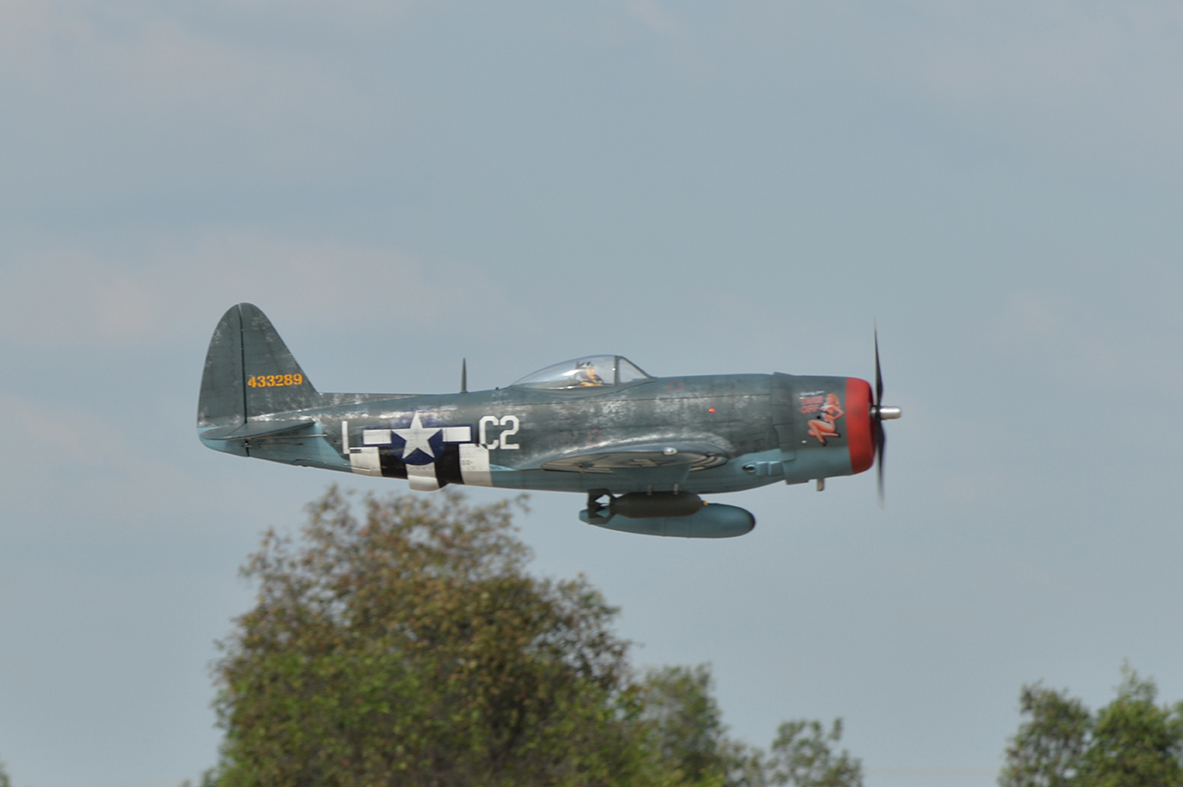

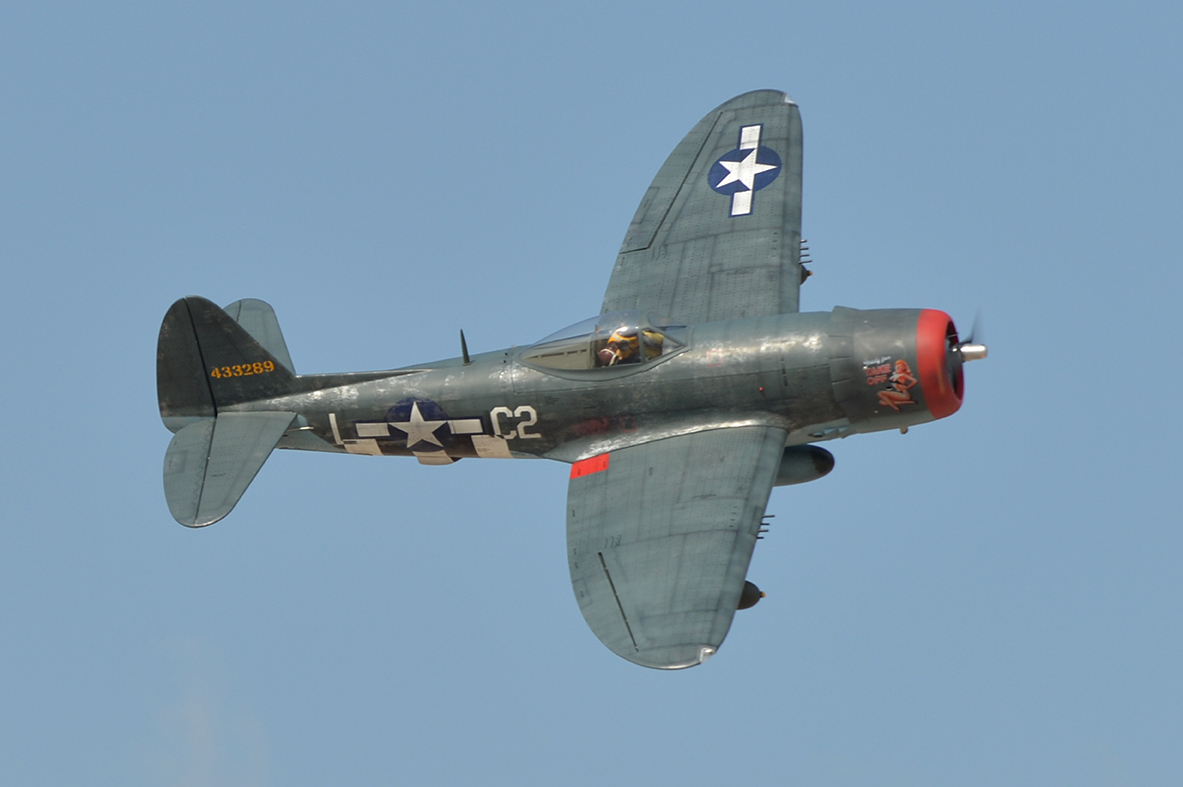

P-47 THUNDERBOLT 60cc gas Magnificent Warbird ARF that can be fitted with a thermal or electric motor. Structure in high quality balsa and plywood, laser cut assembled. Interlining with a mat finish and ultra-realistic aging taking on a real livery of the P-47.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2075mm (81.7 in)
Length: 2259mm (88.9 in)

Weight: 11000 g (24.3 lbs)
  • Wingspan: 2,075 mm  (81.7 in).
  • Length: 2,259 mm (88.9 in).
  • Weight: 11 kg (24.2 lbs).
  • Wing area: 96.47 dm²
  • Wing loading: 120 g/dm²
  • Wing type: Naca Airfoil.
  • Servo mount: (42 x 21) mm.
  • Spinner: P-47 style (not included).
  • Main gear type: Electric retract gear with oleo struts for main gear(included).
  • Tail gear type: Electric gear with CNC suspension metal struts (included).

Parts listing required (not included):

  • Radio: minimum 7 channels.
  • Servo: 08 servos. Standard high torque servos.
  • Engine: 50 – 60cc Gas.
  • Motor: Brushless outrunner 5000 –  6500W, 230KV.
  • Propeller: Suit with your engine.

Recommended receiver battery (not included):

  • Motor:  RIMFIRE. 50 cc.
  • Lipo cell: 12 cells 5500 – 6000mAh.
  • Receiver battery: 6.0V-7.4V, 2600-3200mAh (3 Packs).
  • ESC: 120A.
