Fusion 180 from Blade

Details

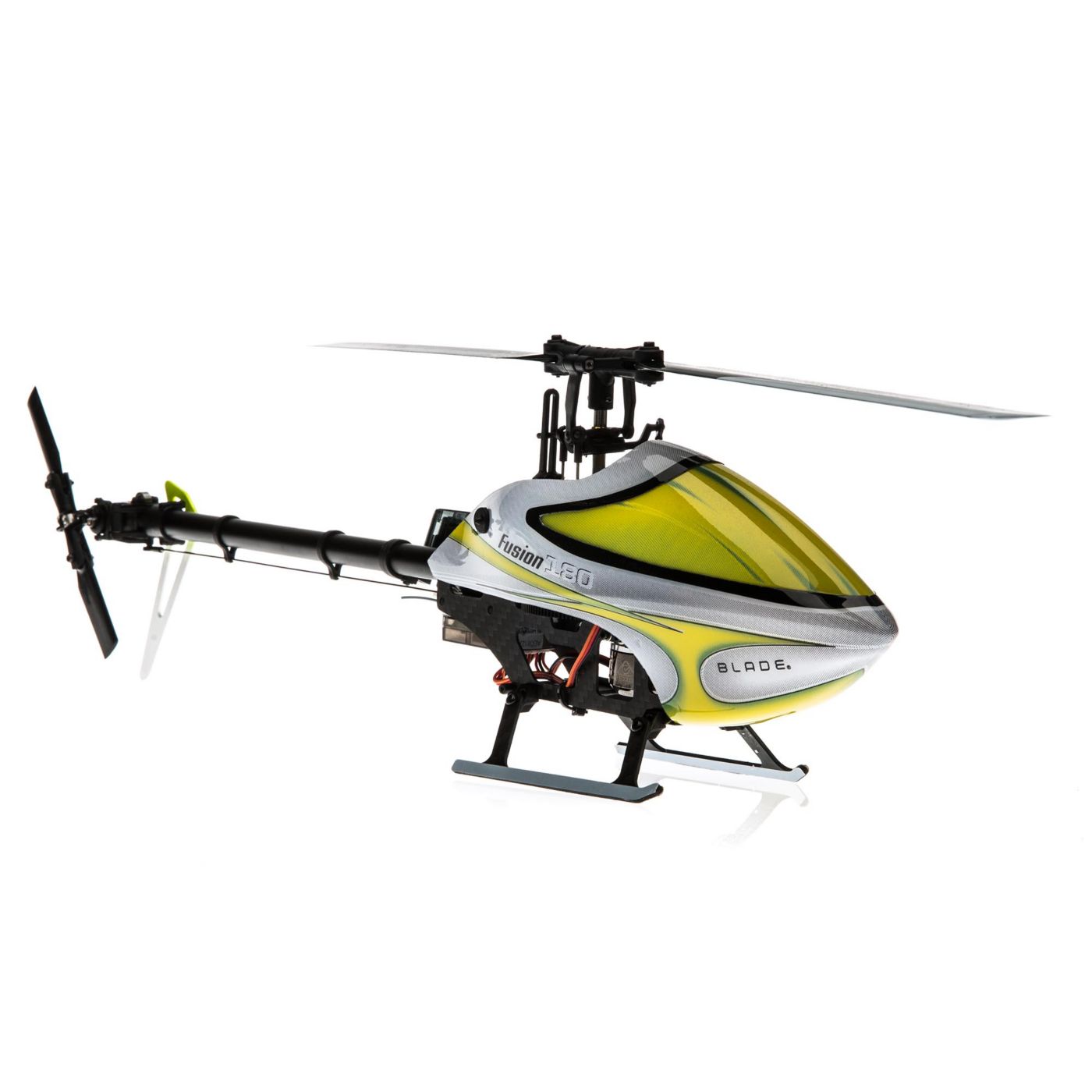

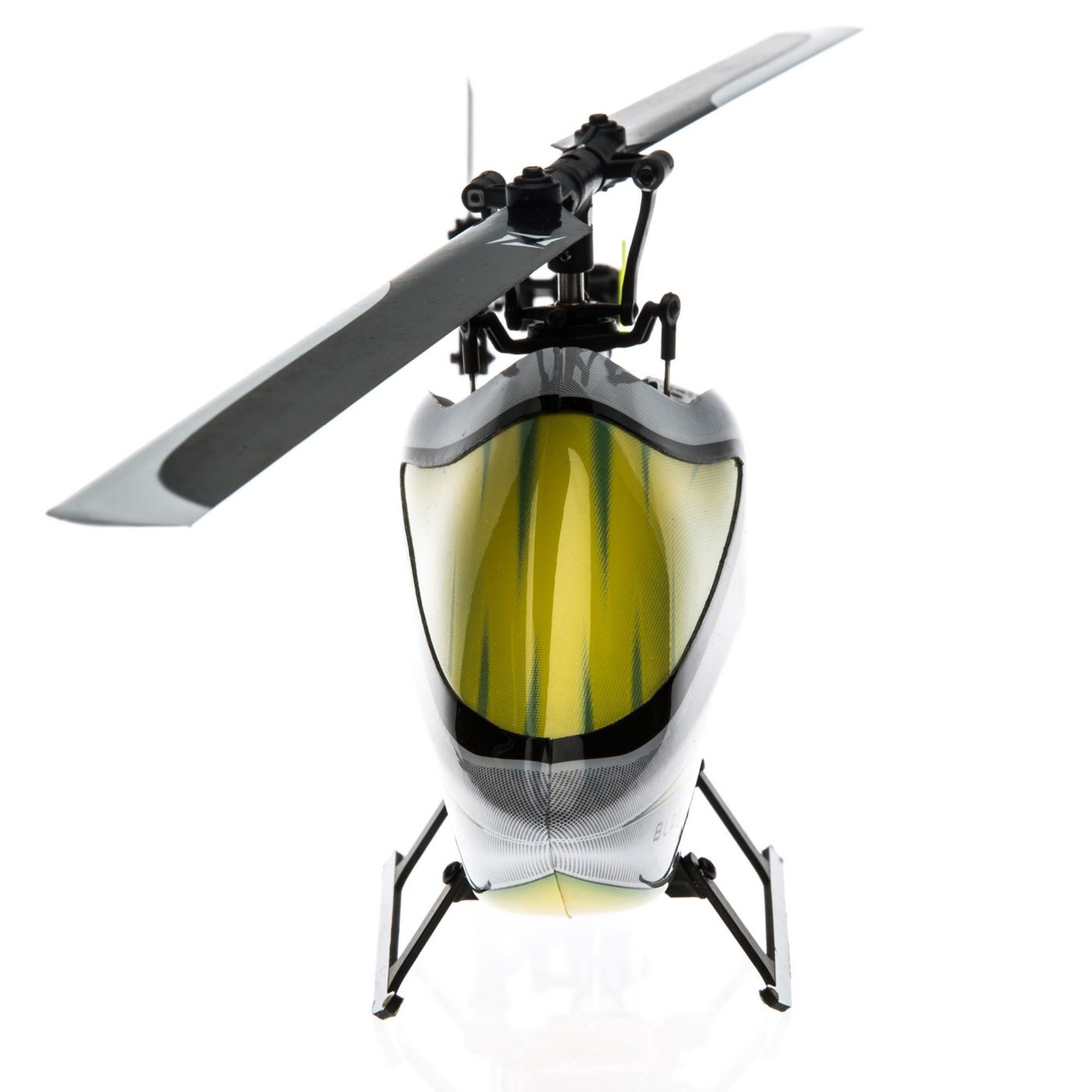

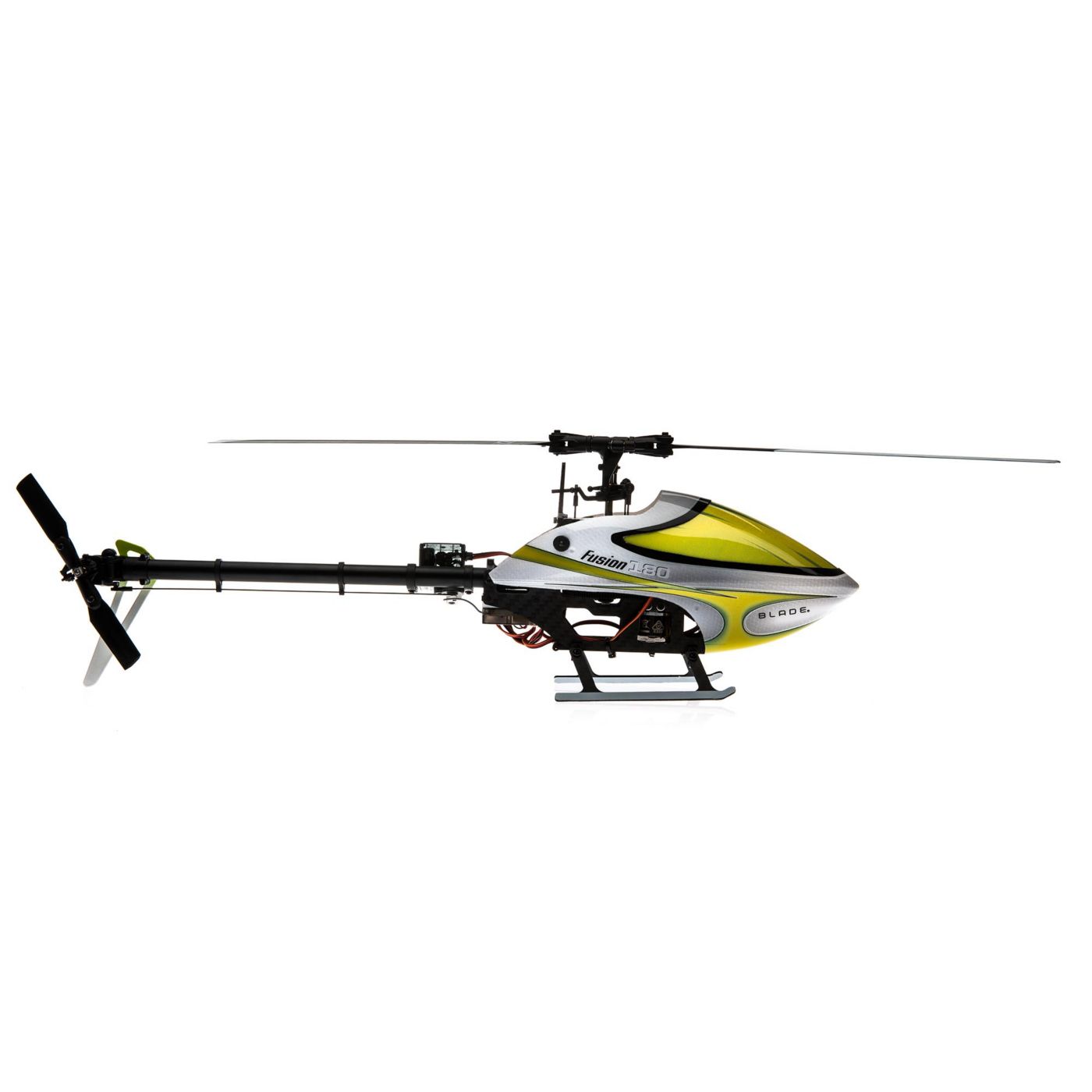

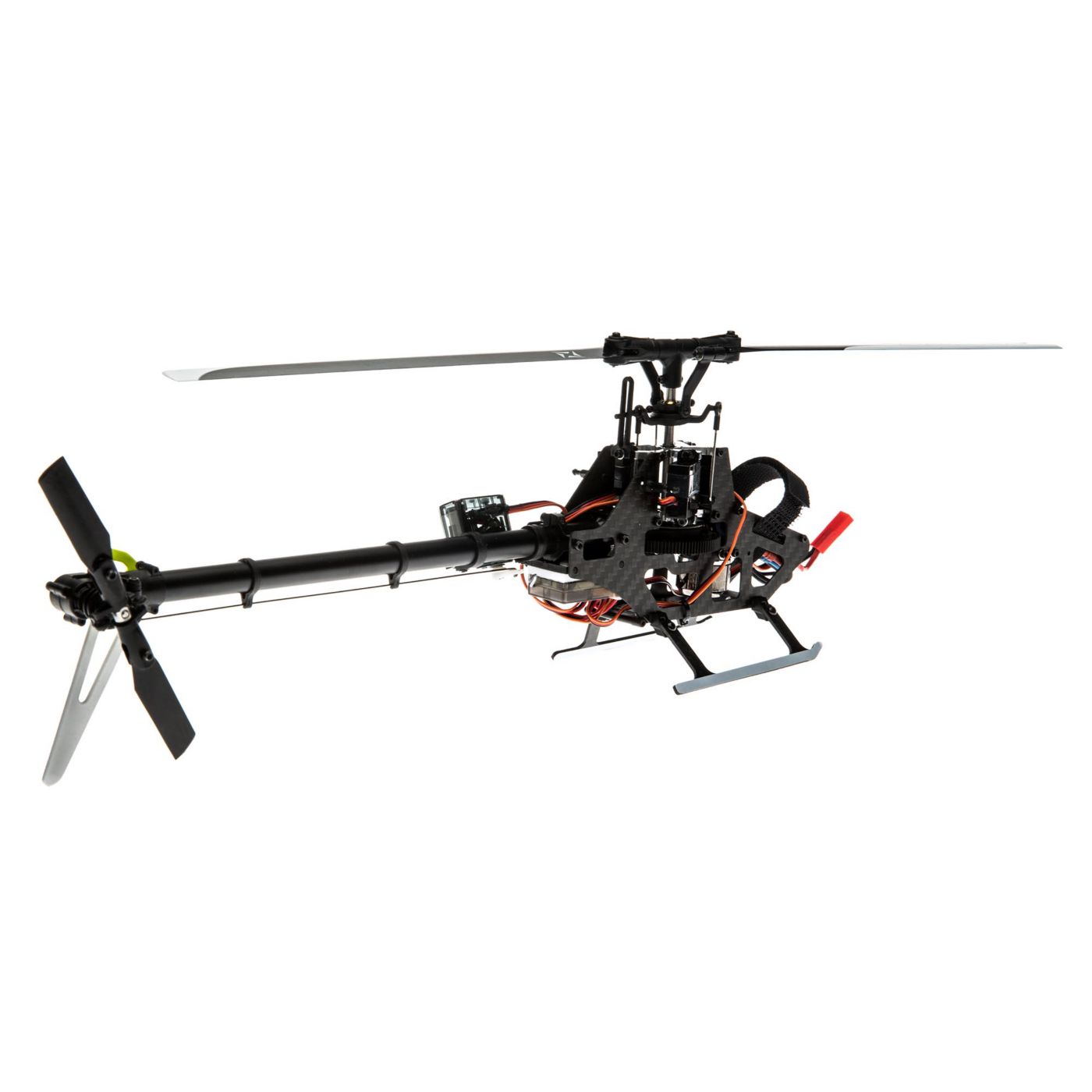

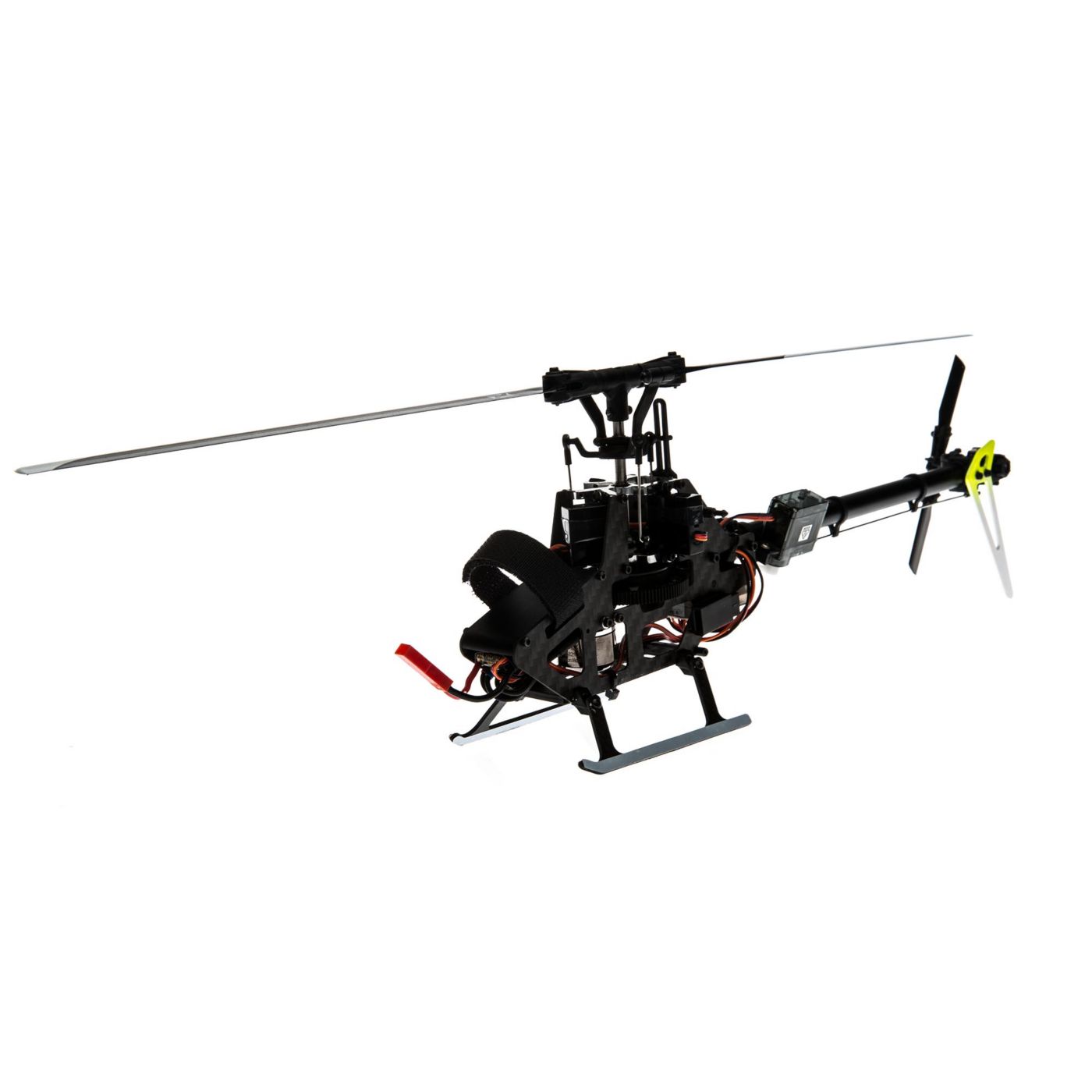

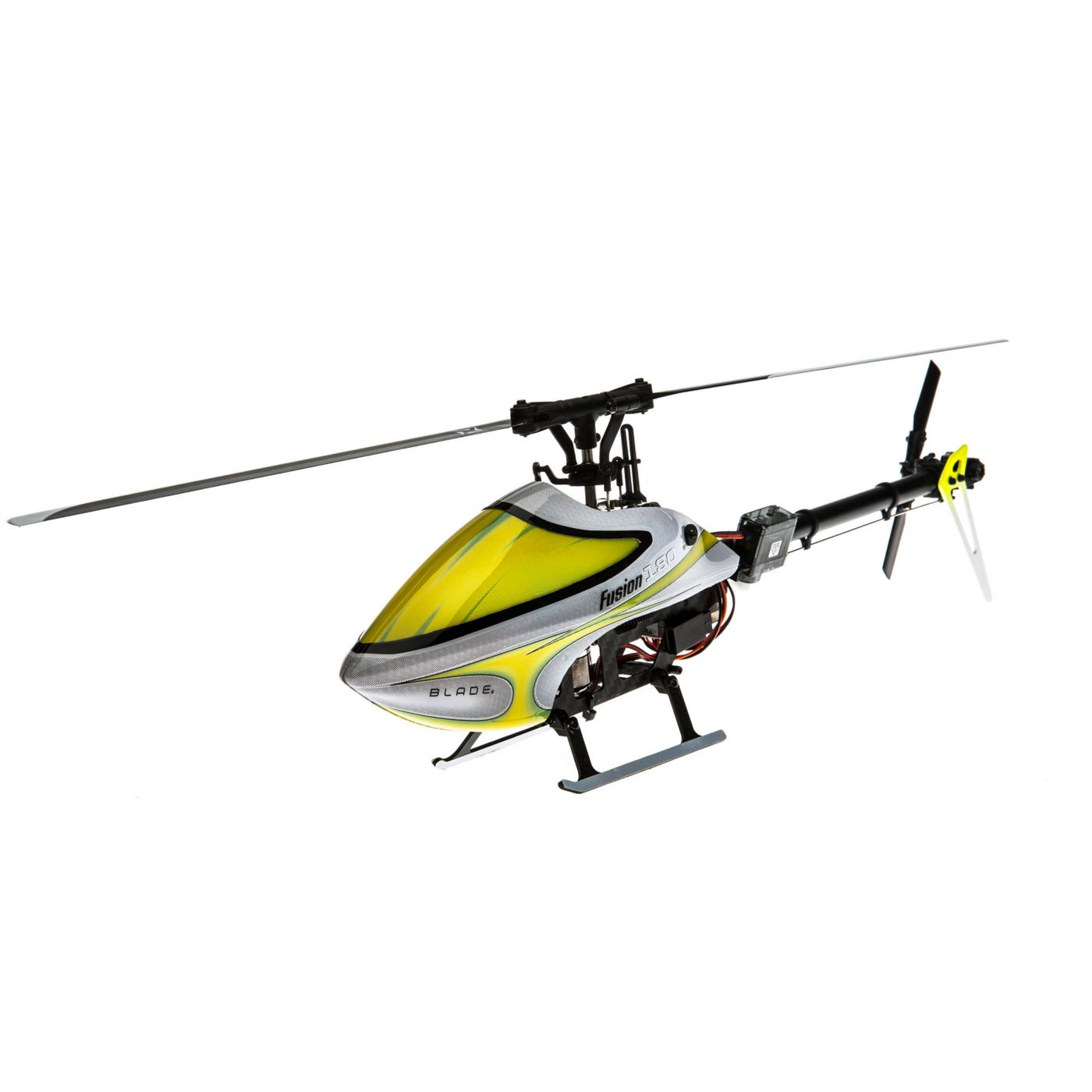

The Blade® Fusion™ 180 is the high performance 3D machine that's ready to tear up the backyard. The Fusion styling revision adds a redeveloped lightweight and extremely rigid carbon fiber main frame. Plus, the new belt-driven tail and newly developed tail case improve tail performance and overall durability. Hosting this new belt is an over-sized tail boom large enough to eliminate the need for boom supports. With this new tail design, the tail servo has moved to a more discrete location mounted to the tail.

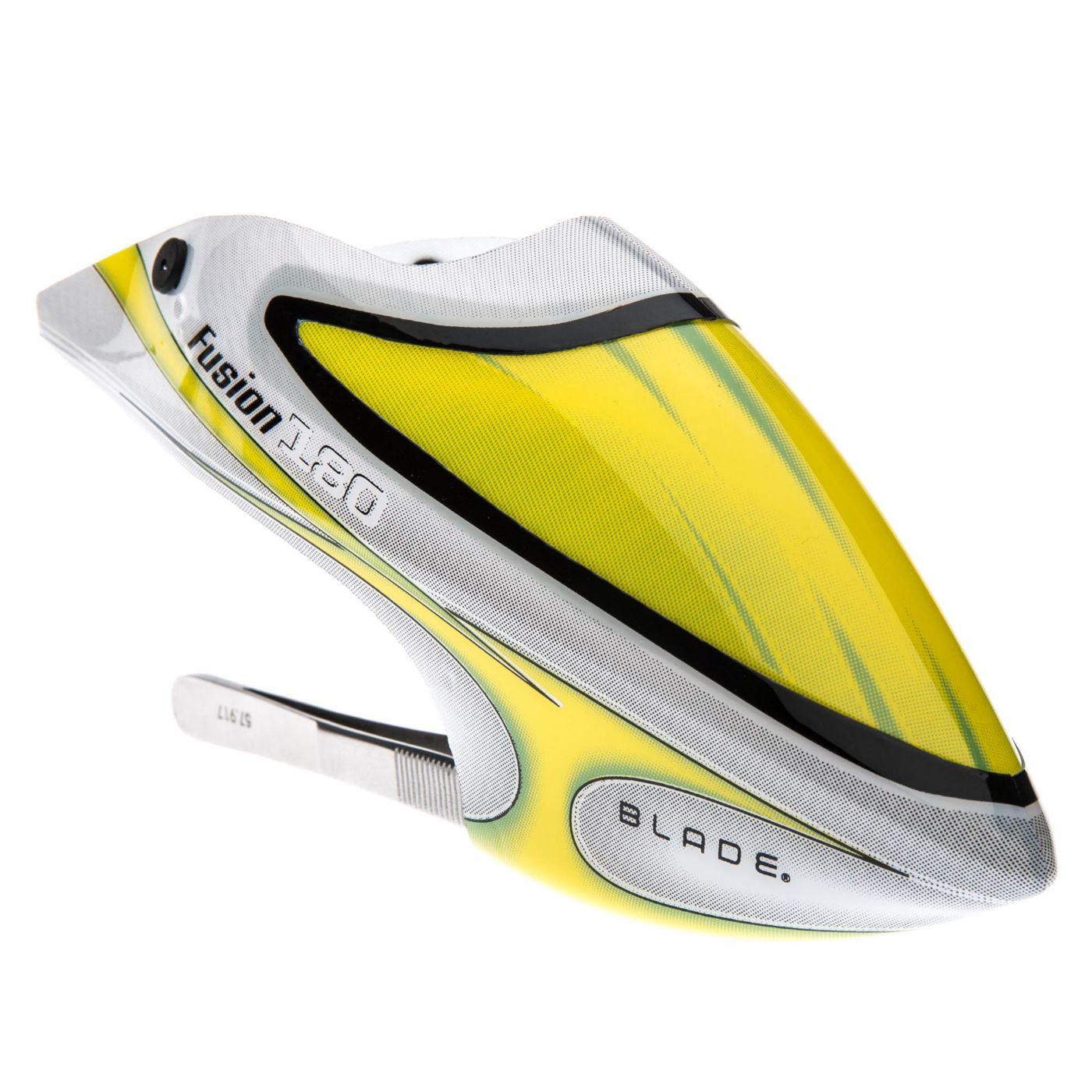

Optimized servo geometry greatly reduces mechanical loss and improves control efficiency to the swashplate. Driven by Spektrum™ metal gear servos, pilots are sure to appreciate the precise control. Painted carbon fiber tail fin finishes off the sleek styling of the Fusion redesigned canopy. A new 20 Amp ESC offers improved, precise head speed control for that high performance flight that doesn't lag behind. With BNF® Basic convenience, all you have to do is add a 4S 450mAh battery, bind your 6+ channel Spektrum DSMX® transmitter, and you're off to hit all the hurricanes, tic-tocs, and detonators in your arsenal.

Features:

  • BNF Basic Convenience
  • Spektrum™ High-Speed Metal Geared Servos
  • Carbon Fiber Construction
  • Redefined Brushless Power System
  • Optimized Servo Geometry
  • 20A 4S ESC
  • Belt Driven Tail
  • High Visibility Canopy

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)

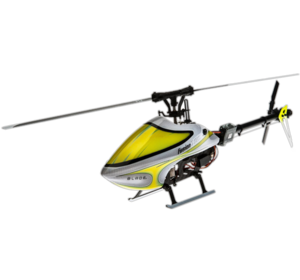

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ

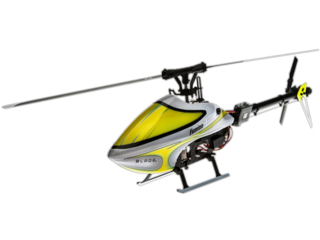

Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Fusion 180 in particular but at least we know they do distribute Blade.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Schweighofer AT
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Switzerland
ModellMarkt24
check web site
Ship to: Europe

Wingspan: 412mm (16.2 in)
Length: 370mm (14.6 in)

Weight: 240 g (8.5 oz)
Approximate Flight Time: 3-4 minutes
Battery: 4S LiPo 400 - 500mAh (sold separately)
Canopy/Body Material: Plastic
Channels: 6-channel radio (sold separately)
Completion Level: Bind-N-Fly Basic
Flying Weight: 8.46oz (240g)
Height: 4.9" (125mm)
Length: 14.6" (370mm)
Main Blade Material: Plastic
Main Frame Material: Carbon
Main Motor Type: Brushless
Main Rotor Blade Length: 7.1" (180mm)
Main Rotor Diameter: 16.2" (412mm)
Main Rotor Head Type: Collective pitch (CCPM) flybarless
Servos: Two
Skill Level: Level 3
Swashplate Type: 120 degree CCPM
Tail Blade Material: Plastic
Tail Drive: Belt
Tail Motor Type: None, tail is belt driven
Tail Rotor Blade Length: 1.4" (36mm)
Tail Rotor Diameter: 3.9" (100mm)
Width: 2.4" (60mm)

Variants

BLH5850
Fusion 180 (White-yellow)
