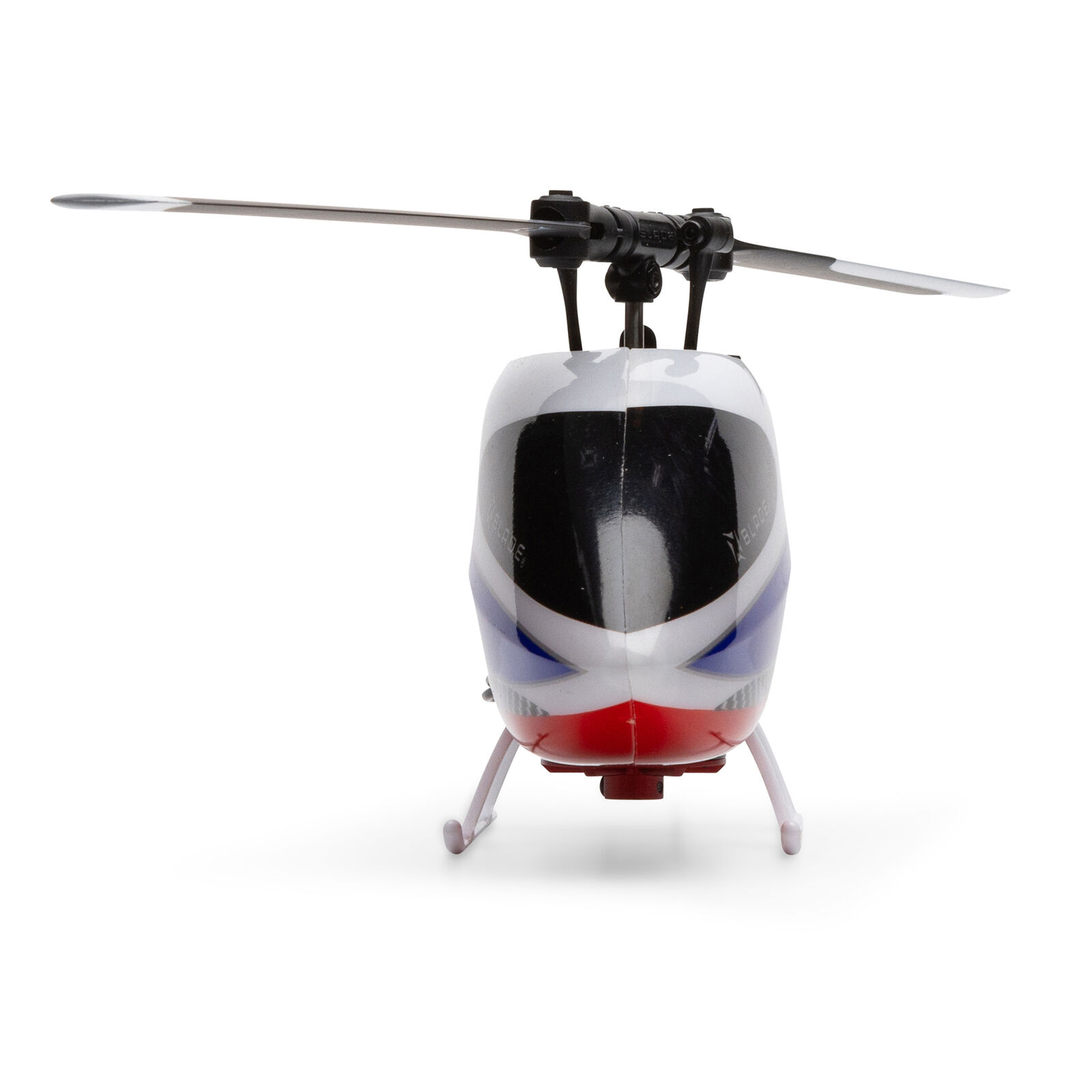

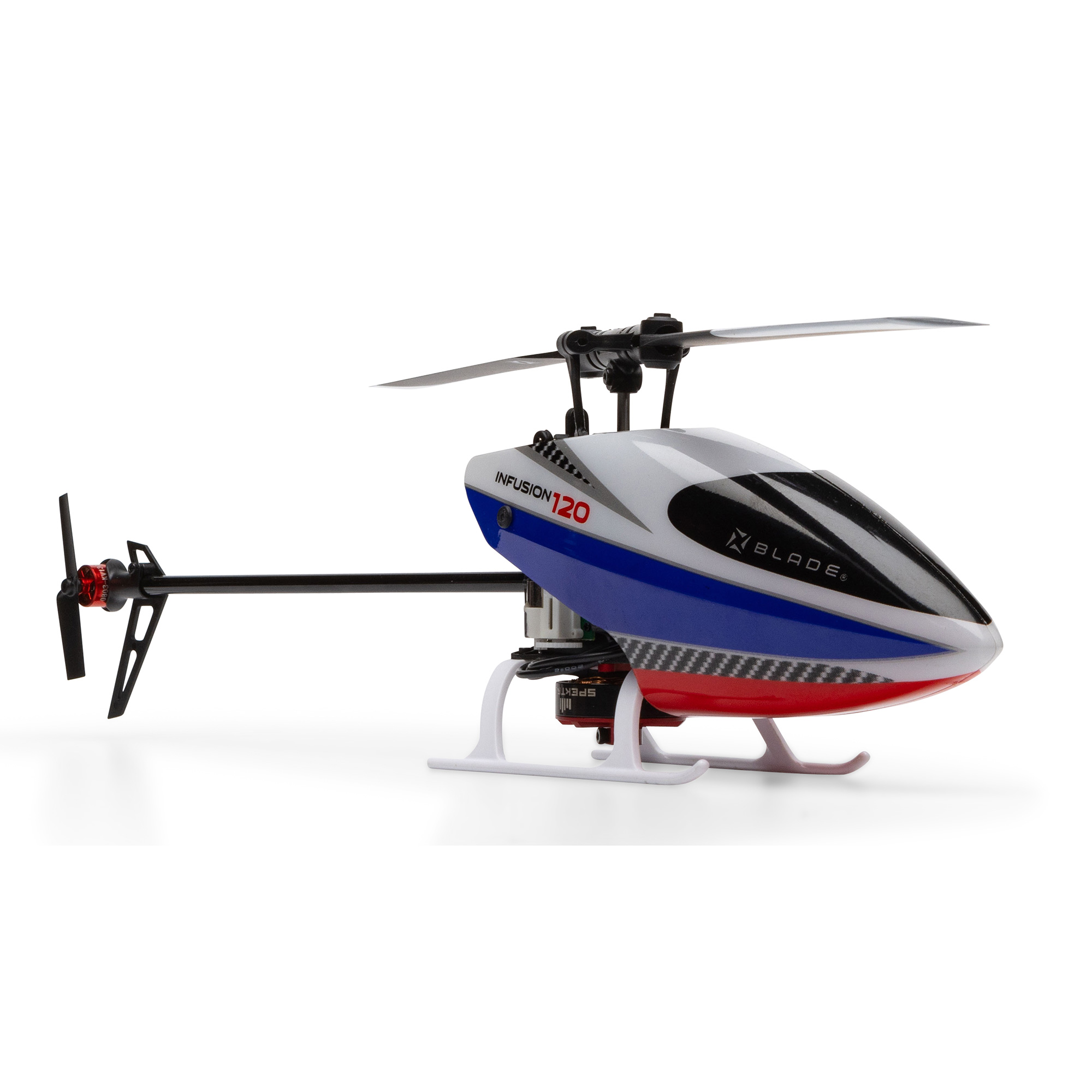

InFusion 120 from Blade

Details

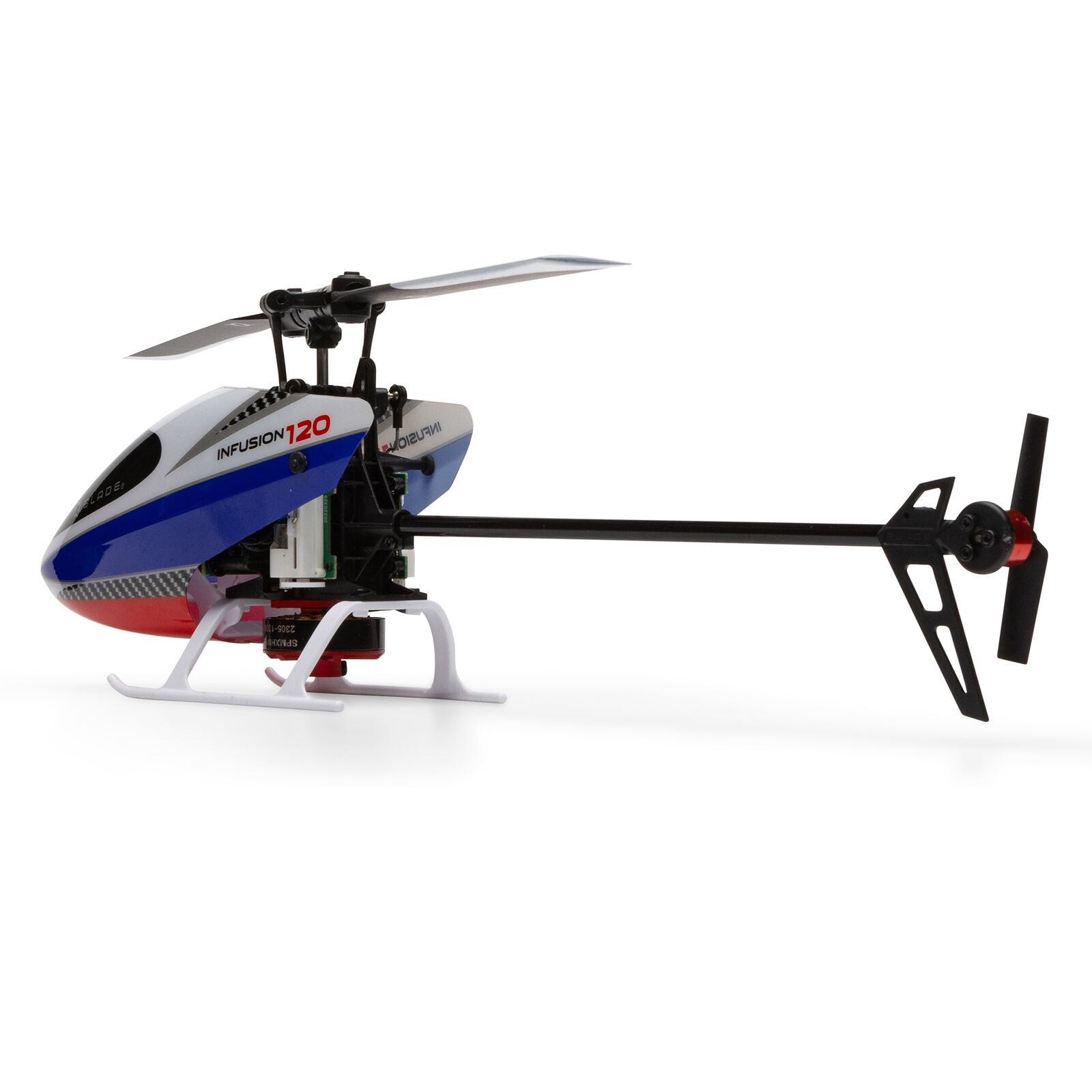

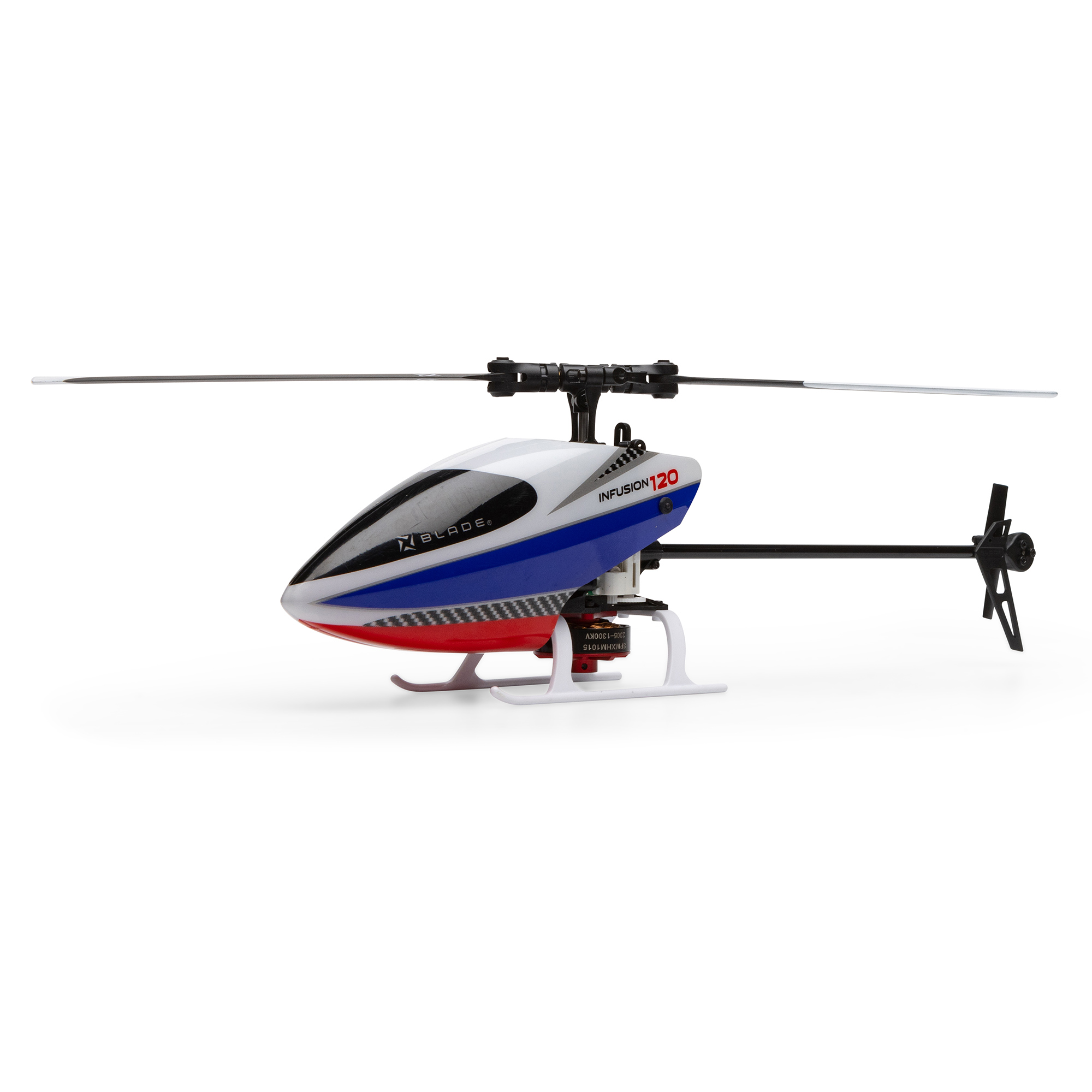

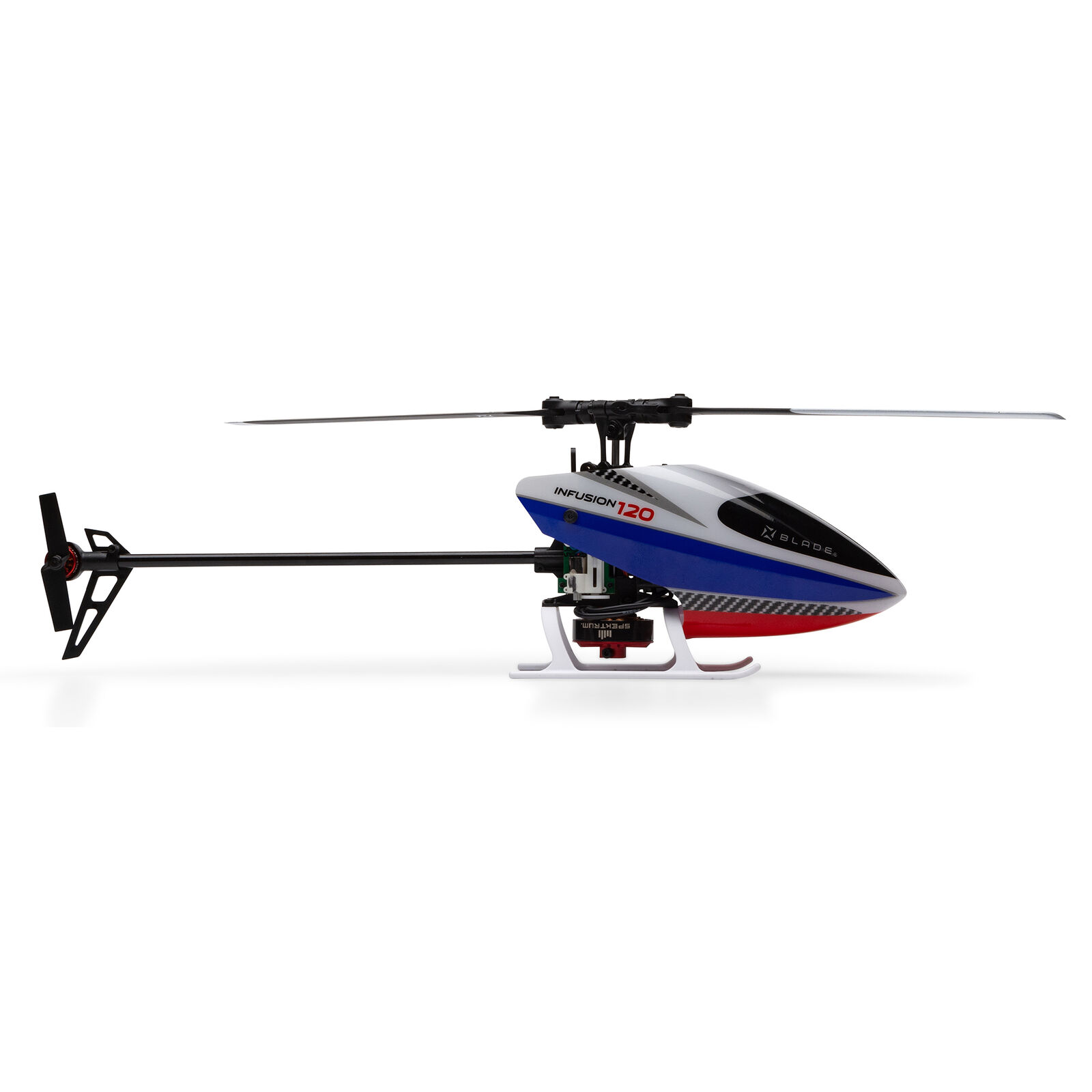

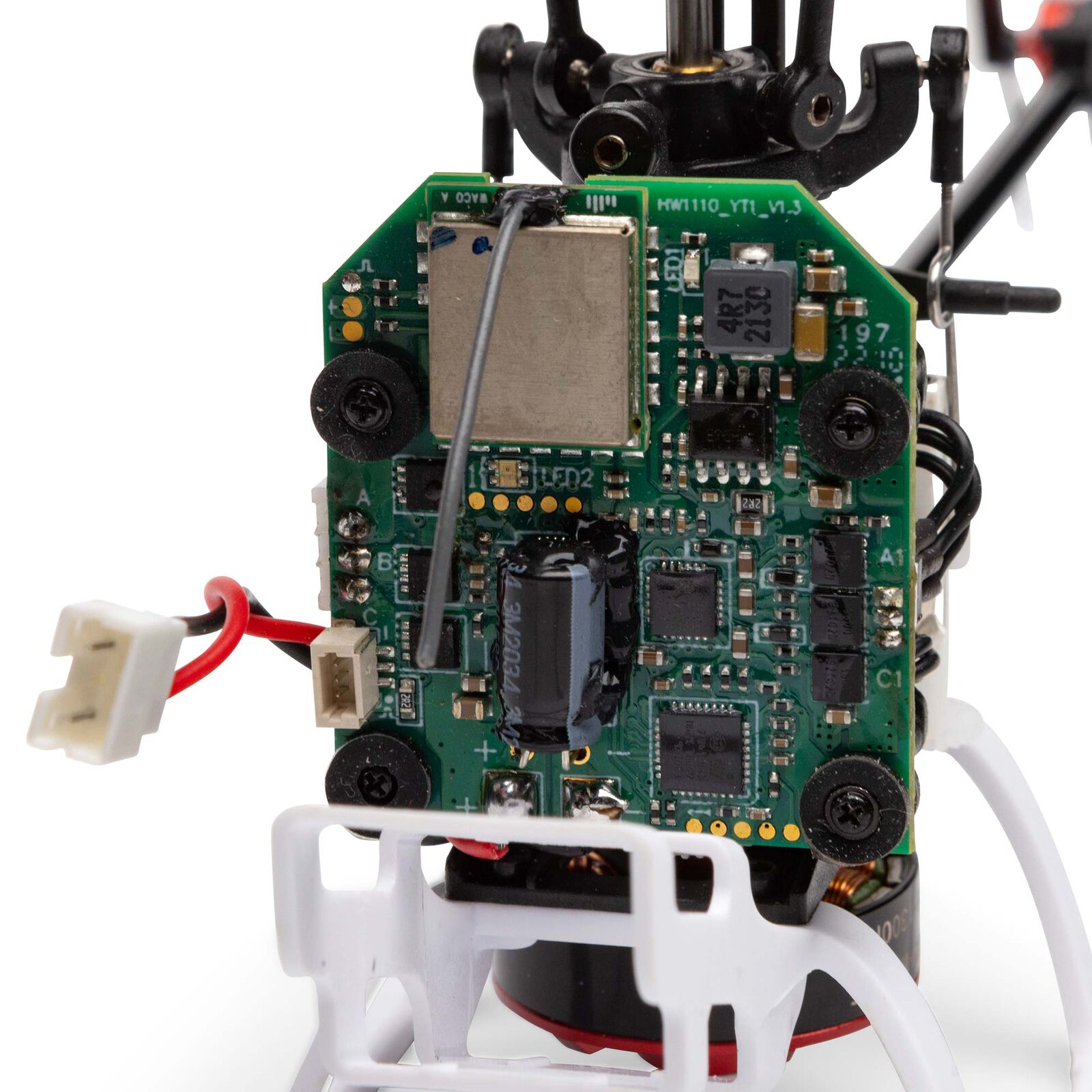

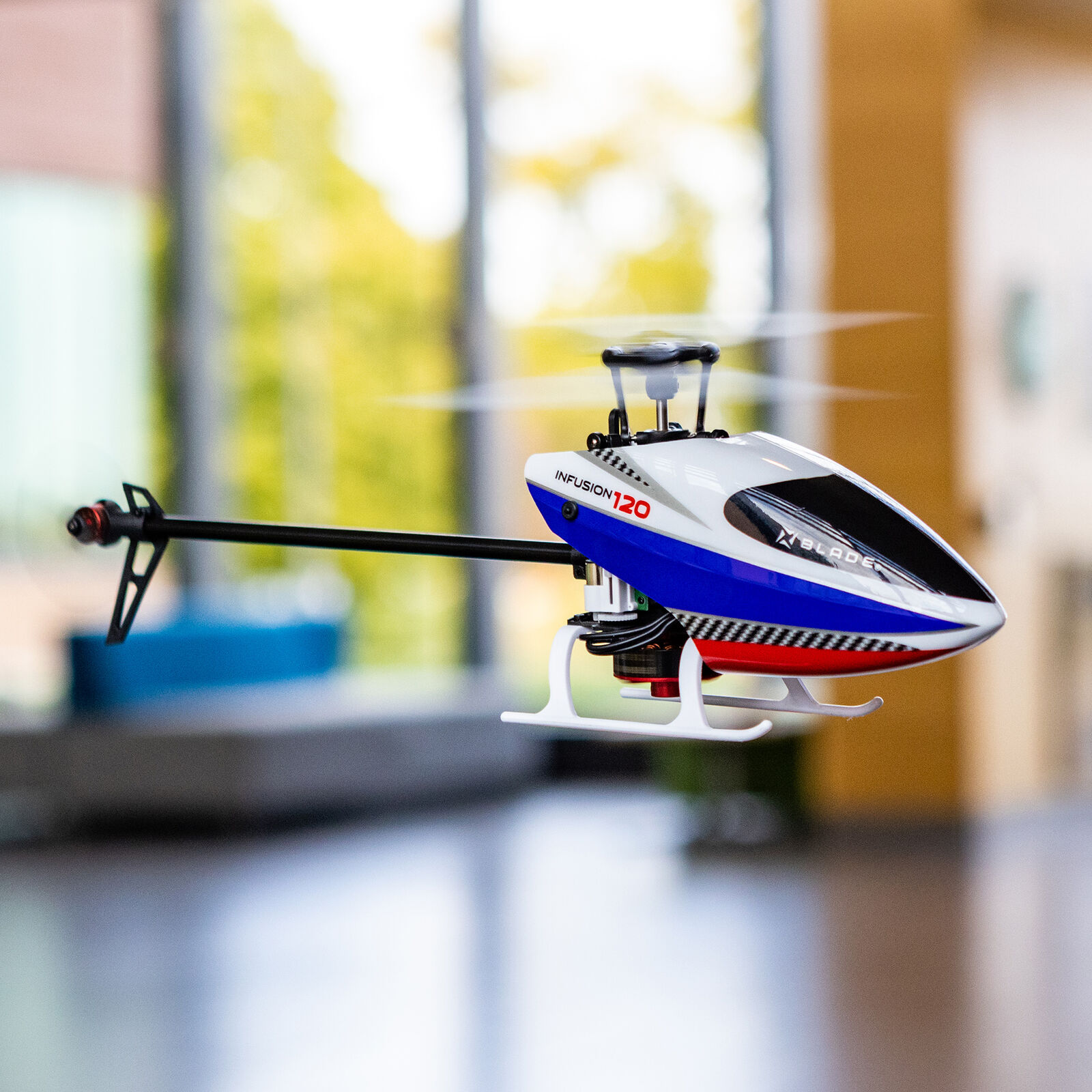

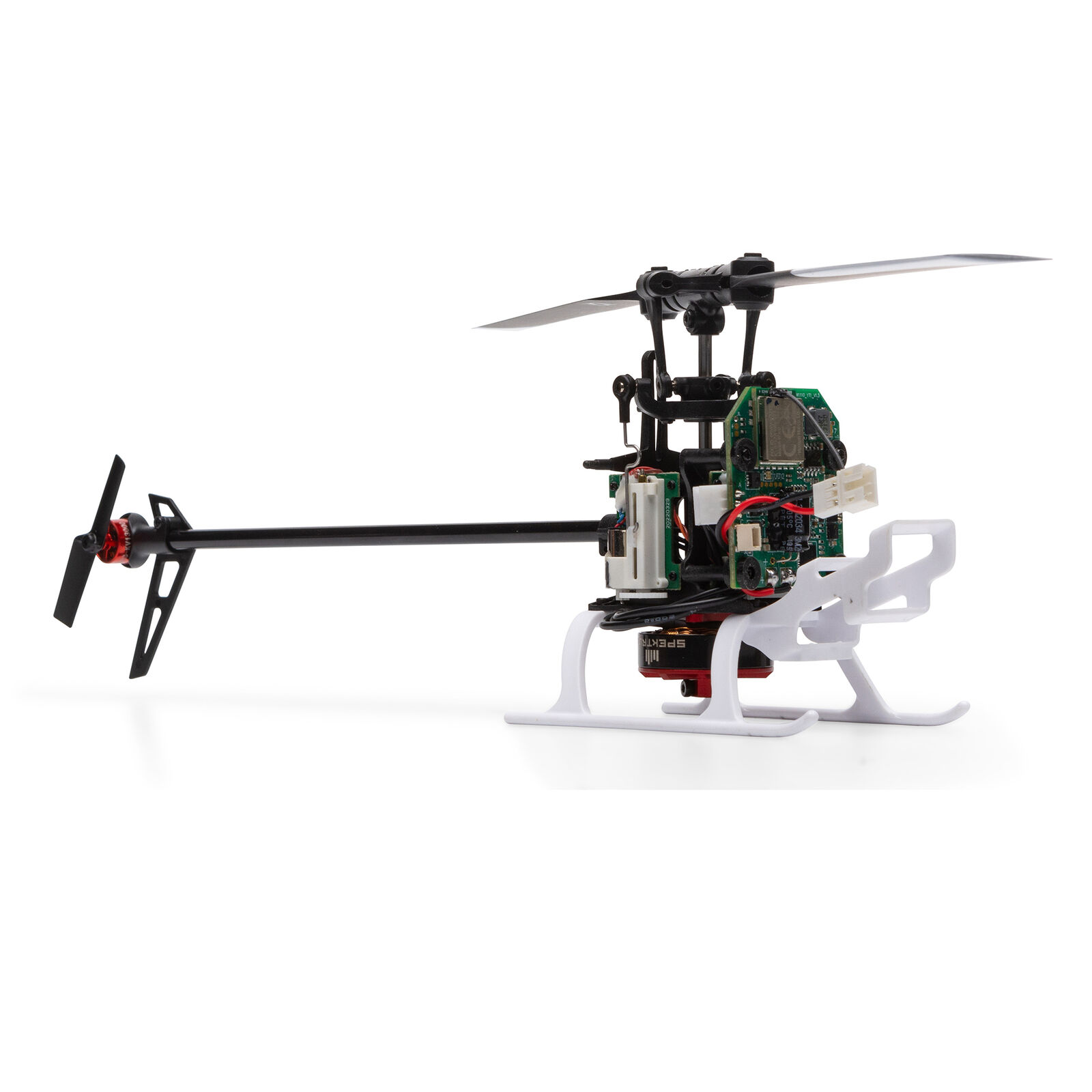

The InFusion 120 is an all-new design from the Blade® team engineered for next-level durability and performance. Featuring an oversized direct-drive power system, no gears are driving the main rotor, allowing for instant power and lower parts count. For intermediate to experienced heli pilots looking for high-performance capabilities in a small size, the InFusion 120 packs a punch perfect for thrilling aerobatics while flying in gymnasiums, backyards, and beyond. The InFusion 120 is easy to see while tearing up the sky with a one-piece canopy that’s factory-finished in a vivid trim scheme and bright white landing gear. The factory-installed all-in-one ESC, flight controller, and receiver unit takes advancements from Spektrum™ Smart Technology and our latest flight controller algorithm to effortlessly provide valuable telemetry feedback and stable yet maneuverable flight capabilities. With BNF® Basic convenience, all you have to do is add a 2S 280-300mAh battery (SPMX3002S30 is recommended), bind it to your compatible 6+ channel Spektrum DSMX/DSM2 equipped transmitter, and you’re taking to the skies!

Features:

  • Fully Assembled: No building necessary and ready to bind to your compatible 6+ channel Spektrum DSMX/DSM2 equipped transmitter
  • Direct Drive Power Systems: Brushless outrunner main and tail motors deliver instant power in a simple design with no gears
  • AS3X Technology: Smooths out the effects of wind with no control limitations for nearly unlimited basic to 3D aerobatic capability
  • Optional-Use SAFE Technology: With automatic self-leveling to make flying a collective pitch helicopter easier
  • Progressive Flight Modes: Allow you to grow with this heli while building your collective pitch flying skills
  • Panic Recovery: Recover the helicopter to a level attitude with the flip of a switch/press of a button
  • Smart Technology: Provides valuable telemetry feedback to compatible Spektrum transmitters
  • Long Throw Linear Servos: Nearly indestructible with fast and precise control response
  • Ridged ABS Airframe: Lightweight yet durable for high crash resistance and easy repairs
  • High Visibility: Vivid canopy and white landing gear make it easy to maintain orientation

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

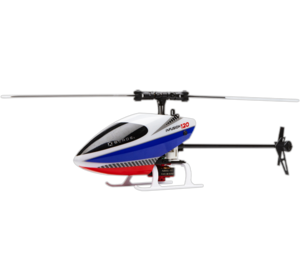

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

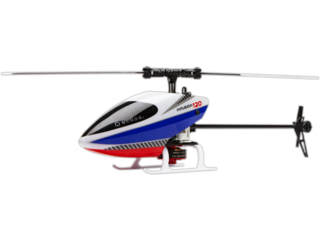

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 308mm (12.1 in)
Length: 298mm (11.7 in)

Weight: 123 g (4.3 oz)
Main Blade Material Plastic
Main Rotor Diameter 308 mm (12.12")
Product Height 95 mm (3.75")
Recommended Motor Battery 2S 280–300mAh LiPo with 3-pin JST-PH connector
Tail Blade Material Plastic
Main Frame Material Plastic
Product Length 298 mm (11.75")
Canopy/Body Material Plastic
Product Weight 123g (4.34 oz)
Channels 6
Main Rotor Blade Length 130 mm (5.1")
Speed Control Included
Main Motor Type Brushless
Main Rotor Head Type Collective Pitch Flybarless
Product Width 51 mm (2")
Tail Rotor Diameter 49mm (1.92")
Technology AS3X and SAFE
Tail Motor Type Brushless Outrunner
Servos Included
Swashplate Type 120 Degree CCPM
