GTB 339 Cube from DIATONE INNOVATIONS

Details

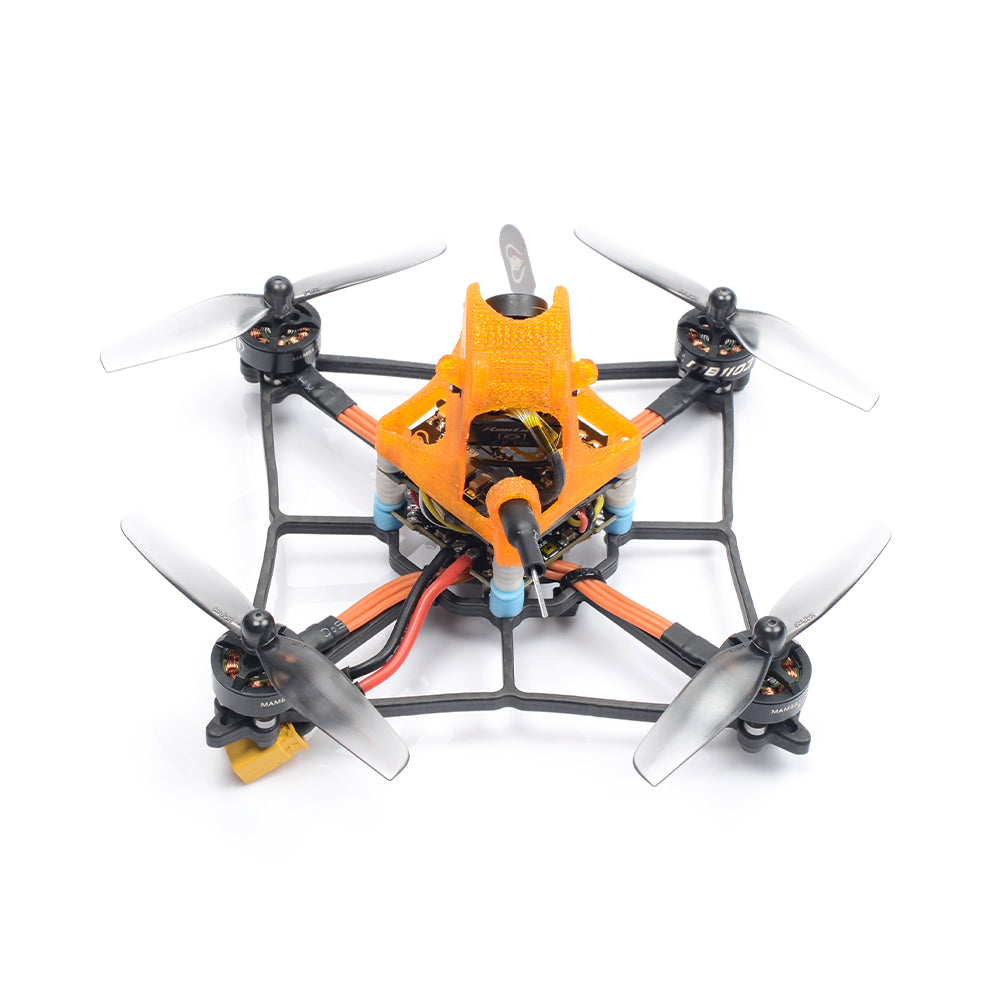

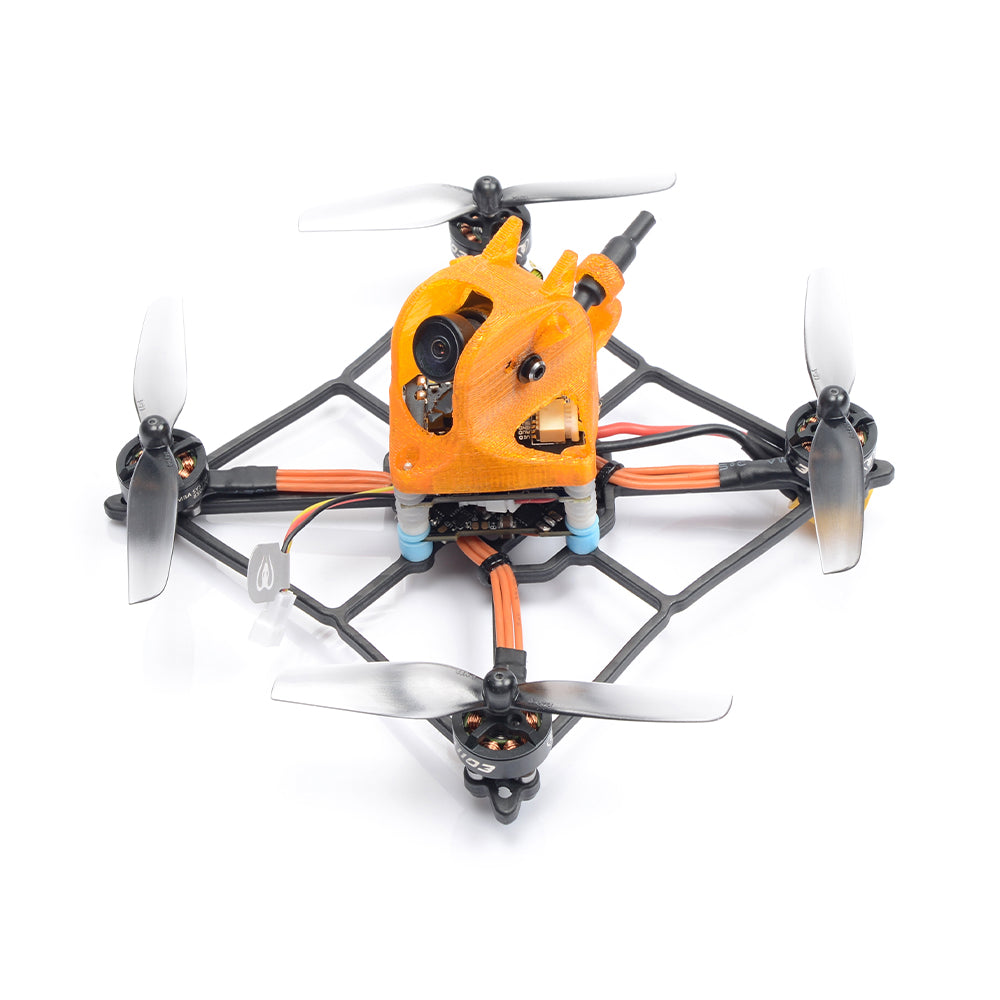

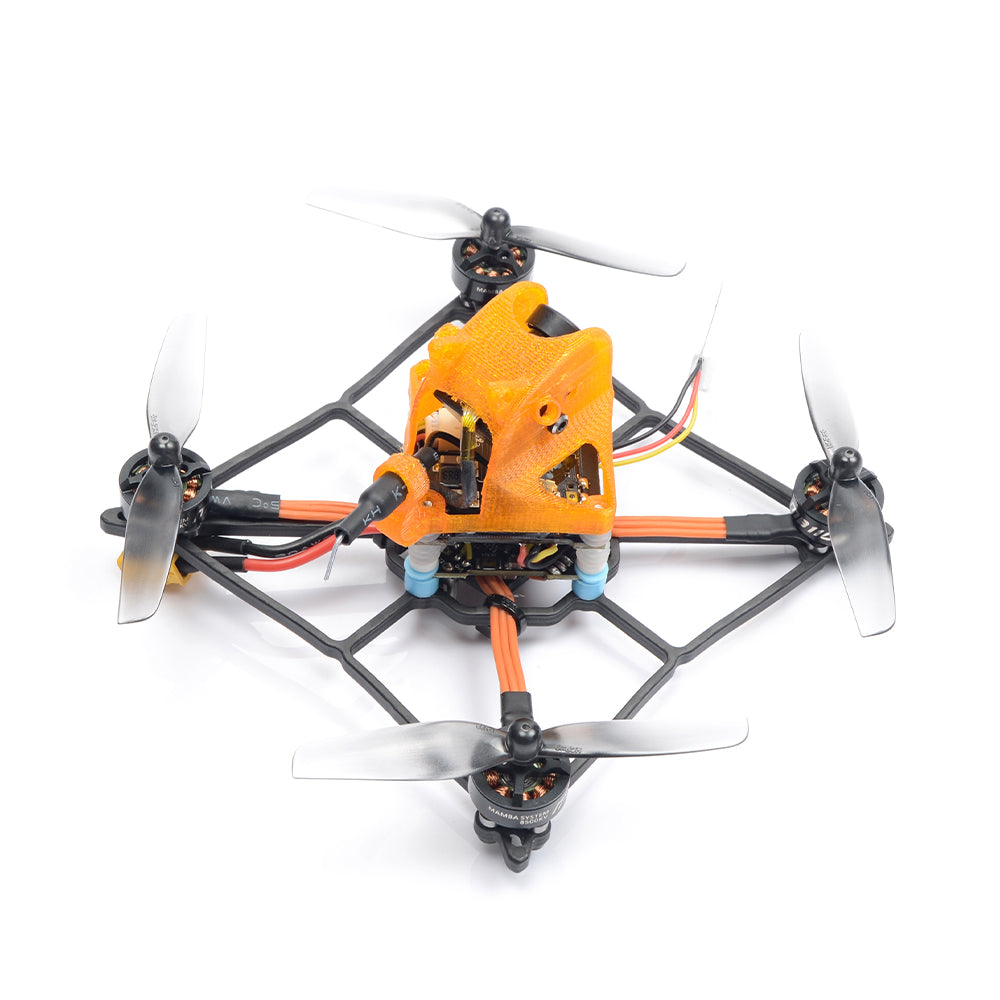

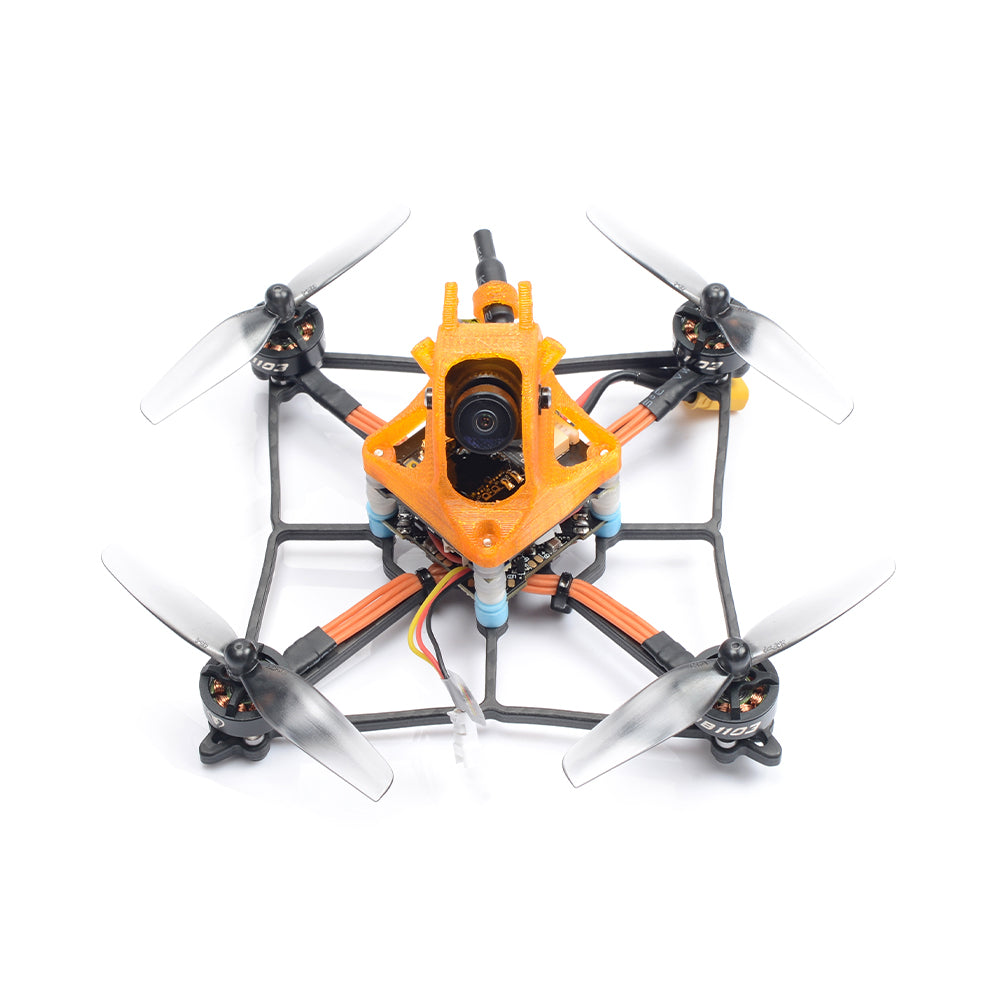

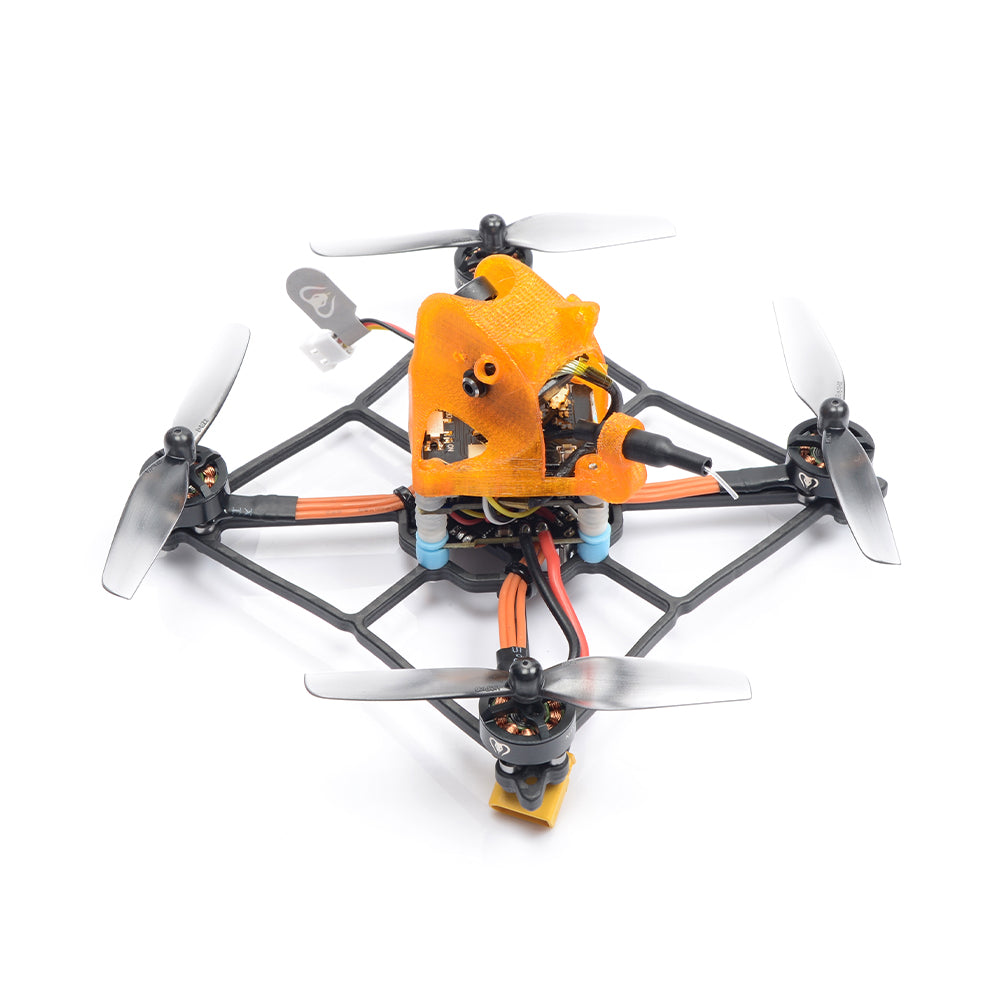

In collaboration with KababFPV, the Diatone GTB 339 Cube Racing Drone is sure to impress you! Packed with high-end components, like the RunCam Nano 2 Camera, Mamba F411 Nano FC, TBS Unify Pro32 Nano VTX and more! This toothpick quad is sure to give you that boost and performance you are looking for!

Features:

Mamba F411 16×16mm Nano Flight Controller Stack
Runcam Nano 2 FPV Camera
TBS Unify Pro32 Nano 400mW VTX

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the GTB 339 Cube in particular but at least we know they do distribute DIATONE INNOVATIONS.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

USA
Grayson Hobby
check web site
Ship to: USA

USA
Helidirect
check web site
Ship to: USA

Wingspan: unknown
	Length: unknown
Weight: 58 g (2 oz)

See Specs & Tech Details

General

FC: Mamba F411 Nano
ESC: Mamba 134 Nano
Camera: RunCam Nano2
Antenna: Copper Dipole
VTX: TBS Unify Pro32 Nano
Motor: MAMBA 1105 5500KV
Props: 3inch
Recommended Battery: 3S 300mAH
Bottom Plate Thickness: 4mm
Weight: ~58g

Flight Controller

MCU: STM32F411
IMU: MPU6000
Baro: No
OSD: BF OSD
Blackbox: NO
Firmware: Betaflight
Target: MambaF411
ESC Soft: Dshot300/600/1200
Input: 2~4S Lipo (8.4~16.7V)
BEC: 5V 1.5A

ESC

Input Voltage: 2-4S (8.4~16.7V)
Max Continuous Current: 12A x4
BEC: NO
Protocol: DSHOT600
Mounting: 20x20mm, M2
