Baby Ape Pro V2 from Darwin FPV

Details

Darwin Baby Ape has been loved by many pilots as soon as it was published. In order to design a better FPV drone, we have upgraded the Baby Ape based on the pilots' feedback and launched the BabyApe Pro V2.

We made seveal upgrades from the frame. First of all, nylon standoffs is upgraded to aluminum alloy standoffs, which strengthens the frame  and stables structure.

Second, We added the receiver fixing bracket.

Third, we upgraded the arms. The arms are upgraded from 4 individual arms(2.5mm thicness) to 2 integrated arms(3.0mm thickness). It is more easy to disassemble, sturdy and durable.

Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.

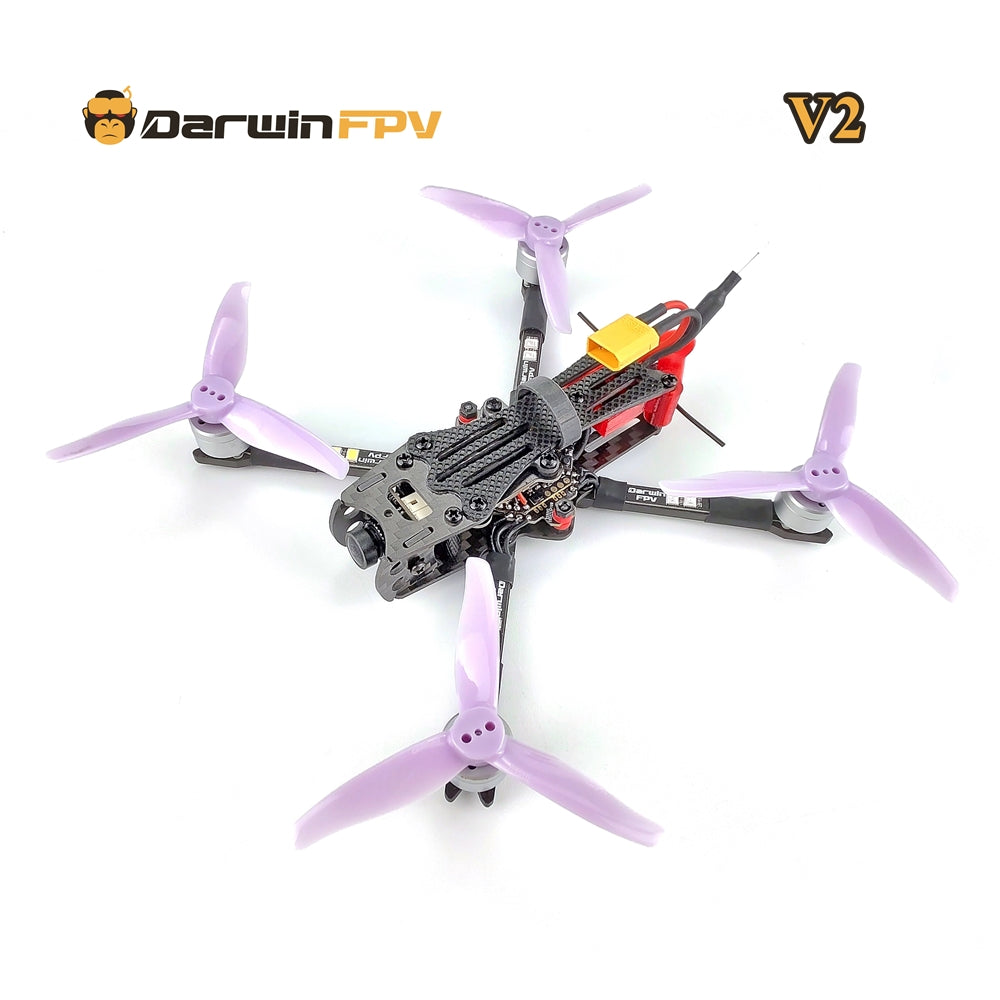

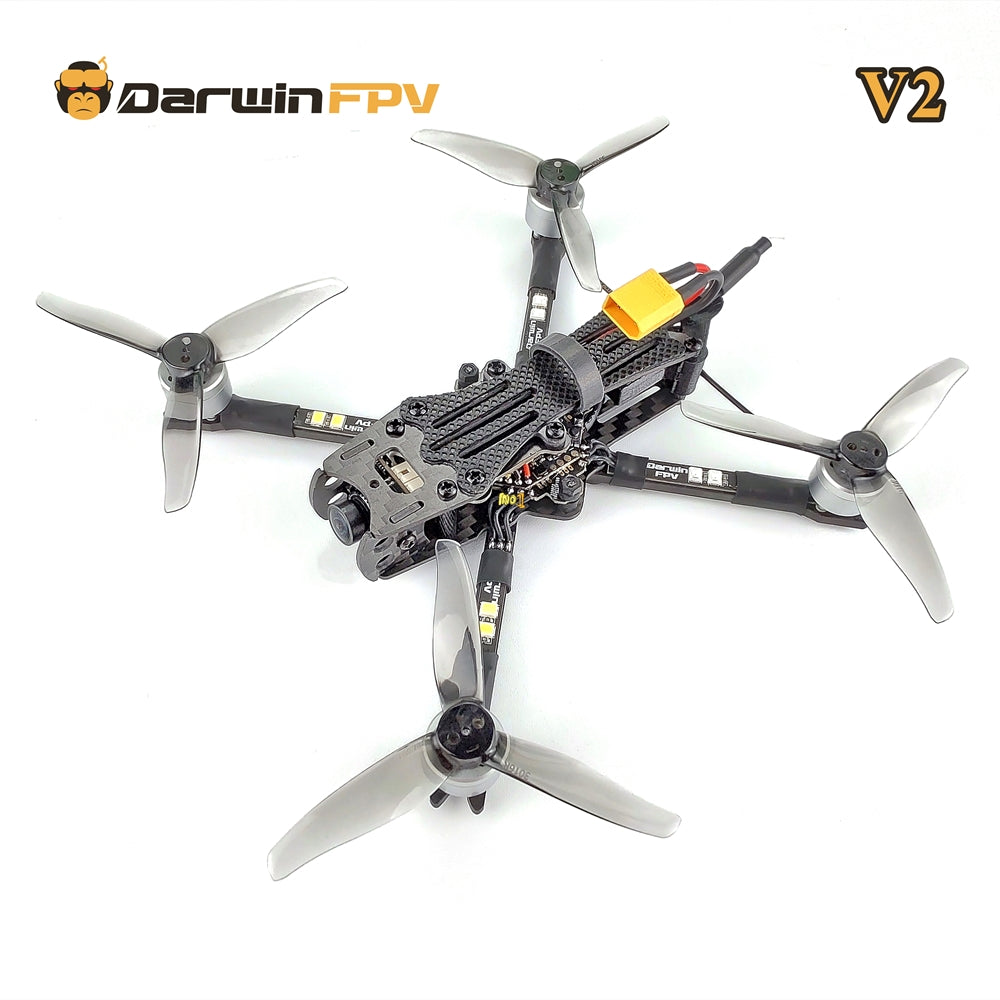

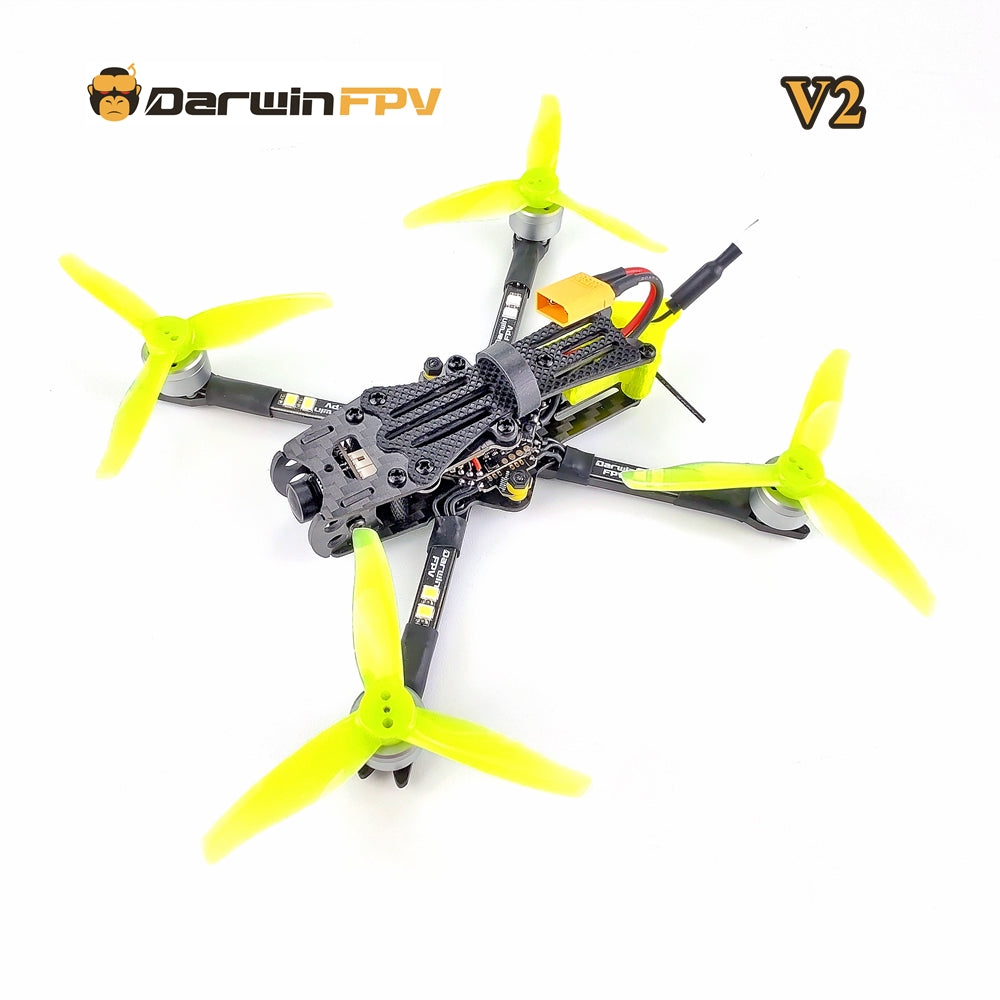

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Baby Ape Pro V2 in particular but at least we know they do distribute Darwin FPV.

Wingspan: unknown
Length: unknown

Weight: unknown

CADDX ANT Camera

  • Resolution:1200TVL
  • mage Sensor: 1/3" CMos Sensor
  • Input: DC 3.7-18V
  • TV System: PAL/NTSC

1104 4300KV 2-3S Brushless Motor

  • KV: 4300KV
  • Lipo cell: 2-3S

AIO 4 IN 1 15A BLHeli_S  ESC

  • Input voltage: 1-3SLiPo
  • Continuous current: 15A
  • Pe ak current:17A (10S)
  • BEC output: no
  • Main control chip:EFM8BB21
  • Firmware upgrade: Supports Dshot600/Oneshot125
  • MOS: 3*3

F411 AIO Flight Controller

  • Main control chip: STM32F411
  • Integrated OSD
  • PPM/DSM/IBUS/UAR share: UART1-RX
  • IMU: MPU6500 (SPI)
  • Mounting holes distance: 25.5*25.5mm
  • Supports Betaflight firmware

5.8G 40CH 0mW/25mw/200mw switchable VTX

  • Supports TBS SmartAudio
  • Transmitting power: 0mW/25mW/100mW/200mW switchable
  • Channel: 40CH
  • Full video format: NTSC/PAL
  • Input voltage: 7V~24V
  • Power dissipation: +12V/600MW
  • Size: 25×20×6mm
  • Weight: ≤3.2g (except antenna)
  • With copper pipe mini antenna (ipex antenna)

3016 3-blade propeller

  • Mounting hole: 1.5mm
  • Center thickness: 5.5mm
  • Quantity: 2 pairs
  • Weight: 1.18g a pair
