BabyApe II from Darwin FPV

Details

BabyApe Ⅱ is a 3.5-inch small freestyle fpv drone with a take-off weight of less than 250g that fulfills most countries' regulations. Compared with the first generation of BabyApe, BabyApe Ⅱ has a more powerful configuration, adopts a more reliable manufacturing process and a new power system, and has a higher level of performance, durability and power. The flight time can reach 13 minutes, the flight distance is 1.5 kilometers, and the maximum speed is up to 92km/h.

 If you are a beginner in fpv drone with limited budget, then we highly recommend BabyApe Ⅱ. It not only continues the classics of the first generation of BabyApe, but also upgrades to a higher configuration, and the price has not increased much. It is still the best choice for beginners within a reasonable budget.

Features:

  • It comes with 1504 motors and 3.5-inch propellers, the power is more stronger and the response speed is faster;
  • The camera and stack are protected by glue potting, which effectively prevents the risk of damage due to contact with metal particles, fine sand, gravel, weeds or dew, and the entire electronic system is more reliable and durable;
  • The addition of a buzzer and extra LED lights is extremely beneficial for beginners, who frequently confront circumstances such as over discharge the battery and locating drones due to mistakes that lead the drone to crash;
  • Analog/digital multi-version VTX systems are available for you to choose;
  • The independent action camera base can be used with naked gopro, thumb camera, etc. to record amazing  images during flight at 4K/60 frames.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the BabyApe II in particular but at least we know they do distribute Darwin FPV.

Wingspan: 156mm (6.1 in)
Length: 156mm (6.1 in)

Weight: 240 g (8.5 oz)
  • Frame:Wide X
  • Wheelbase: 156mm
  • Size: 126mm *150mm *50mm
  • Flight Control: F411  MPU6500  AT7456E
  • Reserved port:
    • 1x SBUS(RX1 reverse)、2x Uarts(1,2)、2x Softserial
    • 1x I2C、1x RGB、1x Buzzer、1x USER(A15)、1x USB
  • ESC: Bluejay 48KHz 3-6S 30A
  • Camera and VTX
    • Analog Version :DarwinFPV “Cement" fully waterproof camera + 600mW analog VTX
    • Digital version: RUNCAM LINK Wasp Digital VTX
  • Motor
    • 4S version:1504-3600KV
    • 6S version:1504-2300KV
  • Propeller: HQProp T3.5x2x3GR-PC
  • Recommended battery:
    • LiPo 4S 650mAh-850mAh
    • LiPo 6S 500mAh-650mAh
  • Weight:

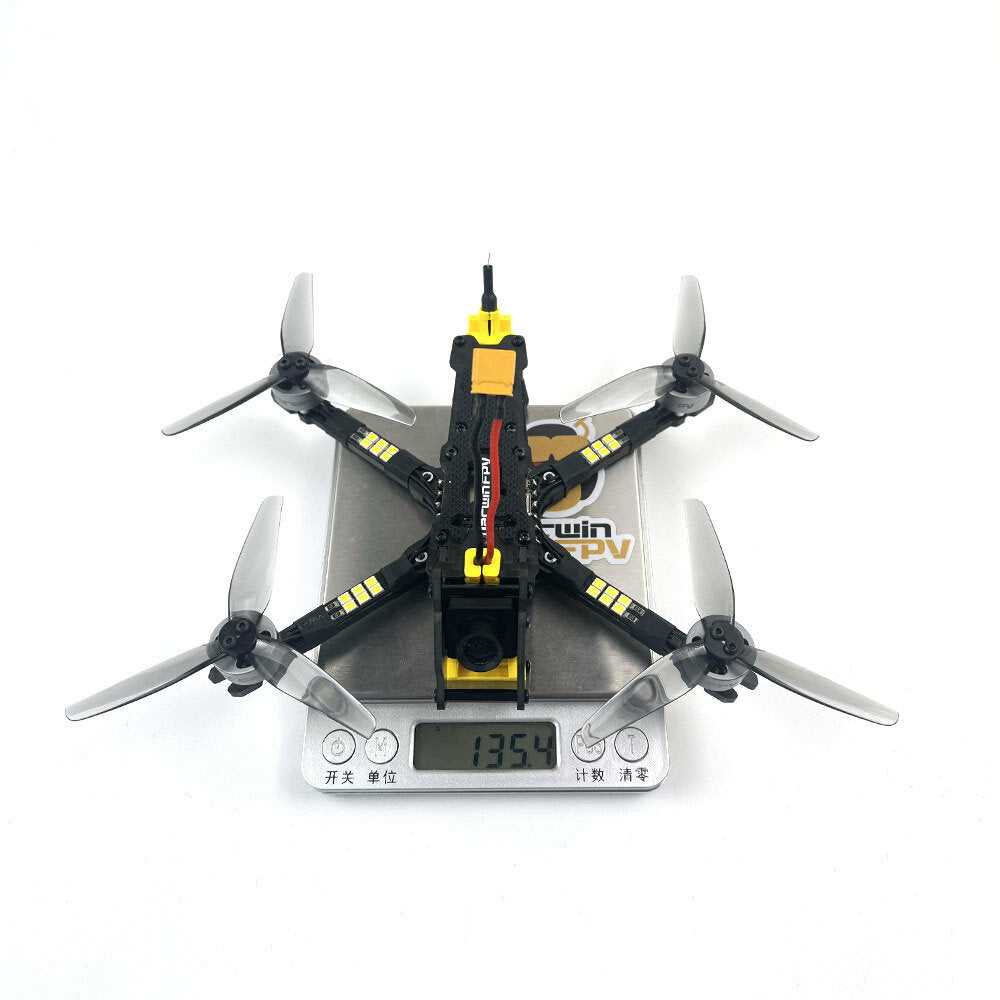

    • 135.4 g(analog version)
    • 224.4 g(analog version + 4 S 850mAh battery)
    • 151.4g(HD version)
    • 240.0g (HD version + 4S 850mAh battery)
  • Receiver support
    • Frsky XM/XM+/R-XSR receiver
    • Futaba receiver
    • DSM/DSMX receiver
    • FlySky receiver
    • TBS Crossfire receiver
    • ELRS receiver
    • AC900 receiver

It supports receivers of most protocols on the market(CRSF of PPM/PWM/IBUS/SBUS/SPEKTRUM/ELRS)
