Tundra V3 Inspire from Durafly

Details

After the incredible success of the Tundra V1 and V2, Durafly has decided to produce yet another version with even more improvements to bring the Tundra series bang up to date. The V3 is now a pure 4S set-up so it has power in abundance to make your flying even more fun than it was before (if that is at all possible!). Other changes and improvements include daylight bright LEDs (so bright they are suitable for true dawn-to-dusk flying), a reinforced nylon prop that is more efficient, and better balanced, a return to the classic EPO foam wheels which are lighter, and stronger, pre-installed pushrods, hex-head bolts and screws throughout. The V3 is available in the classic Tundra green and white scheme, or a red and silver color scheme Durafly has called the "Inspire". The reason is that the original Tundra was "Inspired" by the "Highlander" full-size SuperStol experimental airplane.

The Tundra V3 also includes the revolutionary Aerostar RVS (reverse function system) G2 ESC, this ESC offers instantaneous reversing, so there is now no need to stop the prop before reversing. This makes it perfect when using the Tundra V3 on the water as a floatplane, but it is also great fun in the air, and really good for short landings, just ensure the prop is on nice and tight!!

The tough EPO foam construction is beautifully finished, and being "Plug N Fly" the Tundra V3 is supplied with the powerful, and reliable Aerostar 3636-900KV brushless motor, the Aerostar RVS G2 40A ESC, and 6 high quality 9g servos. Retained from the V2 are the upgraded landing gear and fixings, vortex generators, improved wing connectors, and battery tray.

Features:

  • V3 version has even more improvements, including pure 4S set-up, Aerostar RVS G2 ESC, more efficient prop, day-bright LEDs, pre-installed pushrods, hex bolts and screws throughout
  • Available in the classic green/white, or the red/silver "Inspire" color scheme
  • The day-bright LEDs allow for flying from dawn to dusk
  • Pre-installed 4S powertrain offers even better vertical performance

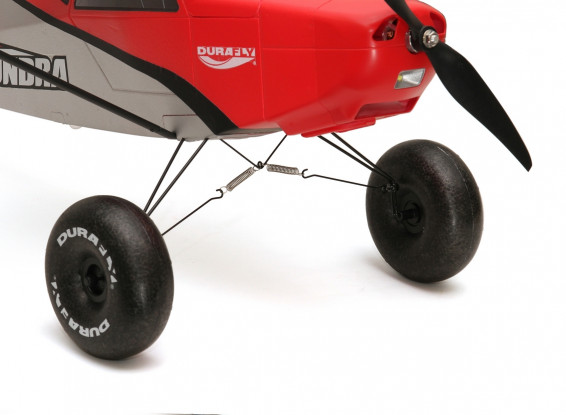

  • Bush-style landing gear with huge EPO foam wheels, and improved metal cross brace mount
  • 'Barndoor' style flaps and vortex generators for true STOL performance and super slow flight
  • FPV canopy mount, floats, and water rudder included

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tundra V3 Inspire in particular but at least we know they do distribute Durafly.

Wingspan: 1300mm (51.2 in)
Length: 920mm (36.2 in)

Weight: 1150 g (2.5 lbs)

Type: Durafly Tundra V3 "Inspire" Sports Model w/Flaps
Wingspan: 1300mm (51")
Length: 920mm (36.25")
Wing Area: 26dm²
Flying Weight: 1150g
Number of Channels: 6 (throttle, ailerons, elevator, rudder, flaps, reverse RVS)
Motor: 3636-900Kv brushless outrunner
ESC: Aerostar RVS G2 40amp Brushless ESC w/reverse
Servos: 6 x 9g
Prop: Durafly nylon-reinforced 11.5"x5”
Color: Red/Silver "Inspire"
