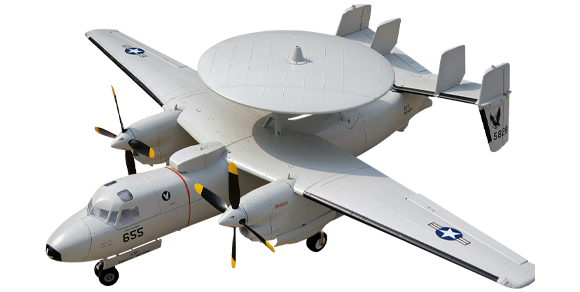

Dynam E-2C Hawkeye AEW

Radio-Controlled Plane for RC Pilots

Details

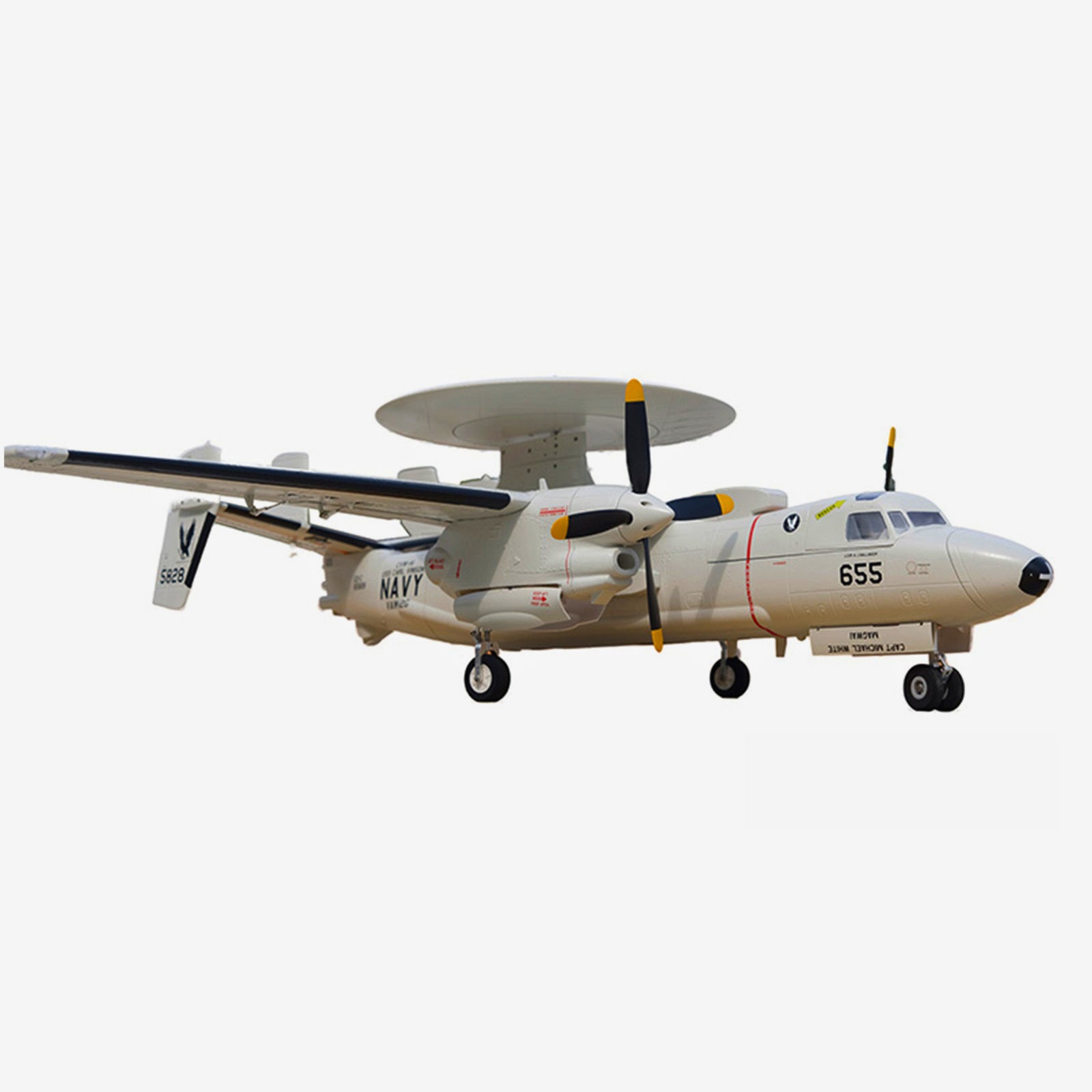

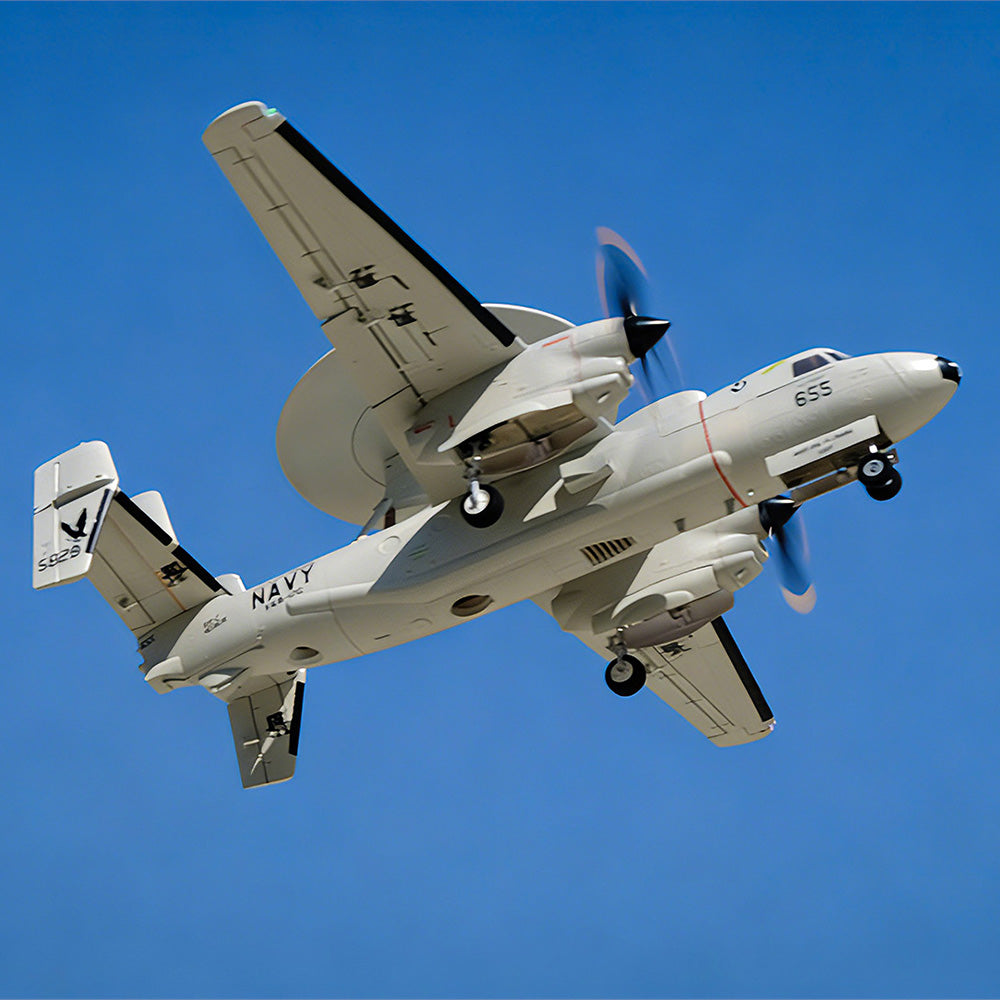

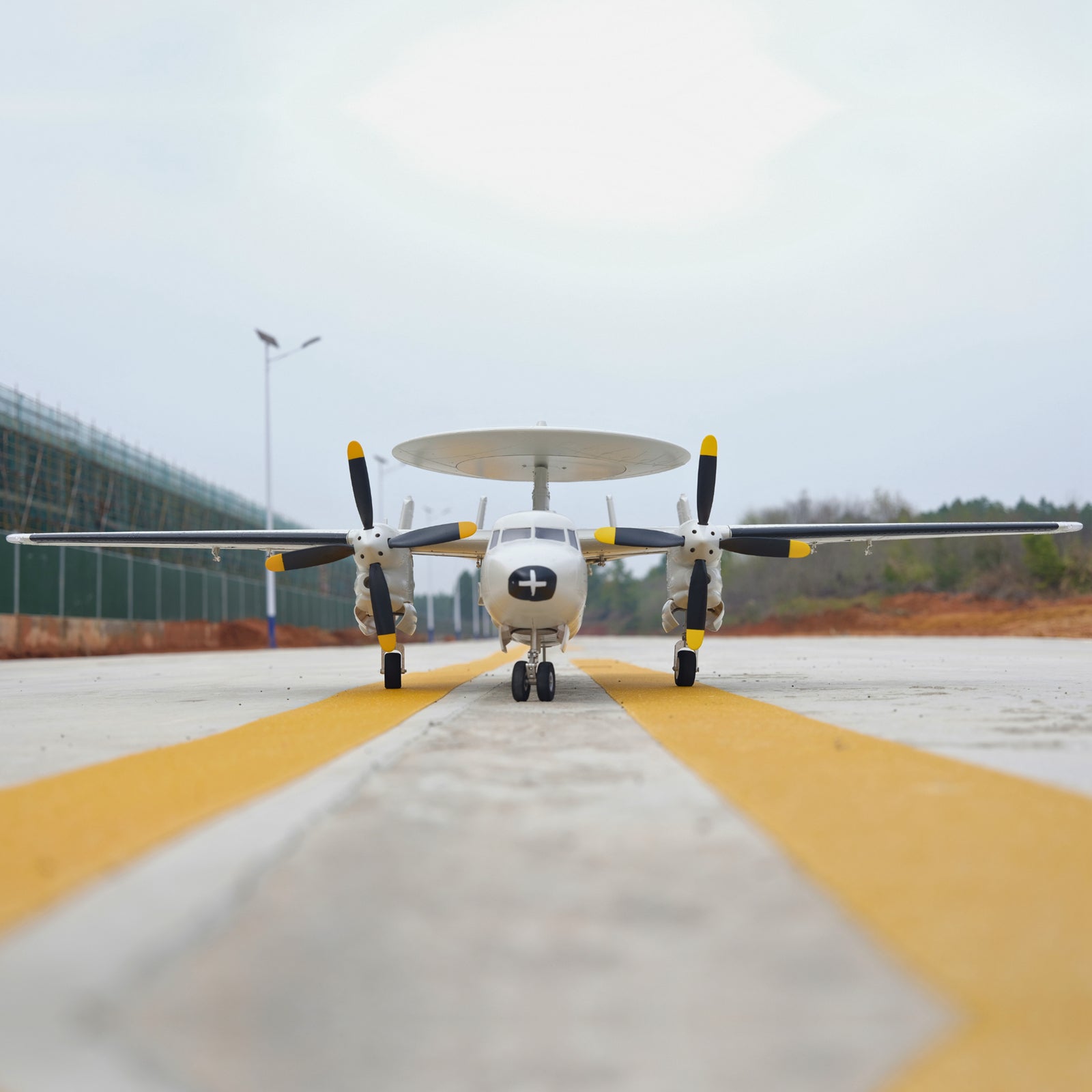

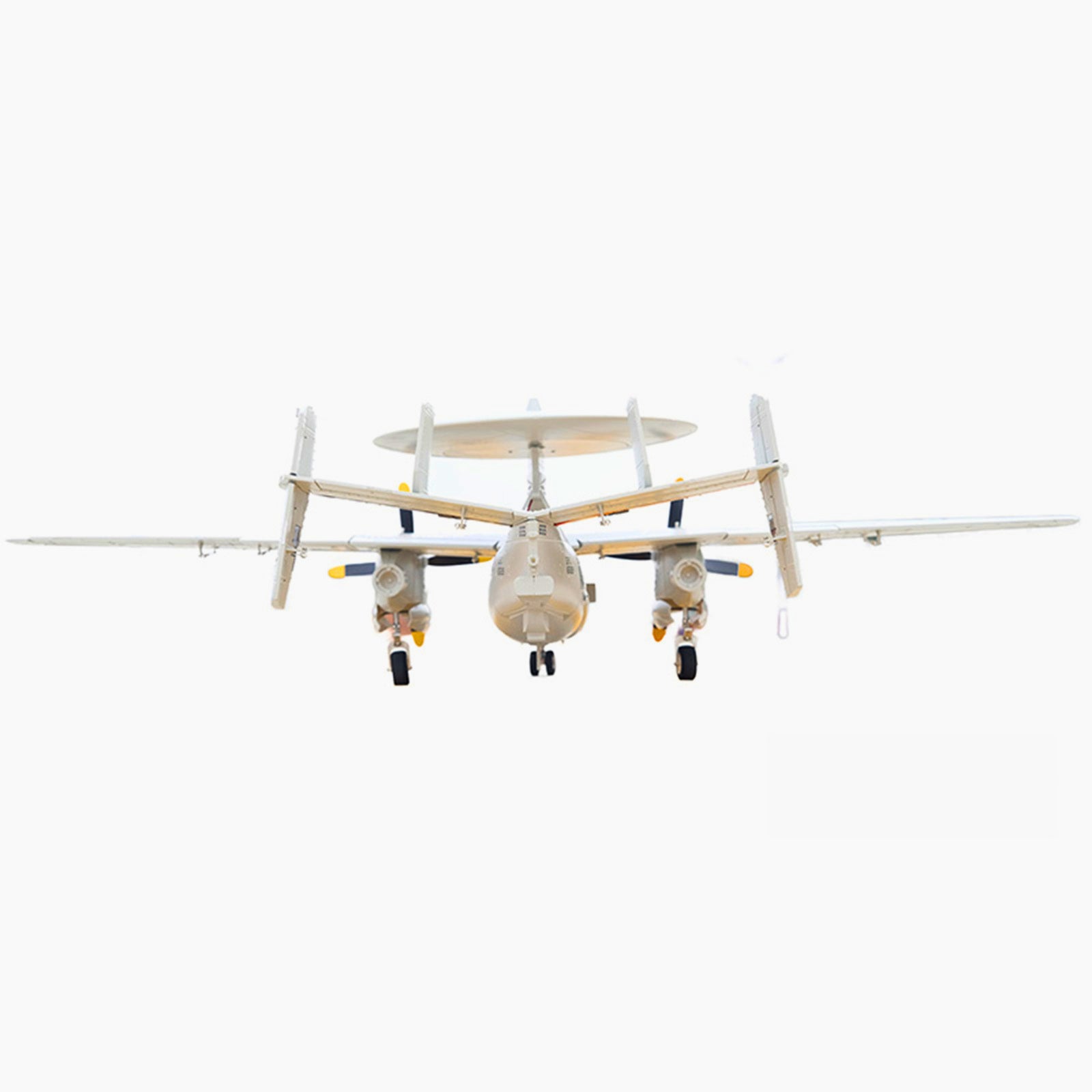

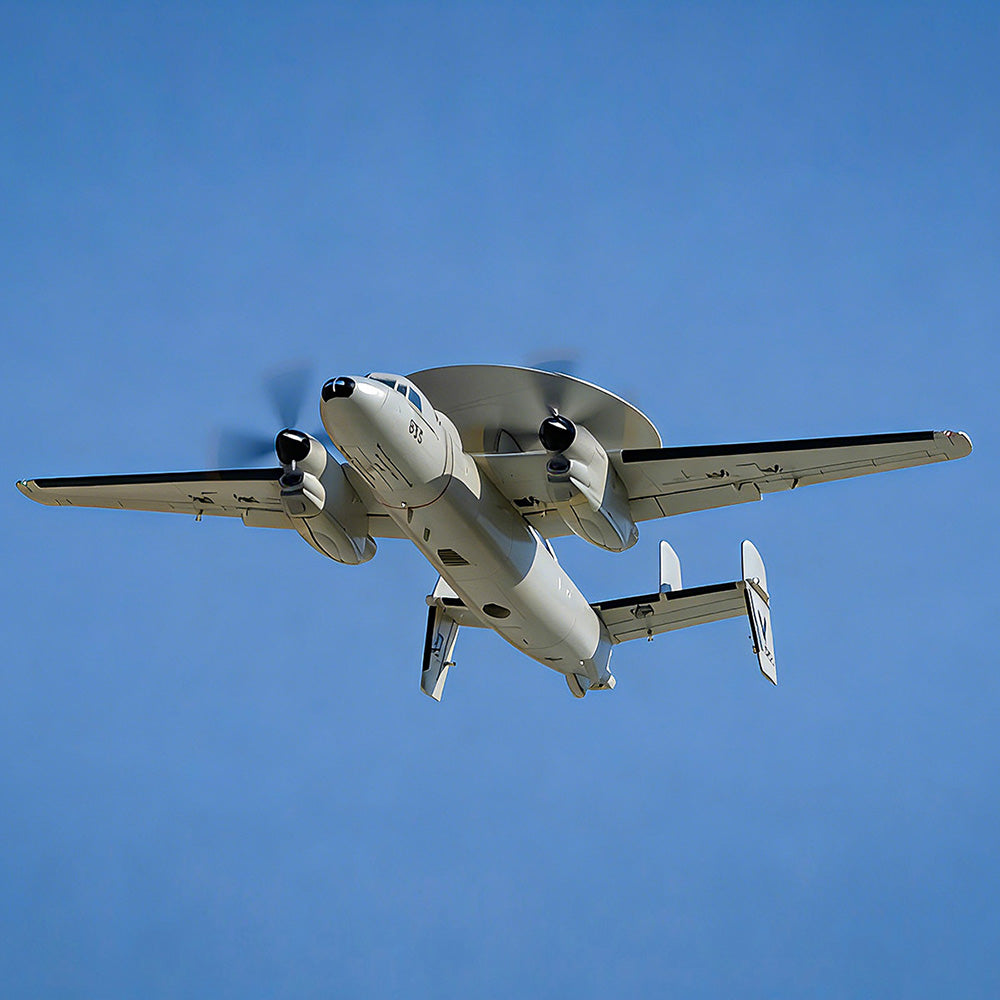

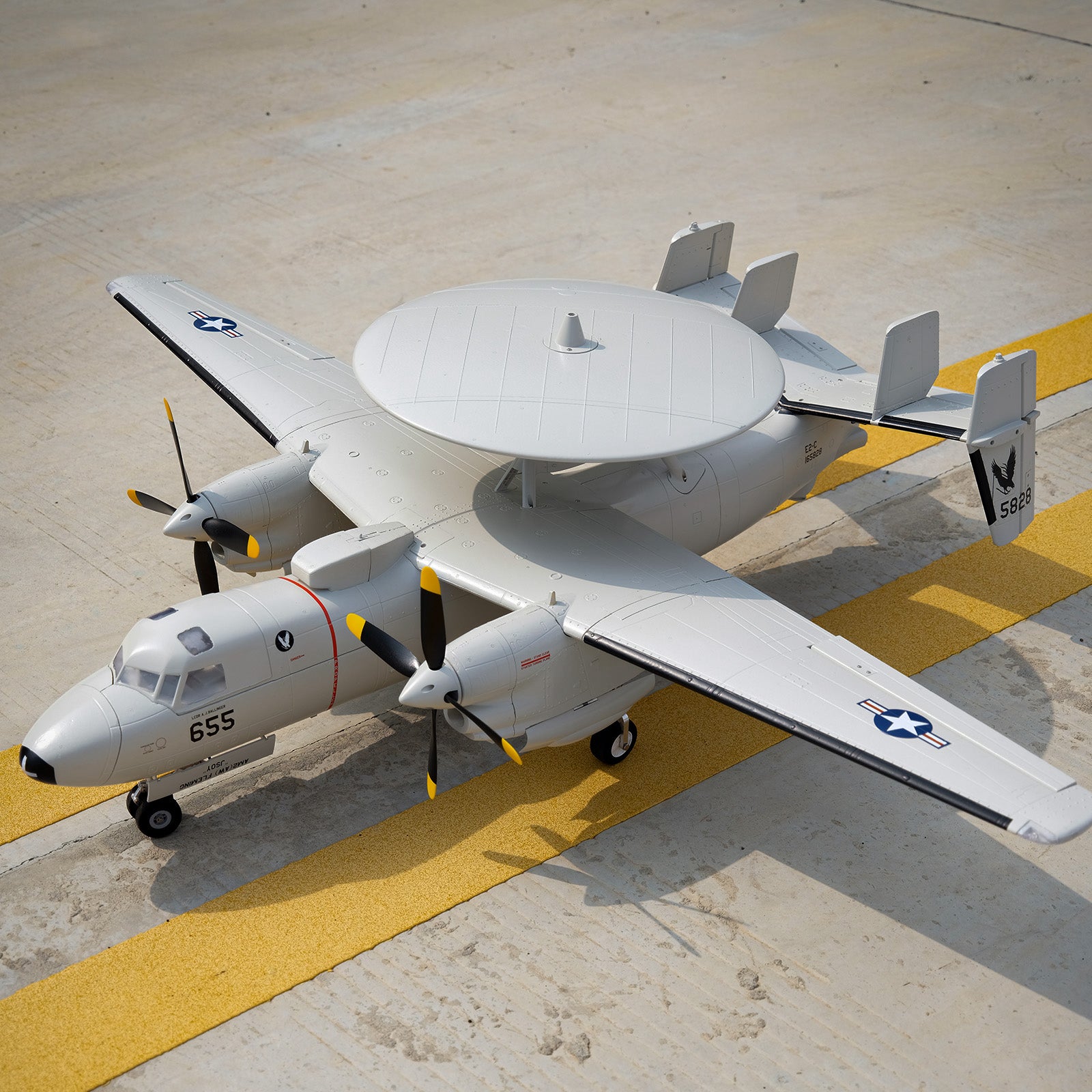

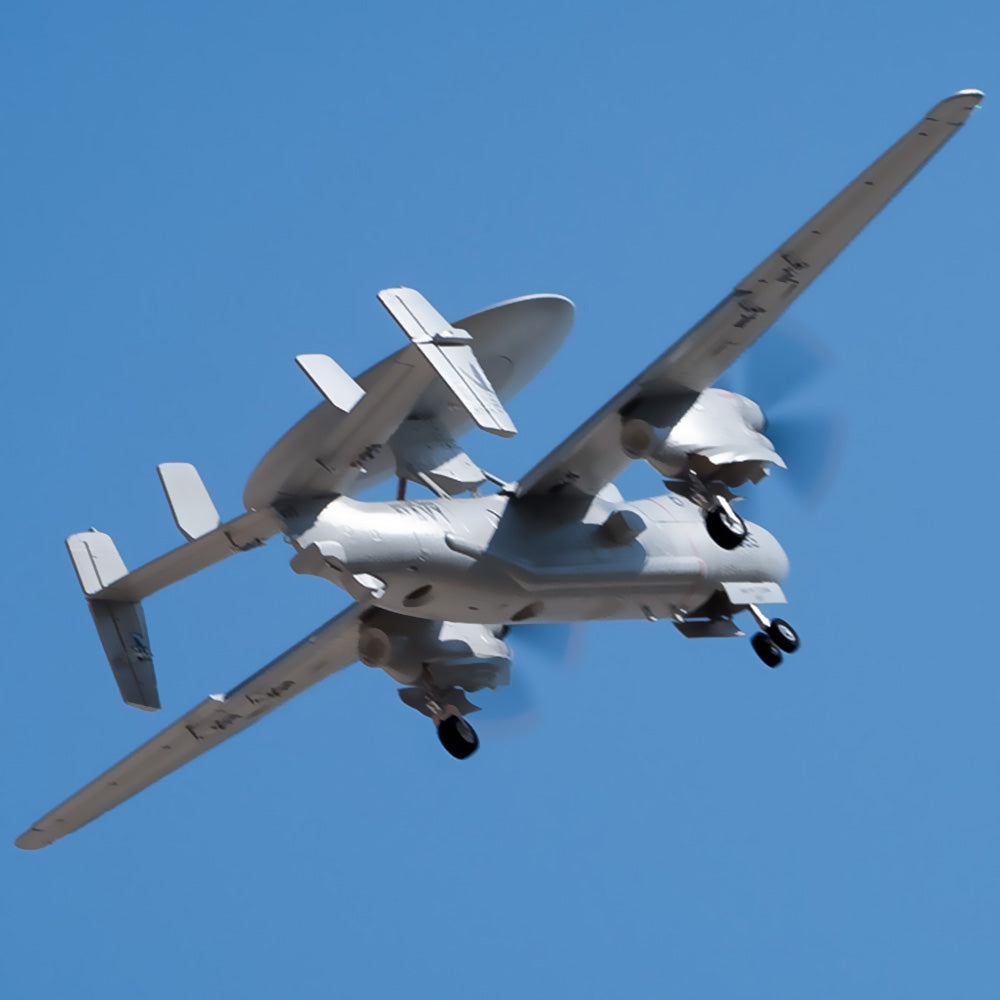

The Dynam E-2C Hawkeye AEW is a highly detailed, scale replica of the iconic airborne early warning aircraft, designed to deliver both realism and performance. With its distinctive rotating radar dome and twin-engine power system, this 1500mm wingspan model offers a unique flying experience that stands out on any flight line.
The Dynam E-2C Hawkeye is not just another scale model—it's a centerpiece aircraft. With its rotating radar, twin-engine performance, and exceptional attention to detail, it offers a flying experience that is both visually striking and technically satisfying. Whether you're a scale enthusiast or looking to add something truly unique to your fleet, the E-2C delivers on every level.

Features:

  • Rotating Radar Dome – A 360° rotating radar adds unmatched scale realism and visual appeal in flight.
  • High-Fidelity Scale Design – Meticulously reproduced proportions and details, including landing gear doors, cockpit, and lighting system.
  • Dual Motor Power – Twin TomCat 3520-KV770 brushless motors with dual 40A ESCs deliver a thrust-to-weight ratio exceeding 1:1 for confident takeoffs and strong performance.
  • Stable Flight Dynamics – Designed for intermediate pilots, offering smooth handling and excellent stability for both scale cruising and controlled landings.
  • Dual-Flap System – Two-stage flaps enable slower, controlled landings or higher-speed passes as needed.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

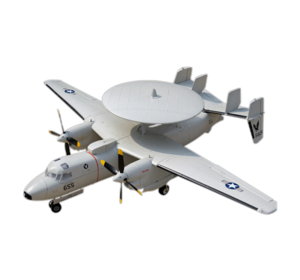

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

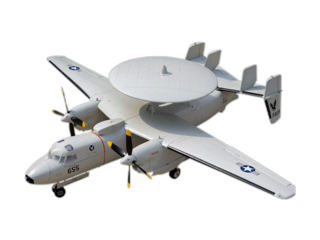

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1500mm (59.1 in)
Length: 1106mm (43.5 in)

Weight: 3150 g (6.9 lbs)

Dimensions

  • Wingspan: 1500 mm (59.0 in)
  • Overall Length: 1106 mm (43.7 in)

Weight & Loading

  • Flying Weight: 3150 g (with battery)
  • Wing Loading: 125 g/dm²
  • Center of Gravity: 95–100 mm from wing leading edge (root)

Power System

  • Motors: 2 × TomCat 3520-KV770 Brushless (pre-installed)
  • ESCs: 2 × TomCat Skylord 40A (pre-installed)
  • Propellers: 4-blade 10.5×8×4 (standard & reverse included)

Electronics

  • Servos: 11 × 9g Servos (pre-installed)
  • Landing Gear: 3.6 mm 90° Electric Retracts with GLCU (pre-installed)
  • Lighting: Integrated navigation & position lights

Required to Complete

  • Transmitter: 6+ Channel 2.4GHz
  • Receiver: 6CH with gyro recommended
  • Battery: 4S 14.8V 3200mAh 25C Li-Po (XT60 connector)
