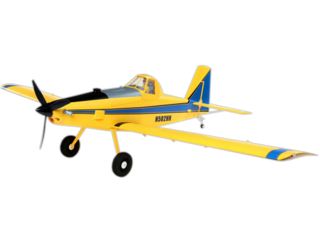

Air Tractor from E-flite

Details

Air Tractor ag and utility airplanes have earned a reputation for friendly handling, incredible capabilities and unmatched versatility. Those qualities carry over to this E-flite® Air Tractor 1.5m scale replica to make it a perfect scale low-wing model for intermediate to experienced RC pilots. The specially-tuned motor and 3-blade prop are matched to a 50-amp ESC to provide fantastic scale and sport aerobatic flight performance with 3S 2200-3200mAh LiPo batteries, or you can install a 4S battery for more power and unlimited vertical without the need for any modifications or upgrades. Functional slotted flaps improve slow speed handling while also offering Short Take Off and Landing (STOL) capabilities. Robust landing gear and wheels with oversized tires allow the Air Tractor to fly from paved, grass, dirt, gravel or other surfaces at any suitably-sized park or RC flying field. Add large ponds or small lakes to your possible flying sites by installing optional floats (EFL5261, sold separately) — or attach the optional scale-like skis (EFLA970, also sold separately) to take off from and land on snow. The factory-applied paint and decal finish provides excellent visibility along with striking scale looks that are accented by LED navigation, strobe and landing lights. The E-flite® Air Tractor 1.5m delivers a unique flying experience that a wide range of pilots will enjoy, even if it's your first scale or low-wing model.

Features

  • Scale replica of the agricultural "crop dusting" utility aircraft including molded-in panel lines, rivets and more
  • Easy to take off, fly and land, making it a perfect choice for a first scale or low-wing model
  • Short Take Off and Landing (STOL) plus scale, sport and aerobatic flight capabilities
  • High-power 3S and 4S compatible 50A ESC and outrunner motor with 3-blade prop
  • Functional slotted flaps for shorter takeoffs/landings and improved slow-speed handling
  • Durable, factory-installed metal-geared servos with adjustable linkages on the primary control surfaces
  • Spektrum™ AR637TA receiver with full-range telemetry and industry-leading DSMX® technology
  • Easy to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Robust landing gear with oversized tires for operation from a variety of surfaces
  • Optional EDO-style floats with steerable rudders (sold separately)
  • Optional scale-like skis for flying from snow (sold separately)
  • Functional and factory-installed LED landing, navigation and strobe lights
  • Factory-painted and finished in a scale, high-visibility trim scheme
  • Lightweight yet durable composite-reinforced EPO construction
  • Fast and easy bolt-together assembly – no glue required
  • Easy to install/remove two-piece wing and stab

Pictures

Manual

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Air Tractor in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
Switzerland
ModellMarkt24
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide
USA
Gator RC
check web site
Ship to: USA

Wingspan: 1499mm (59 in)
Length: 978mm (38.5 in)

Weight: 1766 g (3.9 lbs)
Airfoil Shape: Flat bottom
CG (Center of Gravity): 2.5" (65mm) +/- 5mm back from leading edge of wing
Charger: Sold separately
Completion Level: Bind-N-Fly Basic
Control Throw (Flaps): .4" (10mm) / .8" (20mm)
Control Throw - High (Ailerons): .86" (22mm)
Control Throw - High (Elevator): .4" (10mm)
Control Throw - High (Rudder): .43" (11mm)
Control Throw - Low (Ailerons): .63" (16mm)
Control Throw - Low (Elevator): .27" (7mm)
Control Throw - Low (Rudder): .32" (8mm)
Expo (Ailerons): Low Rate 5%, High Rate 15%
Expo (Elevator): Low Rate 5%, High Rate 10%
Expo (Rudder): Low Rate 5%, High Rate 10%
Flaps: Slotted for improved low-speed handling
Flying Weight: 59 - 62oz (1681 - 1766g)
Length: 38.5" (977.9mm)
Minimum Required Radio: 6-ch (sold separately)
Minimum Speed Control: 50A
Motor Size: 10 size brushless outrunner
Propeller Size: 11x7.5 3-blade
Receiver: Spektrum AR637TA 2.4GHz 6-ch DSMX w/AS3X (Artificial Stabilization-3-aXis)
Recommended Motor Battery: 2200 - 3200mAh 3S - 4S (sold separately)
Servos: Four micro metal gear, two micro
Technology: SAFE Select
Transmitter Range: Full
Trim Scheme Colors: Yellow and blue
Wing Area: 472 sq in (30.5 sq dm)
Wing Loading: 18.2sq in (1.17 sq dm)
Wingspan: 59 in (1499 mm)

Variants

EFL16450
Air Tractor (Yellow)
