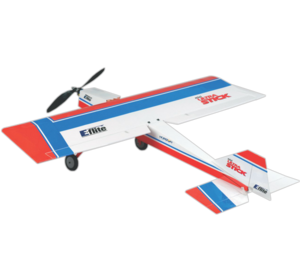

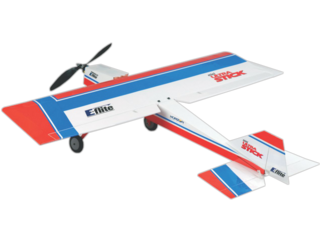

Mini Ultra Stick from E-flite

Details

Based on the popular Hangar 9 Ultra Stick, the E-flite Mini Ultra Stick comes 95% prebuilt from balsa and light-ply and is covered in genuine UltraCote. At the heart of the Mini Ultra Stick’s fun factor are two firewall options that let you use a wide variety of motor sizes, types and brands. This along with the ample clearance for larger props that its tall, lightweight aluminum landing gear provides gives the Mini Ultra Stick huge performance potential. You can push the envelope even further by adding the optional split quad-flaps.

Features:

  • Perfect transitional airplane for advancing pilots who want to learn aerobatics and for sport flyers who want easy comfortable sport flyer
  • 95% factory-built; get flying in 2 hours or less
  • Lightweight balsa and plywood construction
  • Two firewall options to use a variety of motor sizes, types & brands
  • Includes molded firewall stick mount
  • Control surfaces have factory-installed hinges and control horns
  • Bolt-on tail requires no gluing and secures with two lock nuts
  • Optional quad-flap configuration
  • Tough, lightweight aluminum landing gear that's factory-assembled and tall enough to accommodate larger prop sizes
  • Covered in genuine Hangar 9 UltraCote
  • Great match for E-flite Park 450 Outrunner Brushless Motor
  • Easy access top battery hatch
  • Design based on Hangar 9’s popular line of Ultra Sticks

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.


Wingspan: 985mm (38.8 in)
Length: 865mm (34.1 in)

Weight: 710 g (1.6 lbs)
Approximate Flight Time: 10 to 20 minutes
CG (Center of Gravity): 2.25 in (57mm) behind the leading edge
Completion Level: Almost Ready-To-Fly
Control Throw (Ailerons): 1/2 in (15mm) Up/Down Low Rate or 5/8 in (19mm) High Rate
Control Throw (Elevator): 9/16 in (18mm) Up/Down Low Rate or 7/8 in (23mm) High Rate
Control Throw (Rudder): 7/8 in (23mm) Right/Left Low Rate or 1-1/4 in (32mm) High Rate
Flaps: Yes (optional)
Flying Weight: 22 to 25 oz (625 to 710g)
Gear Ratio: 6.5:1 when using Park 400 Brushless Inrunner
Hardware Included: Yes
Motor Size: Park 400 Inrunner or Park 450 Outrunner
Recommended Fuel: Electric
Length 34 in (865mm)
Wingspan: 38.75 in (985mm)

Variants

EFL2250
Mini Ultra Stick (White-blue-red)
