Super Timber from E-flite

Details

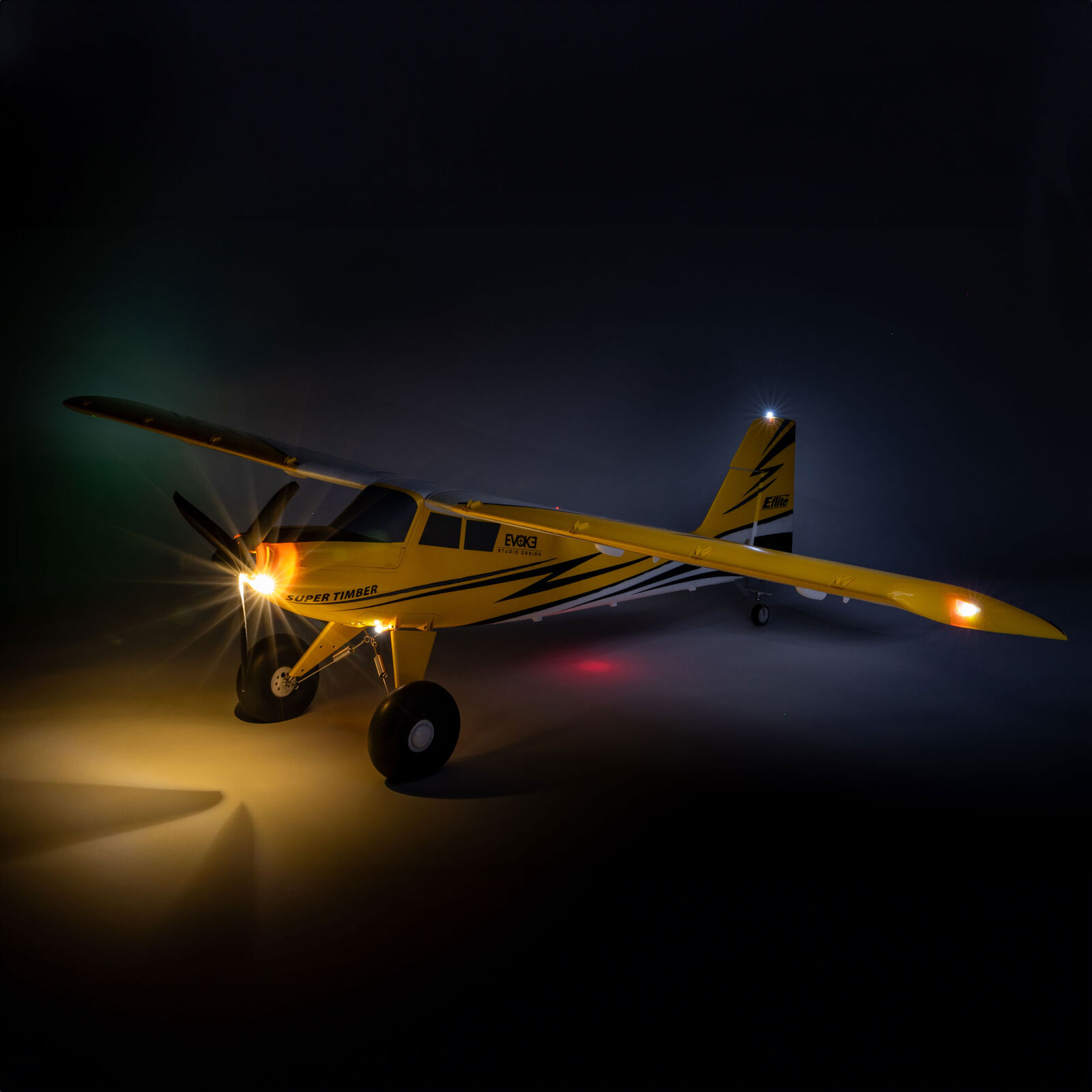

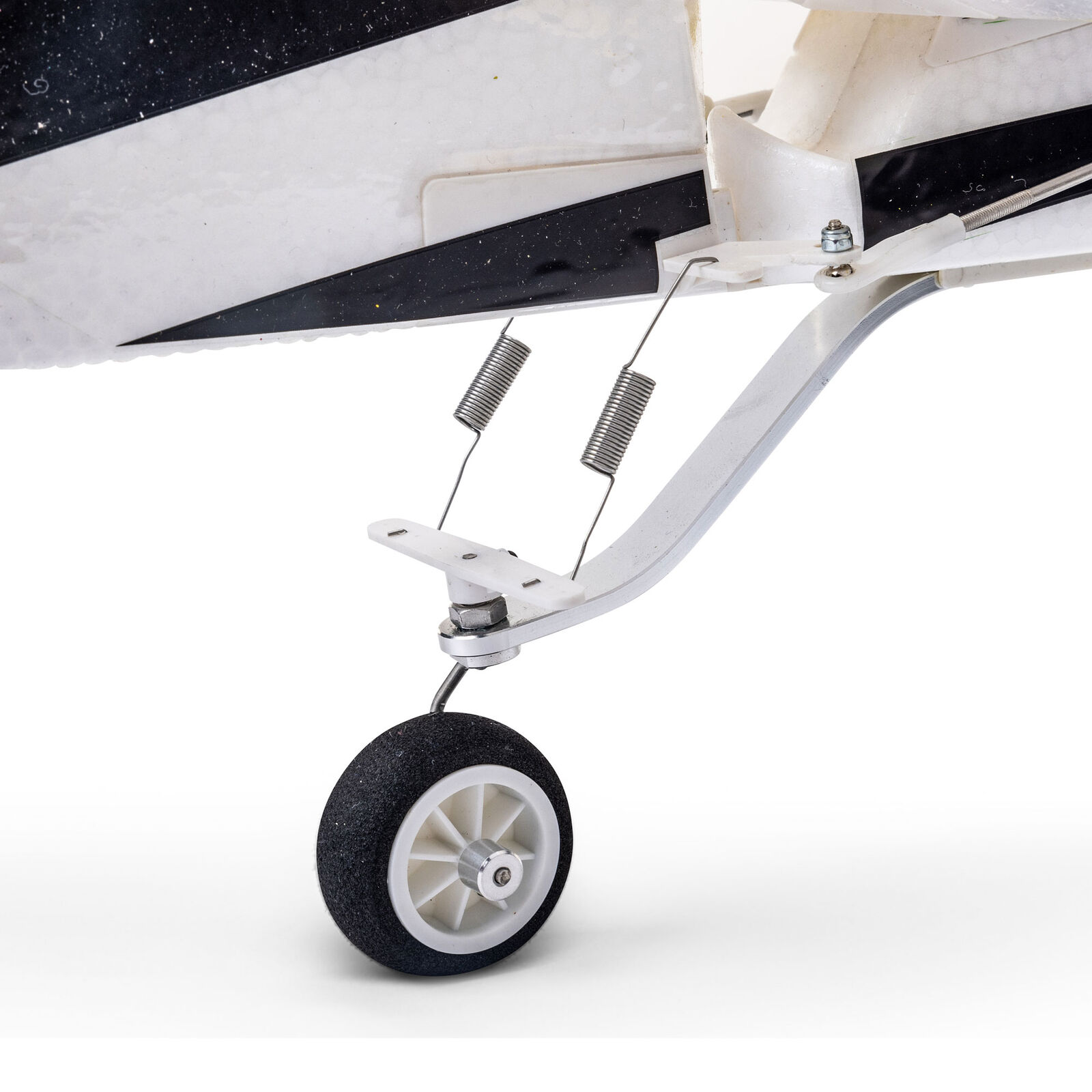

The E-flite Super Timber 1.7m is equipped with a long list of “super” details that make it the most feature-rich and capable Timber yet! Starting with inflatable tundra tires and unique beadlock wheels mounted on heavy-duty articulated and shock-absorbing landing gear that are angled forward to help prevent nose-overs. It’s the best and strongest landing gear that’s ever been installed on a Timber model to deliver maximum durability and STOL capability when flying from almost any terrain! The optional-use slats can be clipped into place without the use of any glue, then can be removed and even reinstalled in seconds. All the LED lights you’ve come to expect are there, along with additional position and landing lights for added visibility. The horizontal stabilizer halves snap into place, plus the plug-in wing panels featuring hands-free servo connections are secured with innovative wing lock mechanisms so no fasteners or tools are required to install/remove them. There’s even a custom-designed clip in the fuselage that holds the wing joiner tube so you never forget it when the wing is removed for more convenient storage and transport! The digital, metal-geared servos deliver precise and reliable control of the oversized control surfaces for added authority, including flaps that can travel both ways for additional capabilities such as optional-use full-span ailerons.

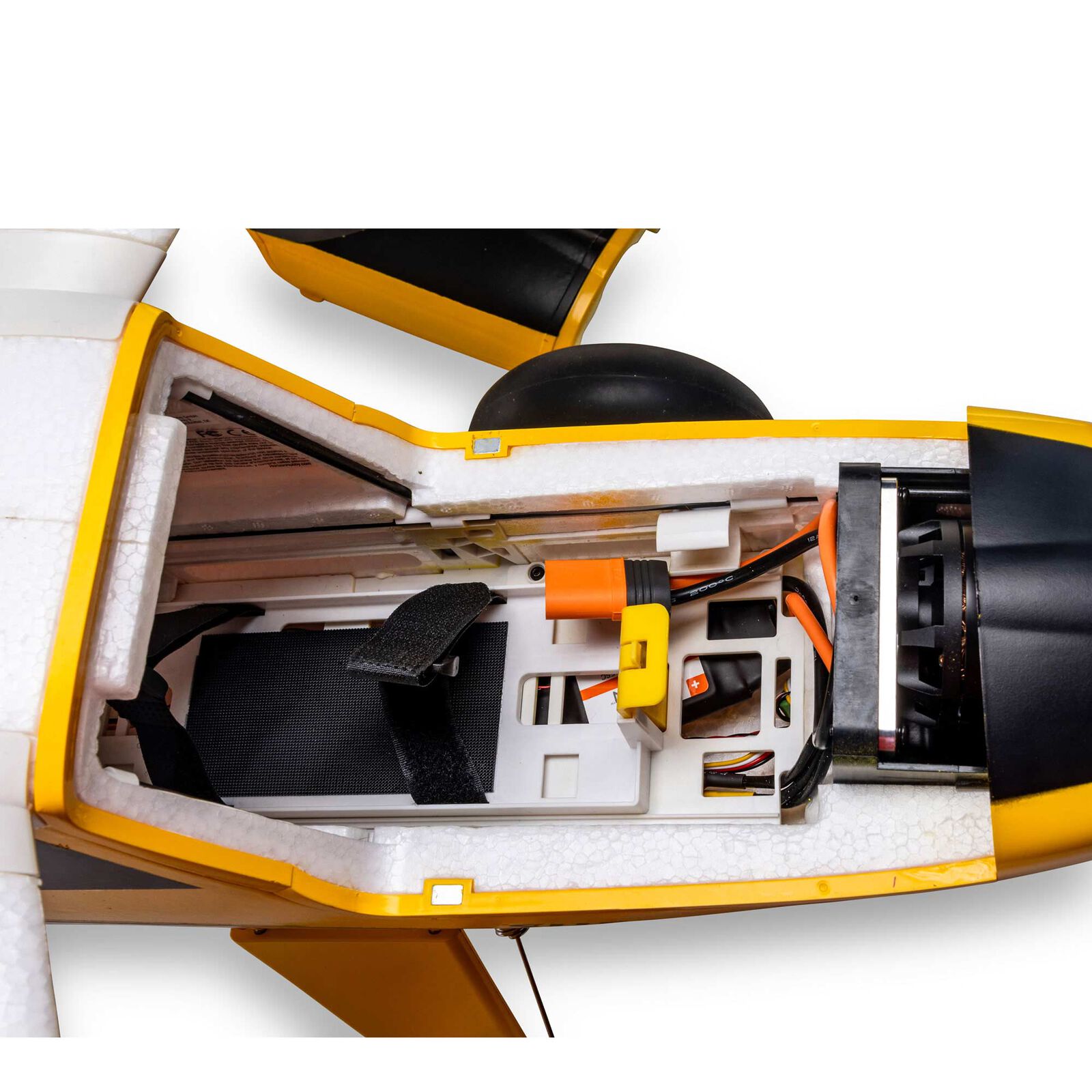

A specially tuned motor is matched to an exclusive 85-amp Spektrum Avian Smart Lite ESC that can provide a variety of real-time power system telemetry data with Smart and non-Smart batteries via compatible receivers (including the AR637TA installed in the BNF® Basic version) and Spektrum AirWare™ equipped transmitters. The BNF® Basic version is equipped with an AR637TA receiver to provide full-range, real-time telemetry data, including overall battery voltage, ESC temp, and more — plus motor/thrust reversing for special ground handling and other capabilities — along with the benefits of AS3X® and optional-use SAFE® Select technologies. The Super Timber 1.7m also features a large top hatch for faster, easier battery changes using a quick-release, multi-position battery mounting tray that fits most 4S to 6S 3200–5000mAh batteries. You even have the option to install floats (sold separately) to fly from ponds and lakes! All these super details and features add up to make this the best Short Take Off and Landing (STOL), everyday sport, and even aggressive aerobatics capable model for a wide range of pilots.

Features:

  • A long list of “super” details makes this the most feature-rich, capable, and best flying Timber model to date
  • Specially tuned Spektrum brushless motor compatible with 4S to 6S batteries without the need for modifications
  • 85-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current, and other data via compatible receivers and transmitters
  • Six durable and factory-installed digital, metal-geared servos for precise and reliable control
  • Optional-use leading-edge slats that clip into place without glue for quick and easy installation/removal

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Super Timber in particular but at least we know they do distribute E-flite.

Where to buy

France
Flash RC
check web site
Ship to: Europe
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
ModellMarkt24
check web site
Ship to: Europe
South Africa
Plane Crazy RC
check web site
Ship to: South Africa
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Ireland
Model Heli Service
check web site
Ship to: Ireland
Usa
Horizon Hobby USA
check web site
Ship to: USA
Australia
Daves Toys for Big Boys
check web site
Ship to: Australia
USA
AMain Hobbies
check web site
Ship to: USA
Belgium
Aerobertics
check web site
Ship to: Europe
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
Germany
Voltmaster
check web site
Ship to: Europe
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
France
Turbines RC
check web site
Ship to: Worldwide
France
Breizh Modelisme
check web site
Ship to: Europe
Austria
DMT
check web site
Ship to: Europe
Austria
Lindinger ModellBau
check web site
Ship to: Europe
USA
Grayson Hobby
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
France
Weymuller Modélisme
check web site
Ship to: France
France
Absolu Modélisme
check web site
Ship to: France
Spain
ACRO RC
check web site
Ship to: Europe
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
USA
Gator RC
check web site
Ship to: USA
USA
TOWER HOBBIES
check web site
Ship to: International
USA
Flite Test Store
check web site
Ship to: Worldwire
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Austria
Slow Flyer
check web site
Ship to: Europe
Netherlands
RC webshop
check web site
Ship to: Europe
USA
Atlanta Hobby
check web site
Ship to: USA
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
France
miniplanes
check web site
Ship to: France
Switzerland
Scamora
check web site
Ship to: Switzerland
United Kingdom
tjd Models
check web site
Ship to: United Kingdom

Wingspan: 1727mm (68 in)
Length: 1143mm (45 in)

Weight: 3149 g (6.9 lbs)
  • Product Weight:
    • Without Battery: 2641 g (93oz)
    • With Recommended 6S 3200mAh Flight Battery: 3149 g (111oz)
  • Connector Type: IC5
  • Product Length: 1143 mm (45")
  • Landing Gear: Yes
  • Motor Type: Brushless
  • Speed Control: Included
  • Power Type: Electric
  • Servos: Included
  • Wingspan: 1727 mm (68")
  • LiPo Compatibility: 4S, 6S
  • Recommended Motor Battery: 4S - 6S 3200mAh - 5000mAh w/IC5
  • Lighting: LED Navigation and Landing Lights
  • Minimum Required Radio: Full-range 5+ channel transmitter and receiver
  • Flaps: Yes
  • Material: EPO
