UMX A-10 from E-flite

Details

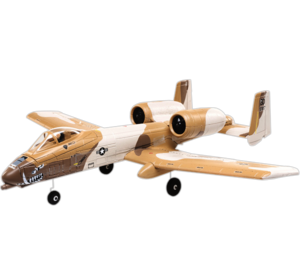

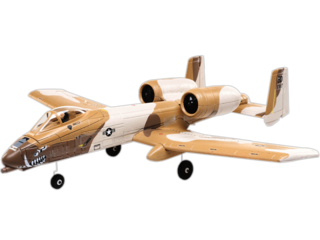

The E-flite® UMX™ A-10 Thunderbolt II Twin 30mm EDF ultra micro jet is the most practical and easiest to fly A-10 RC model yet! New upgrades make this replica of the iconic U.S. Air Force aircraft easier for a wider variety of experienced pilots to enjoy — including those with limited EDF experience. The BNF® Basic model’s industry-leading Spektrum™ 2.4GHz technology binds to your 5+ channel DSMX®/DSM2® transmitter for full 4-channel control, plus the benefits of exclusive AS3X® and optional-use SAFE® Select technologies. It’s 100% factory-assembled and ready to deliver an authentic A-10 jet flying experience almost immediately. The fully-molded airframe features a factory-applied "desert camo" trim scheme and is strengthened with a carbon fiber reinforced fuselage and nose. Factory-installed twin brushless power systems feature more powerful 2S and 3S-compatible outrunner motors with larger diameter 30mm fans, for improved vertical performance and speed compared to other models in its class — plus longer-than-average EDF flight times when using the recommended 450–850mAh LiPo batteries. Use the included fixed landing gear with steerable nose wheel to taxi, take off and land on paved, packed dirt or grass surfaces at large parks and fields. Or leave the landing gear off for more speed and vertical performance plus easy over hand launches and landings on grass. With the A-10 Thunderbolt II Twin 30mm EDF, you can start flying your first mission within minutes!

Features:

  • Scale replica of the iconic aircraft flown by the U.S. Air Force for Close Air Support and other missions
  • The easiest to fly and best handling ultra micro A-10 EDF (Electric Ducted Fan) jet model yet
  • Improved vertical performance and speed compared to other ultra micro class EDF models
  • More powerful 2S and 3S-compatible outrunner motors with larger diameter 30mm fans
  • Fits 450–850mAh LiPo batteries for a wide range of performance and flight times
  • Strengthened airframe including a carbon fiber reinforced fuselage and nose
  • Real-time battery voltage telemetry via compatible Spektrum™ transmitters
  • Spektrum receiver with industry-leading 2.4GHz DSMX® technology
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Easy to fly with optional-use SAFE® Select flight envelope protection
  • Completely factory-assembled and ready to fly right out of the box
  • Stronger removable landing gear with steerable nose wheel
  • Full 4-channel control with functional dual rudders
  • Factory-applied "desert camo" trim scheme finish

Pictures

Manual

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the UMX A-10 in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
Switzerland
ModellMarkt24
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Europe
USA
Gator RC
check web site
Ship to: USA

Wingspan: 562mm (22.1 in)
Length: 516mm (20.3 in)

Weight: 192 g (6.8 oz)
Battery Type LiPo (3.7V per cell)
CG (Center of Gravity) 1.25 - 1.34" (32 - 34mm) back from the leading edge of wing at the root
Fan Size 30mm EDF
Flying Weight 0-250g
Motor Size 8800Kv Outrunner 8-Pole
Product Length 516 mm (20.31")
Product Weight 120g (4.2oz) w/o battery, 192g (6.8oz ) with 850mAh 3S 30C battery
Recommended Motor Battery 3S 850mAh
Wing Loading 5.40 dm² (83.7sq in)
Wingspan 562mm (22.12")

Variants

EFLU6550
UMX A-10 (Beige Camo)
