Extra 260 104" from EXTREME FLIGHT

Details

The 104" Extra 260 from Extreme Flight is a new era of 35% aerobatic aircraft. The 67" version of the 260 has garnered praise from pilots all over the world, and the 120CC version brings this performance to giant scale. Building on classic Extreme Flight design and construction methods, the 260 refines the system, with carbon reinforcement in all high stress areas, hand-selected wood, genuine ultracote, custom CNC machined metal parts, pre-hinged and gap-sealed control surfaces, pre-installed control horns and pre-assembled linkage. This is a quick, easy build.

The aerodynamic package on the 260 is our next generation. The goal of this package is winning freestyle performance, with easy, gentle and confidence-inspiring low-and-slow 3D. We designed and tested several wing and stabilizer packages and the Pro pilots on Team Extreme flew them hard, back-to-back until there was a clear winner. The "Gen 5" package includes new airfoils and all-new ratios. It has a wide CG envelope and will hit any pilot in the "sweet spot". You really can have it all, a plane that's easy to get used to and confidence-inspiring, but you can grow with and will take you to the highest levels of competition.

The 260 includes all of our CNC wing, stab and canopy latches, carbon wing and stab tubes, carbon landing gear, silver wing bags, cooling baffles and a long list of more great features. It's a big, beautiful bird available in two high-visibility color schemes. We're glad to bring the Extra 260 back to the forefront of the aerobatic scene.

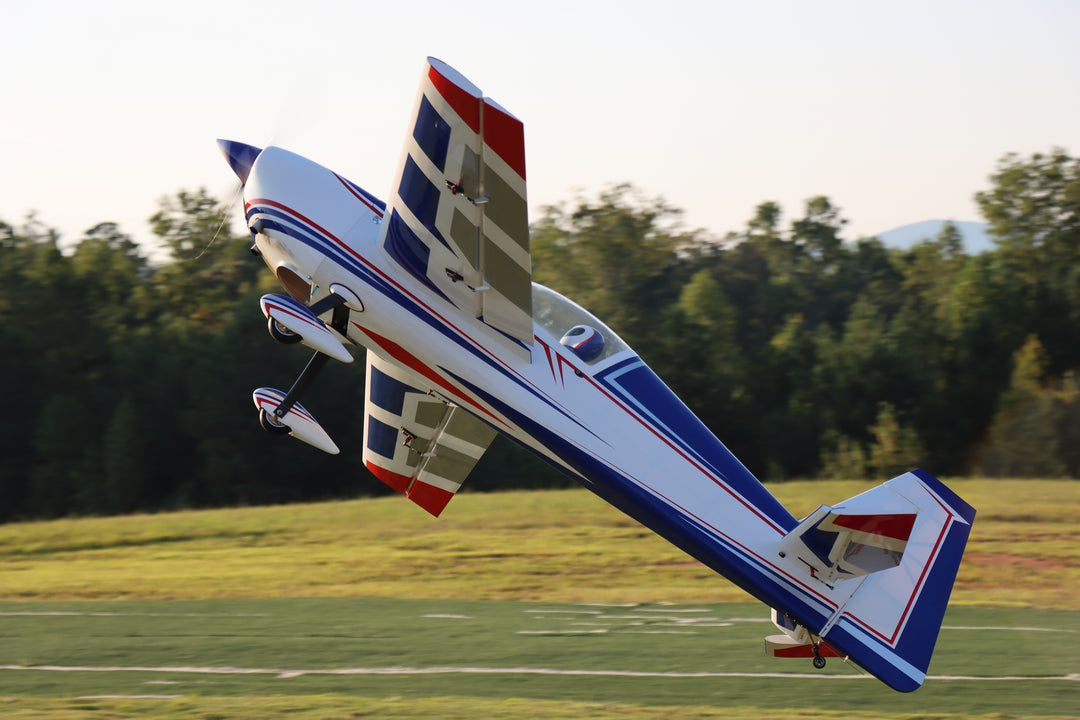

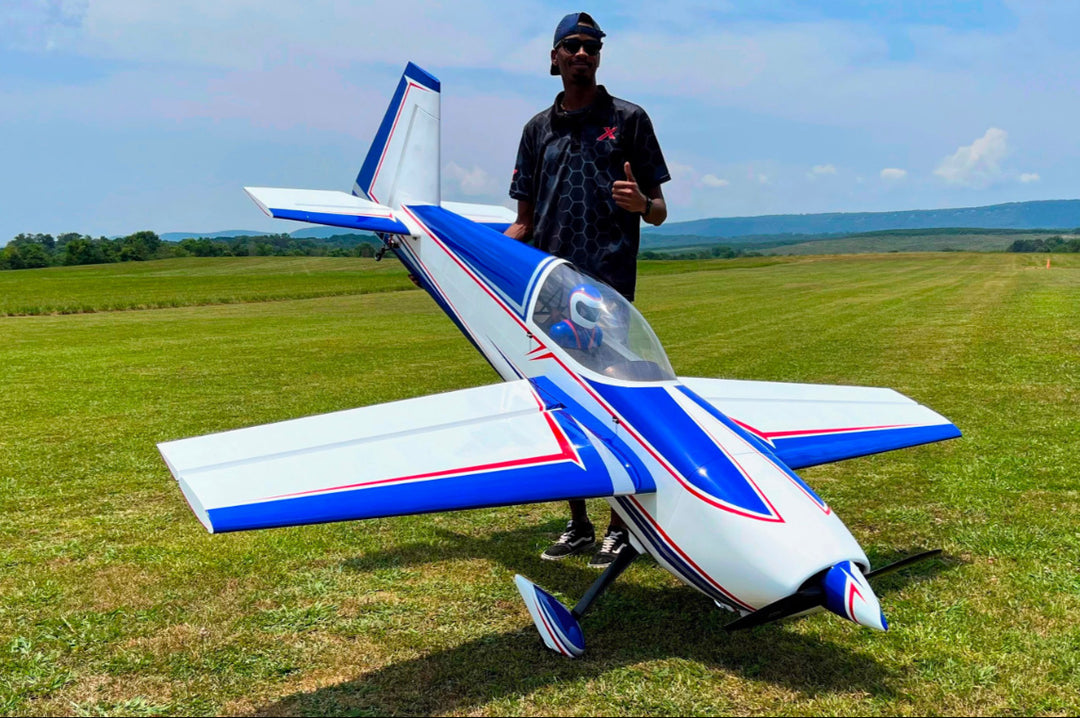

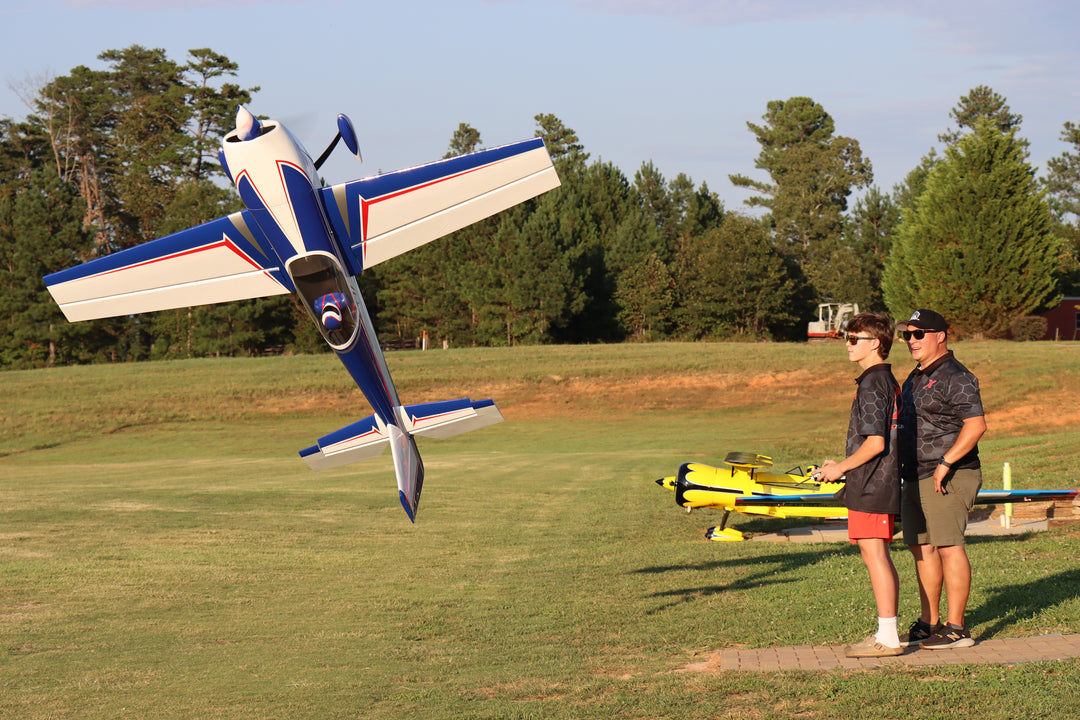

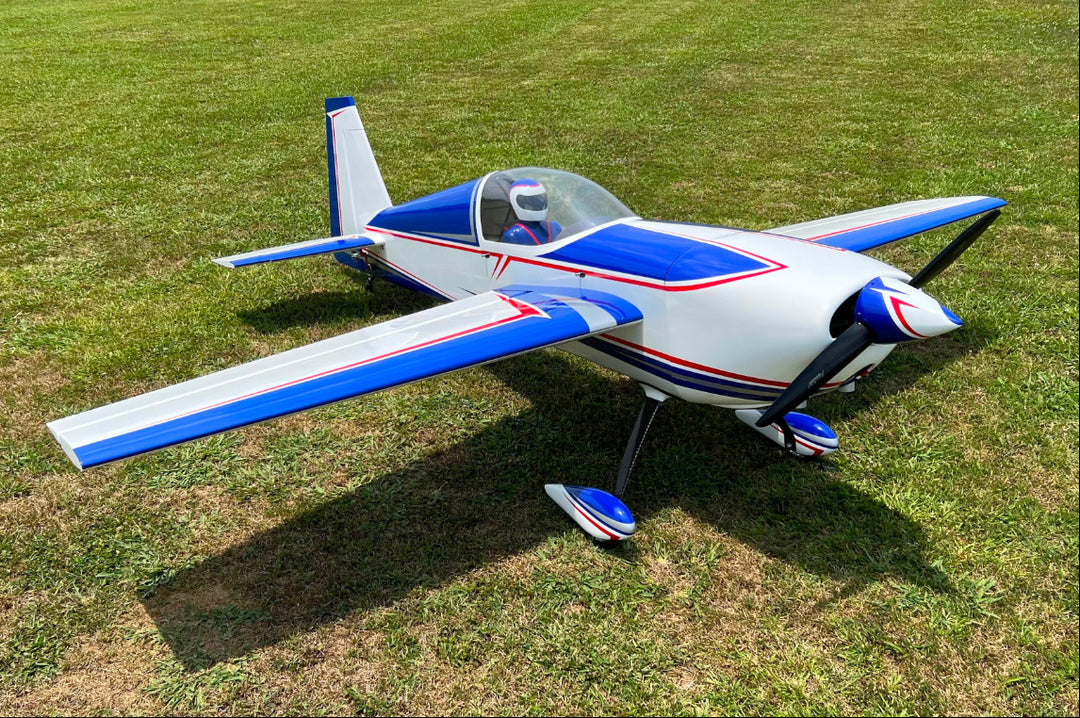

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2639mm (103.9 in)
Length: 2690mm (105.9 in)

Weight: 12700 g (28 lbs)
  • WingSpan: 2639 mm (104”)
  • Spinner: 5”
  • Length: 2690 mm (106”)
  • Weight: 12.2-12.7 kg (27-28 lbs.)
  • Wing area: 121.9 dm² (1890 sq. in.)
  • Center of Gravity: Rear edge of wing tube to 1” behind wing tube.


Control settings:

  • Aileron :
    • Low: 20 deg up, 20 deg down 18-20% exponential
    • High: 38 deg up, 37 deg down 50-60% exponential
  • Elevator :
    • Low: 10-12 deg 18-20% exponential
    • High/3D: 45-50 deg 50-60% exponential
    • XA/Tumbling: 60+ deg 60-70% exponential
  • Rudder :
    • Low: 20 deg 50-60% exponential
    • High: 45+ deg 60-80% exponential
