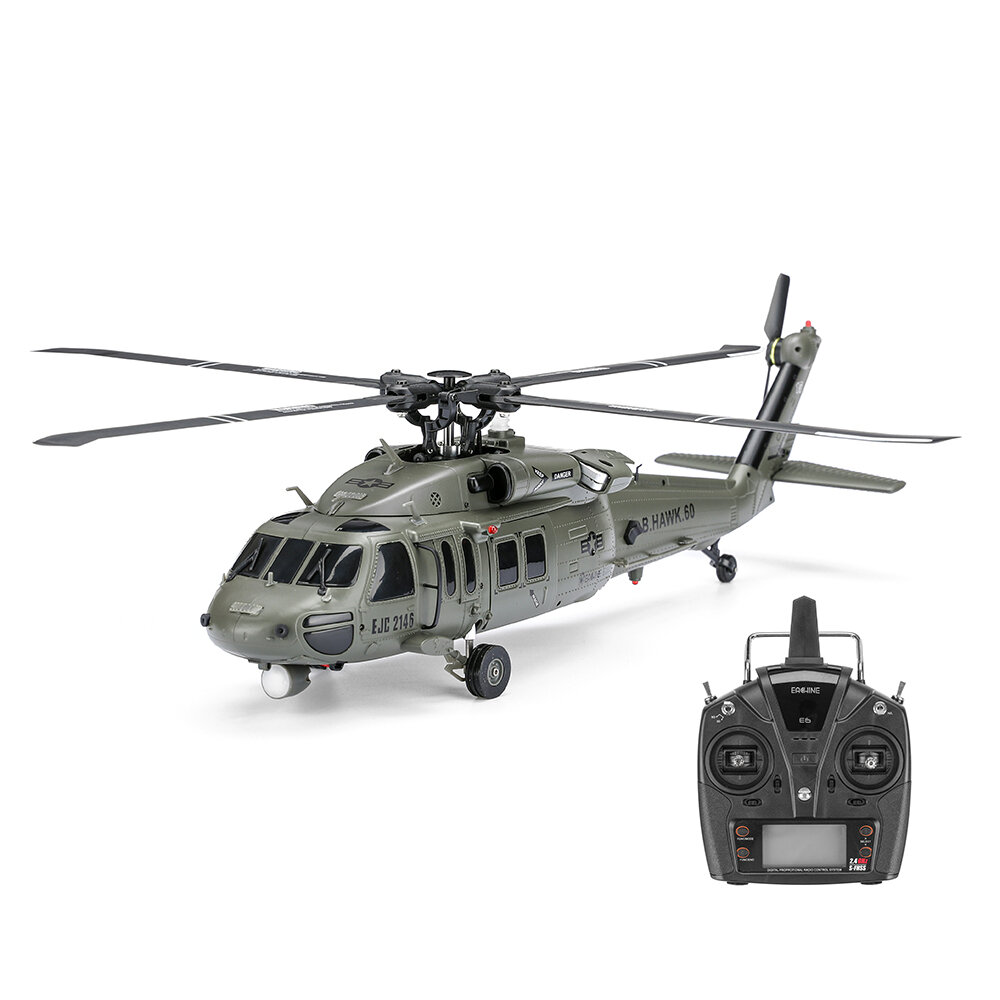

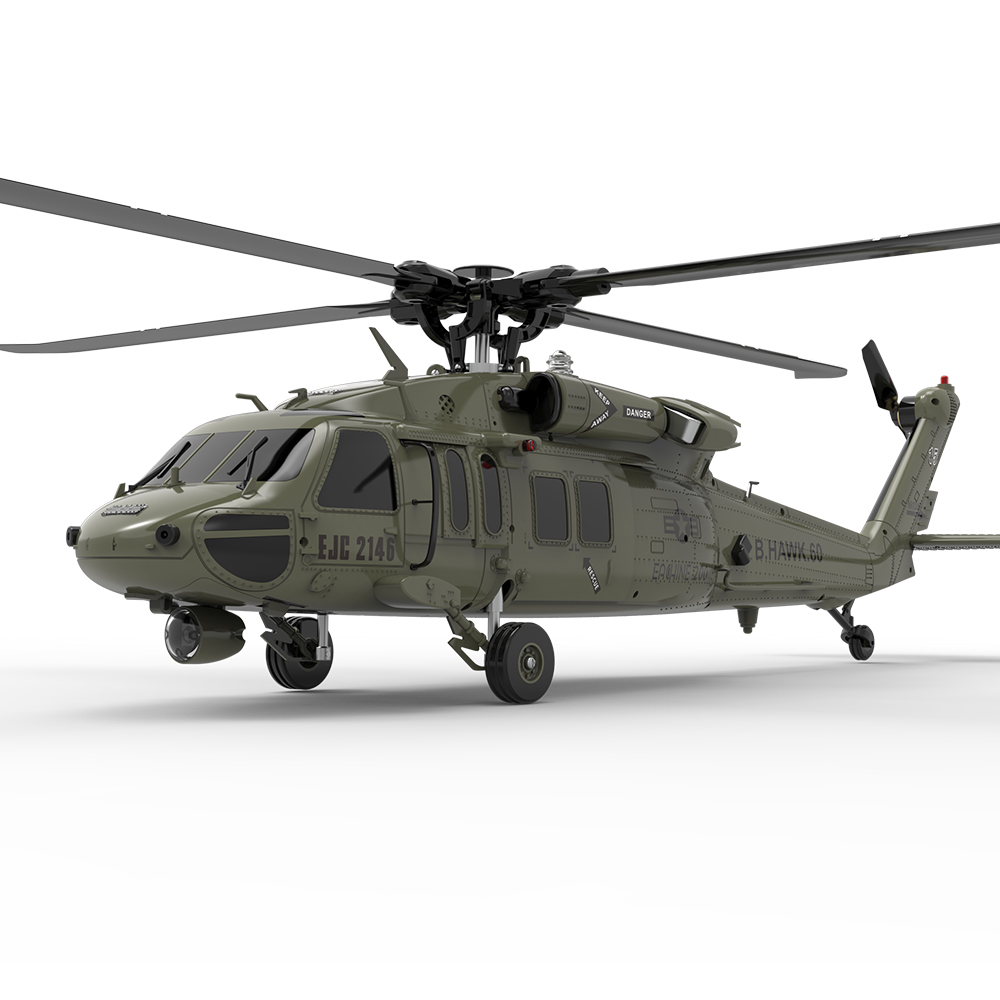

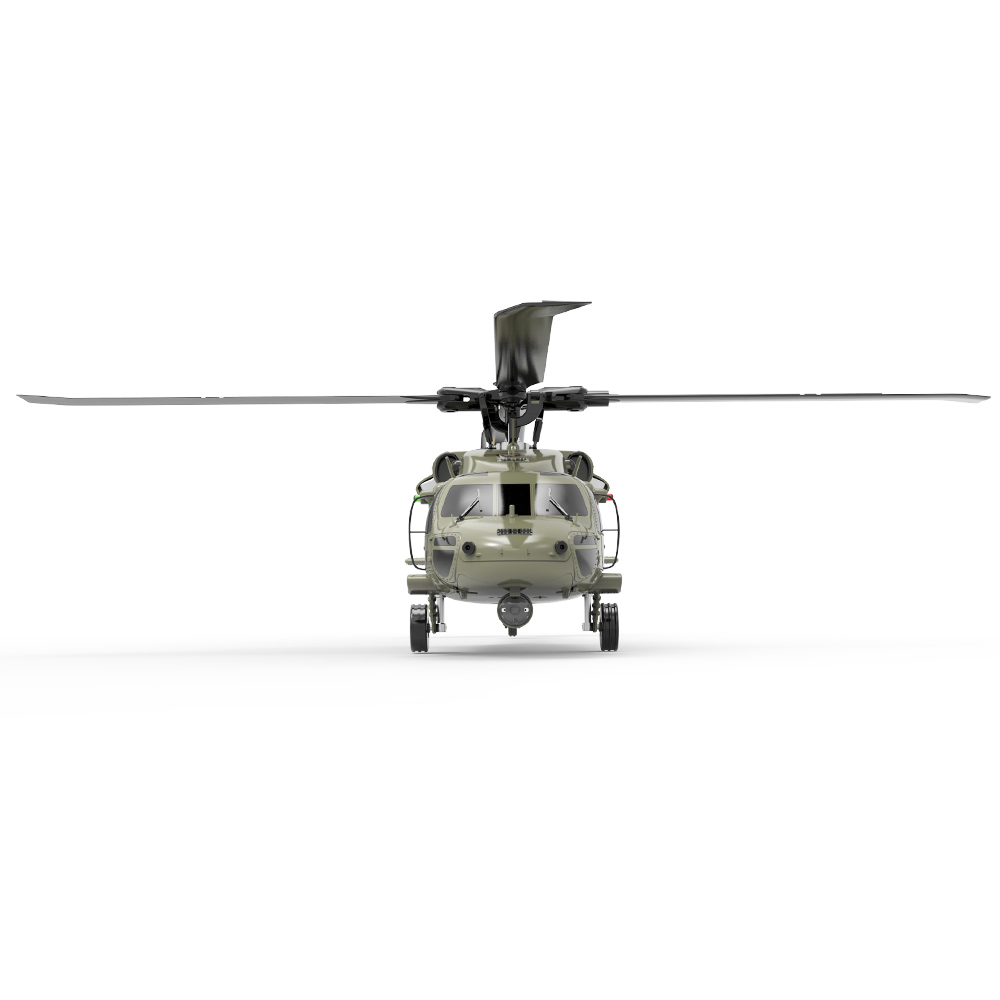

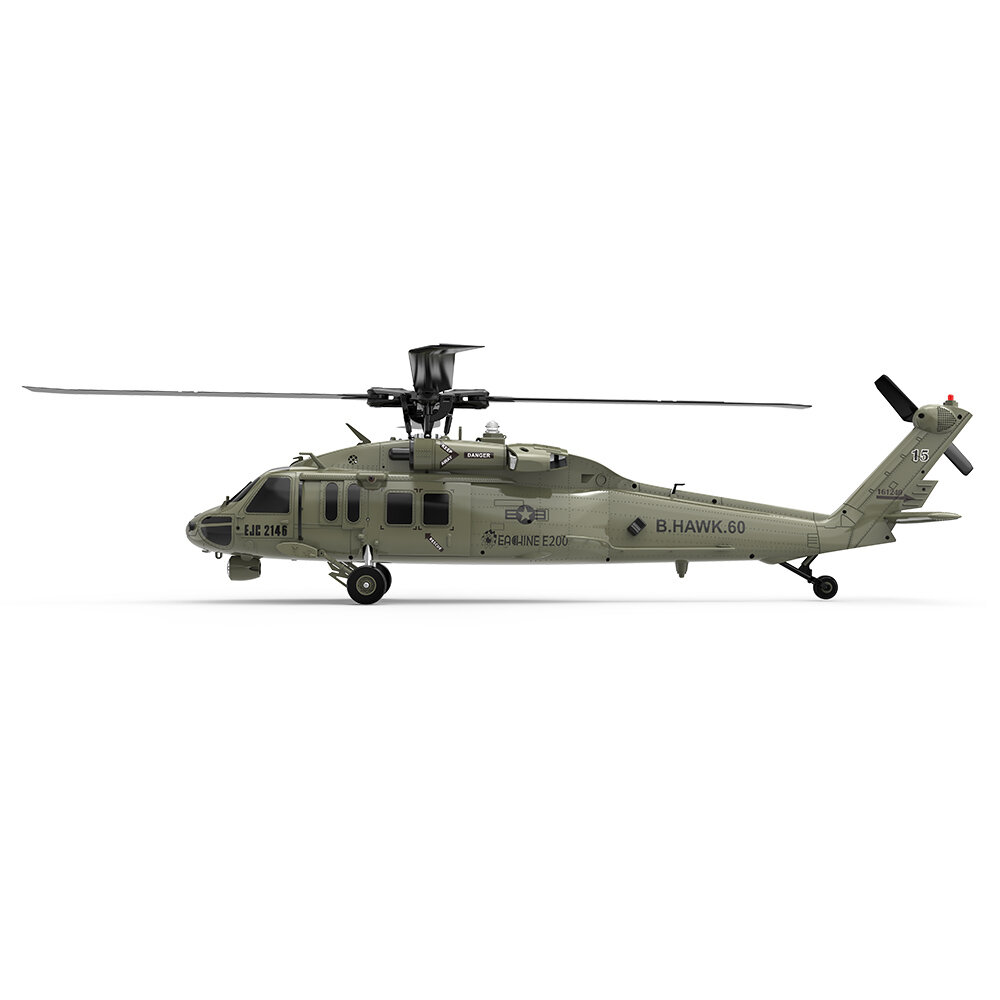

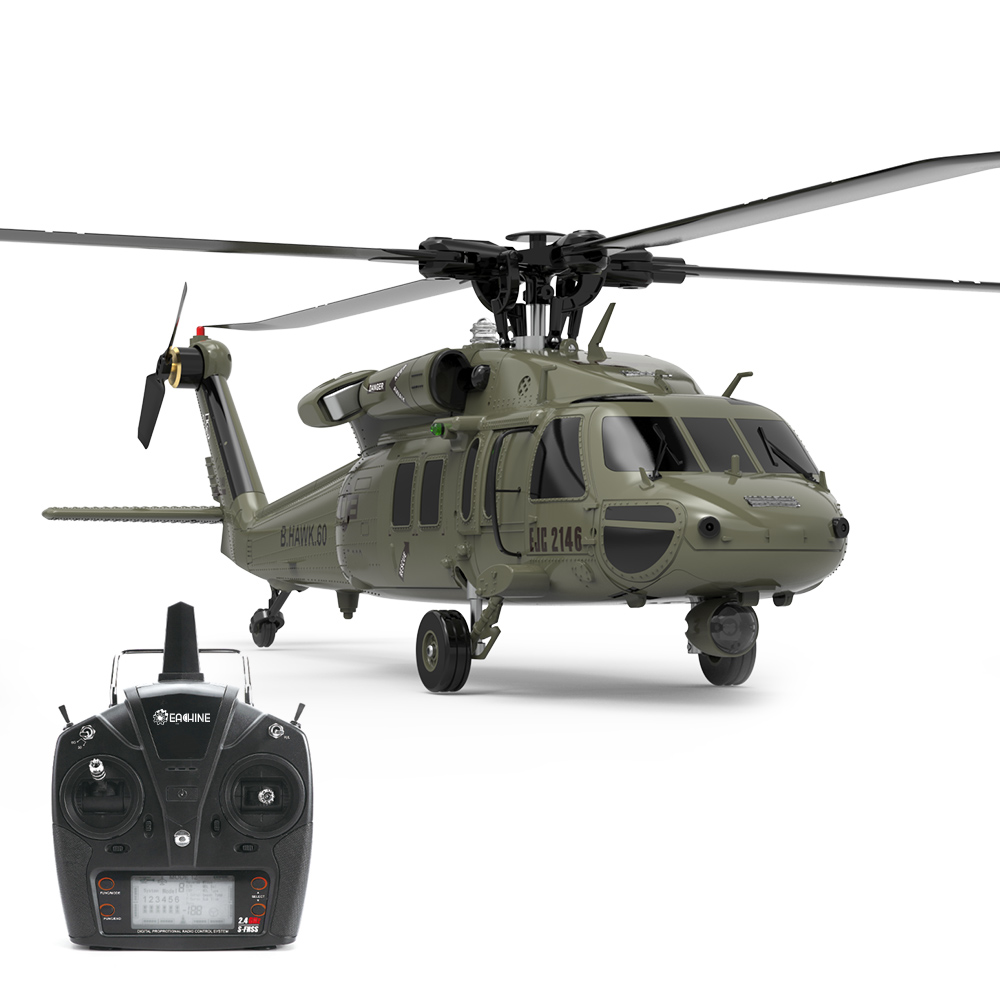

Black Hawk UH-60 from Eachine

Details

Features:

  • According to the 47:1 scale reduction of the UH60-Blackhawks helicopter in the United States, it has high simulation appearance details, cool lights, left and right movable side doors, shock-absorbing landing gear.
  • It adopts flybarless design, adopts two-axis co-drive motor, and electronic stabilization system, which makes the hand feel more accurate, the flight is more stable, and the structure is optimized to reduce the probability of damage.
  • The propeller is designed based on the principle of aerodynamics, providing strong power and self-stability of the body. It has high efficiency, power saving and long flight time. The blade is made of nylon + carbon fiber composite material, which has high strength, good toughness, impact resistance, no deformation and durable.
  • Use 4006 630KV brushless motor for self-stable co-drive to reduce gear agitation, with low noise, large torque, sufficient power, and high efficiency.
  • The lock tail motor uses a special 1104 5200KV brushless motor, which has the characteristics of high temperature resistance, stable lock tail, and long-term work is not easy to damage.
  • Using the enlarged 4.3g metal digital servo, high torque, fast responses, high precision, and accurate return to the center, the response speed is 60°/0.05ms, which makes the aircraft fly accurately, feel good, and last longer.
  • Using a 6-axis gyroscope. It has a stable, fast and precise flight attitude, especially suitable for beginners to fly.
  • Adopt 2.4GHZ communication protocol, expandable satellites receiver Support DSMX DSM2 PPM S-BUS standard.
  • Adopt high-precision CNC rotor head and swashplate to optimize the structure, reduce the weight, and greatly reduce the probability of aircraft damage.
  • The casing adopts the hot runner injection molding process, with high simulation details, good elasticity and toughness, and is not easy to be damaged.
  • Standard 6CH remote control, with LCD screen, battery prompt, digital parameter adjustment, simulator function, optimized joystick output, more precise operation.
  • Professional customized high rate lithium polymer 11.1V 1350mah 30C battery, high discharge rate, long service life, flight time of about 9-12 minutes, normal use can reach 500+ cycles. It has functions such as preventing overcharge and overdischarge, and low battery indication, which can effectively prolong the battery life.
  • Dedicated USB 11.1V lithium battery charger with charge balance and charge stability function.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Black Hawk UH-60 in particular but at least we know they do distribute Eachine.

Wingspan: 425mm (16.7 in)
Length: 420mm (16.5 in)

Weight: 430 g (15.2 oz)
  • Rotor diameter : 425mm
  • Body length : 420mm
  • Height : 120mm
  • Weight: 430g
  • Radio Frequency Band: 2.4GHz
  • Body battery:11.1V (1350MAH) 30C Lipo Battery
  • Charging time: about 75 minutes
  • Use time: 7-10 minutes
