E180 from Eachine

Details

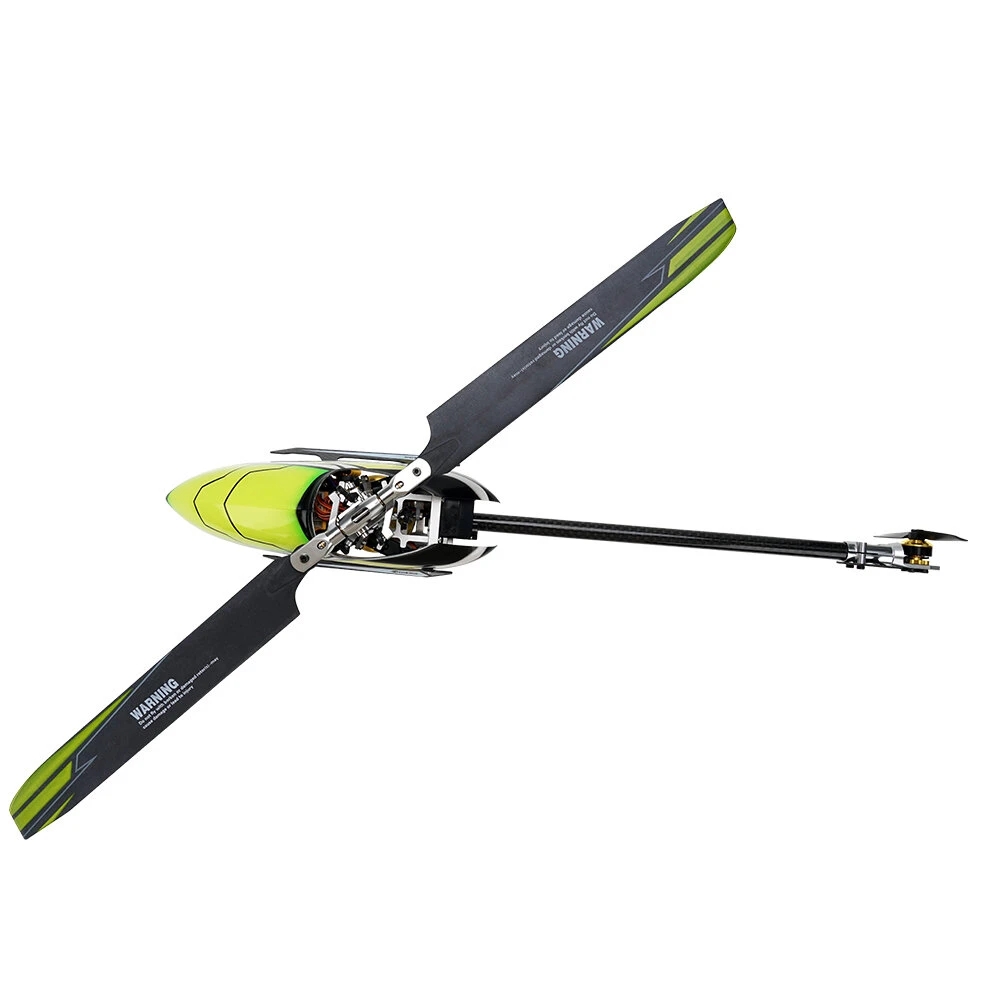

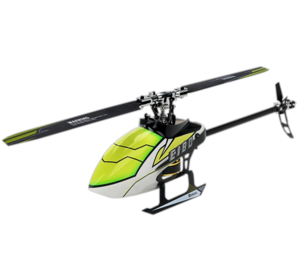

The Eachine E180, is Eachine's first direct drive collective pitch helicopter. It's a 200 size class machine. A direct drive brushless main motor is a more expensive way to run the main rotor, but it has many advantages... Efficient, quiet, powerful, operates nice & cool (longer motor & bearing life), is way more robust and reduces the parts count. It also looks great!

Features:

  • Adopting flybarless design, direct drive main motor, electronic stabilization system, more accurate hand feeling, more stable flight, optimized structure to reduce the probability of damage.
  • The propeller is designed with aerodynamic principles to provide strong power and body self-stability. It has high efficiency, power saving and long flight time. The blade is made of nylon + carbon fiber composite material, which has high strength, good toughness, impact resistance, no deformation, and durability.

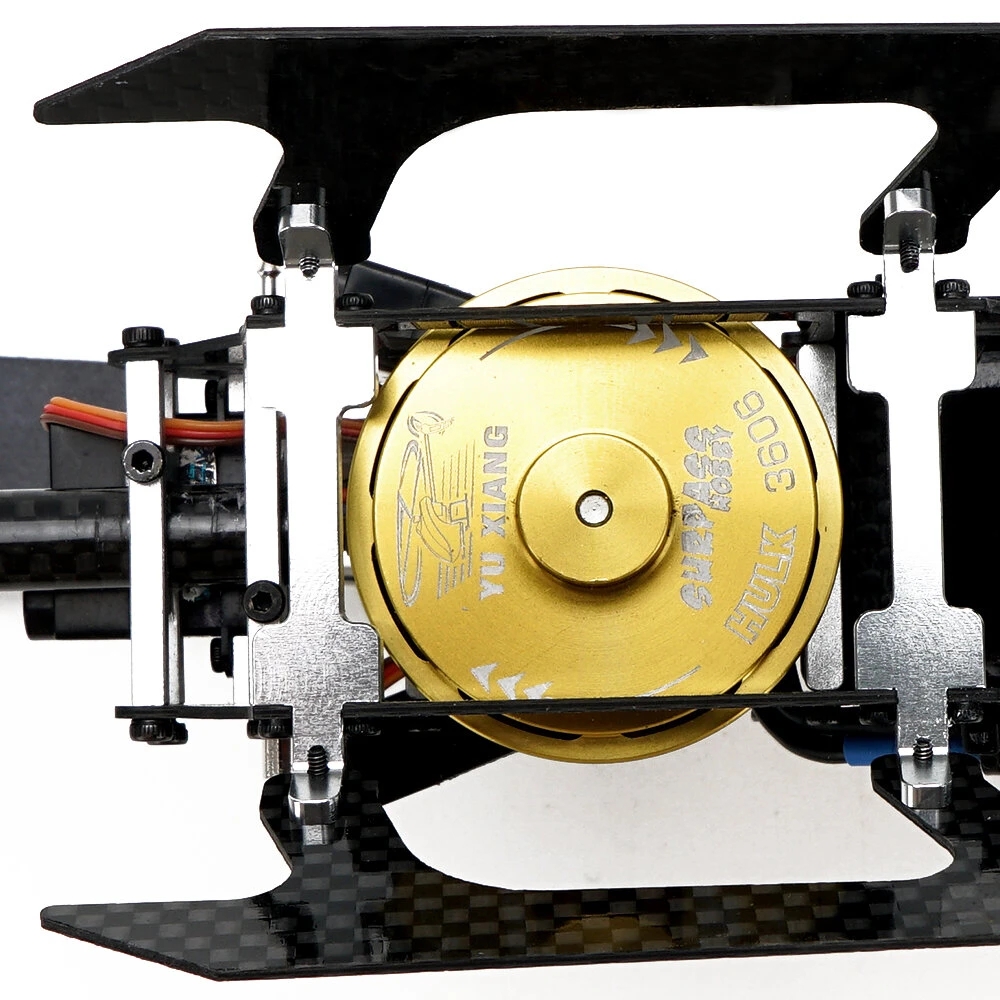

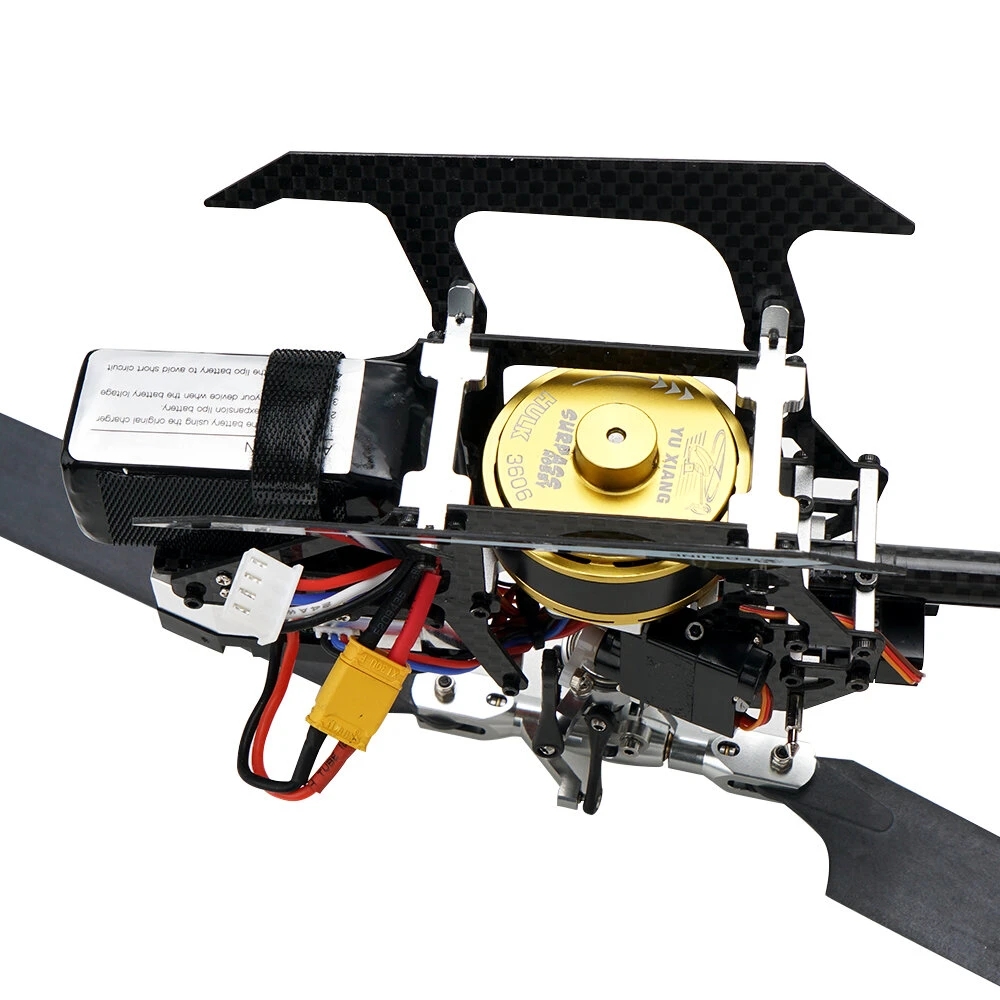

  • Use 3606 brushless motor direct drive, reduce gear restlessness, low noise, large torque, sufficient power and high efficiency. The special high-temperature resistant magnetic steel can withstand 150 degrees of high temperature without damage and increase the service life.

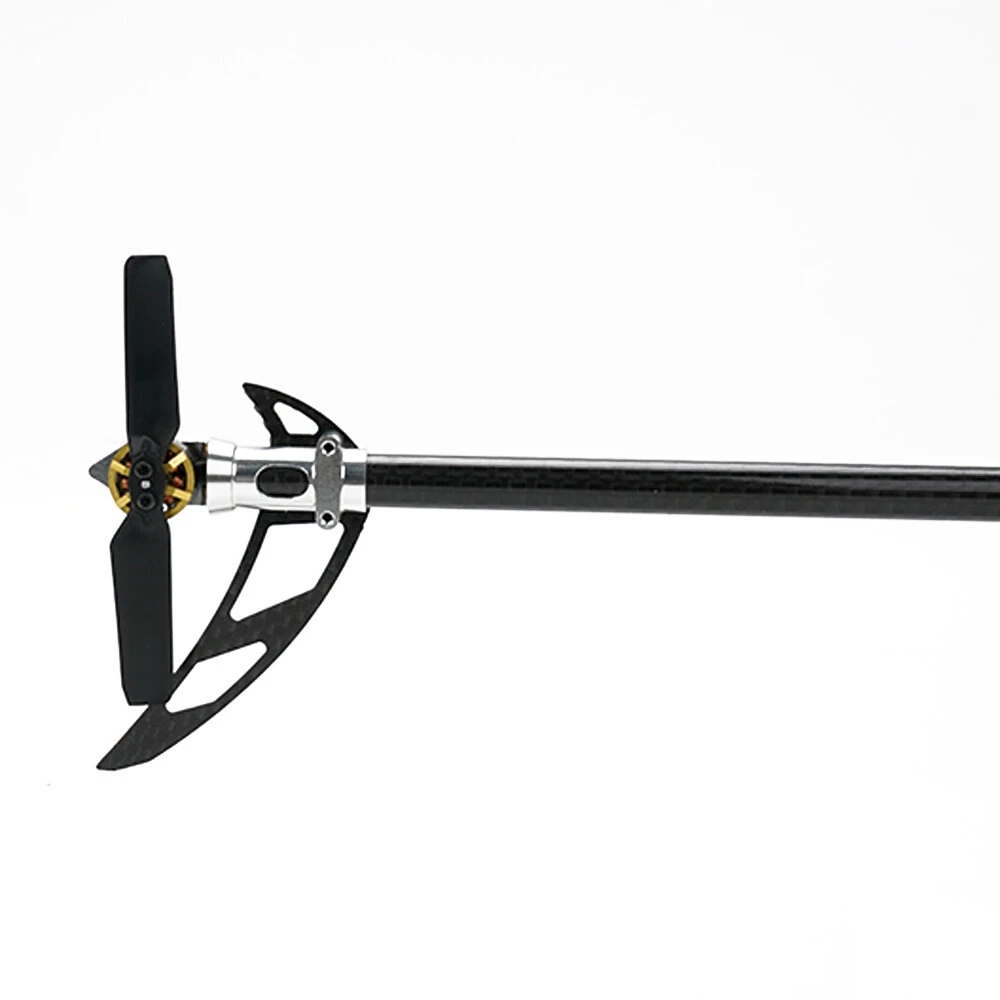

  • The tail-locking motor uses a special 1104 brushless motor, which has the characteristics of high temperature resistance, stable tail-locking, and it is not easy to be damaged after long-term work.
  • The use of an enlarged 4.3g metal digital steering gear, high torque, high accuracy, and accurate centering, response speed 60°/0.05ms, makes the aircraft fly accurately, feel good, and last longer.
  • Adopt 6-axis gyroscope. It has a stable, fast and accurate flight attitude, especially suitable for beginners to fly.
  • Adopt 2.4GHZ communication protocol, expandable satellite receiver, support DSMX DSM2 PPM S-BUS system.
  • Using high-precision CNC carved frame, rotor head, rotor clamp, swashplate, optimized structure, reduced weight, and greatly reduced the probability of aircraft damage.
  • Landing gear The main frame is made of 3K carbon fiber composite material, which has high strength, high toughness, non-deformation and impact resistance, ensuring the flight accuracy and durability of the whole machine.
  • The canopy adopts hot runner injection molding process, which has good elasticity, toughness and is not easy to be damaged.
  • Standard 6CH remote control, with LCD display. Power prompt. Support digital parameter adjustment, support simulator function, and optimize the joystick output, making the operation more precise.
  • Professional customized high-rate lithium polymer 11.1V 1000mah 25C battery with high discharge rate and long service life. The flight time is about 6-10 minutes, and the normal use can reach 500+ cycles.
  • Dedicated USB 11.1V lithium battery dedicated charger, with charge balance and charge stability function.

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the E180 in particular but at least we know they do distribute Eachine.

Where to buy

Hungary
SG RC Modell
check web site
Ship to: Hungary
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 410mm (16.1 in)
Length: 400mm (15.7 in)

Weight: unknown
  • Rotor diameter: 410mm
  • Body length: 400mm
  • Height:120mm
  • Product material: high-strength composite engineering material
  • Body battery: LI-POLY 11.1V (700MAH) 30C
  • Flight time: 6-10 minutes

Variants

E180
E180 (White Fluo)
