Model C from Eclipson Airplanes

Details

Eclipson model C is an atypical bush plane, the design is not based on any other bush plane, it has been designed from scratch to maximize its aerodynamic performances taking advantage of the design freedom provided by additive manufacturing. The model is very versatile: it can be used by beginners if printed with LW-PLA due to its low flying speed, docile stall and durable landing gear. But fast or aerobatic flying are totally possible with this model due to its low drag design and huge control surfaces. We provide you two types of wintips that can be easily fixed in his position thanks to a simple and effective magnet system, that concept will make the transportation easier. The landing gear based on steel rods is not only very durable but also versatile, you can use the wheel size that you want, even 3d printed wheel pants are provided.

Features:

  • Interchangeable wingtips
  • Bush plane
  • Printed without retractions
  • Durable landing gear
  • Full flaperon design
  • Trainer (LW-PLA)

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

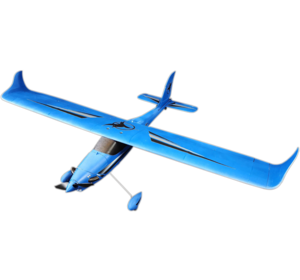

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

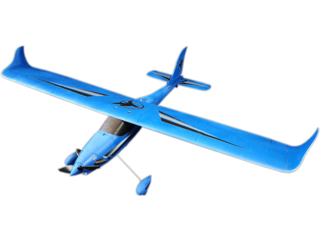

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Model C in particular but at least we know they do distribute Eclipson Airplanes.

Where to buy


Wingspan: 1100mm (43.3 in)
Length: 760mm (29.9 in)

Weight: 920 g (2 lbs)
  LW-PLA  PLA
Printed Weight ≈240g ≈470g
Take Off Weight 560g*1
510g*3
920g*2
850g*3
Stall Speed 24km/h 32km/h
Min Wing Loading 28g/dm² 47gr/dm²
Wingspan 1100mm (43")
Wing Surface 18dm²
Wing Aspect ratio 6.9
Length 760mm

*1 Weight using 3D printed tundra tyres with LW-TPU
*2 Weight using 3D printed tundra tyres with normal TPU
(Not recommended, use commercial foam wheels or LW-TPU to save weight)
*3 Weight using small wheels
