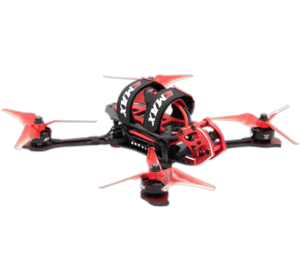

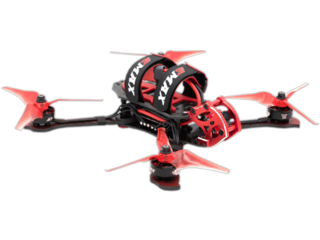

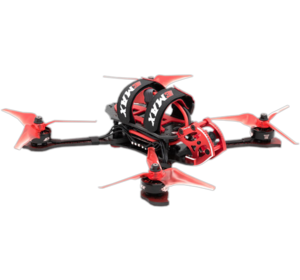

Buzz from Emax Model

Details

Utilizing advance composite 3k woven carbon fiber, robustness is gained while minimzing weight. In order to protect the drone from impact, the FPV camera mount was designed around aerospace grade aluminium further improving the fortitude of the frame and giving pilots the confidence they need for a prime flight experience.

With the newly designed freetsyle brushless motor system, EMAX's technology pushes new boundaries in terms of performance and responsiveness to allow smooth feedback, giving pilors a greater sense of stability.

Pilots will be able to customize their flights characteristics with two differents propeller options. The AVAN Flow will maximize the speed for superior control, while the AVAN Scimitar will lengthen your flight times and survive any accident with unrivaled persistence.

Featuring a redisigned all-in-one stack, named the Magnum II, stability and reliability is now achieved in a performance drone with new features such as 32 bits speed controllers and the ability to remotely disable the VTX when servicing the aircraft.

Pictures

A PHP Error was encountered

Severity: Notice

Message: Undefined index: query

Filename: aircraft/view.php

Line Number: 420

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 420
Function: _error_handler

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once

A PHP Error was encountered

Severity: Warning

Message: key() expects parameter 1 to be array, null given

Filename: aircraft/view.php

Line Number: 420

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 420
Function: key

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once

A PHP Error was encountered

Severity: Notice

Message: Undefined index: query

Filename: aircraft/view.php

Line Number: 421

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 421
Function: _error_handler

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once

A PHP Error was encountered

Severity: Notice

Message: Undefined index: query

Filename: aircraft/view.php

Line Number: 422

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 422
Function: _error_handler

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once




This article is an extract from the Wikipedia article "", which is released under the Creative Commons Attribution-Share-Alike License 3.0

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E

Similar Models

Some content in menu 2.

Where to buy


Winspan: 245mm (9.6 in)
Length: 245mm (9.6 in)

Weight: 358 g (12.6 oz)
  • Diagonal wheelbase (without paddles): 245mm
    Aircraft weight (without battery): 358g
  • Motor: FS 2306 2400kv
                (or) FS 2306 1700kv
  • Propeller:  Avan Flow 5x4.3x3
                    Avan Scimitar 5x2.6x3
  • Main Flight Controller: F4 (Omnibus F4)
  • ESC: 4 in one 3s-6s 45A 32 bit ESC
  • Receiver: FrSky XM+ receiver 16 CH Diversity
  • Camera: Caddx Micro S1 CCD
  • VTX : 0-25-200mW Adjustable frequency 37CH With Smart Audio

Variants

EMX-2326
Buzz (Black-red)
