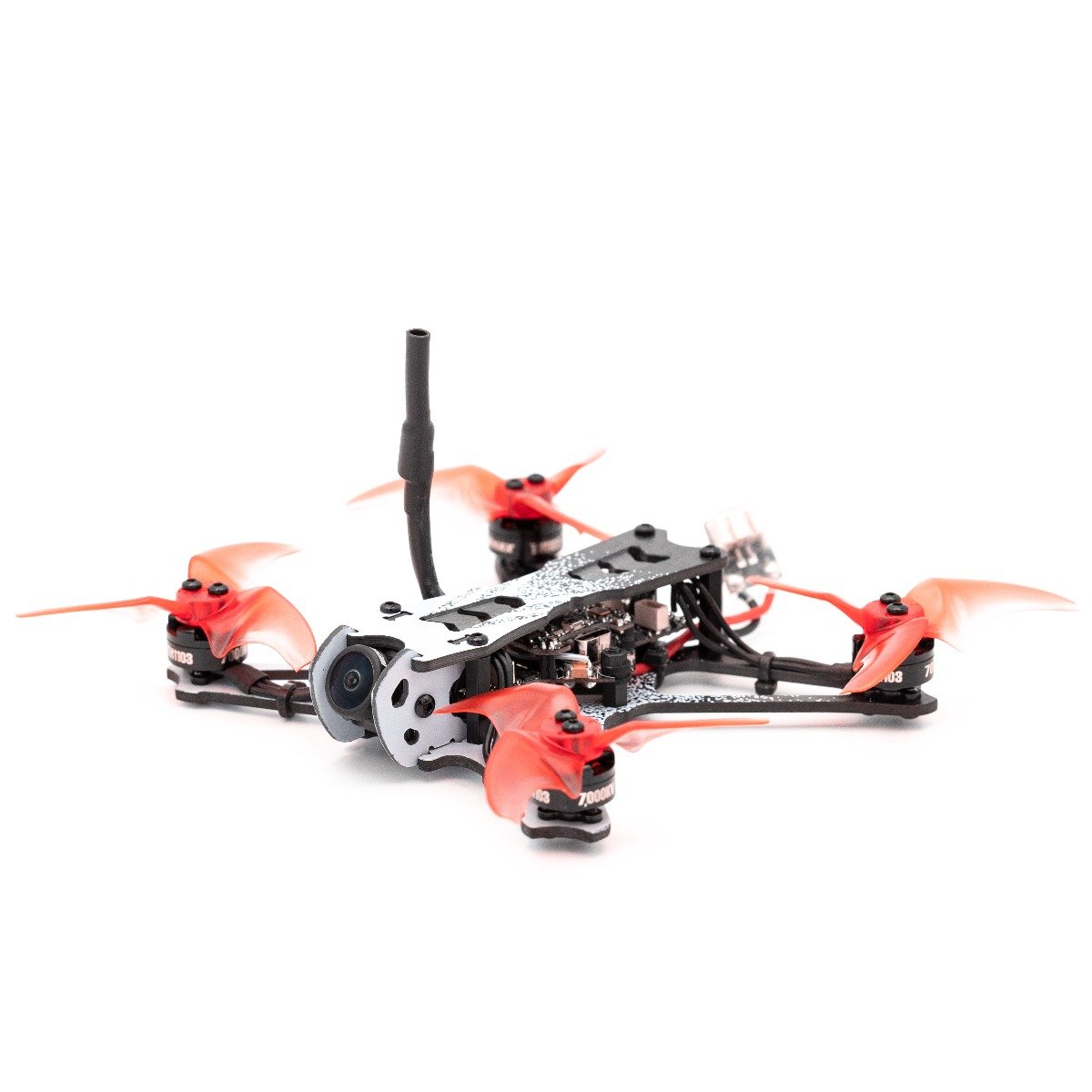

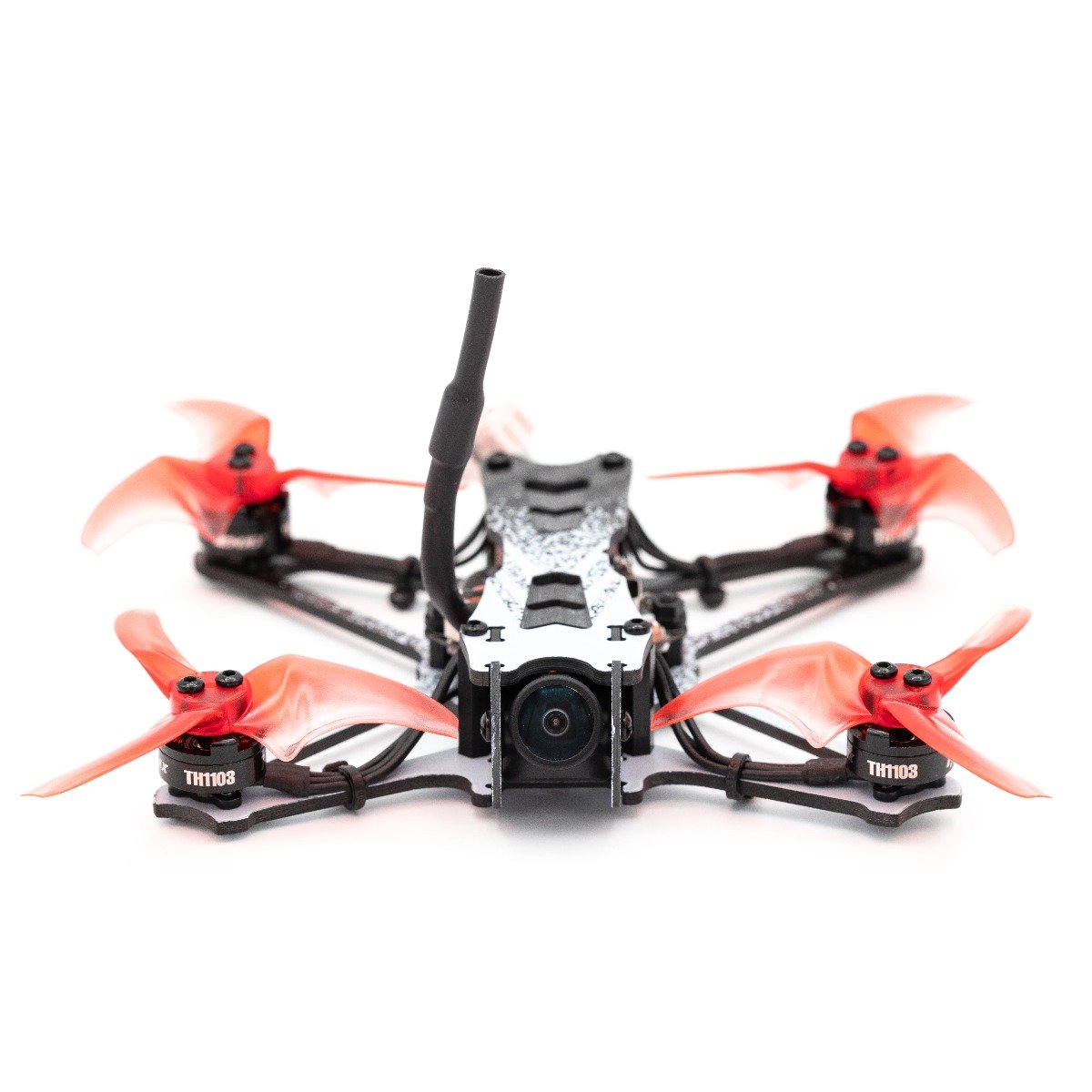

Tinyhawk II Freestyle from Emax Model

Details

Following the groundbreaking petformance of the predecessor, comes the newly re-invented Tinyhawk II Freestyle, the perfect beginner outdoor FPV quadcopter.

Optimized Power System
Featuring a power system focused on control and flight time, the Tinyhawk II Freestyle utilizes 1103 7000KV motor in order to achieve the optimal   PM needed to maximize flight time and efficiency. By utilizing the AVAN Rush 2.5 inch propeller, grip and thrust are optimized for a variety of situations the pilot may encounter.

Enhanced Video
By re-designing the frame to accept a higher quality camera, the  FPV experience is enhanced, allowing newfound clarity when navigating
the enviroment. Paired together with a video transmission system that is 8x more powerful than its predecessor, video signal will no longer impede the user experience.

Durable Design
Designed out of aerospace grade 3k woven carbon fiber, durability is maximized allowing the aircraft to withstand high degrees of impact. Printed onto the frame is a designer pattern giving the aircraft an appeal like no other.



Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tinyhawk II Freestyle in particular but at least we know they do distribute Emax Model.

Wingspan: 115mm (4.5 in)
Length: 115mm (4.5 in)

Weight: 79 g (2.8 oz)
  • Wheelbase: 115mm
  • Dry Weight: 49g
  • All Up Weight: 79g with 2x 450mAh 1S battery
  • Frame Material: Carbon Fiber

Motors

  • Stator Size: 1103
  • Kv: 7000kv
  • Propeller Mount: T-mount, 1.5mm shaft
  • Propeller: Avan Rush 2.5"

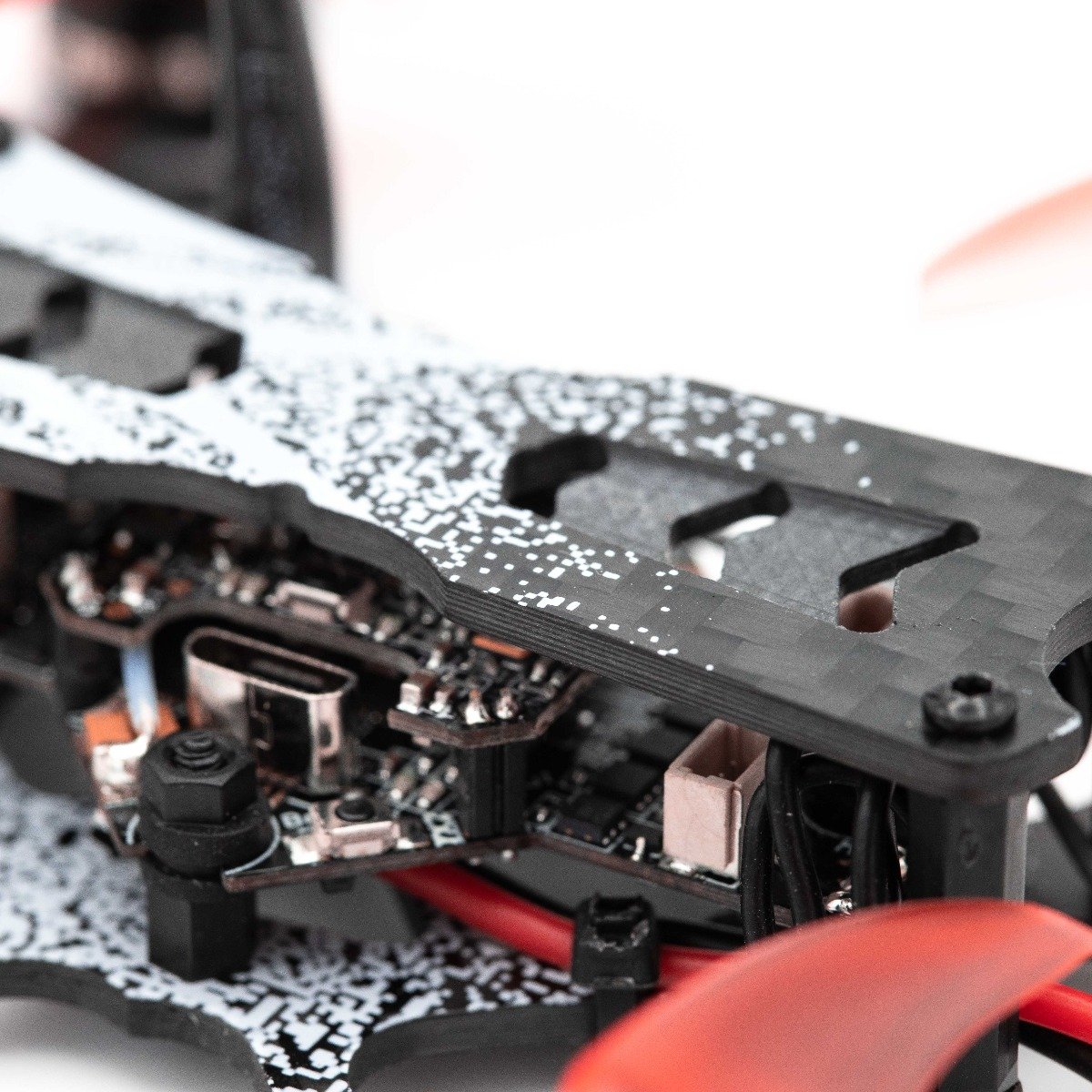

All-In-One (AIO) Flight Controller

  • Flight Controller: F4 (MATEKF411RX Firmware)
  • ESC: 4-in-1 5A BlHeli_S
  • Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode**)
  • Battery Connector: JST-PH2.0 Duo

FPV System

  • Ham radio license required for use in North America.
  • VTX Power: 25/100/200mw Switchable (set to stay at 25mW until armed)*
  • Channels: 37CH incl. Raceband
  • Camera: RunCam Nano 2 1/3" 700TVL CMOS
  • Smart Audio Connected
