Tinyhawk II from Emax Model

Details

EMAX has revisited the Tinyhawk platform in order to optimize the experience in the all new Tinyhawk II. With improvements made in evert area, pilots are able to navigate their aircraft in a variety of situations.

The first of these improvements stems from the redesigned FPV transmission system. By partnering with the experts of Runcam, the Tinyhawk II features the Nano 2 FPV camera, known for its crisp colors, wide dynamic range and sharp optics. Modifying the video transmitter with more filters and power has allowed the Tinyhawk II to have cleaner video than ever on 25 mW, the indoor standard, as well as 100 mW and 200 mW options for increased range and object penetration while experiencing crystal clear video.

Featuring motors which have a 7% increase in power, faster propeller speeds are achievable allowing an increase in speed, giving pilots an edge against the competition. In order to compensate for the higher achievable speeds when utilizing higher voltage batteries, the Tinyhawk II features an adjustable camera mount, allowing pilots the ability to customize their preferred angle of flight.

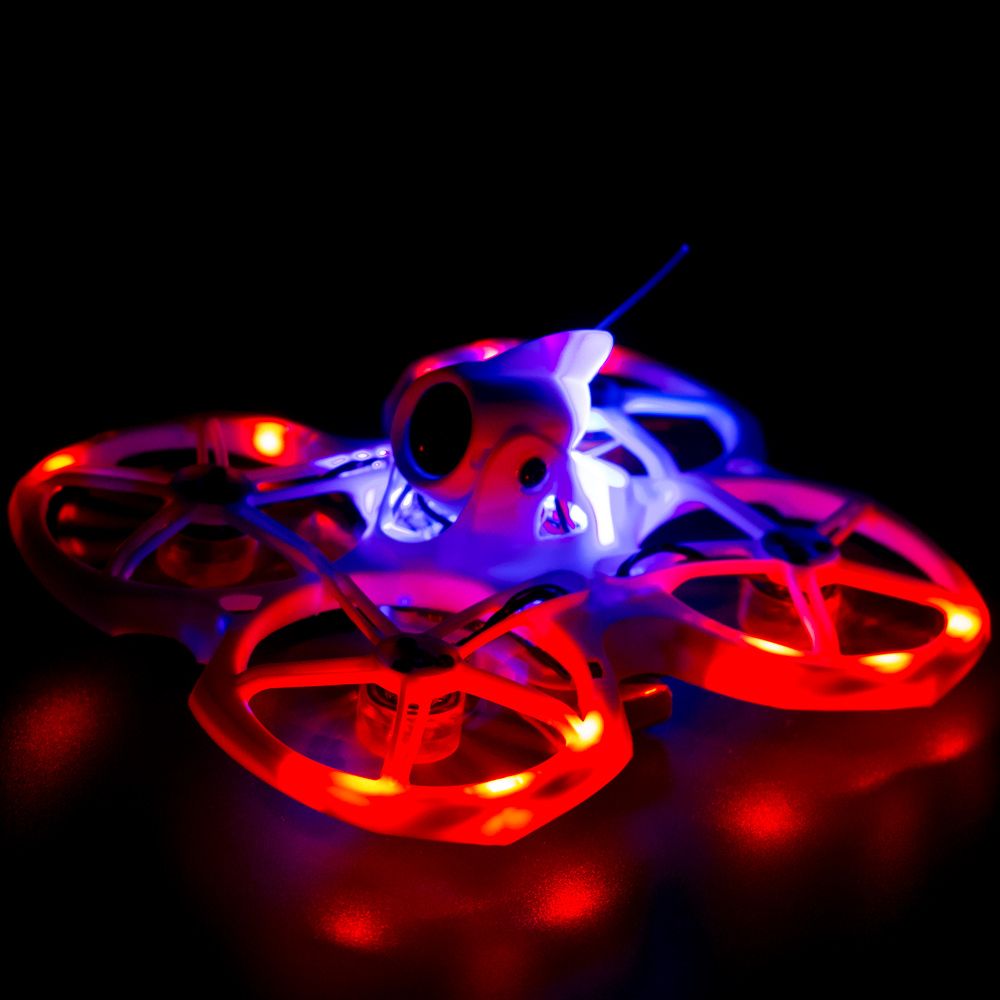

With a higher speed capability, the Tinyhawk II frame had to be redesigned from the ground up in order to increase  the durability. The result is a refreshing take on the unique aerodynamic properties of the Tinyhawk with a build-in throttle response LED system which increase in brightness depending on the throttle input of each motor.

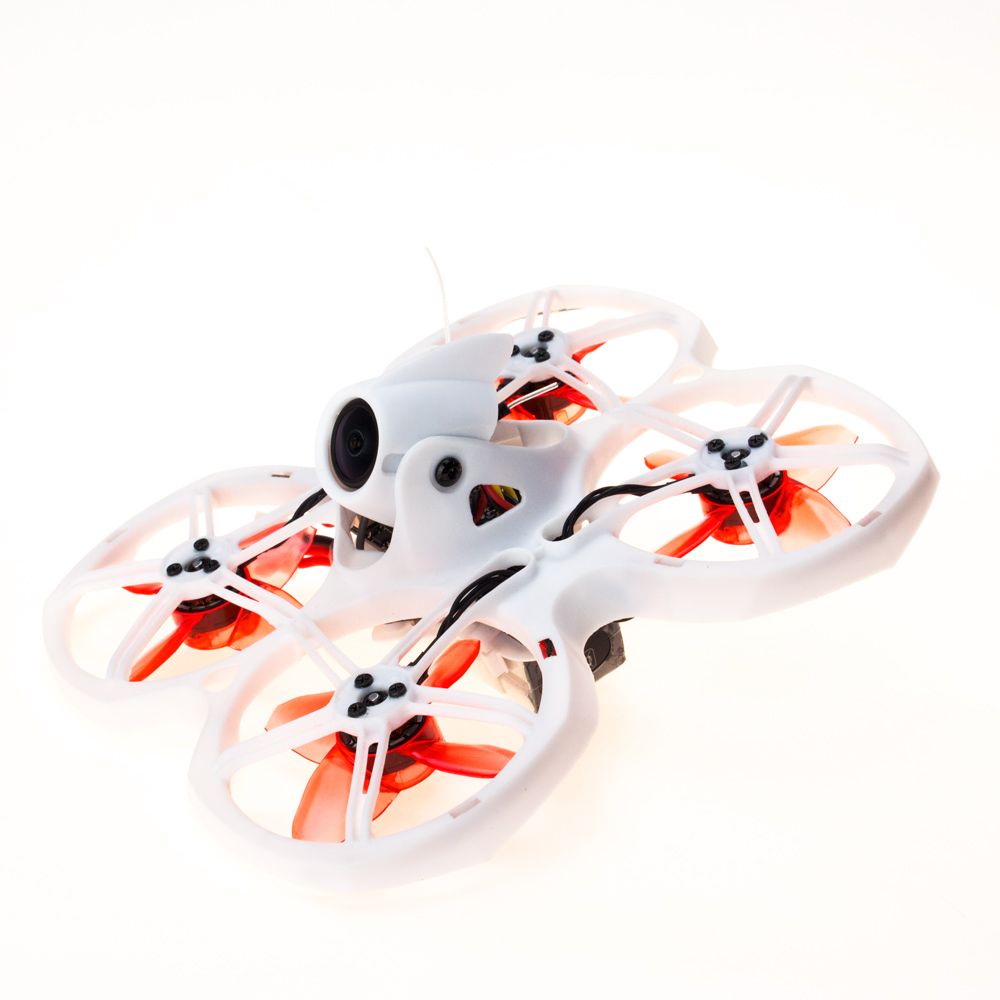

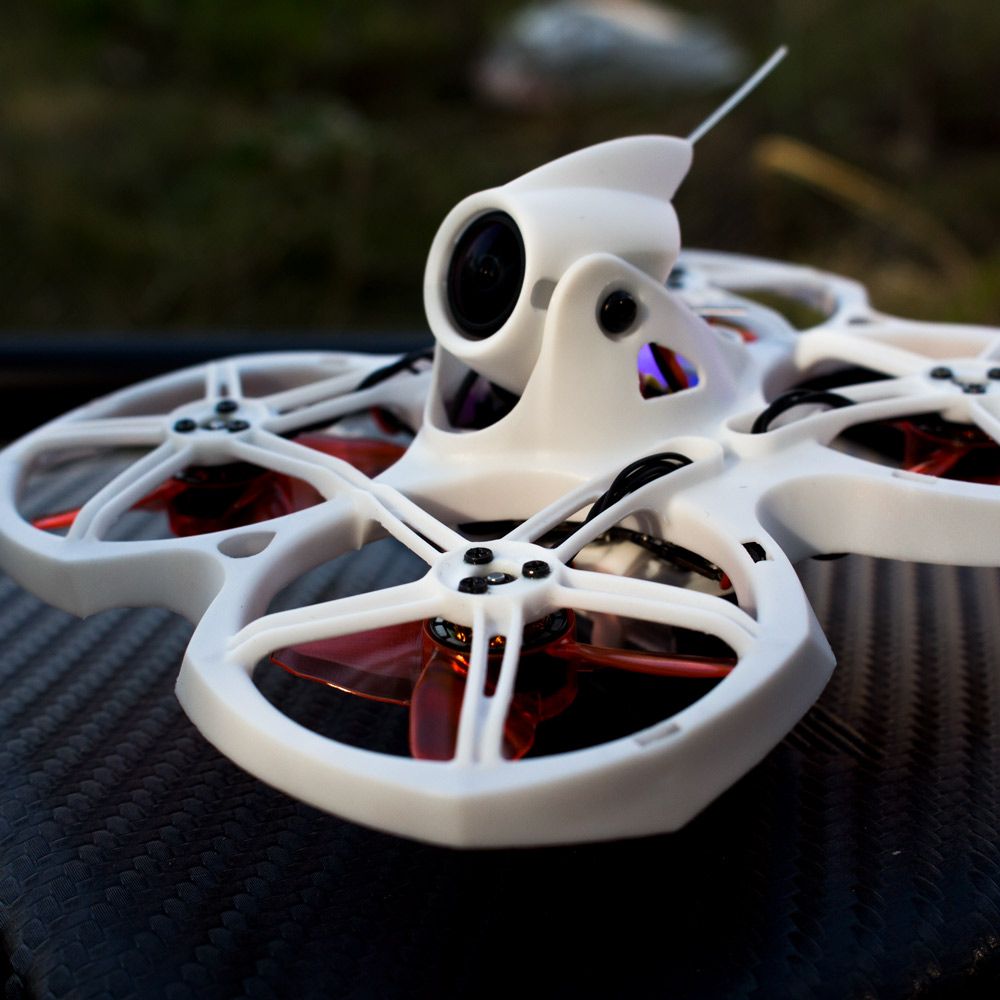

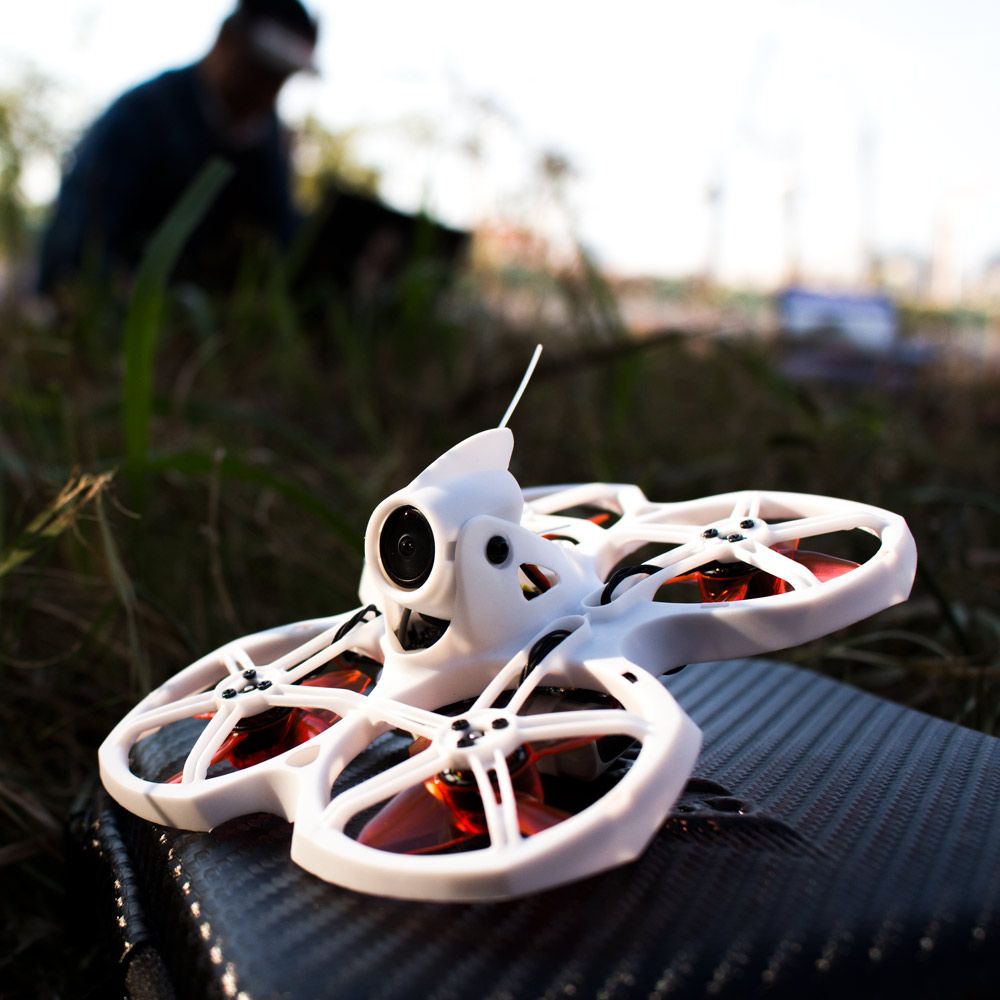

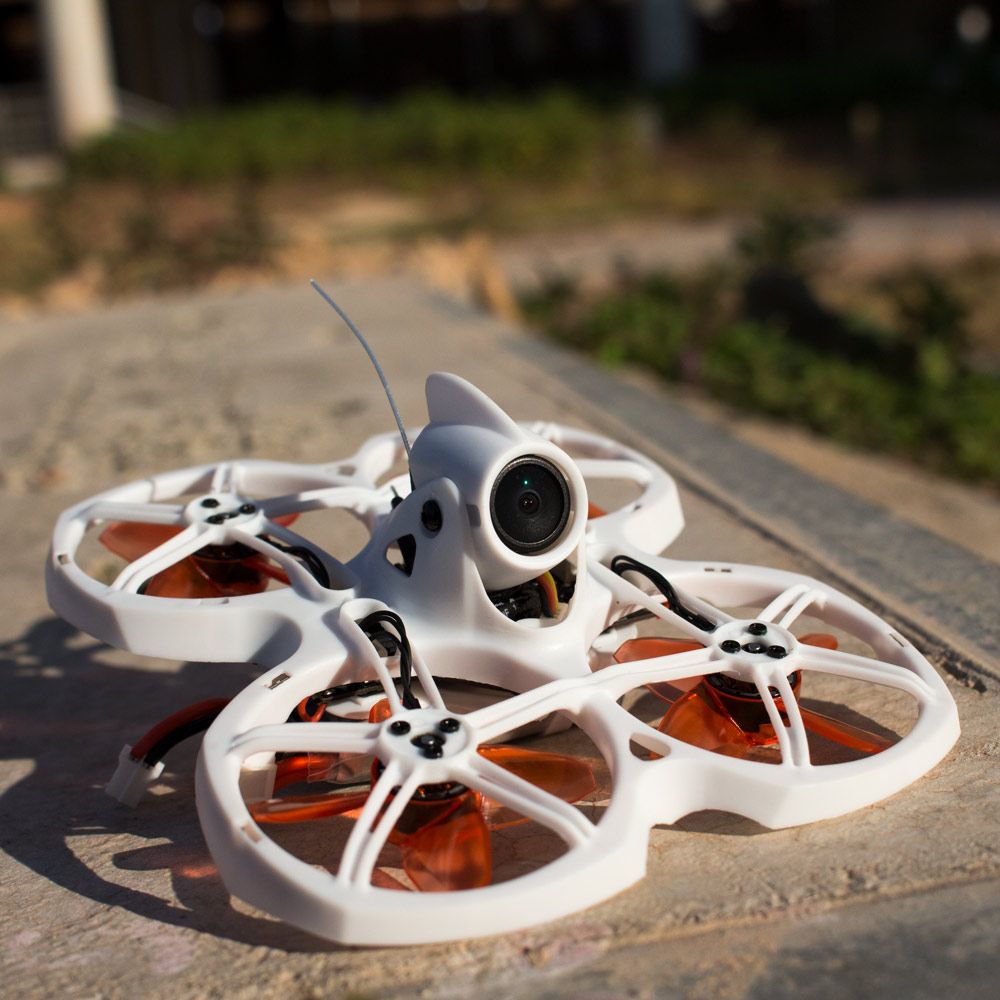

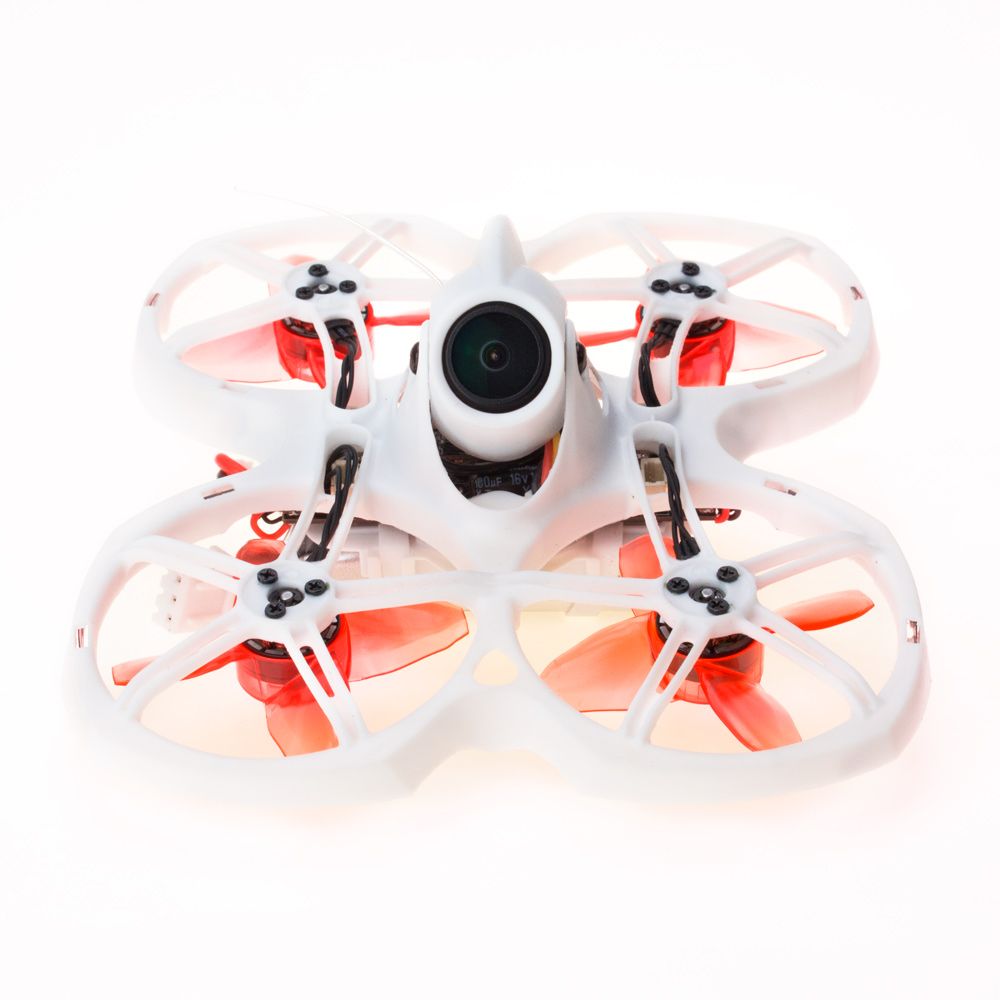

Pictures

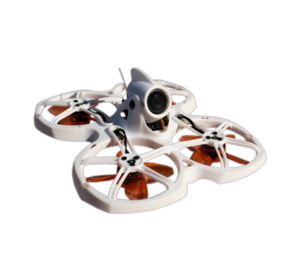

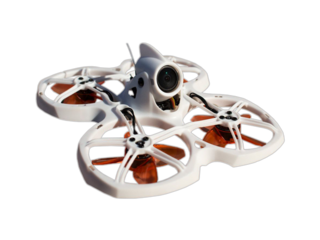

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tinyhawk II in particular but at least we know they do distribute Emax Model.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 75mm (3 in)
Length: 75mm (3 in)

Weight: 44 g (1.6 oz)

Frame

  • Wheelbase: 75mm
  • Dry Weight: 31.2g
  • All Up Weight: 43.5g with 1x 450mAh 1S battery
  • Frame Material: Polypropylene



Motors

  • Stator Size: 0802
  • Kv: 16000kv
  • Propeller Mount: Push-On Avan TH-style
  • Propeller: Avan Turtlemode 4-Blade



All-In-One (AIO) Flight Controller

  • Flight Controller: F4 (MATEKF411RX Firmware)
  • ESC: 4-in-1 5A BlHeli_S
  • Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
  • Battery Connector: JST-PH2.0



FPV System

  • VTX Power: 25/100/200mw Switchable
  • Channels: 37CH incl. Raceband
  • Camera: RunCam Nano 2 1/3" 700TVL CMOS
  • Smart Audio Connected
  •

Includes

  • 1x Tinyhawk II BNF
  • 1x EMAX 450mAh 1S HV Battery
  • 1x EMAX 300mAh 2S HV Battery
  • 2x CCW + 2x CW Spare Props
  • 1x 1S-2S USB LiPo Charger
  • 1x Screwdriver + Hardware Kit

Variants

0110001096
Tinyhawk II (White)
