Lavochkin La-7 from FlightLine RC

Details

The Lavochkin La-7 was considered by many pilots to be one of the best fighters of World War II. The aircraft was superior to the famed Bf-109G in vertical performance and maneuverability, and the La-7’s speed allowed it to defend the Soviet frontlines from bomber attacks. Over 5,700 aircraft were built as the La-7 earned its place in aviation history. The Soviet’s top scoring ace, Ivan Kozhedub, piloted his La-7 “White 27” to over 60 aerial victories.

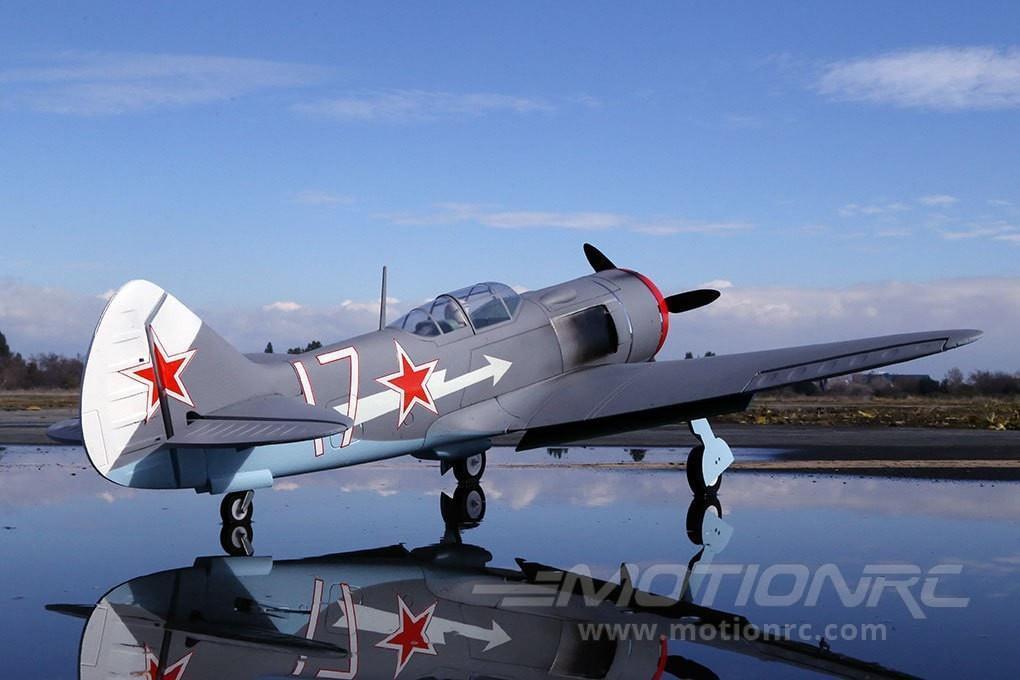

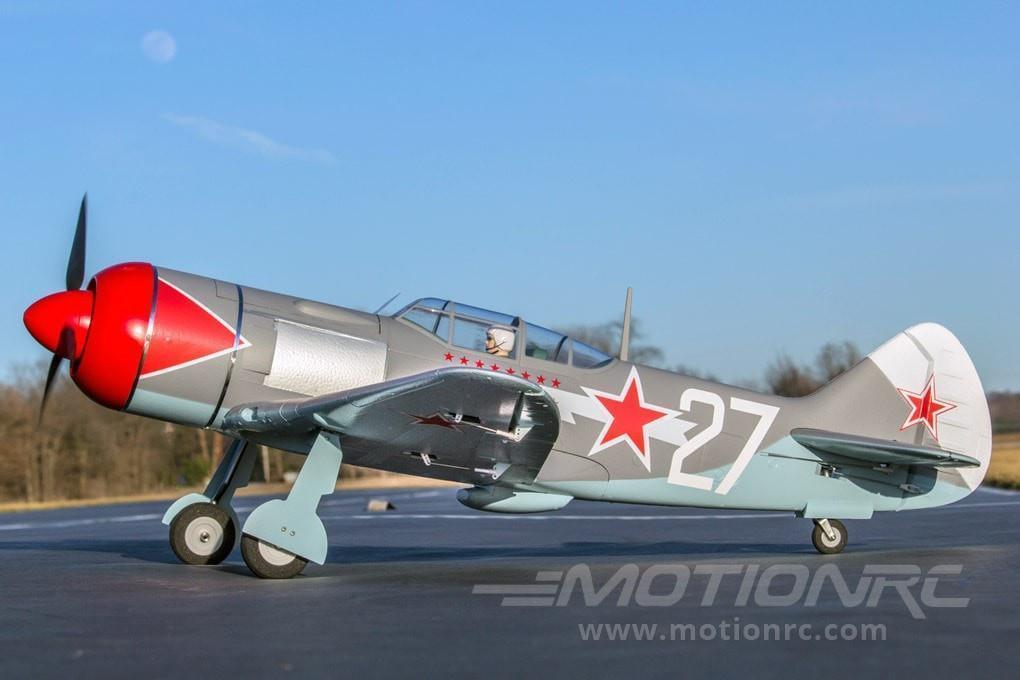

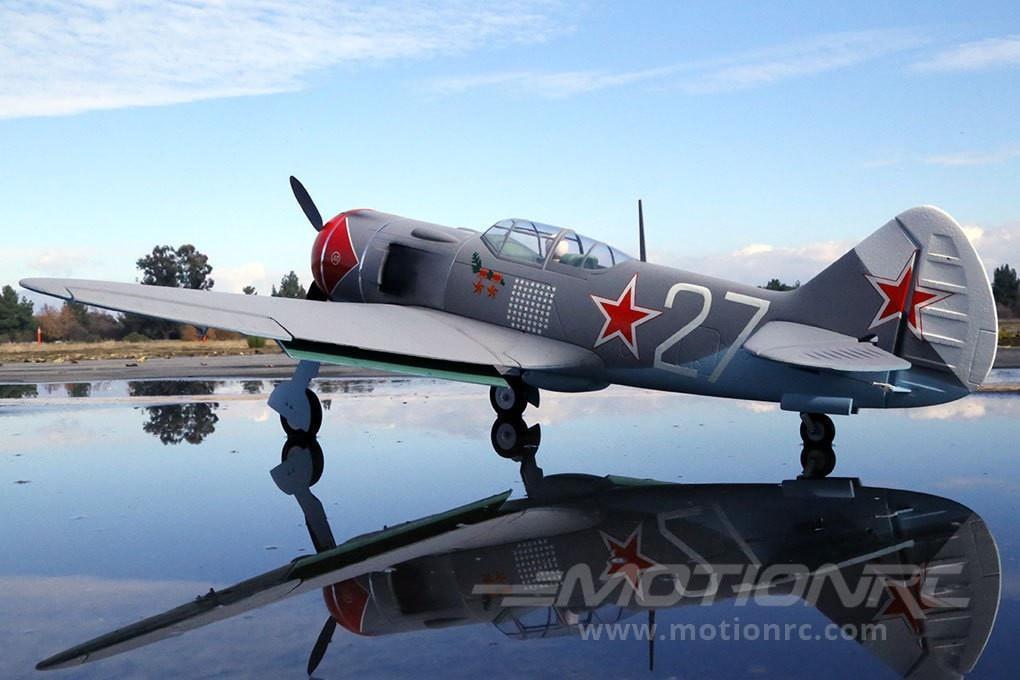

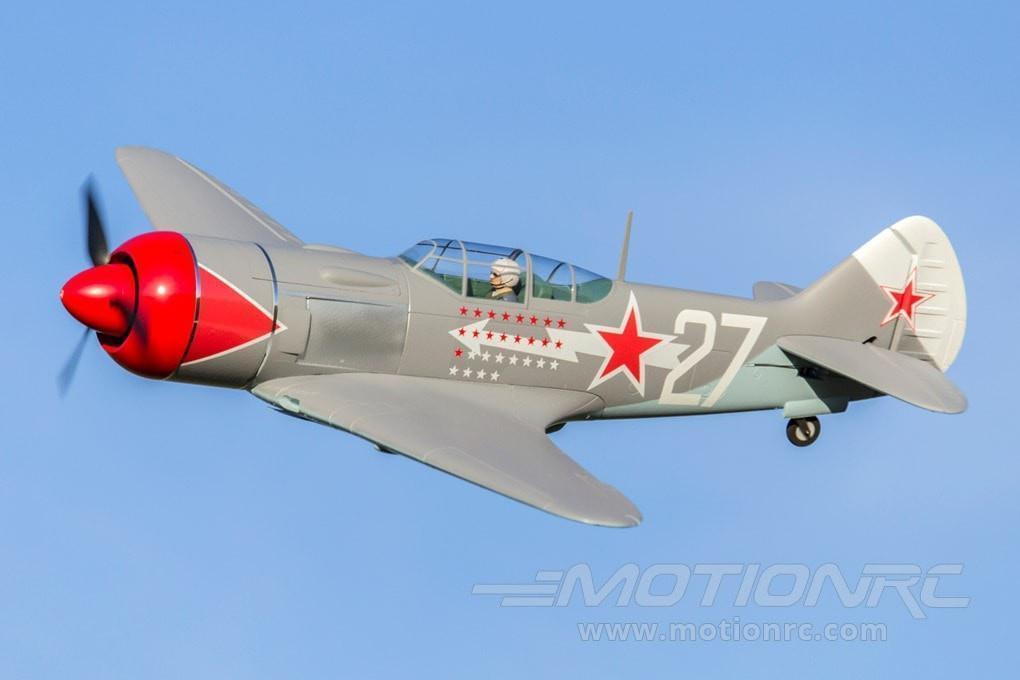

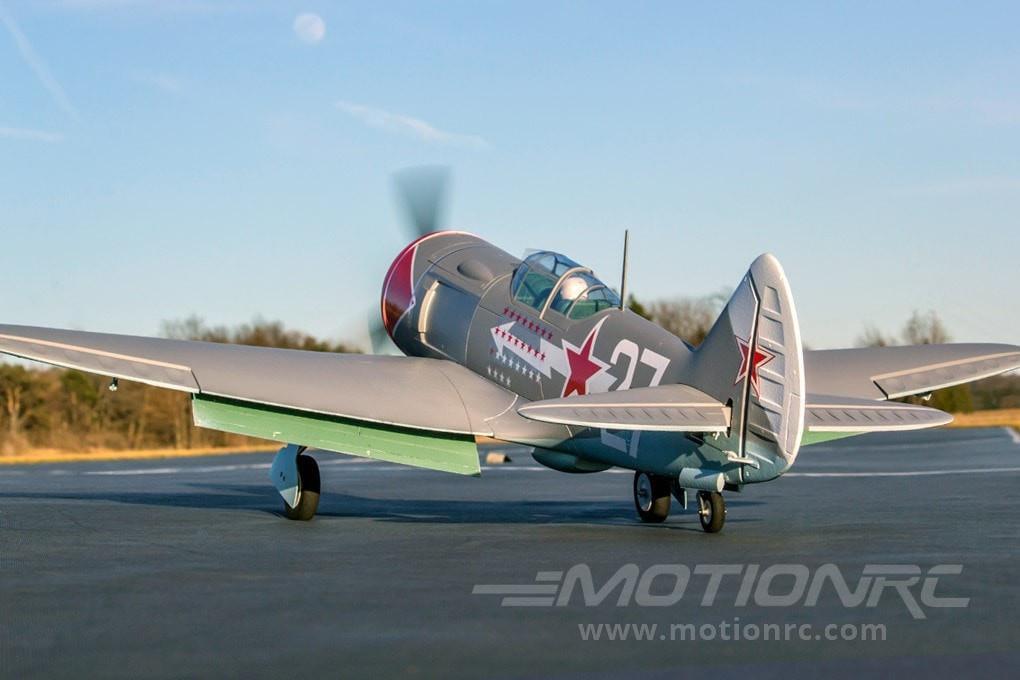

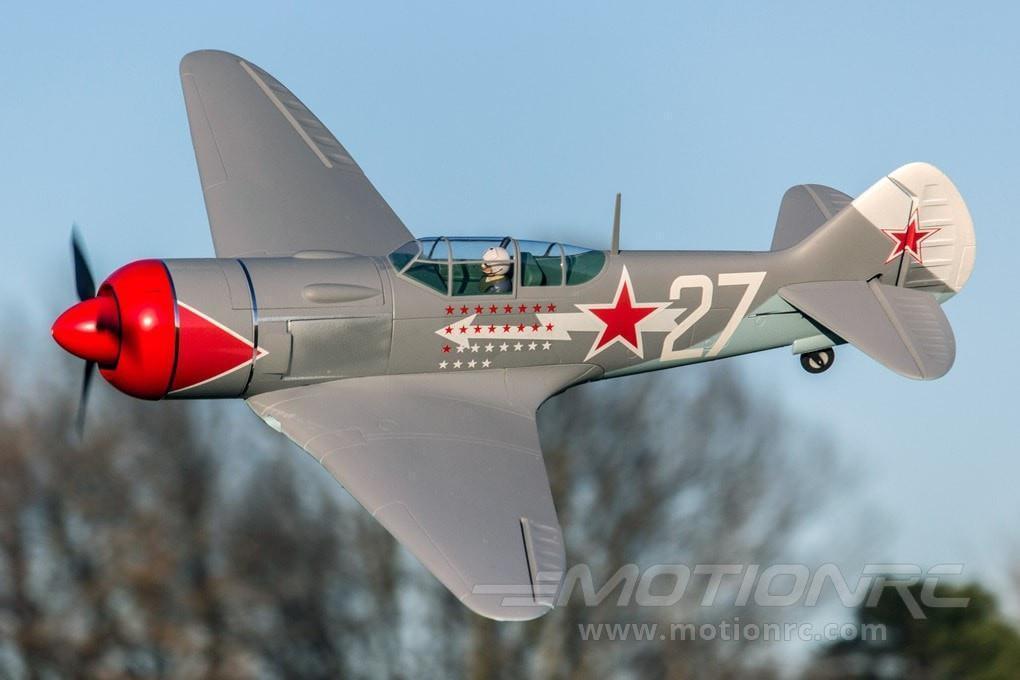

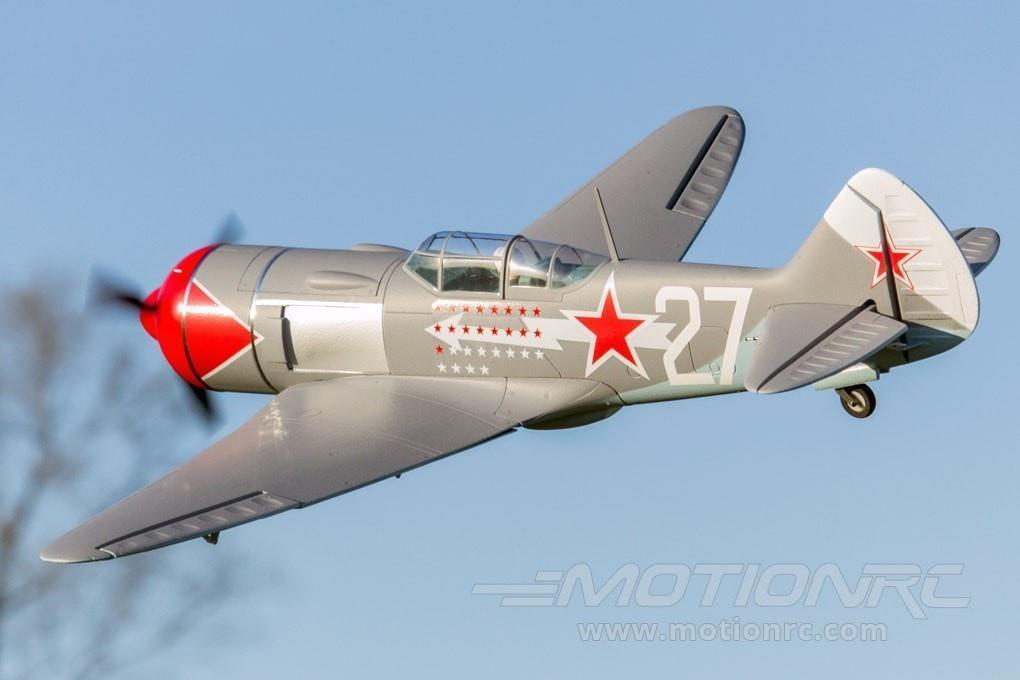

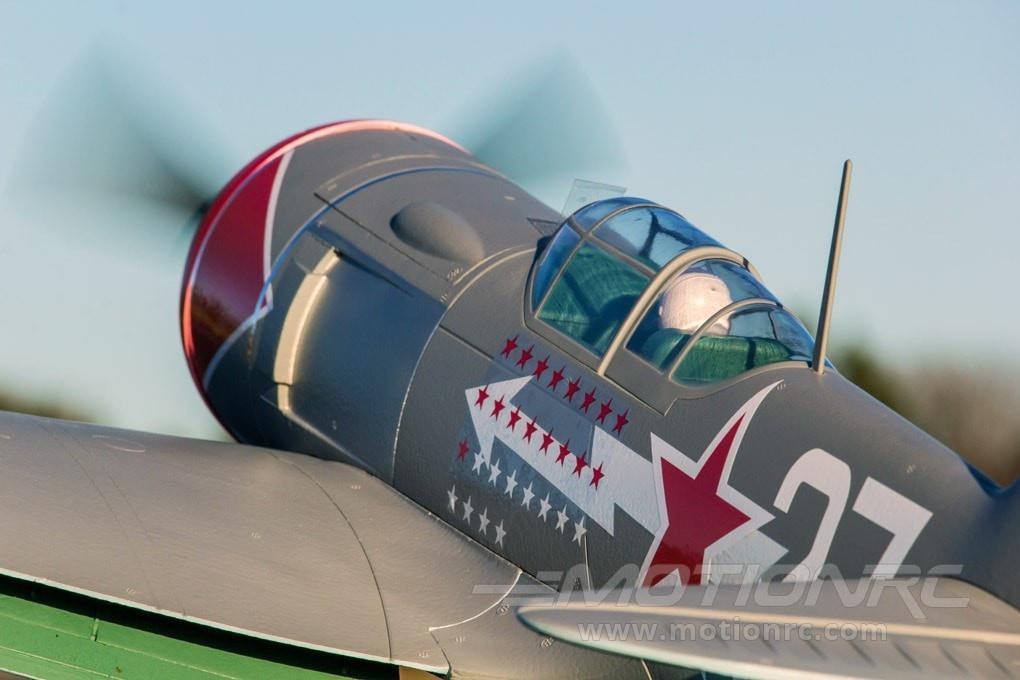

FlightLine’s 1:9 scale flying replica of the La-7 uses EPO material and a fiberglass reinforced one piece wing to offer pilots excellent performance at a great value. A large equipment cabin gives easy access to the ESC, receiver, and battery compartment. Screws attach the wing and elevator for quick assembly. Scale details such as the three bladed propeller and split flaps enhance the model’s realism.

The La-7’s 1100mm wingspan makes the aircraft easy to transport and gives it excellent maneuverability at a wide speed range. Its tall 65mm wheels and wide stance allow takeoff/landing on short, dry grass. The pre-installed 3647 brushless outrunner motor and recommended 4S 14.8v battery can achieve 135kph/83mph level speed with the scale three-blade propeller. An optional Sport Power System (sold separately) can be purchased to achieve 155kph/96mph speeds on the same 4s 14.8v battery.

Features:

  • Removable main wing/elevator for easy transport
  • High power motor for speeds up to 135kph/83mph
  • Adhesive decal sheets included for six different liveries
  • Intuitive internal structural design for optimized cooling of all electronics in the fuselage from the nose to the tail

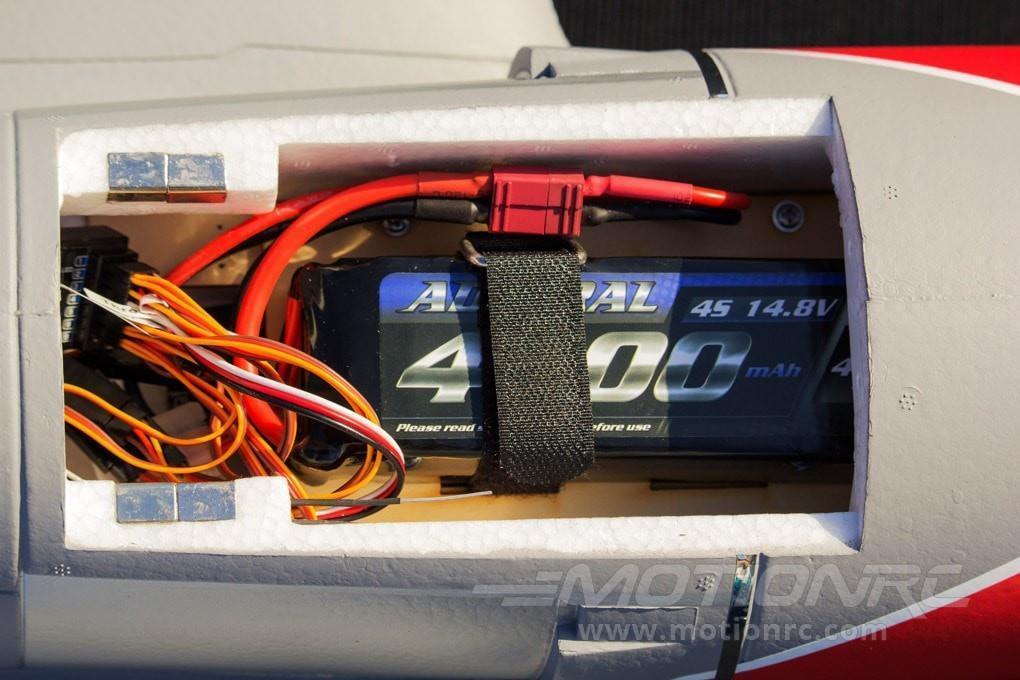

  • Large cabin space for easy placement of the battery and radio equipment
  • Built-in flat spot near the CG for optimal placement of a gyro (optional, sold separately)
  • Improved spinner and propeller mounting design to enable better balance
  • Optional upgrade complete nylon hinge set included in each box for free

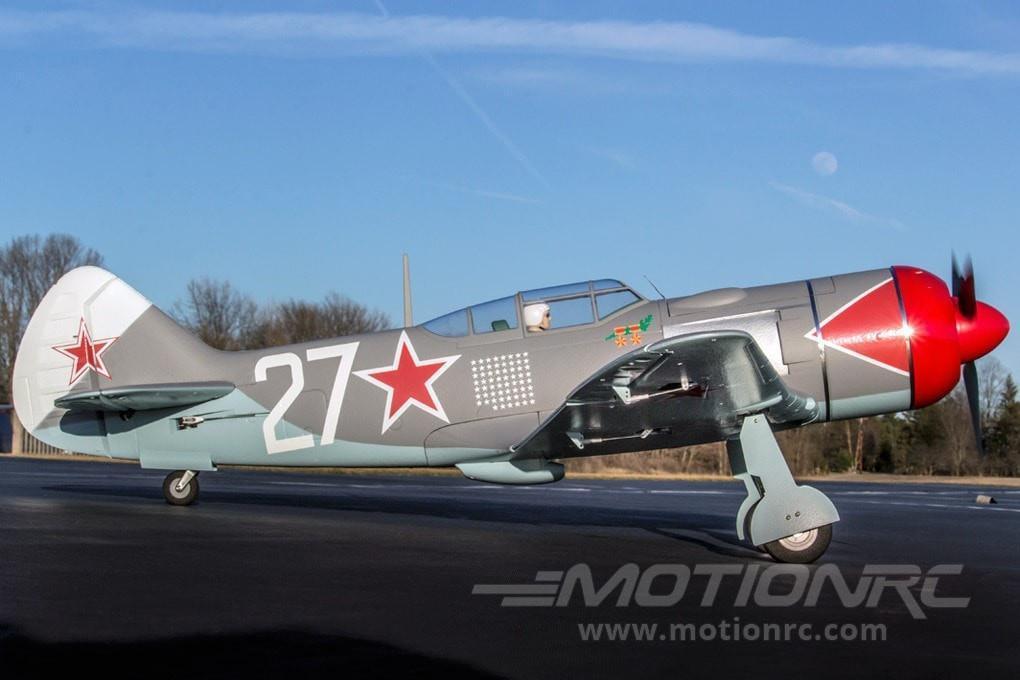

  • Tall foam rubber 65mm diameter main wheels and additional forward rake angle for operating on short grass runways
  • Electric retractable landing gear with metal trunions, metal reinforcement plate and 4mm steel wire struts
  • Optional two bladed propeller Sport Power System (sold separately) to achieve speeds up to 155kph/96mph

Pictures and description from MotionRC

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Lavochkin La-7 in particular but at least we know they do distribute FlightLine RC.

Wingspan: 1100mm (43.3 in)
Length: 970mm (38.2 in)

Weight: 1350 g (3 lbs)
Wingspan 1100mm / 43in
Length 970mm / 38in
Flying Weight 1350g / 47oz
CG (Center of Gravity) 85mm from the leading edge of the wing at the root
Power System 3648-830Kv Brushless Outrunner Motor (Stock scale power system)
3748-880Kv Brushless Outrunner Motor (Optional sport power system)
Electronic Speed Control 60A Brushless with XT60 connector
Propeller / EDF 10x6 3 Blade Propeller / 12x8 2 Blade Propeller High Performance Version (optional)
Servos 9g plastic gear standard with 550mm lead: left aileron, right aileron
9g plastic gear reverse with 300mm lead: left flap
9g plastic gear standard with 300mm lead: right flap
9g hybrid gear standard with 300mm lead: rudder, elevator
Landing Gear Electric retracts with metal trunions
Required Battery 4 Cell 14.8V 2500mAh to 4000mAh LiPo battery with XT60 Connector
