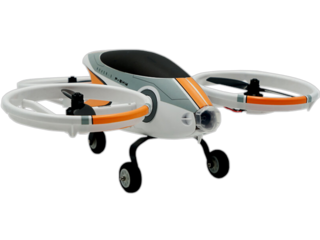

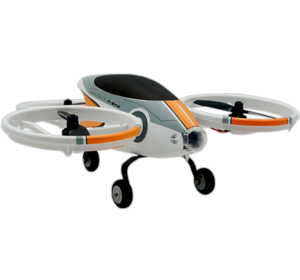

Rover3 from FrSky

Details

This unique multirotor platform is fun for pilots of all skill levels. Especially easy for the beginner because of its impressive stability and challenging enough for a seasoned pro. Stand out at your local flying field or just try something different with this unconventional airframe.

Features

  • Several unique flight modes are possible and are easy to control with the integrated 6-axis gyros.
  • Dual servos steer the front rotors on this one-of-a-kind Tricopter. It also has a unique fuselage with a high-visibility color scheme for easy orientation while flying line-of-sight. Mounted wheels allow for the tricopter to taxi on the ground and perform smooth landings and impressive touch-and-goes.
  • The front-mounted FPV camera allows you to pilot the craft from the cockpit. This camera is equipped with a 600mW video transmitter that allows for clear and precise piloting of the tricopter. Power, channel, and band can be conveniently adjusted by push button or remotely via gtrans LUA script.
  • Extremely efficient and lightweight design gives this multirotor and impressive flight time of around 14 minutes with a 1300mah 3s Lipo battery.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Rover3 in particular but at least we know they do distribute FrSky.

Where to buy


Wingspan: 310mm (12.2 in)
Length: 310mm (12.2 in)

Weight: 220 g (7.8 oz)
  • Size: 310*300*120mm
  • Weight: 220g (Without Battery)
  • ESC: FrESC3IN1_20A ESC
  • VTX: 5.8GHz 600mW Scout VS600 Mini
  • Flight Controller: XSRF3O (With built-in XSR receiver)
  • Motor: 1308 2500kv brushless motor
  • Propeller: 4-inch propeller
  • Camera: 14-17mm size FPV camera
  • Compatible Battery: 11.1V/14.8V 800 – 1300mAh Li-Battery (Not included)
  • Compatible Radio: All FrSky transmitters
