F-86 Sabre 64mm V2 from Freewing Model

Details

The legendary F-86 Sabre returns in an all-new V2 design, featuring all new molds and an improved scale appearance. Calling this F-86 a V2 is really an injustice since this jet is all new. This 64mm EDF jet captures the essence of the iconic Korean War fighter, with molded panel lines and a sleek, refined finish with Joseph McConnell’s Beauteous Butch II livery.

Designed for both convenience and performance, the Sabre’s detachable main wing allows for easy transport, while the compact size makes it a perfect toss-and-go flyer. A simple assembly process gets you airborne easily.

Powered by a 2840-2850Kv outrunner motor and a 64mm 12-blade EDF, the F-86 delivers impressive thrust. It’s optimized for common 4S 2200-2600mAh LiPo batteries, with a spring-loaded battery hatch for quick, hassle-free access.

Built from durable EPO foam, this F-86 Sabre V2 is made to last, offering pilots a stunning blend of scale detail, easy handling, and thrilling jet performance.

Features:

  • All-new design with new molds for improved scale authenticity
  • Iconic Korean War-era US military jet featuring the livery from Captain Joseph McConnell’s Beauteous Butch II
  • Included, scale drop tanks add extra scale realism and attach easily with a sliding rail system
  • Detachable main wing secures conveniently with four screws for easy transport or storage
  • Compact size makes it perfect for tossing in the car and easy hand launches
  • Simple assembly gets you airborne easily
  • Molded-in panel lines enhance the realistic scale appearance
  • 2840-2850Kv outrunner motor paired with a 64mm, 12-blade EDF’s for strong, efficient thrust and great sound
  • Compatible with common 4S 2200-2600mAh LiPo batteries with an XT-60 connector
  • Spring-loaded battery hatch allows fast, hassle-free battery changes
  • Durable EPO material offers superior strength and durability

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

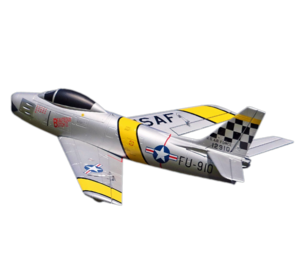

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 805mm (31.7 in)
Length: 843mm (33.2 in)

Weight: 570 g (1.3 lbs)
  • Scale: 1/14
  • Wingspan: 805mm / 31.7in
  • Length: 843mm / 33.2in
  • CG (Center of Gravity): 131mm from the leading edge of the wing at the wing root
  • Flying Weight: 570g / 1.2lbs without battery
  • Power System: 2840-2850Kv Outrunner Motor with 64mm 12-blade Fan
  • ESC: 40A Brushless ESC with thrust reversing
  • EDF: 64mm EDF with 12-Blade Fan
  • Servos
    • Ailerons - FSS31091-400
    • Elevator - FSS31091-200
  • Required Battery: 4S 14.8V 2200-2600mAh LiPo with XT-60 Connector
  • Required Radio: 3-4 channels (Throttle, Aileron, Elevator and optional thrust reversing)
