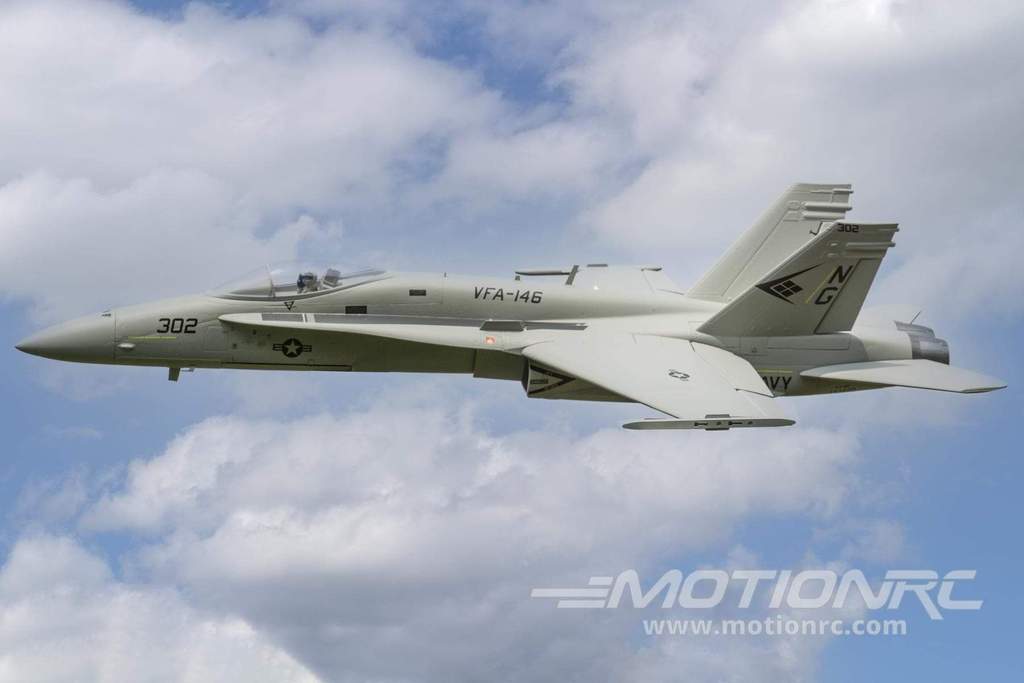

F/A-18C Hornet Gray Diamonds from Freewing Model

Details

This is the High Performance version of the Freewing F/A-18C Hornet "Gray Diamonds" with pre-applied decals. This version includes a powerful 3672-1900Kv inrunner motor with new lightweight 9-blade fan, 130A ESC, upgraded 17g digital metal gear elevator servos and upgraded digital metal gear flap servos.

Over ten years ago, Freewing began developing their first American 90mm EDF, the F/A-18E Super Hornet. To celebrate Freewing’s Eleventh anniversary, we are proud to announce an all-new 90mm F/A-18C Hornet, complete with all the latest features common to modern era EDFs in our Super Scale series. Be sure to save a summer slot for the Freewing F/A-18C, the quintessential 90mm Hornet on the planet!

Features:

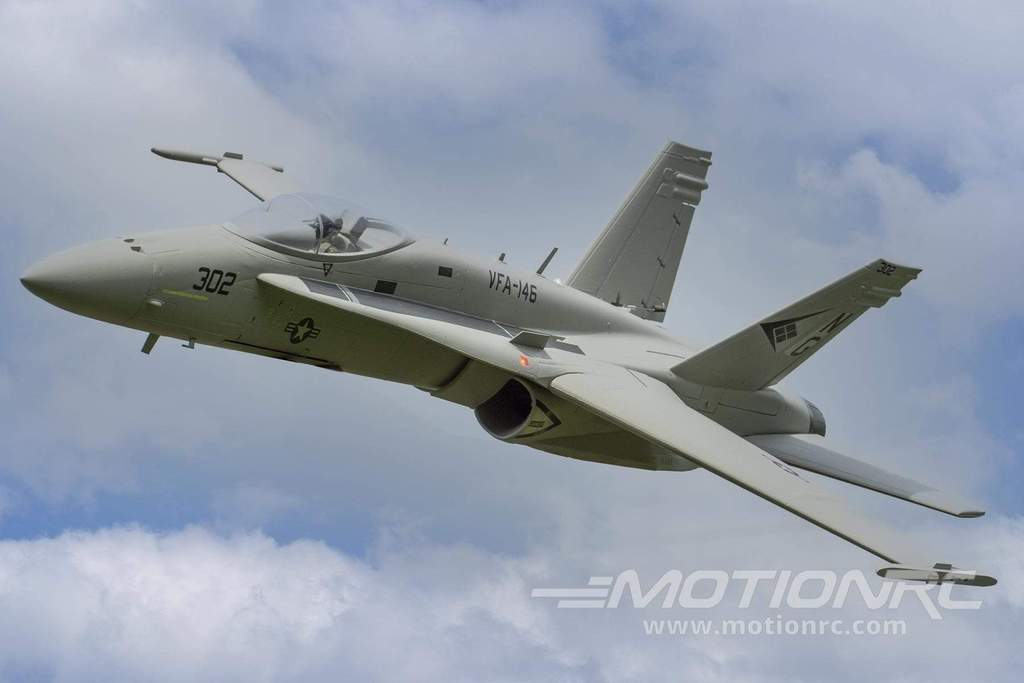

  • Now proudly wearing markings honoring the VF-146 Gray Diamonds
  • Lightweight 9-Blade factory balanced EDF combined with a powerful brushless 3672-1900Kv inrunner motor
  • Upgraded 17g digital metal gear elevator servos and upgraded 9g digital metal gear flap servos
  • NEW! Reinforced and improved elevator assembly process
  • This is not a V3, but a completely new design/variant from the ground-up
  • F/A-18C “Legacy”, the world’s first C variant 90mm PNP
  • 6S 5000-6000mAh lipo can easily achieve 4-5+ minutes of managed flight time (see our video in the video tab above)
  • Manufactured with durable and quality EPO foam, not EPS
  • Complete screw-together assembly without the need for any glue
  • Scale outline, including open vents between the fuselage and intakes, and downward angled wingtip rails never before seen in a foam F-18
  • Completely concealed elevator servos and elevator control hardware for less drag and clean scale outline
  • Full coverage plastic undercarriage doors

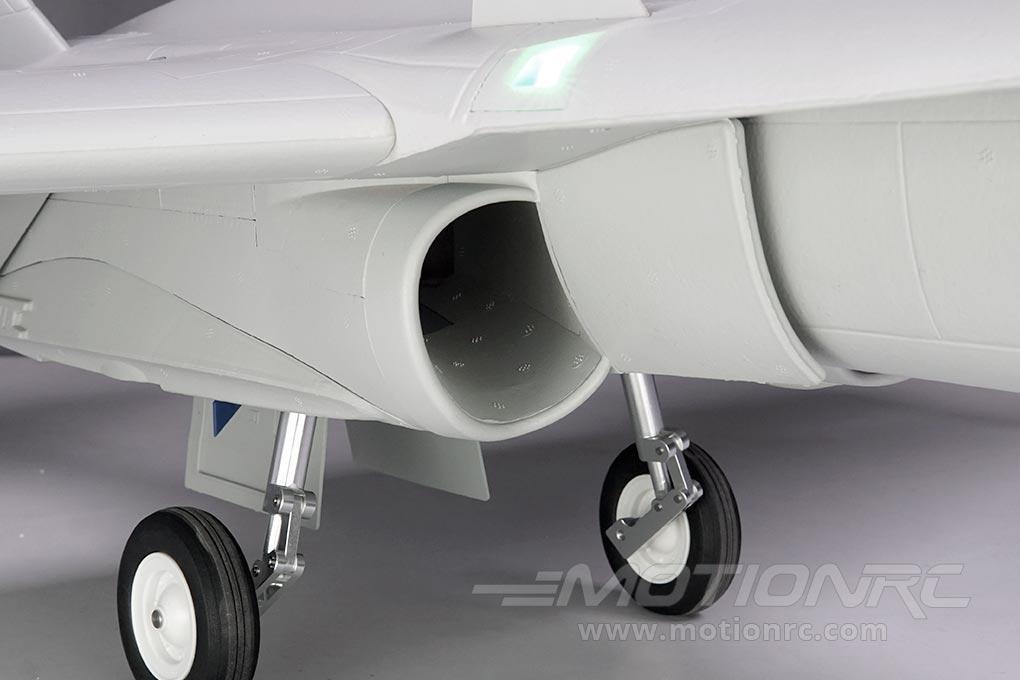

  • Aluminum suspension undercarriage
  • Trailing link struts
  • Low visibility rudder servo placement
  • Low visibility flap servo placement and geometry

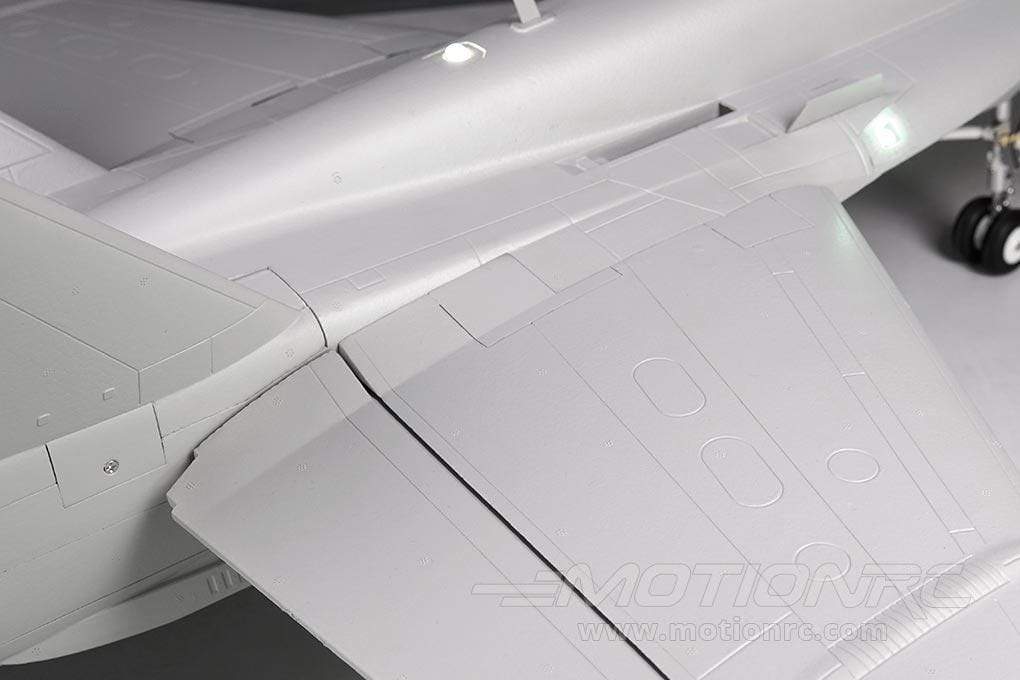

  • All-new plastic Fowler flap arm hinges to mimic those on the real F-18
  • Removable plastic-tipped magnetic nose cone
  • Removable wings with QD wing harness

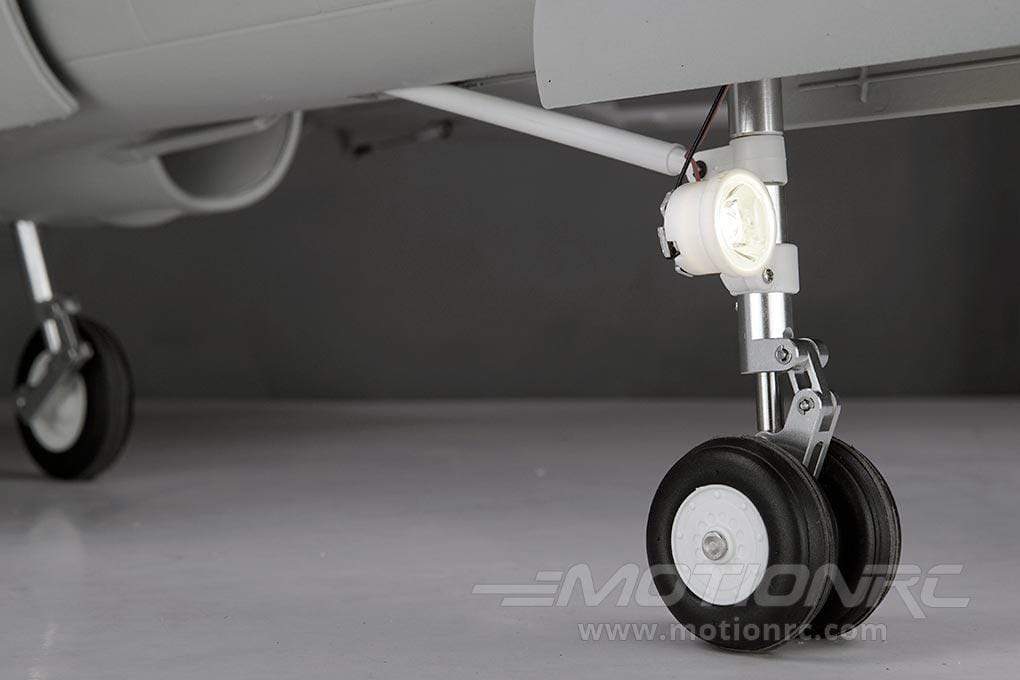

  • LED lighting on nose strut, chines, and dorsal
  • Large battery bay for battery, MFCB, and gyro

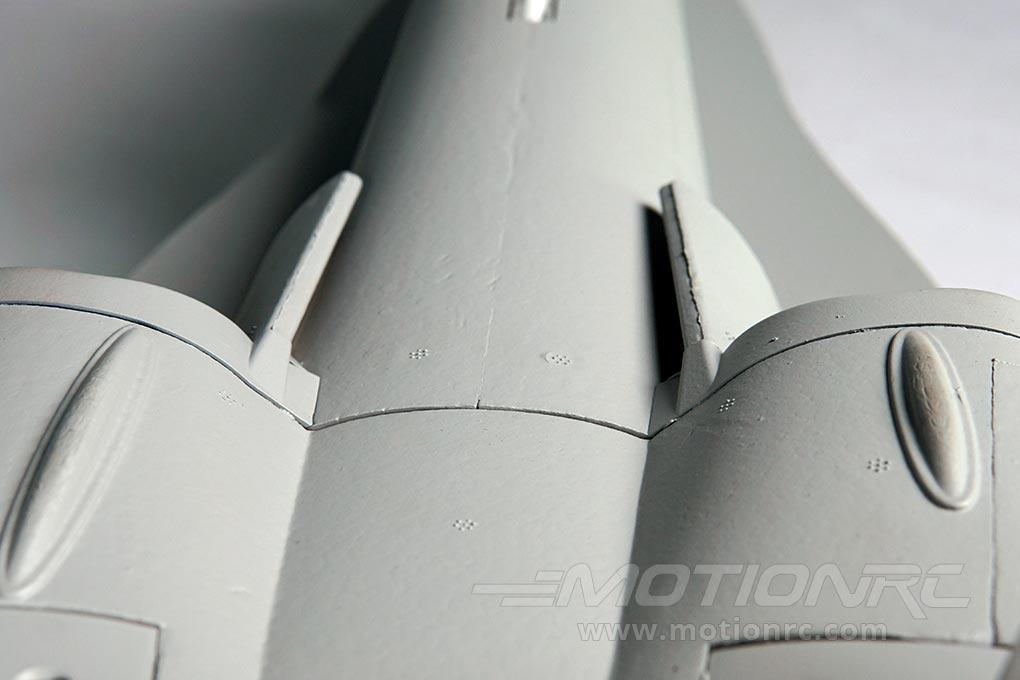

  • Sharp and shallow panel lines in sensible areas without reducing overall scale effect
  • Pre-molded wing station to accept Freewing’s MWS plastic slot system (aftermarket pylons, ordnance, 3DP, Runcam, etc)
  • Quick Service servo plates on the wings and vertical stabilizers (screws, not glue)
  • Plastic lined coaming to resist bubbling under the canopy
  • Plastic tipped nosecone, capped intake lips and wingtip rails with pre-installed MWS slot
  • Plastic nozzles with two-tone metallic paint job

Description and Pictures from Motion RC

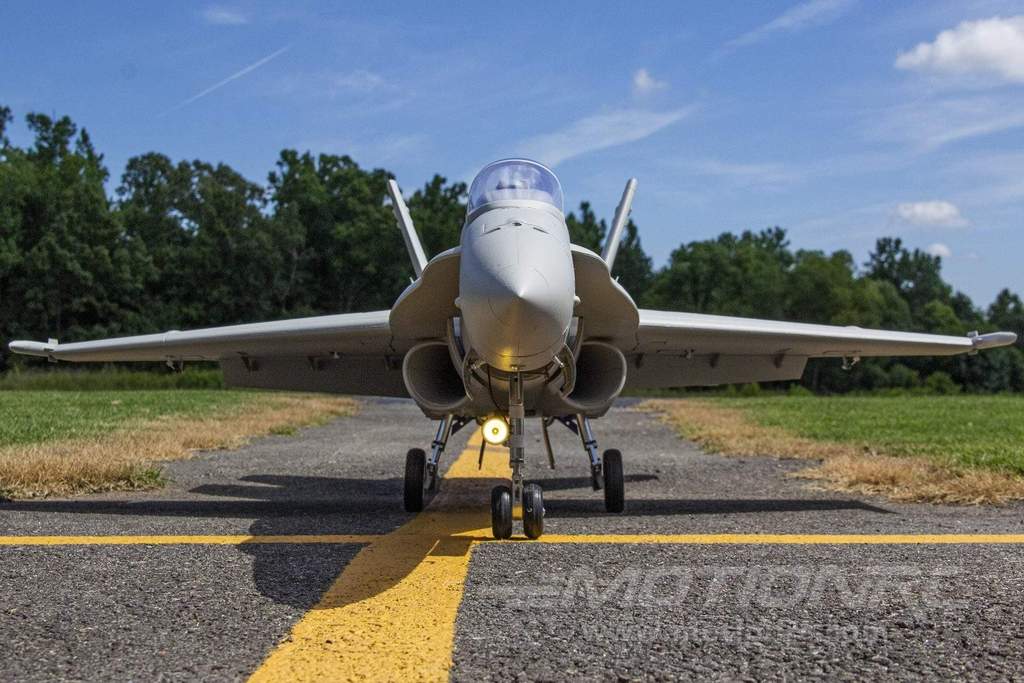

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1034mm (40.7 in)
Length: 1500mm (59.1 in)

Weight: 2640 g (5.8 lbs)
Model Scale 1 : 11 Scale
Wingspan 1034mm / 40.7in
Length 1500mm /59.05in
Empty Weight 2640g / 93.12oz (w/o battery)
CG (Center of Gravity) 88mm (3.4") from the leading edge of the wing at the root
Power System 6S 3672-1900Kv Brushless Inrunner Motor
Electronic Speed Control 130A, EC5 Connector
Propeller / EDF 90mm 9-Blade EDF
Servos 9g metal gear digital hybrid standard with 150mm lead : left rudder, right rudder, left flap, right flap
9g metal gear digital hybrid standard with 250mm lead : left aileron, right aileron
9g metal gear digital hybrid standard with 400mm lead : nose gear steering
17g metal gear hybrid with 100mm lead : right elevator
17g metal gear hybrid reverse with 100mm lead : left elevator
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 5000-6000mAh LiPo with EC5 connector (required)
Hinge Type Nylon Reinforced
Material EPO Foam
