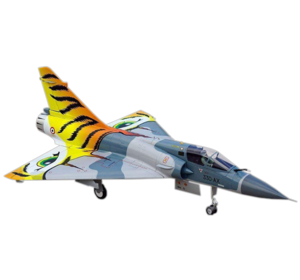

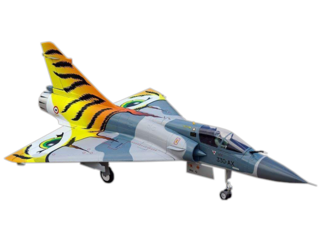

Mirage 2000C V2 from Freewing Model

Details

Introducing the Freewing Mirage V2 “Tiger Meet”!  This incredibly popular 80mm EDF has been updated to “Version 2” for 2018 and now features hybrid gear servos, a vibrant “Tiger Meet” livery for enhanced visibility and this High Performance version now includes a new 9-blade fan and powerful 3658-1920kV brushless inrunner motor, and 100A ESC!  All of these upgrades make the Mirage V2 more precise, faster, more fun to fly, and most importantly, more easy to see!

The Dassault Mirage 2000 is a French multirole, single-engine fourth-generation jet fighter manufactured by Dassault Aviation.  It was designed in the late 1970s as a lightweight fighter based on the Mirage III for the French Air Force (Arme de l'Air).  The Mirage 2000 evolved into a multirole aircraft with several variants developed.  Over 600 aircraft were built and it has been in service with nine nations.

As you've come to expect from Freewing Model, the Mirage 2000 is loaded with scale features and performance componentry.  The 12 blade power system provides enough static thrust to maintain a hover, with the aircraft’s nose pointed perpendicular to the ground!  Hone your piloting skills to bring this aircraft to a standstill in the sky, then power out for a blistering fast pass down the runway!  In the landing pattern, this delta winged wonder slows down remarkably well for nose-high landings.

Re-tuned from the ground up, the Mirage V2 Tiger Meet brings this fan favorite into the modern EDF era, including 3D Printed Upgrade Parts (“3DPUP”) sets, sold separately.  Enhance your Mirage’s exhaust nozzle or cockpit with highly detailed parts that eliminate any worry of dark colored cockpit foam blistering in the sun.

Note: this is the High Performance version which includes a powerful 3658-1920kV inrunner motor with new 9-blade fan.

Features:

  • 80mm 9-blade ducted fan and powerful 3658-1920kV brushless inrunner motor provides awesome power and incredible real life jet turbine sound
  • 100 Amp Hobbywing ESC with 5A BEC
  • Hybrid metal gear servos throughout
  • Optional 3D printed detail upgrade set (cockpit, exhaust nozzle, and antennas, each sold separately)
  • Electronic retractable landing gear with all metal shock-absorbing struts
  • Steerable, shock absorbing nose gear for enhanced ground handling
  • Spring operated nose gear door
  • Scale details include hand painted, scale-sized pilot, full instrument panel, refueling probe, and panel lines
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • Inrunner motor, servos, ESC and EDF come pre-installed for your convenience
  • Removable magnetic nose cone, and removable wings and vertical stabilizer for convenient transport

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 790mm (31.1 in)
Length: 1250mm (49.2 in)

Weight: 2200 g (4.9 lbs)
Wingspan 790mm / 31.10in
Length 1250mm / 49.21in
Flying Weight 2200g / 78oz
CG (Center of Gravity) 520-530mm forward from the tail end of the nozzle
Power System 3658-1920kV Brushless Inrunner Motor
Electronic Speed Control 100A ESC, 5A BEC, EC5 Connector
Propeller / EDF 80mm EDF with 9-Blade Fan
Servos 9g hybrid gear reverse with 300mm lead : nose gear steering
9g hybrid gear standard with 300mm lead : rudder
9g hybrid gear standard with 750mm lead (+ 100mm extension) : left aileron, right aileron
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 4000mAh 60C LiPo
