CineLog30 from GEPRC

Details

The latest 3-inch Quadcopter developed by GEPRC is officially released now, and two versions are currently available: CineLog30 VISTA Polar and CineLog30 Analog.

CineLog30 is developed on the basis of cinglog25. It has a stronger power output with 1404-3850kv motor and HQProp T76MMX3 propellers.Ultra light fuselage weight, and CineLog30 Analog equipped with 4s 660mah battery take-off weight is only 204g.The duration of the flight is 7.5 minutes.The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed,with the mounting base.

Features:

Small size, light weight, with GEPRC 4S 660mAh battery, take-off weight is only 204g.

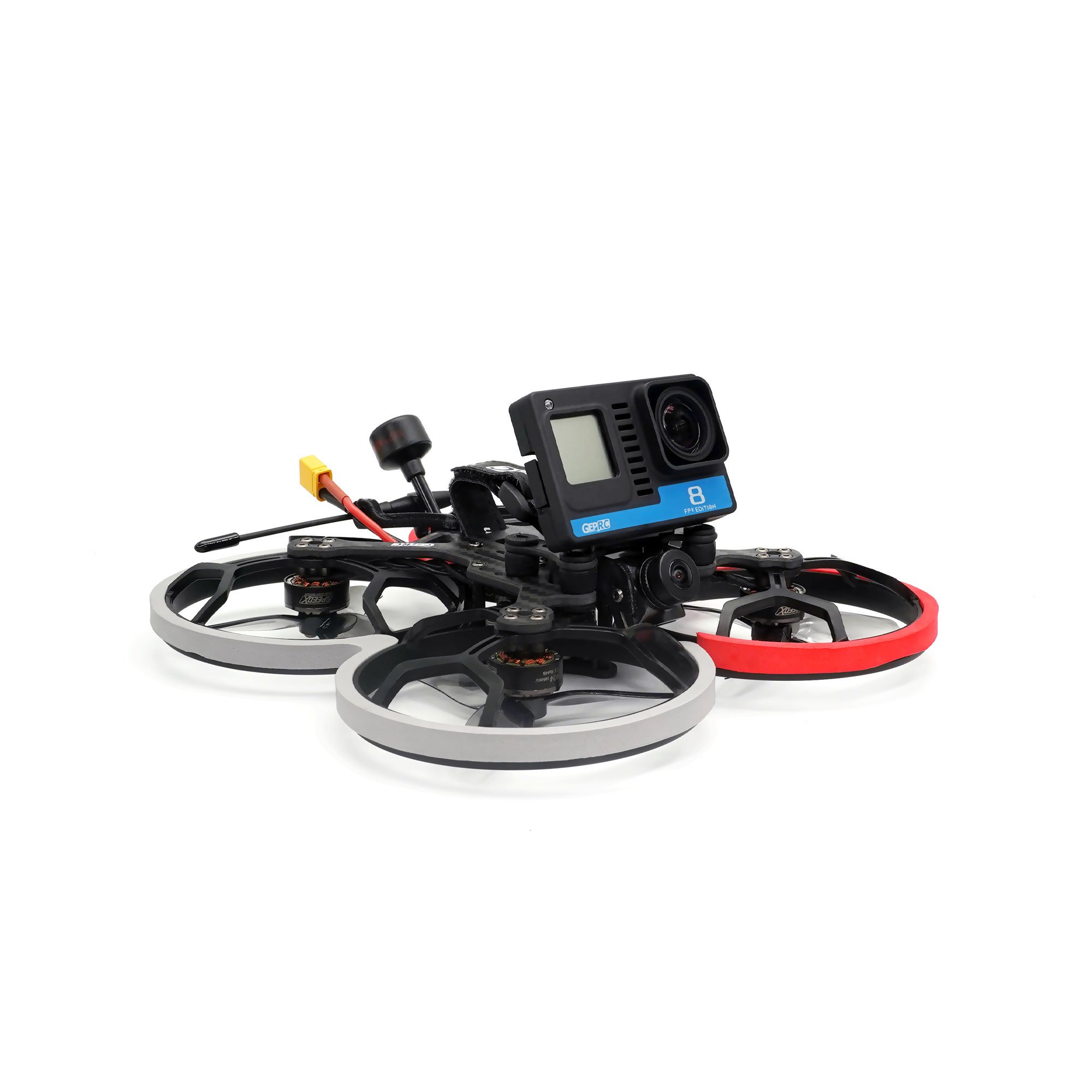

The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed, with the mounting base.
Continue the unique design damping pan tilt ， and adjust the number of damping balls according to the scene.
1404-3850KV motor with HQProp T76MMX3 propellers, strong power output.The duration of the flight is 7.5 minutes by 4S 660mAh LIPO Battery.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the CineLog30 in particular but at least we know they do distribute GEPRC.

Where to buy

China
GEPRC
check web site
Ship to: Worldwide

Hong-Kong
HELIPAL
check web site
Ship to: International

Wingspan: 126mm (5 in)
	Length: 126mm (5 in)
Weight: 140 g (4.9 oz)

See Specs & Tech Details

Wheelbase: 126mm
Top plate: 2.0mm
Bottom plate: 2.0mm
Arm plate: 3.0mm

FC system: GEP-F411-35A AIO

MCU: STM32F411
Gyro: 6-Axis
OSD: BetaFlight OSD w/AT7456E chip
ESC: BLheli_S 35A
VTX: GEP-600mW-VTX
Camera: Caddx Ratel2
Propeller: HQProp T76MMX3
Antenna: GEPRC Momoda 5.8g MMCX RHCP 100mm

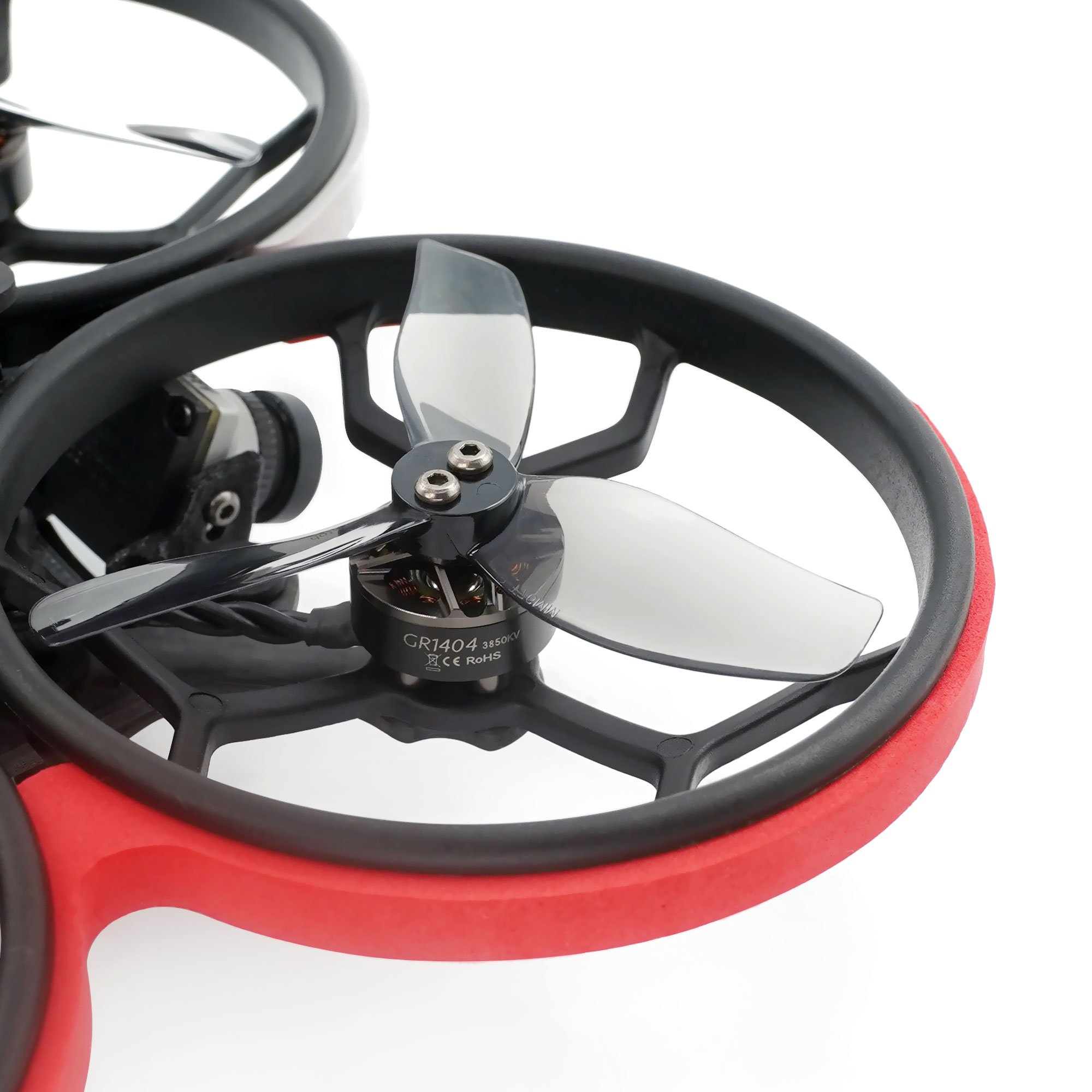

Motor: GEPRC GR1404-3850KV

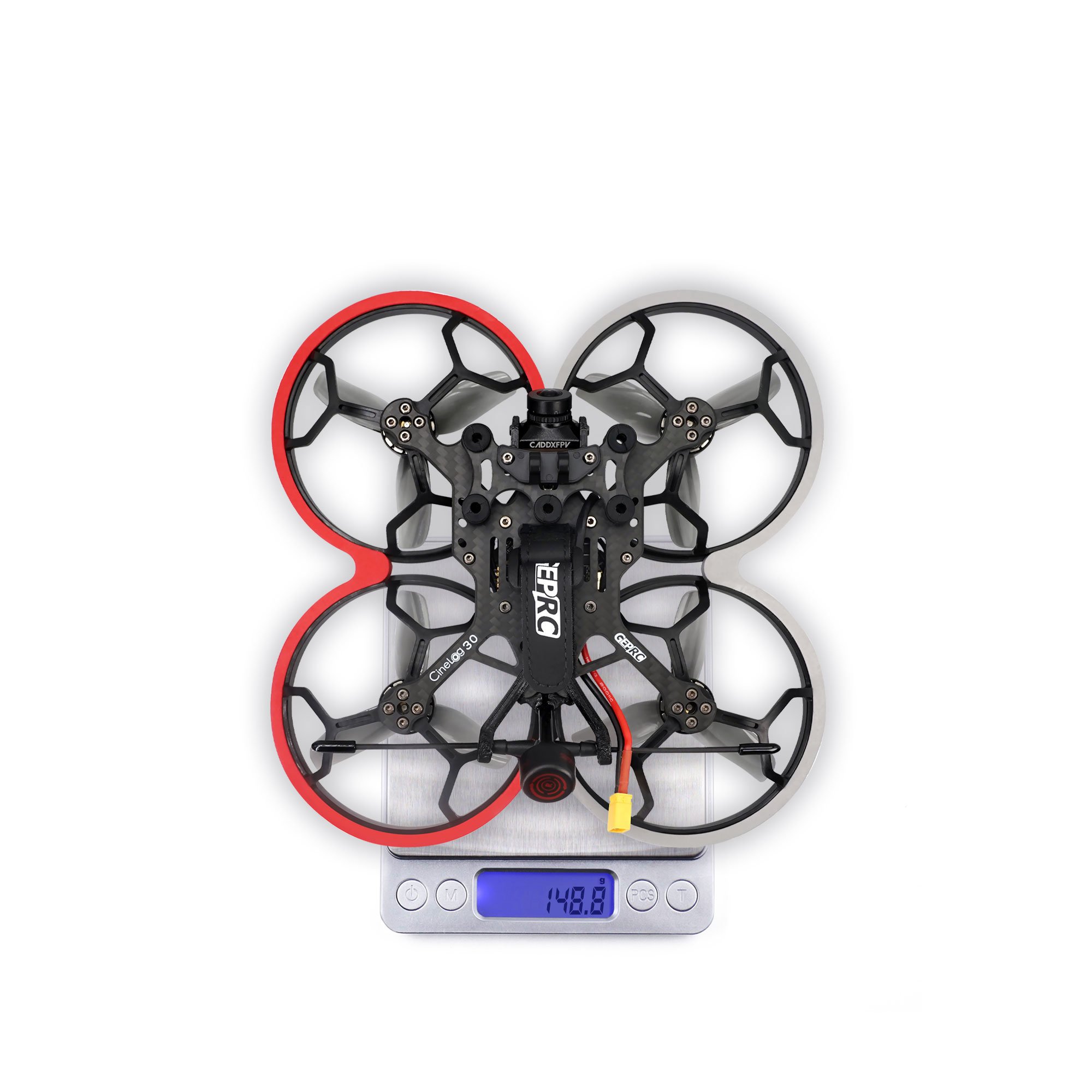

CineLog30 Analog weight: 140.0g
Receiver: PNP(Without Receiver)/Frsky RXSR /TBS Nano RX

Flight time:

Batteries used: GEPRC 4S 660maH
With naked GoPro8(sub250g): 4S 660mAh 7-8min
