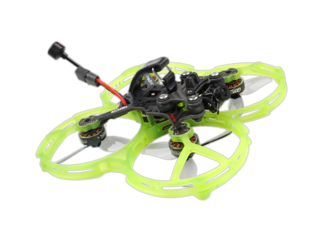

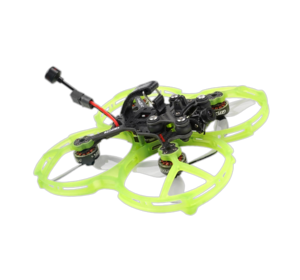

CineLog35 Performance HD from GEPRC

Details

The CineLog35 Performance version is now released in three versions: VISTA Nebula PRO,AVATAR HD 1080P and Analog version.There are 4 receiver options.

The CineLog35 Performance version is optimized and upgraded based on the standard version. The CineLog35 is designed with lighter weight and longer endurance.The concept of the Performance version is to maximize Racing performance and achieve perfection with the existing frame size.

We upgraded the power system, using F722-45A AIO with the new SPEEDX2 2105.5 motor, which has stronger power and faster response speed. It makes more easier flying with GoPro camera and allows you to perform some difficult action flying.You can even Freestyle with GEPRC Naked Hero 8 Camera. Therefore, the CineLog35 Performance can perfectly meet all requirements of aerial photography creators to reach higher-level quality shooting.

The CineLog35 Performance is also equipped with excellent and affordable GEPRC ELRS 2.4G.

In short, we’ve made a lot of upgrades and optimizations for the CineLog35 Performance, which makes it easy for you to mount your GoPro camera for creative shooting work.The integrated propeller guard design with high flight safety allows indoors and outdoors flight.

This is a FPV quad that combines Cinematic shooting, Freestyle, Racing and Cruising to satisfy your indoor & outdoor flying requirements in various scenes.

Features:

  • 3.5-inch integrated propeller guard, hollowed-out weight reduction and noise reduction design, quiet and safe flight,brand new appearance design
  • Equipped with GEPRC F722-45A AIO high-performance FC and integrated BLHeli_S 45A 6S ESC.
  • Caddx VISTA HD and Walksnail AVATAR HD digital image transmission system make the FPV image stable and clear, and restore true colors and details.
  • SPEEDX2 2105.5 motor with DT90-3 propeller, stable power output and smooth flight experience.
  • Reversed-motor design, higher flight efficiency, longer flight endurance, flexible flight attitude.
  • Comes with two 3D printed parts,which can be installed with GoPro cameras or Naked 8,10 Camera, Insta 360 GO2 and Caddx Peanut cameras.
  • Shock-absorbing gimbal design, more stable and clearer shooting, Without jelly any more.
  • The analog version uses RAD high power 1.6W VTX, stable signal transmission, strong anti-interference ability and longer signal transmission distance.
  • The GEPRC Team’s Splendid Tuning and the overall flight feel is delicate and flexible.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the CineLog35 Performance HD in particular but at least we know they do distribute GEPRC.

Wingspan: 203mm (8 in)
Length: 203mm (8 in)

Weight: 258 g (9.1 oz)
  • Frame: GEP-CL35 Performance
  • Wheelbase:142mm
  • Top plate: 2.5mm
  • Bottom plate: 2.0mm
  • Arm plate: 3.5mm
  • FC system: GEP-F722-45A AIO
  • MCU: STM32F722
  • IMU: 6-Axis
  • OSD: BetaFlight OSD w/AT7456E chip
  • ESC: BLheli_S 45A
  • VTX: VISTA
  • Camera: Caddx Nebula Pro
  • Propeller: HQ DT90-3
  • Antenna: GEPRC Momoda 5.8g UFL LHCP 175mm Long Version Antenna
  • Motor: SPEEDX2 2105.5-2650KV
  • Weight: 258.1g (CineLog35 Performance HD VISTA Nebula Pro 6S PNP)
  • Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS2.4G
  • Battery:LiPo 6S 850mAh-1550mAh

Includes:

  • 1  x  CineLog35 Performance HD VISTA Nebula Pro
  • 2  x  HQ DT90-3 propellers (pair)
  • 1  x  Battery strap M15x220mm
  • 2  x  Battery Silicone Pads
  • 2  x  Landing Pads
  • 5  x  15 degree damping rings
  • 1  x  TBS Nano RX Antenna Mount
  • 1  x  Set of screws
  • 1  x  Set of screwdriver
  • 1  x  Antenna fixed tube
