Mark 3 H5 from GEPRC

Details

There are 3 models in Mark3 series, this time we choose mark3-h5 as BNF/PNP.
This is a Frame with amazing performance,H styles trueX frame,Agility is preserved in flight and Ensure the convenience of equipment replacement.There are two versions of this package,There are two main differences: There are two main differences: the low-configuration BLHeli_S 40A ESC supports 2-5s lithium battery, with the latest GR2207.5 2400Kv motor; the other high-configuration BLHeli_32 50A ESC supports 3-6s lithium battery, with the latest GR2207.5 1920Kv motor. Two completely different power combinations will bring two different flight experiences.The FPV camera selects the Ratel 2.1mm Camera of Caddx for excellent imaging effect.

The package comes with 10 pairs of GEP5040*3 propellers, 2 Pagoda2 RHCP antennas, and 1 set of 3d-printed motor seat protection.Tuned by the GEPRC team at the time of delivery, you can fly with confidence.

Features:

  • GEP-mark3 H5 frame, all 3K carbon fiber board and high precision CNC protection, exquisite and strong
  •  power version options
  • SPAN F4 Tower, Max 5S battery, GR2207.5 2400KV motor
  • SPAN Pro F4 BL32 Tower, Max. 6S battery, with GR2207.5 1920Kv moto
  • The newly designed GR2207.5 high-performance motor
  • 10 pairs of gep-5040 propellers, 1 set of 3d-printed motor protection parts
  • Use the Pagoda2 antenna to determine the image quality
  • Caddx Ratel 2.1mm camera ,for excellent imaging effect
  • Tuned by the GEPRC team at the time of delivery, you can fly with confidence.

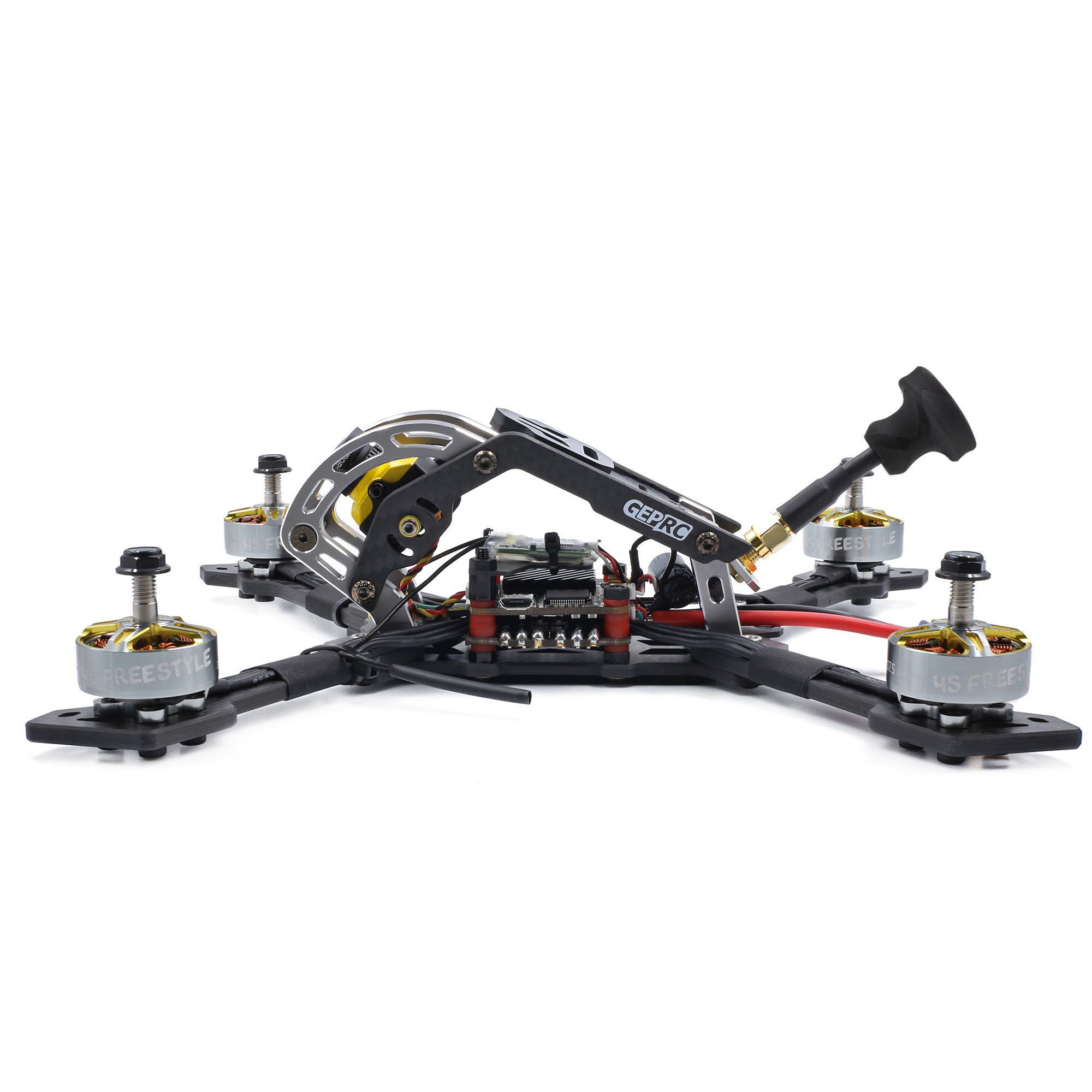

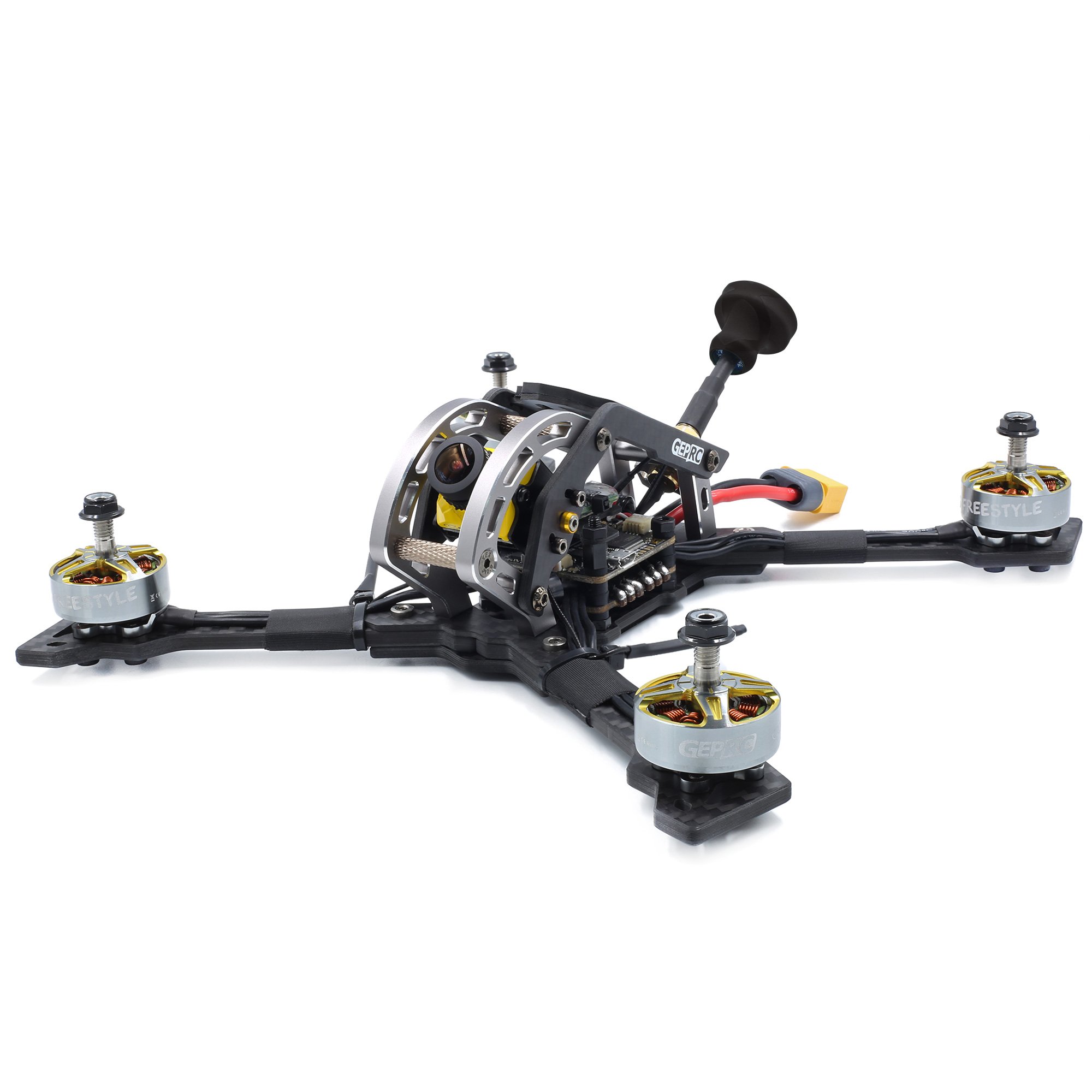

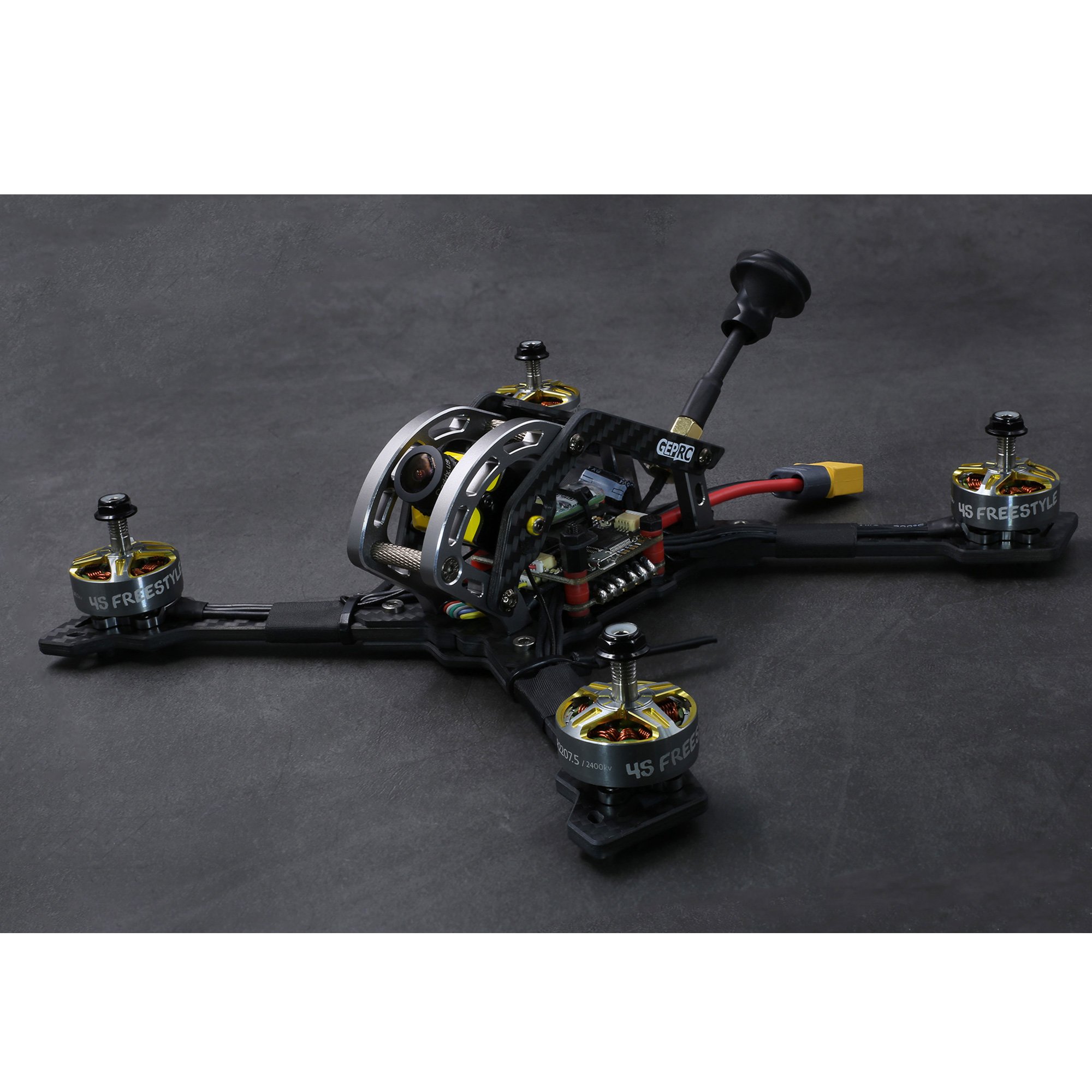

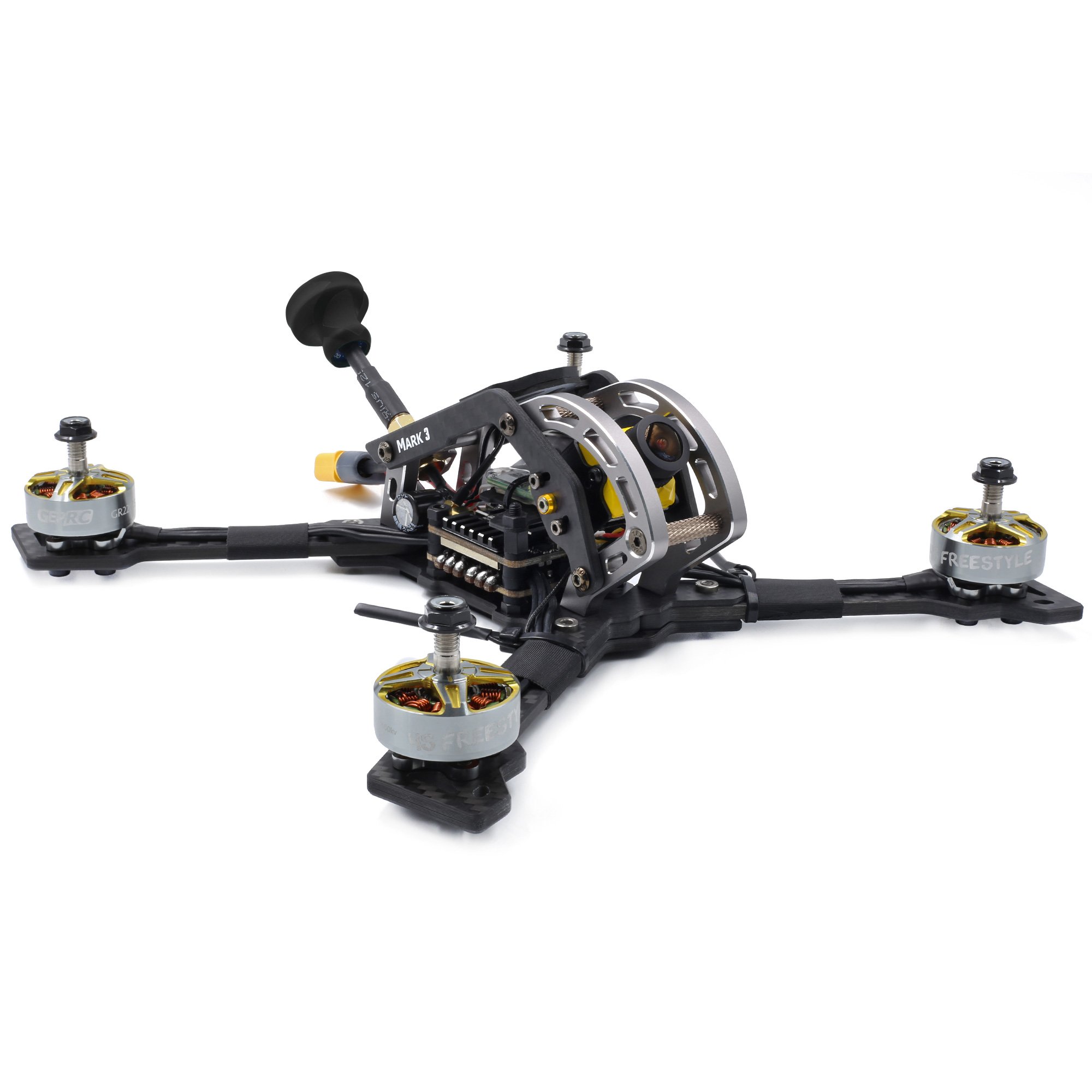

Pictures

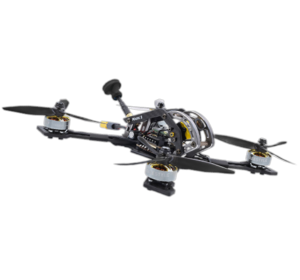

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Mark 3 H5 in particular but at least we know they do distribute GEPRC.

Wingspan: 225mm (8.9 in)
Length: 225mm (8.9 in)

Weight: 321 g (11.3 oz)
  • Model: Mark3 H5
  • Motor to motor: 225mm
  • Firmware: betaflight_3.5.3_OMNIBUSF4SD
  • Propeller: GEP5040*3
  • Antennas:Pagoda2 RHCP
  • Weight: 321g without battery or props
  • Receiver: Without Receiver/Frsky R-XSR/Frsky R-XSR

Frame: GEPRC GEP-Mark3

  • Carbon:Full 3K carbon fiber Twill
  • CNC:High precision 7075 CNC
  • Motor to motor: 225mm
  • Bottom plate: 3mm
  • Top plate: 1.5mm
  • Side plate: 3mm
  • Reinforce plate: 1.5mm
  • Arms plate: 4mm

Tower Versions:

1.Flight Controller: SPAN F4 BLheli_S 40A Tower

  • MCU: STM32F405
  • MPU: MPU6000
  • ESC: 40A * 4 BLHeli_s (Dshot 150/300/600) support 2~5S LiPo
  • VTX: 5.8GHz (48 Channel IRC Tramp default UART3)
  • (PIT/25/200/600mW)
  • Motor: GR2207.5 2400KV

2.Flight Controller: SPAN Pro F4 BLheli_32 50A Tower

  • MCU: STM32F405
  • MPU: MPU6000
  • ESC: 50A * 4 BLHeli_s (Dshot 150/300/600/1200) support 3~6S LiPo
  • VTX: 5.8GHz (48 Channel IRC Tramp default UART3) (PIT/25/100/200/600/800mW)
  • Motor: GR2207.5 1920KV
