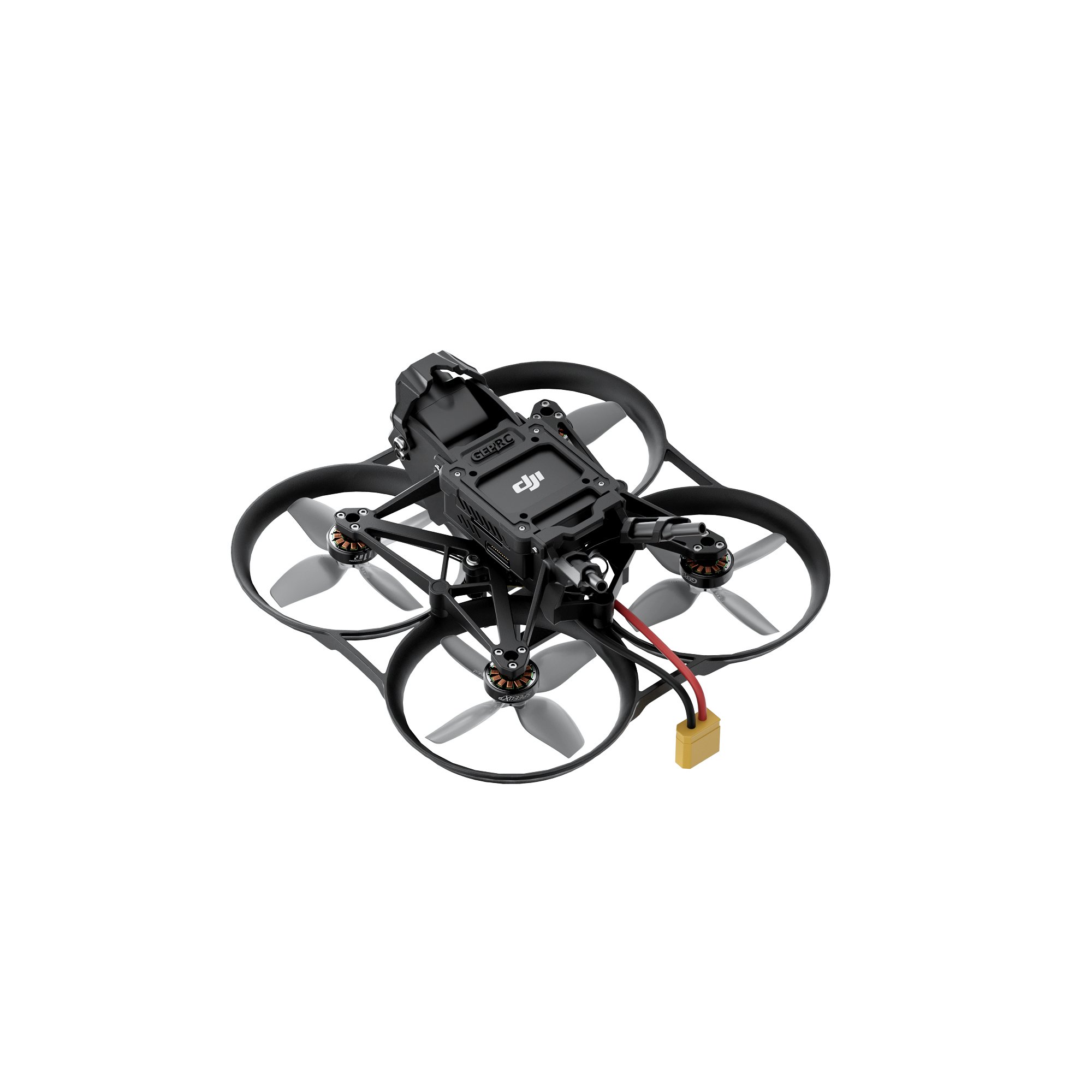

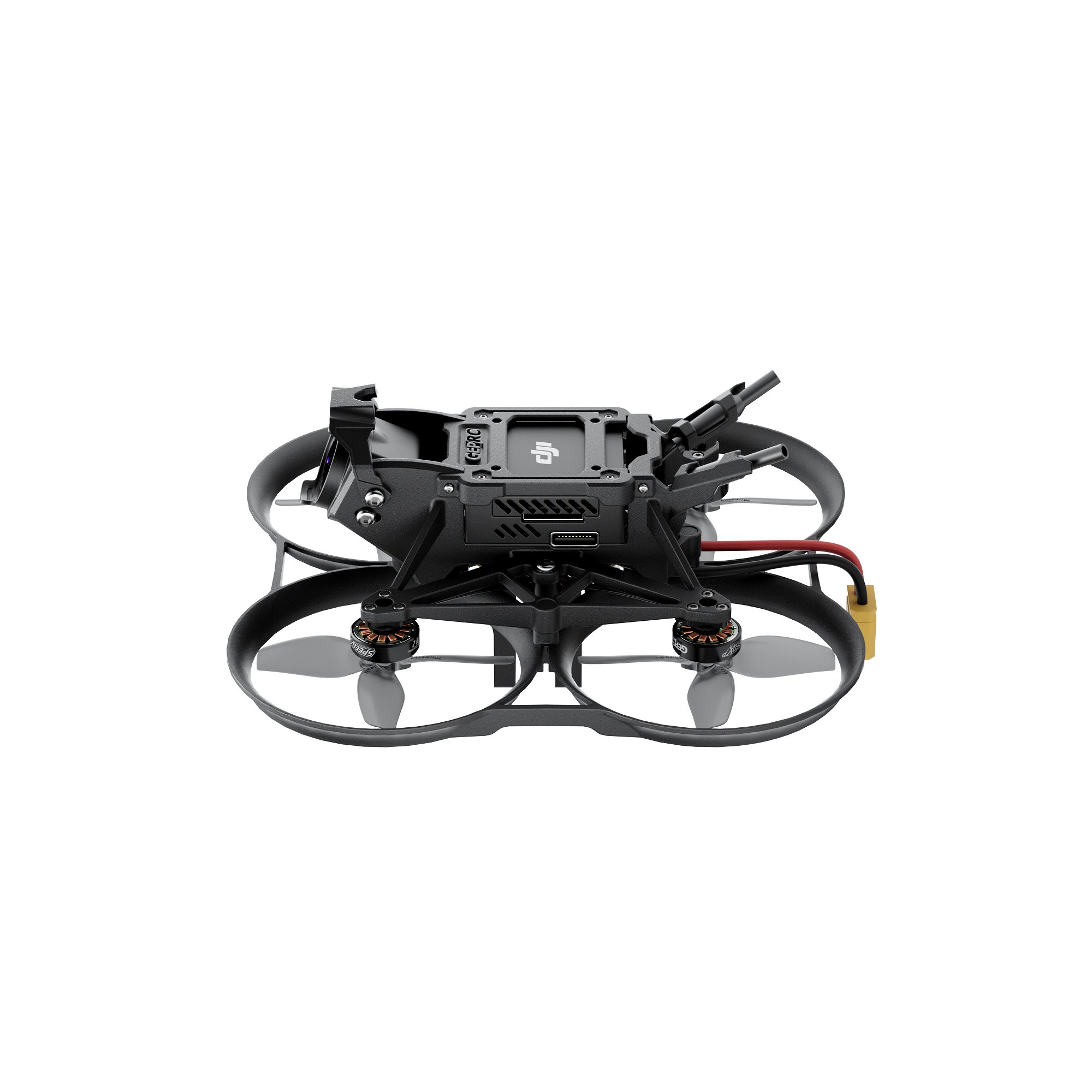

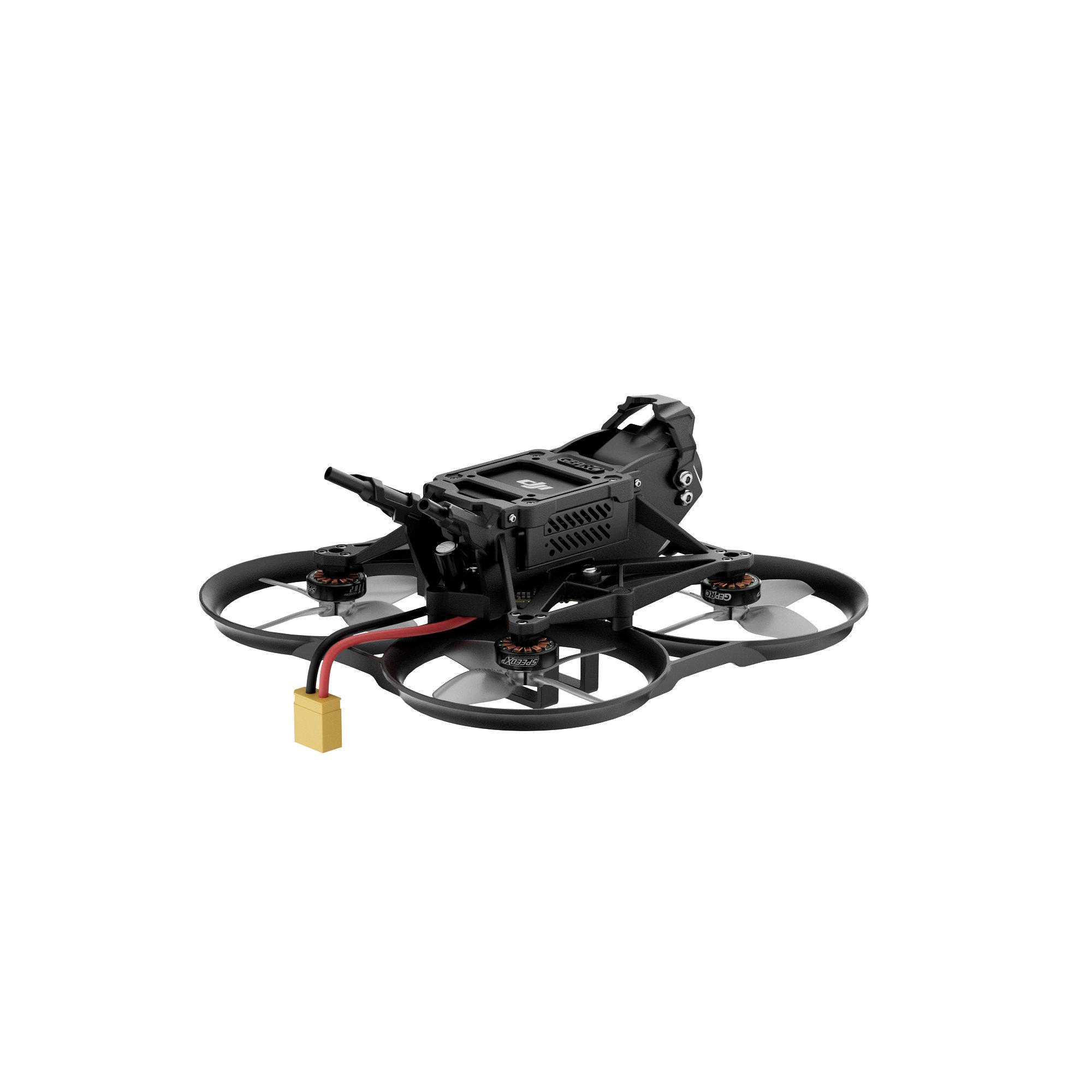

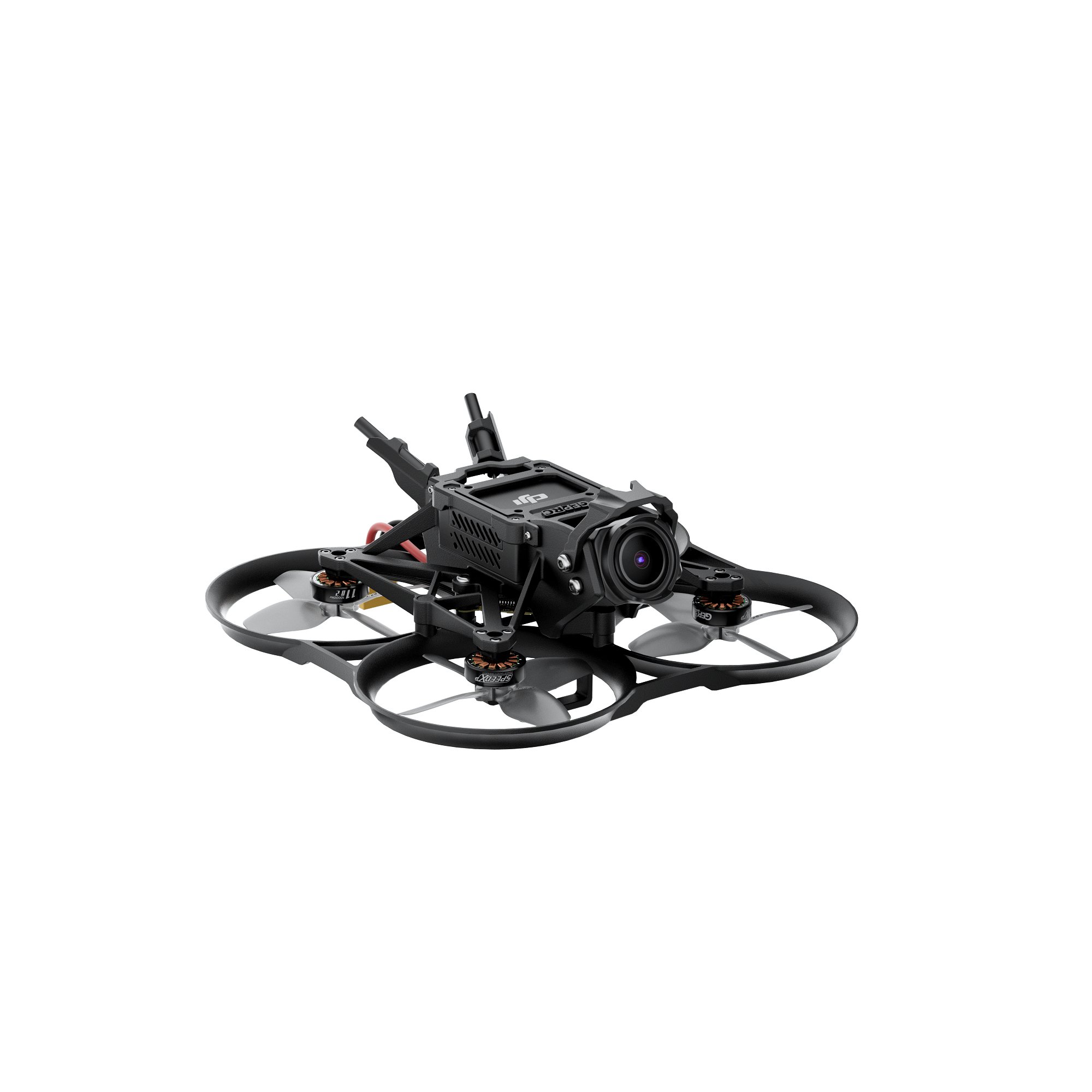

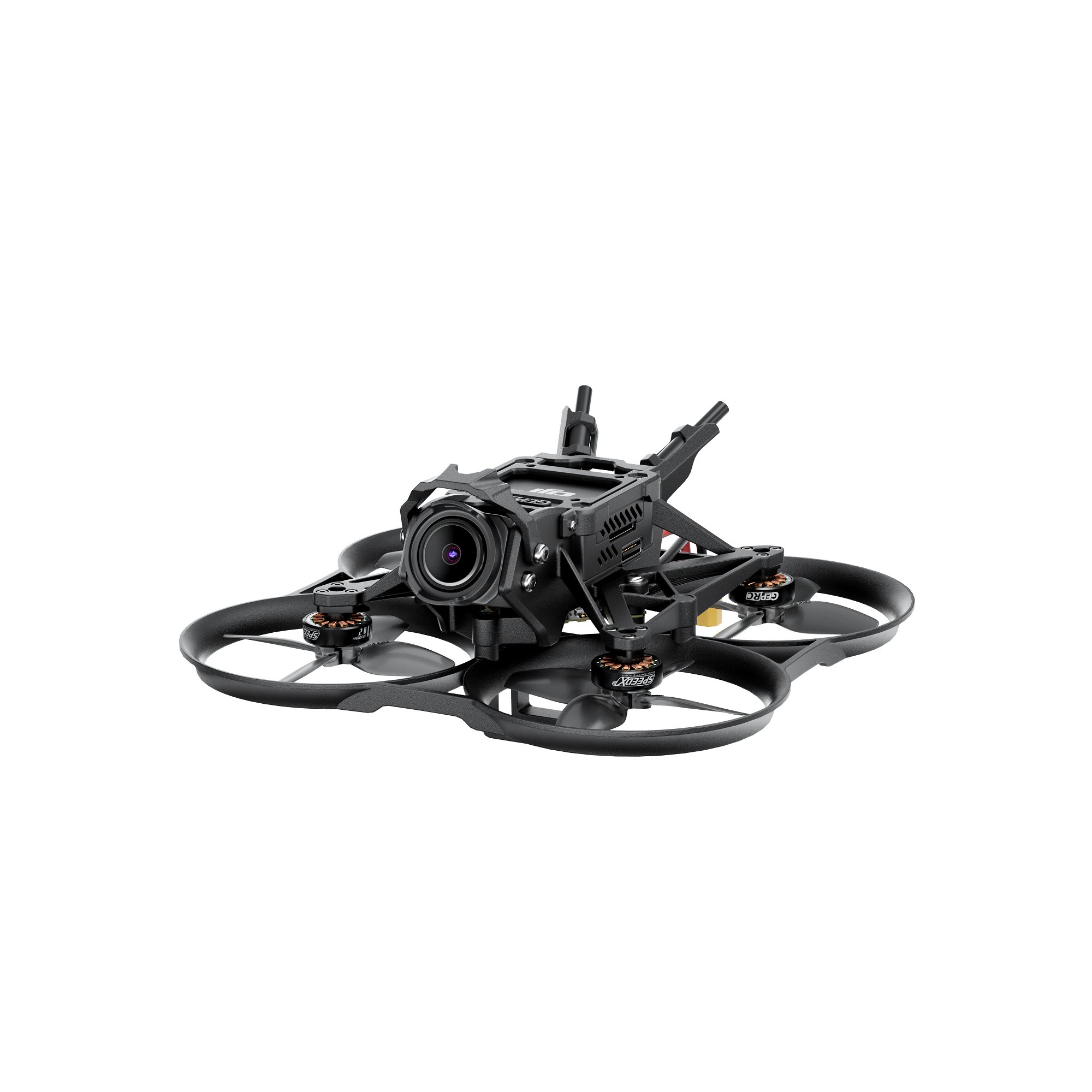

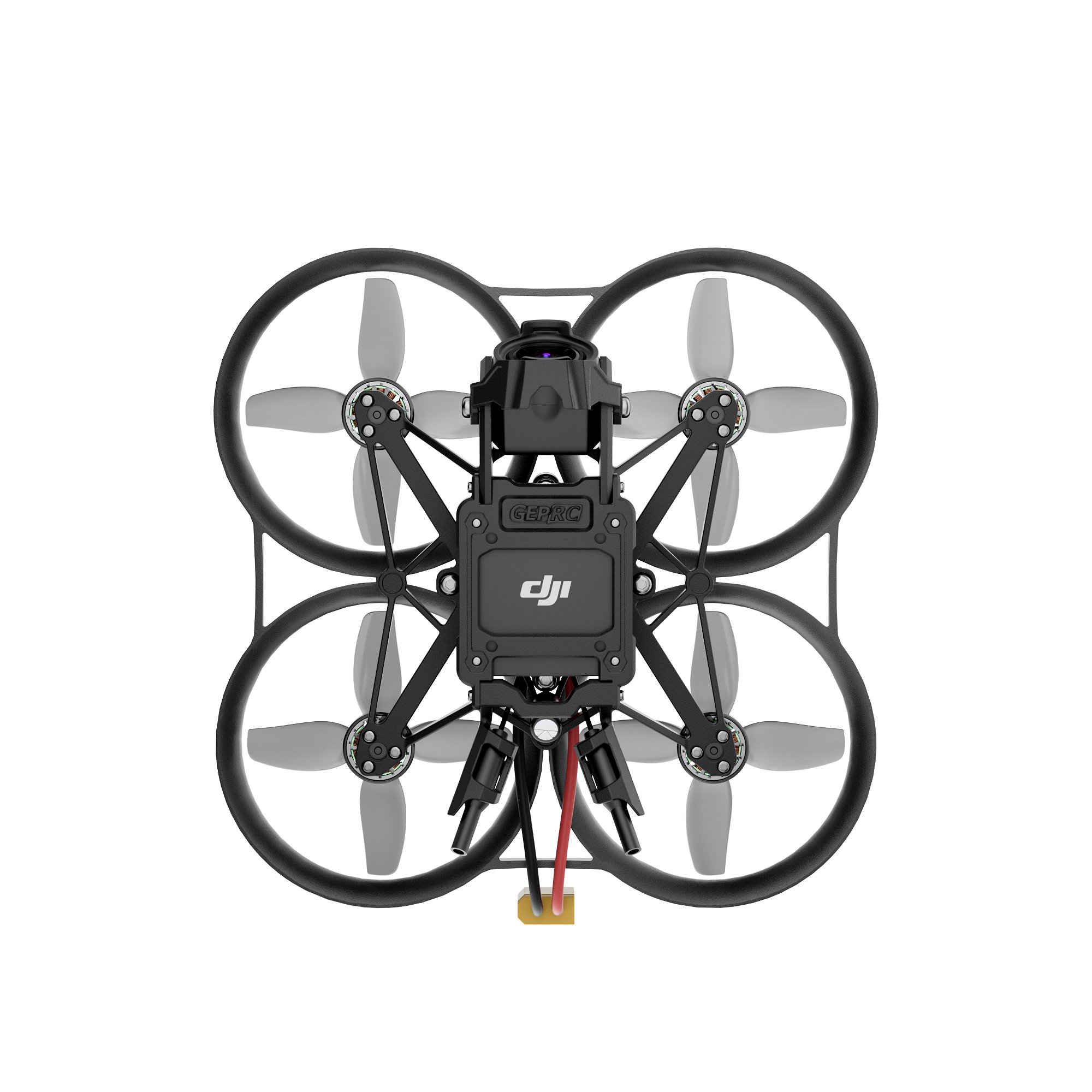

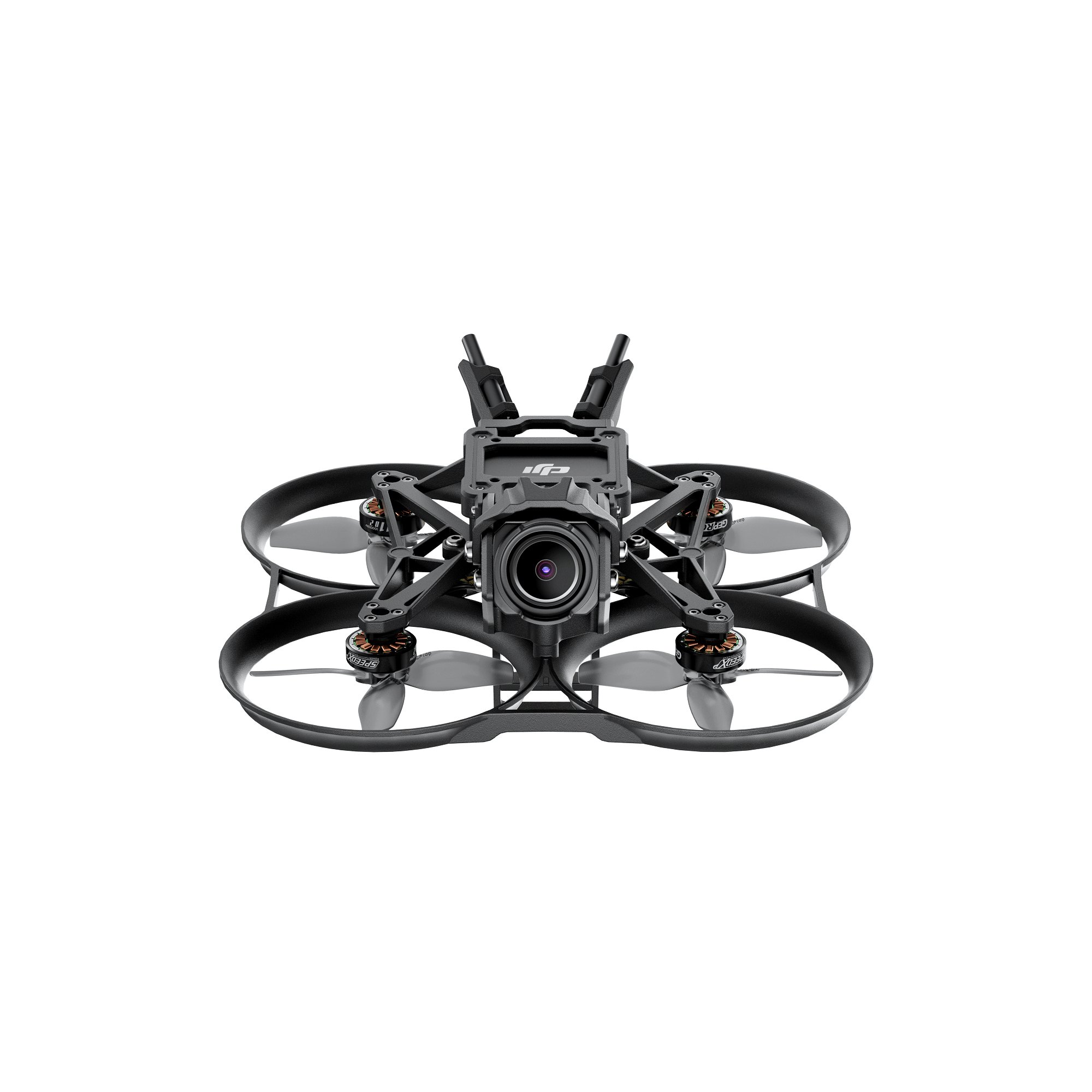

DarkStar20 O3 from GEPRC


In the application of Cinematic FPV field, GEPRC is continues to pursuing innovation. When conventional size quadcopters are unable to meet the needs of shooting in small spaces, DarkStar20 is a good solution. DarkStar20, This is a small quadcopter within 120 grams that is designed for indoor shooting and outdoor flying.

DarkStar20 adopts a lightweight fully injection fuselage and uses a multi-dimensional triangular frame for strength aspact, which ensures good frame rigidity and an exquisite appearance.
The flight system uses TAKER F411-12A-E 1-2S AIO, and the SPEEDX2 1102 motor is paired with HQProp T51MM x4 propellers, which provides sufficient power and efficiency.In addition, the O3 Air Unit version has built-in 4K anti-shake video recording, which can create wonderful works.

After being carefully tuned by the GEPRC team, the Dark Star 20 has a smooth flying feel and a superior experience.


  • New design concept and lightweight fully injection fuselage, multi-directional triangular braced frame ensures strength.
  • The weighs only 85.5g (without batteries).
  • Built-in O3 Air Unit card record up to 4K 120fps high-definition video.
  • Compatible with indoor and outdoor flying and image creation, and also suitable for novice pilots.
  • TAKER F411-12A-E 1-2S AIO flight system integrates ELRS 2.4G receiver, which takes up less space and is more cost-effective.
  • New SPEEDX2 1102 motor with HQProp DT51mm x4 propellers can achieve ideal battery life.
  • In-depth cooperation with HQProp to fully optimize the dynamic balance of DT51mm x4 pros to reduce jelly.
  • Compact and portable, the best companion for travel photography.
  • The battery compartment protected by the frame retains the diversity of battery applications.
  •  Adjustable camera protective hat to avoid broken when It’s flipping over.


Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the DarkStar20 O3 in particular but at least we know they do distribute GEPRC.

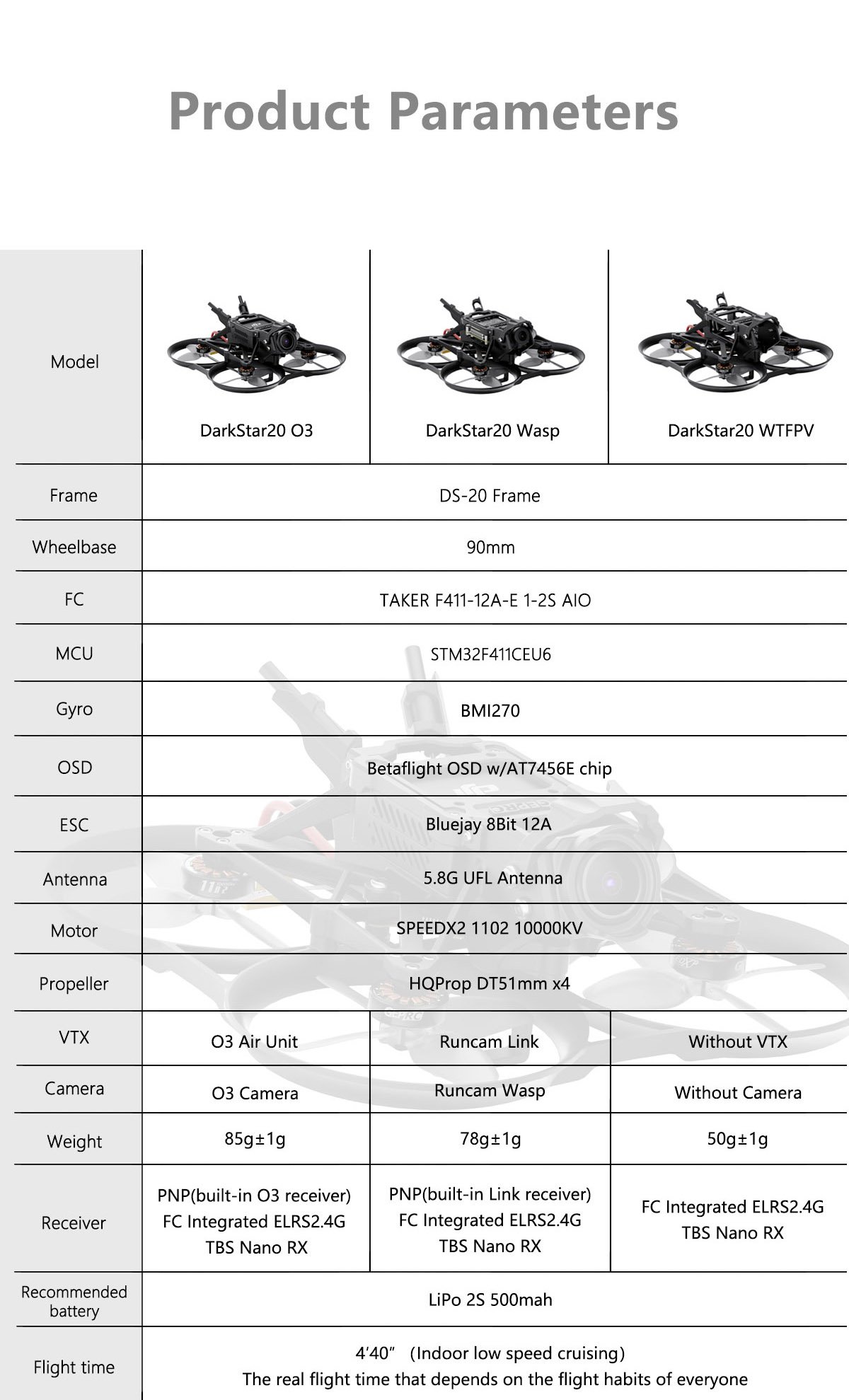

Wingspan: 90mm (3.5 in)
Length: 90mm (3.5 in)

Weight: 85 g (3 oz)
  • Frame: GEP-DS20 Frame
  • Wheelbase: 90mm
  • FC system: TAKER F411-12A-E 1-2S AIO
  • MCU:STM32F411CEU6
  • Gyro: BMI270
  • OSD: Betaflight OSD w/AT7456E chip
  • ESC: Bluejay 8Bit 12A
  • VTX: O3 Air Unit
  • Camera: O3 Camera
  • Antenna: 5.8G UFL antenna
  • Motor: SPEEDX2 1102 10000KV
  • Propeller: HQProp DT51mm x4
  • Weight: 85g ± 1g
  • Receiver: PNP / ELRS2.4G / TBS Nano
  • Recommended battery:LiPo 2S 500mah
  • Flight time: 4′40″ (Indoor low speed cruising)
