TinyGo 4K FPV from GEPRC

Details

Ready To Fly Kit which is suitable for any novice from scratch and Indoor flight. Through a great number of tests, Better technical indexes and Good performance were obtained.TinyGO currently has two versions: the Indoor version and the 4K professional version. 4K can record 4K 60fps video.

TinyGO is RTF Kit for Indoor Flight. The Kit contains a high-definition 800x480px FPV Goggle and the latest TinyRadio GR8 Remote Controller. It supports 8 channels and is specially designed for indoor and novices. The remote control has a good feeling of control and It is lightweight and easy to carry. The good point is that you don’t need to carry heavy equipment. With our customized GEPRC Fly Bag, it’s very convenient to go to the field, travel, and Indoor flight.

TinyGO can use its own charger to charge. The charger uses the Type-C interface. You can use the movable power bank to charge as well. Using conveniently and quickly.

TinyGO can be flight more than 6 minutes (Depending on flight habits). Its stable electronic equipment and extremely strong and tough frame material make the FPV very stable and durable for crash. There is an EVA protection foam around the frame, More elastic and hard to damaged and deformed.

TinyGO is carefully assembled and assembles by GEPRC team, with excellent performance. You can start a whole new journey and enter into FPV World, TinyGO will be the best choice for your first FPV Drone.

Features:

  • TinyGO is very suitable for indoor flight, More than 6 minutes of flight time
  • Using TAKER F411 8Bit 12A FC system, reliable and stable
  • No Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture
  • The Newly Developed TinyRadio GR8 Remote Controller is specially designed for Novice and indoor flight
  • High-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver
  • Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight
  • There are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video

Pictures

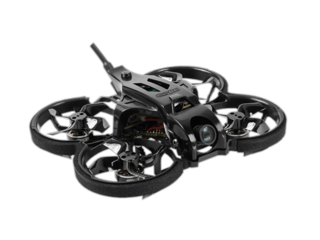

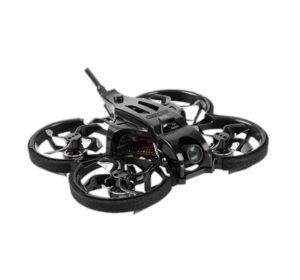

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the TinyGo 4K FPV in particular but at least we know they do distribute GEPRC.

Wingspan: 79mm (3.1 in)
Length: 79mm (3.1 in)

Weight: 58 g (2 oz)
  • Camera: Loris 4K
  • Image sensor: 1/2.7″ CMOS sensor
  • Horizontal: 800TVL
  • TV system: NTSC/PAL changeable
  • Video Resolution: 1080P@60fps / 1080P@90fps / 2.7K/60FPS 4K/30FPS 4K/60FPS [REAL 3.5K/60FPS)
  • Power Input: DC 4.5-20V
  • FPV FOV: 165°
  • Recording FOV: 170°
  • Mini Illumination: 0.01lux
  • Lens: 1.8mm Lens
  • Working Current: 380mA@5V/160mA@12V (low consumption)
  • OSD Menu: Yes (Support Voltage Display)
  • Video Files: MOV
  • Audio: Support
  • Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
  • Video Output: CVBS

Configuration

  • Frame: GEP-TG16
  • Motor to Motor: 79mm
  • FC: TAKER F411 8Bit 12A
  • MCU: STM32F411
  • IMU: 42688-P
  • Blackbox: 16Mb
  • OSD: BetaFlight OSD w/ AT7456E chip
  • ESC: 8Bit 12A
  • VTX: RAD Whoop 5.8G 25~400mw VTX
  • Camera: Runcam Nano2/Caddx Loris 4K 60fps
  • Propeller: GEMFAN 1636*4 (4 pairs)
  • Motors: GR1102 10000Kv
  • Receiver: Integrated ELRS SPI receiver
  • TinyGO 4K Weight: 54.8 Grams

Remote Controller

  • TinyRadio ELRS 2.4G Remote Controller
  • Radio Frequency: 2.4GHz
  • Radio Frequency: 2.4GHz
  • Range: 1000+ meter
  • Channel: 8
  • Transmit Power:<500mW
  • Antenna interface : SMA
  • Low Voltage alarm: <6.6v
  • Batteries: 2 x 18650 Batteries (not included)

FPV Goggle

  • Resolution: 800*480px
  • Size of Screen: 4.3 inch
  • Whole Size: 155mmx144mmx113mm
  • In-built batteries: 3.7v/2000mAh
  • Working Hours: 2.5 Hours
  • Weight: 314.6 Grams

FPV Batteries

  • Batteries Capacity: 530mAh
  • Voltage: 4.35v 1S1P
  • Discharge rate: 90C
  • Size:(61mmx16.7mmx7mm)
  • Weight: 12.7 Grams
  • Interface: PH2.0

Charger

  • Input power:5v(USB & Type C)
  • Full charged Voltage:4.35v
  • Output current : 500mAh
  • Charging:It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time

Include

  • 1x TinyGO TinyWhoop
  • 1x TinyRadio GR8 Transmitter
  • 1x GEPRC FPV RG1 Goggle
  • 1x GEPRC 1S LiHV 4.35v Charger
  • 4x GEPRC LiHV 4.35v 90C Battery
  • 1x Battery strap
  • 4x Gemfan 1636*4 Props(pairs)
  • 1x GEPRC Fly bag
  • 1x Screwdriver
