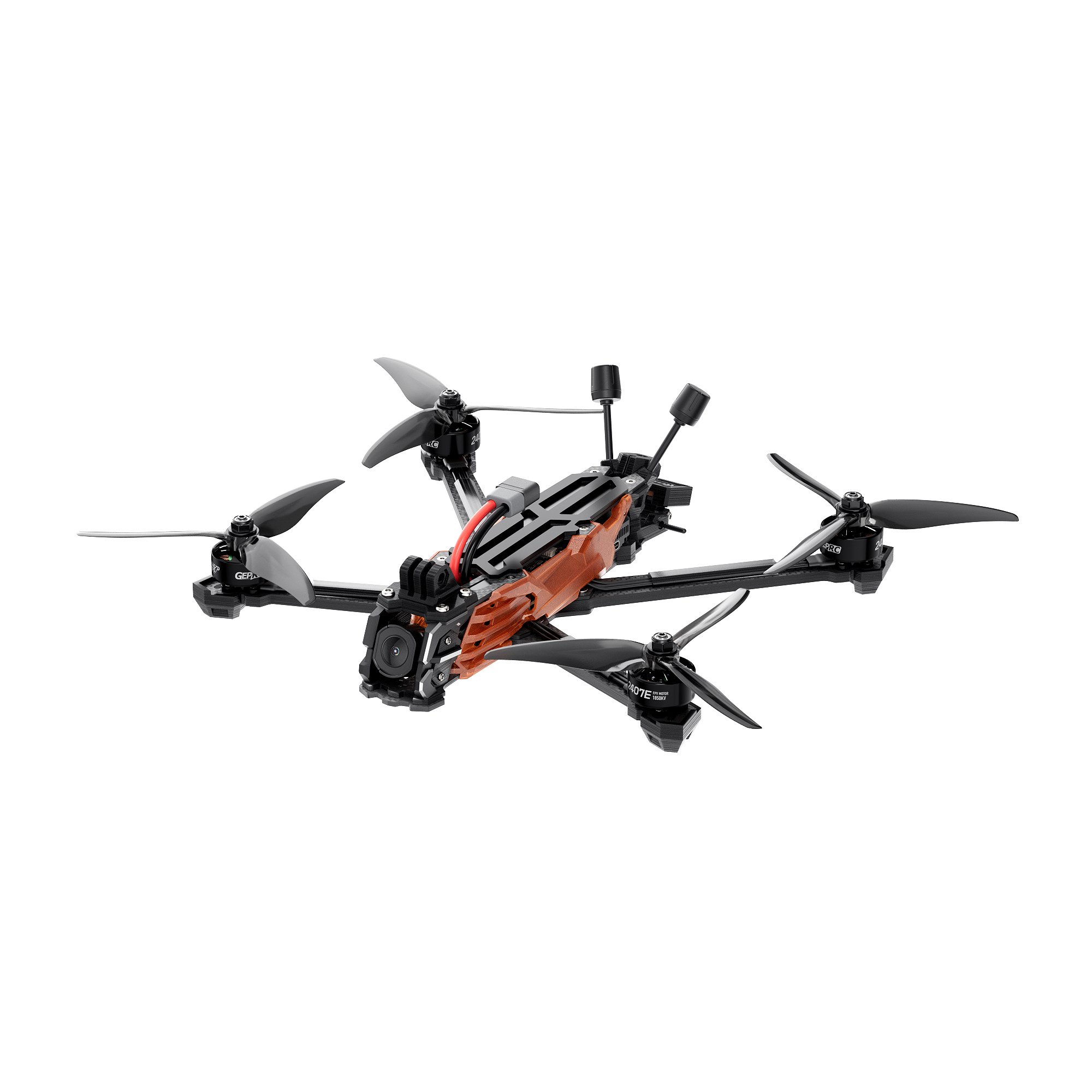

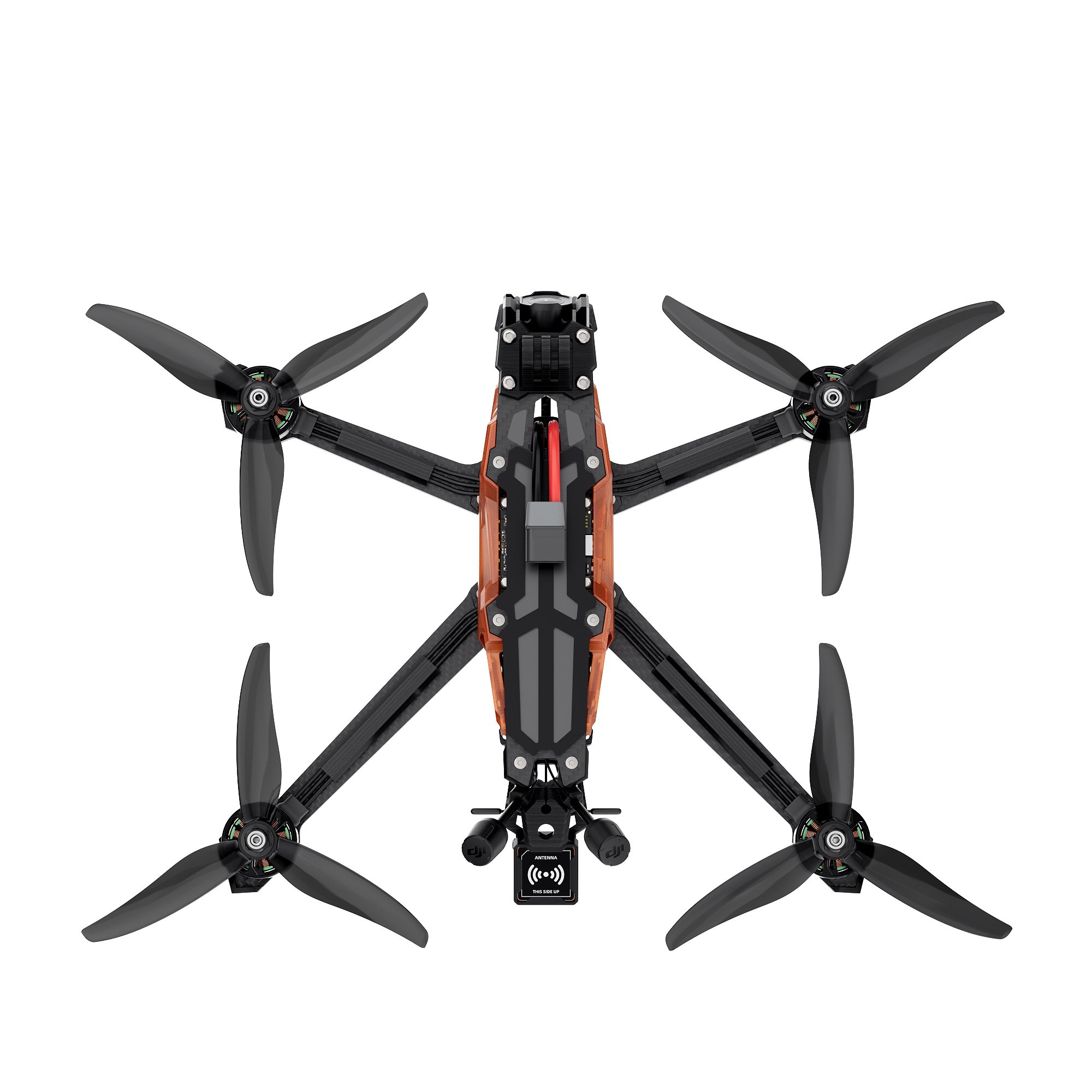

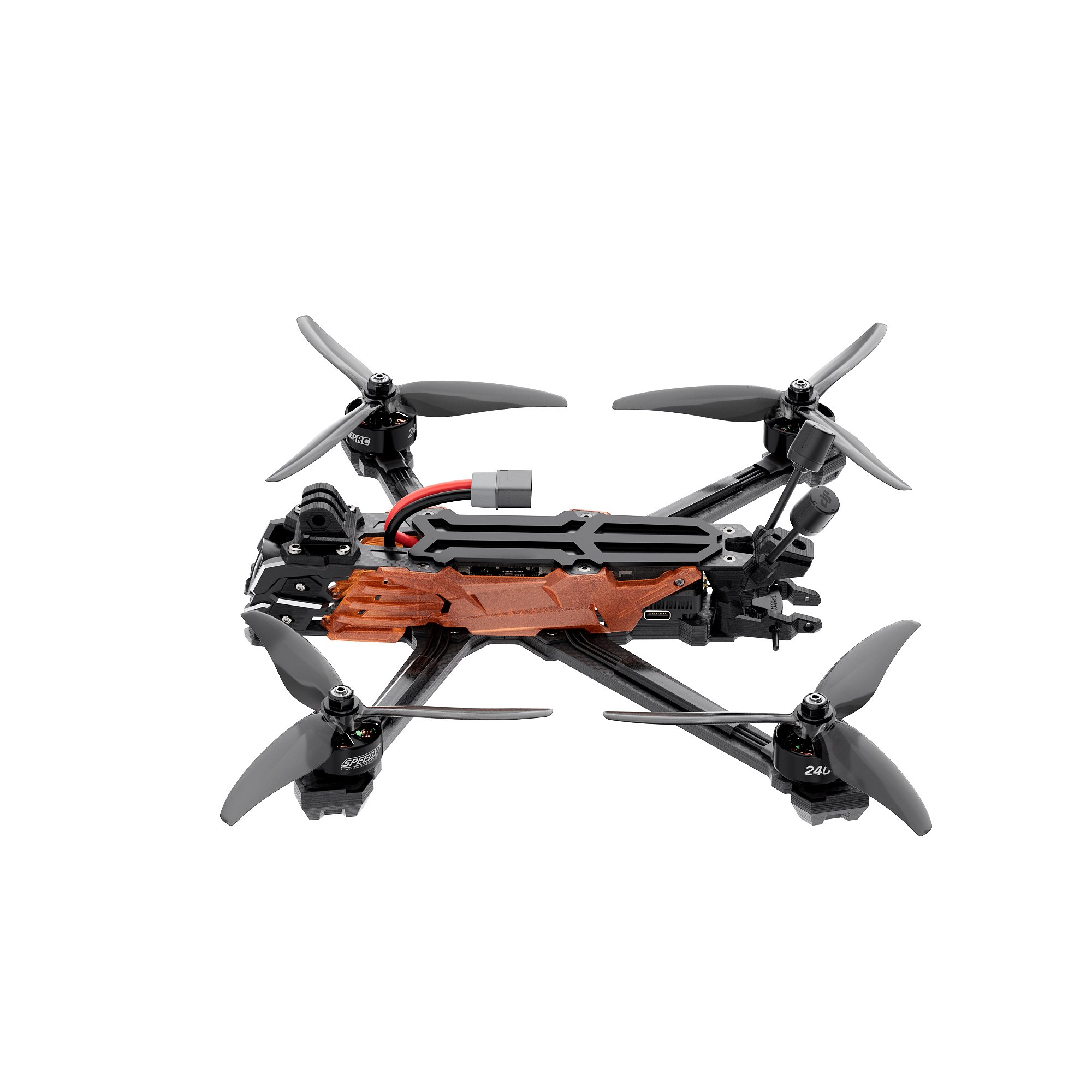

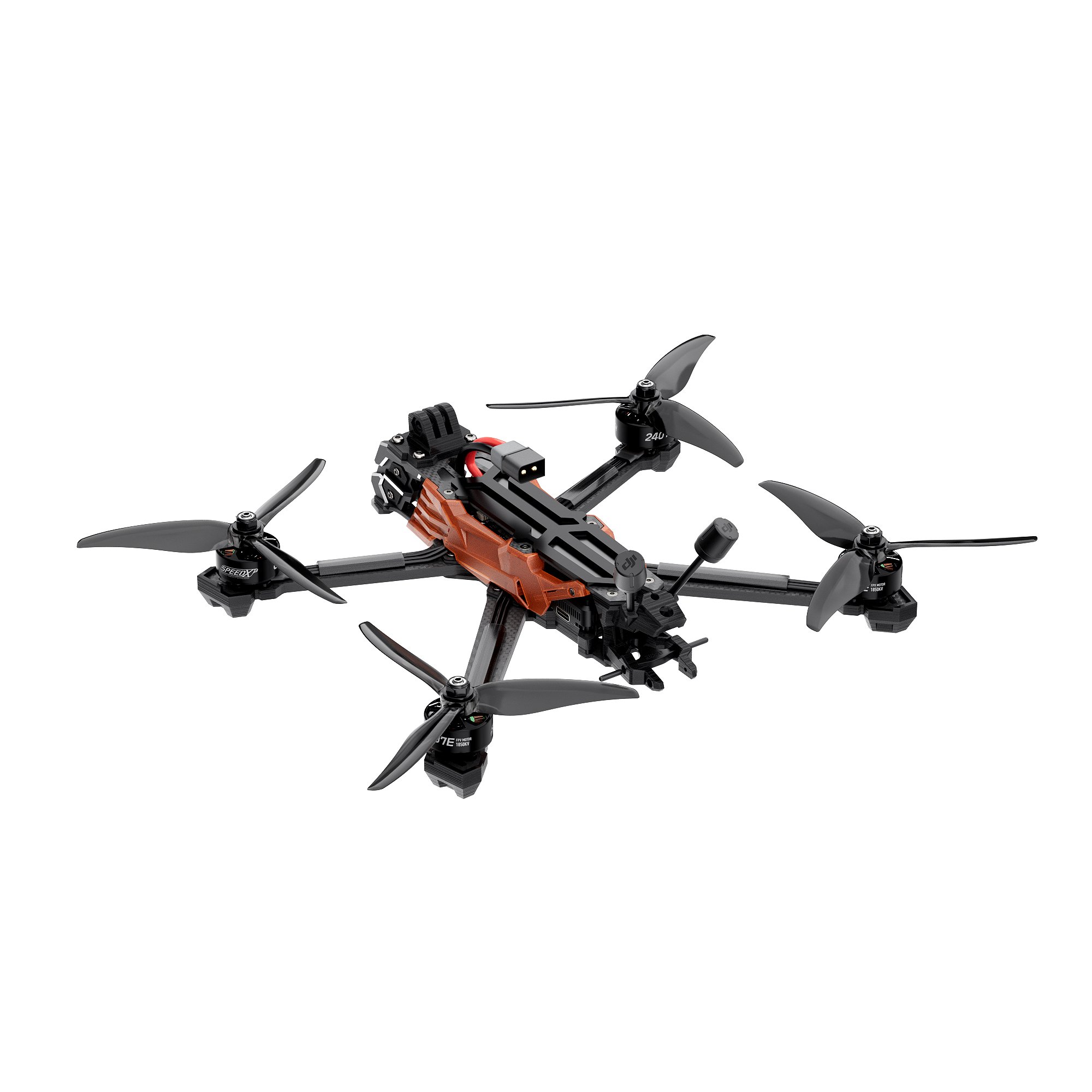

Vapor-D6 HD O4 Pro from GEPRC

Details

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Features:

  • DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
  • CNC aluminum lens housing for a durable, bold design.
  • GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
  • Front lip design provides extra lens protection for confident flying.
  • Wider 5mm carbon fiber arms for increased durability and a sleek build.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vapor-D6 HD O4 Pro in particular but at least we know they do distribute GEPRC.

Wingspan: 275mm (10.8 in)
Length: 275mm (10.8 in)

Weight: 465 g (16.4 oz)
  • Model: Vapor-D6 O4 Pro
  • Frame: GEP-Vapor-D6 O4 Pro frame
  • Wheelbase: 274.60 mm
  • Top Plate: 2.0 mm
  • Middle Plate: 2.0 mm
  • Bottom Plate: 2.5 mm
  • Arm Thickness: 5.0 mm
  • FC: GEP-F722-HD v2
  • MCU: STM32F722
  • Gyro: ICM42688-P(SPI)
  • Barometer: YES
  • OSD: Betaflight OSD w/AT7456E
  • ESC: TAKER H60_BLS 60A 4IN1 ESC
  • VTX: DJI O4 Air Unit Pro Transmission Module
  • Camera: DJI O4 Air Unit Pro Transmission Module
  • Antenna: DJI O4 Air Unit Pro Antenna
  • Connector: XT60
  • Optional GPS: GEP-M10 GPS
  • 6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
  • 6-inch Propeller: HQprop 6X3.5X3
  • Vapor-D6 O4 Pro PNP  Version Weight: 465 g±5g
  • Receiver: PNP/GEPRC ELRS24/TBS Nano RX
  • Recommended Battery: 6S LiPo1500mAh – 2000mAh
  • Flight Time: 14-19 min
