Legend RS6 from GOOSKY

Details

The Goosky Legend RS6 electric helicopter kit is an exceptional helicopter with a high-performance airframe similar to the RS5 and RS7, providing a solid foundation for a legendary flying experience. Made from high-quality carbon fiber and aluminum, this helicopter kit ensures durability while maintaining a lightweight profile. Its innovative design incorporates advanced engineering principles, enabling optimum performance and handling.

Features;

  • Precision-engineered cyclic bellcrank system for responsive flight control
  • Heavily reinforced CNC aluminum motor mount for enhanced durability
  • Fully compatible with standard 105mm tail blades and 690mm main rotor blades
  • Lightweight airframe with approx. 2.78kg take-off weight
  • Rigid 2mm thick side plates improve structural strength and durability
  • Unique belt/tail drive system enhances transmission efficiency
  • Quick-release canopy design for fast maintenance
  • Modular design for simplified assembly and part replacement
  • Tail rotor pulley with dual guide system for stable rotation
  • Spacious battery bay supports 280*52~68mm battery size

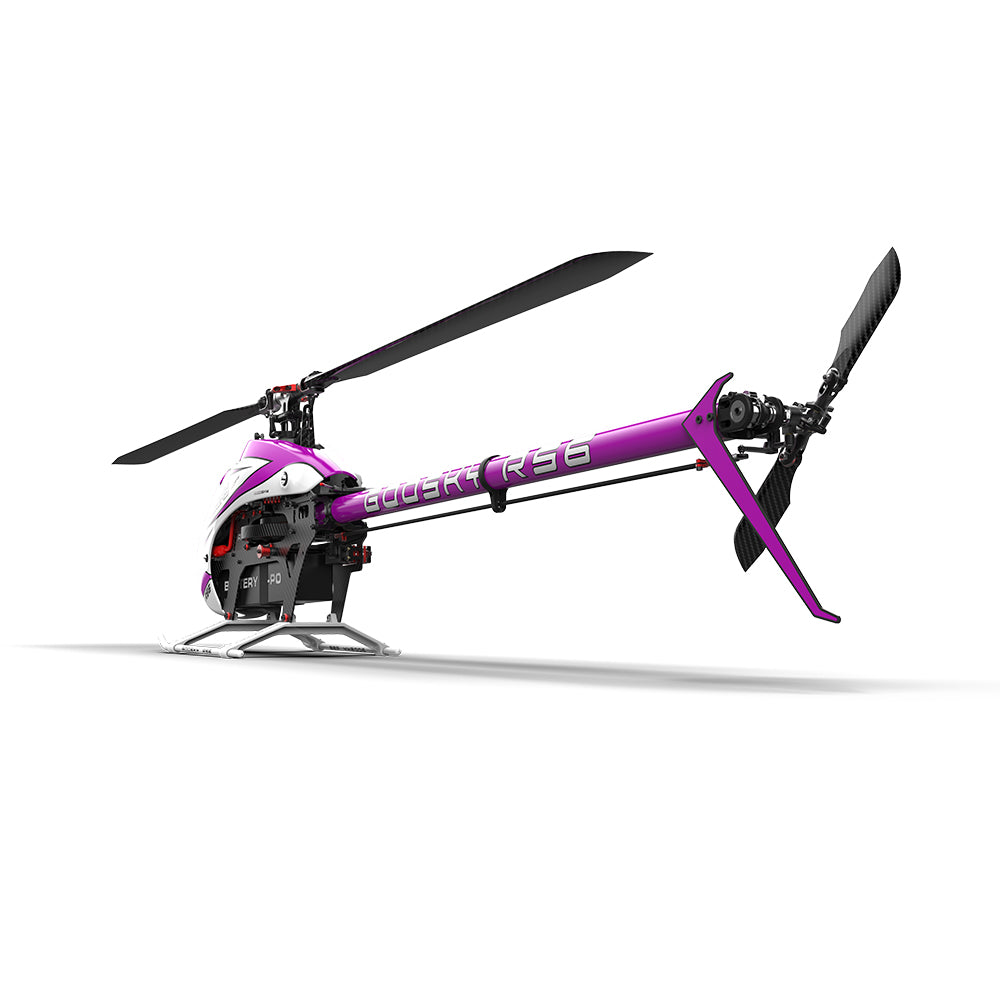

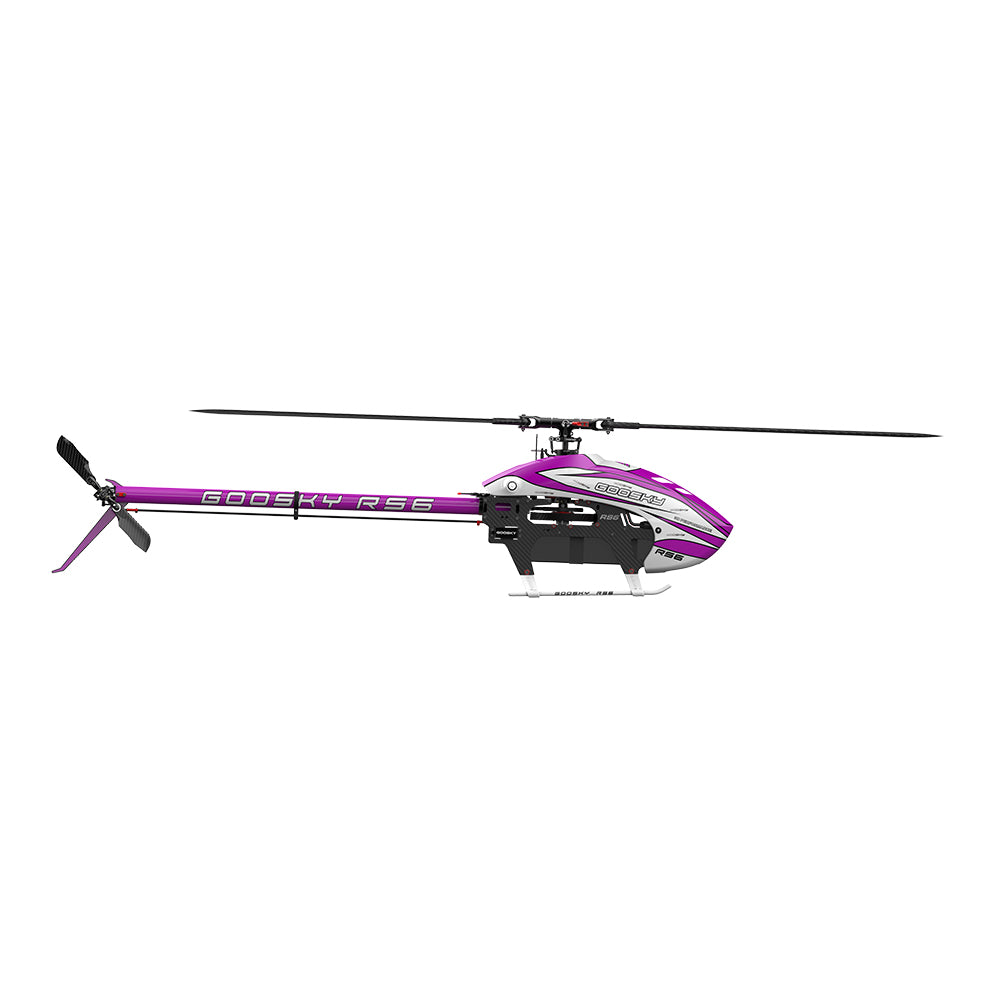

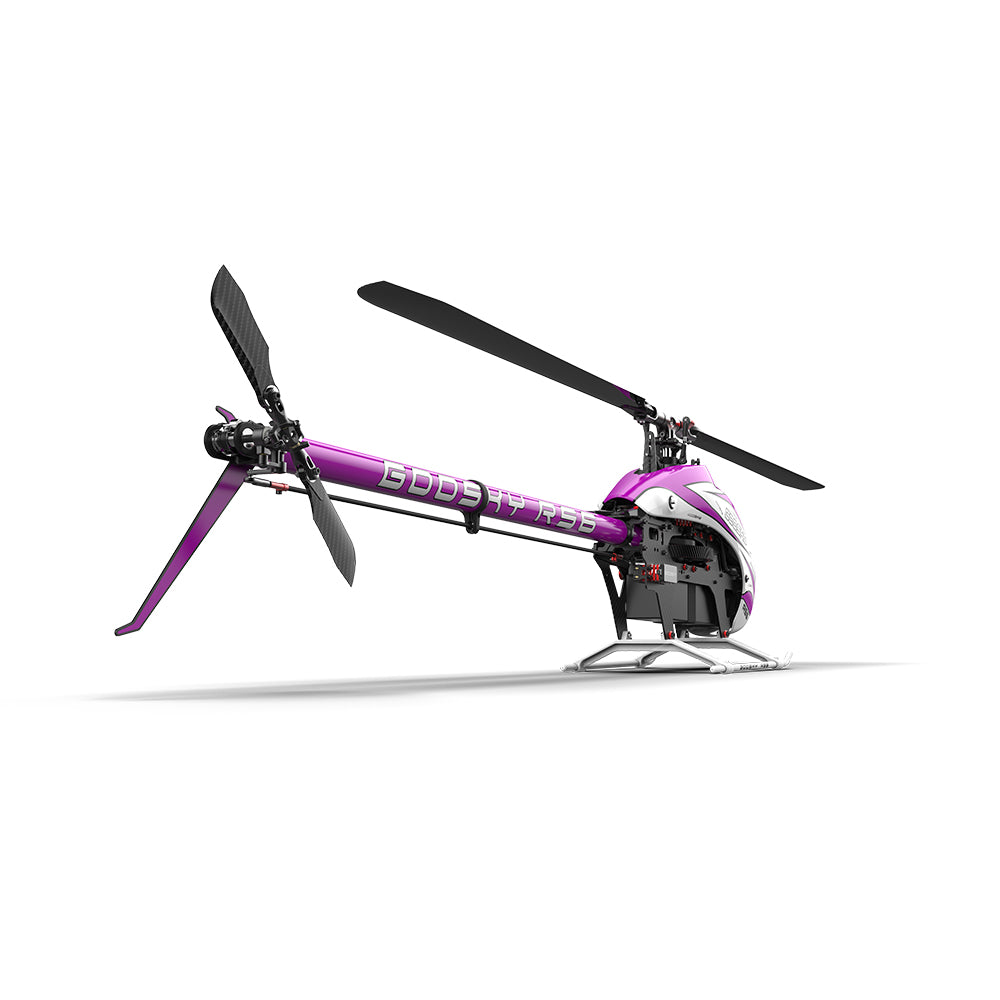

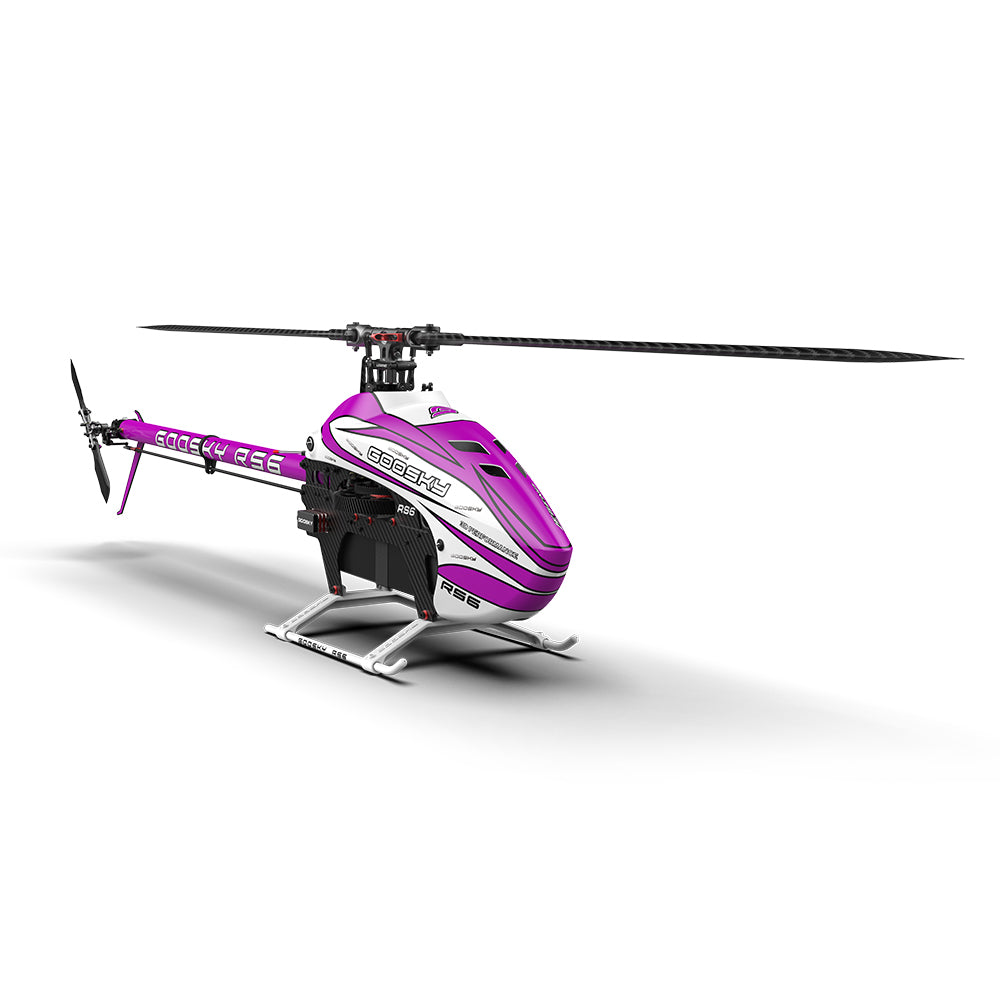

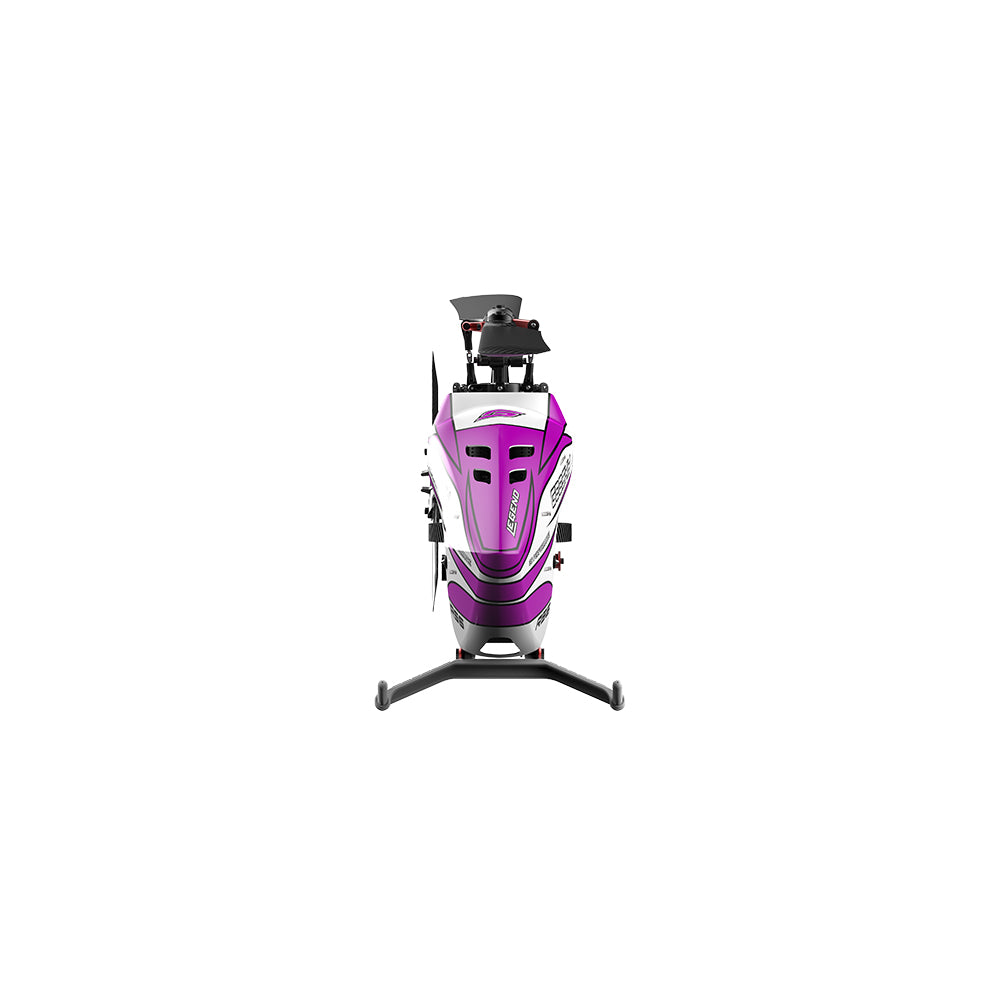

Pictures

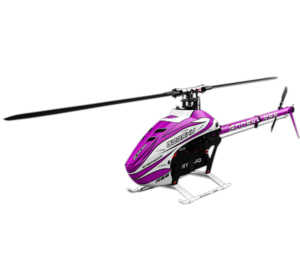

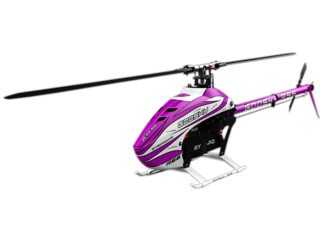

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Legend RS6 in particular but at least we know they do distribute GOOSKY.

Wingspan: 1352mm (53.2 in)
Length: 1211mm (47.7 in)

Weight: 2780 g (6.1 lbs)
  • Length: 1211mm
  • Width: 203mm
  • Height: 320mm
  • Main Gear: 107T
  • AIRFRAME weight (no battery): approx 2.78kg
  • Main Shaft Diameter: φ12mm
  • Feathering Shaft Diameter: φ8mm
  • Front Tail Pulley: 75T
  • One-piece Tail Shaft Diameter: φ6mm
  • Tail Spindle Diameter: φ4mm
  • Main Gear Ratio (Main Motor Gear 12T): 8.917
  • Main Gear Ratio (Main Motor Gear 13T): 8.231
  • Tail Ratio (Tail Pulley 16T): 4.6875
  • Tail Rotor Diameter (with the included 95mm tail blades): φ259mm
  • Main Rotor Diameter (when paired with 600 main blades): φ1352mm
  • Battery Compartment Size (length*width*height): 280*52*60mm
