After the successful introduction of Aerofoam MB339, and L39 “real turbine” foam jets, we at Global Jet Club have just finished extensive tests and validation of the latest addition to our Global Aerofoam Jet line up: the "Global Aerofoam T-45".

This T-45 Goshawk is a 1/6.25 scale turbine jets designed for 60-80 size turbine.  With a wingspan of over 59 inches and fuselage length over 75 inches, this is by far the largest turbine powered foam jet in the market today.  With its size, the wing load is really light even after we add the scale details such as slaps/flaps, airbrake, tail hook, navigation lights, full moving stab to name a few.  These scale details and light wind loading make it a perfect scale trainer jet just like its full size sibling.

This scale jets can be fully decked out for serious scale competition.  It comes installed with truly functional :

  • Leading edge slats – Operated by 4 pre installed digital high voltage servos

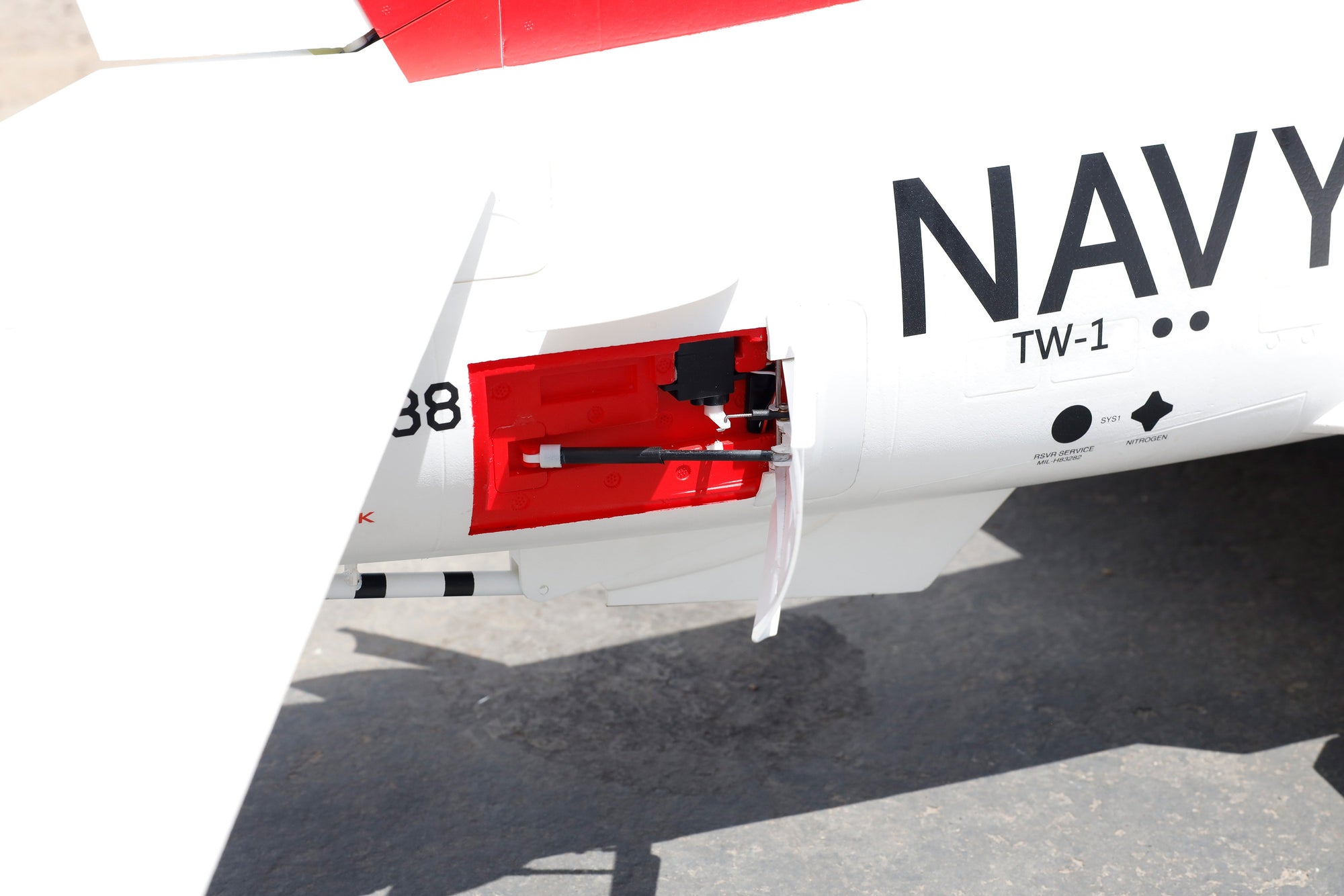

  • Speed Brakes – Operated by 2 pre installed digital high  voltage servos
  • Fully hinged offset flaps designed to work with slats for balanced Center of Lift and Drag, just like the full scale
  • Vortex generators on the wings
  • Full moving stabilizer – Yes, full stab controlled by a high torque digital servos
  • Navigation lights – Installed.
  • Scale landing gear – electric retract system with electric brakes with scale struts, catapult hooks, gear doors, inflatable wheels fully installed.
  • Tailhook with pinto point – ready for adding retractable mechanism for scale carrier landing approach
  • Built in 3S dual input redundancy voltage regulator and power distribution system – UBEC with selectable output (5-6V for servos), 7.4-8.4V for brake and retract system.
  • UAT, massive 1.6L tanks (2) included. They can be linked for extended flight time (10-12 minutes flight time tested with an ACEx80 turbine engine)  or one for ACEx smoke system.
  • Exhaust Pipe installed.



Pictures

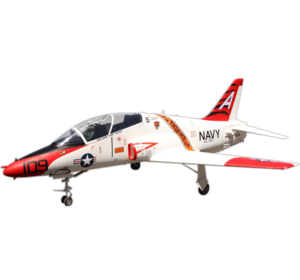

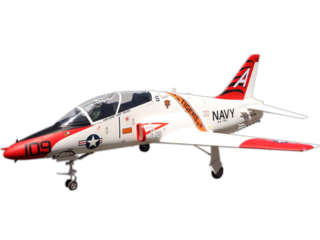

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T-45 Goshawk in particular but at least we know they do distribute Global AeroFoam.

Where to buy

USA
Banana Hobby
check web site
Ship to: Worldwide

Wingspan: 1501mm (59.1 in)
Length: 1904mm (75 in)

Weight: 8165 g (18 lbs)
  • Length: 74.99 inches (1904mm with Pitot tube)
  • Wingspan: 59.1 inches (1501 mm)
  • Take off Weight RTF minus Fuel:  16-18 lbs (7260 to 8165 g - with AUT full)
  • Available in PNP configurations: Just add a turbine, batteries and receivers and go fly.
