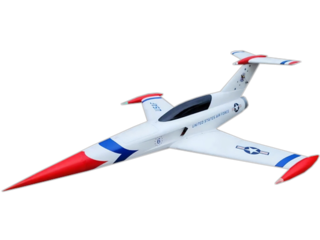

Thunderbirds Diamond 105mm from Global AeroFoam

Details

Global Aerofoam has leaped ahead in the industry with the 105mm Diamond, a model worthy of being the best in its class. It is professionally designed to turbine foam standard -- tough airframe structure, simple assembly, scale appearance, quality and high performance. This inspiring model will leave you looking for more after every single flight. Its massive high-performance 105mm 12-blade EDF creates an unrivaled turbine-like swoosh that echoes through the skies. It features a complete lighting package with several LEDs, like the nose taxi and navigation lights.

It is built with the latest innovative hight-density EPO foam formulated to foam turbine jet specifications , making the airframe strong, rigid, and much more durable than other EPO variants! To make transportation and storage much easier, the wings are installed and secured with a set of screws. Designed from the ground up, all-metal landing gears integrated JP-Hobby electric brake system feature robust quality, reliability and scale retraction. Landings are a breeze with the latest scale-shock absorption feature. Lastly, it is propelled by a 44.4V (12S) power system togethered with a high-voltage 12S 160A ESC.

For best performance, we recommend using a 12S 44.4V 4000+mAh 40C+ lithium polymer battery setup. Two 6S 22.2V 4000+mAh 40C lithium polymer batteries in series will work exceptionally well.

Features:

  • 8 operable channels (aileron, elevator, throttle, rudder, retracts, nose wheel steering, brakes, flaps)
  • Electronics and airframe built to foam turbine standard
  • High quality turbine grade heavy duty metal geared servos
  • High quality JP Hobby metal landing gear components for superior reliability
  • Professional 12S EDF system for extreme performance
  • Preinstalled electromagnetic brake system by JP Hobby -- built with high-quality aluminum CNC construction that includes 65mm wheels
  • Constructed with latest innovative turbine-grade high-density EPO foam that is much tougher than other EPO airframes
  • 12-bladed EDF for turbine-like performance and sound
  • Short and simple assembly that features the use of screws for easy “bolt-in” process
  • Exceptional attention to detail, quality and design
  • Main wings are completely detachable for storage and transportation
  • All-metal e-retracts and landing gear struts for a robust build and scale appearance
  • Fully functional brake system for the main gears
  • Fully functional flaps
  • Reliable sequencing system for the landing gear doors
  • Steerable nose wheel
  • Working high-scale navigation lights
  • Large battery compartment for many battery options and setup configurations
  • Full accessibility for all electronics such as the EDF, servos, etc
  • Optional Global Aerojet Brake Gyro Controller for stabilizing the steering so that the plane would track straight during taxi, take off or landing

Pictures and description from Banana Hobby

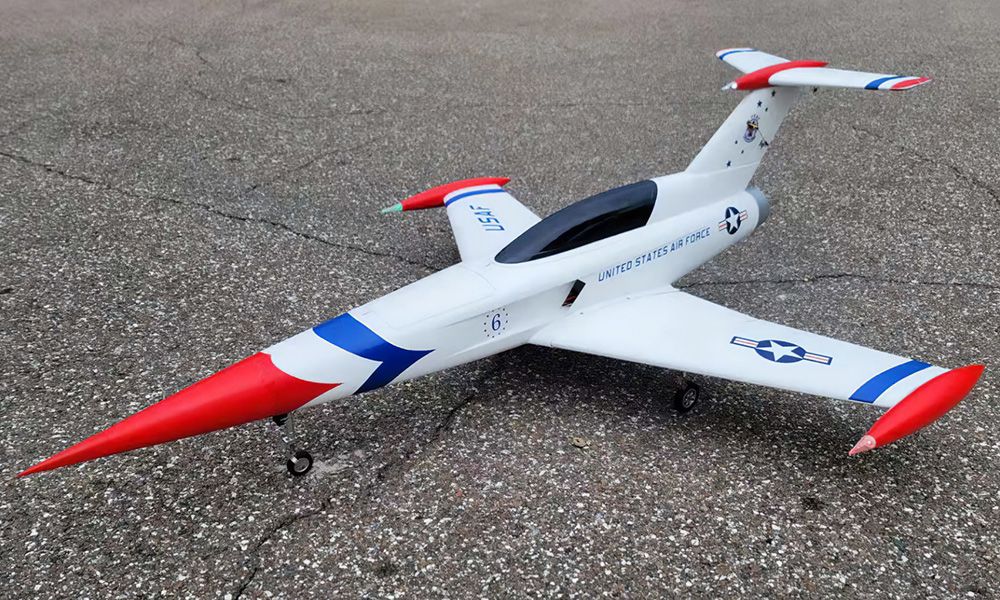

Pictures

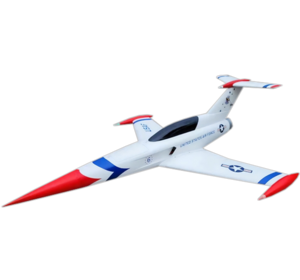

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Thunderbirds Diamond 105mm in particular but at least we know they do distribute Global AeroFoam.

Where to buy

USA
Banana Hobby
check web site
Ship to: Worldwide

Wingspan: 1480mm (58.3 in)
Length: 1920mm (75.6 in)

Weight: 6900 g (15.2 lbs)

Wingspan: 1480mm (58.3 in)
Length: 1920mm (75.6 in)
Flying Weight: 6.9kg (15.2 lb)
Servo: 7x 25g & 1x 12g metal digital
Retract System: Servoless metal retracts w/ e-brake wheels
EDF Diameter: 105mm (12-blade impeller)
ESC: 160A brushless
Motor: 600KV brushless

Variants

JT2846-08
Thunderbirds Diamond 105mm (White Blue Red)
