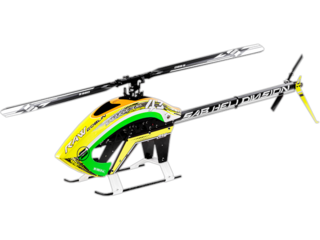

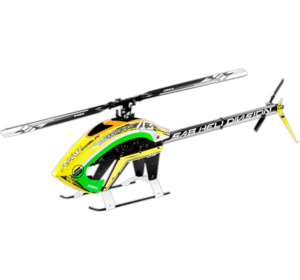

Goblin RAW 580 from Goblin Helicopters

Details

The new RAW 580 use the same module from Kraken 580.

  • Incredible strong Power train enclosed in aluminum case,
  • Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group,
  • Aluminum Boom 30 mm
  • Easy maintenance
  • Main blades up to 600mm.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1290mm (50.8 in)
Length: 1290mm (50.8 in)

Weight: 2710 g (6 lbs)
  • AIRFRAME weight: 1740gr ( with S580 blades, no battery, no electronics )
  • Main blade length: 550mm to 600mm
  • Tail blade length: 95 to 105 mm
  • Main rotor diameter: 1290 mm (with 580 mm blades included)
  • Tail rotor diameter: 260 mm (with 95 mm tail blades included)
  • Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.
  • Tail Servo: standard size 40mm.
  • Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
  • Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
  • Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft)
  • Typical speed controller: 6S 120-140 A, 12S 100-130A
  • Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.
