Boeing 747 from HSDjets

Details

  • Designed by a master RC Pilot for amazing Sport Jet performance, scale appearance with a classic look and attention to detail with state of the art electronics.
  • The Airframe is constructed of Ultra High-Density EPO Foam and all the plastic components are engineered using the highest strength plastic. This makes for a very durable aircraft that resist many not so welcomed occasions!
  • Hsdjets has invested in the independent development of the exclusive MFC-2085 control system, which integrates the landing gear, Servo, power supply, lighting and other systems, so as to reduce complicated wiring.
  • Sequencing on-board LED Lighting System gives the HBY-747 an extremely scale appearance.
  • All new Wing Plug design for easy wing attachment using high quality plug materials for reliability and ease.

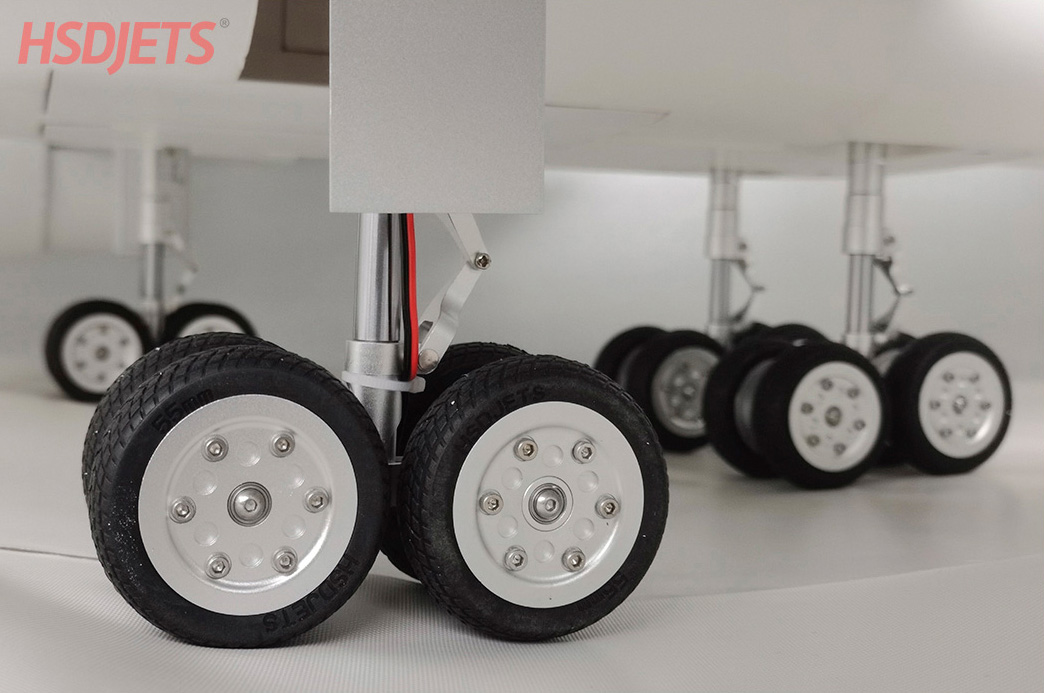

  • All Metal Landing Gear System now featuring Hydraulic Suspension Dampening provides a super scale appearance and provides avery strong landing gear system with soft suspension.
  • New Ball Bearing Wheels with Electric Braking System for smooth landings and stopping the HBY-747 quickly.
  • The whole machine adopts 14 metal gear digital servo, including 5 12g metal gear digital servo for landing gear and 9 25g hollow cup servo for other channels, which is firm and durable.
  • All new Full Metal Control Surface Horns for all the control surfaces for strength and performance.
  • Carbon fiber rod and glass fiber wing rib frame are embedded in the main wing, which significantly improves the strength and torque resistance.
  • Four dual ubecs are used to ensure the stability and safety of power supply for each line.
  • All standard screws are hexagon socket screws. We believe the plane will give you and excellent flying experience. Before starting please read our manual.

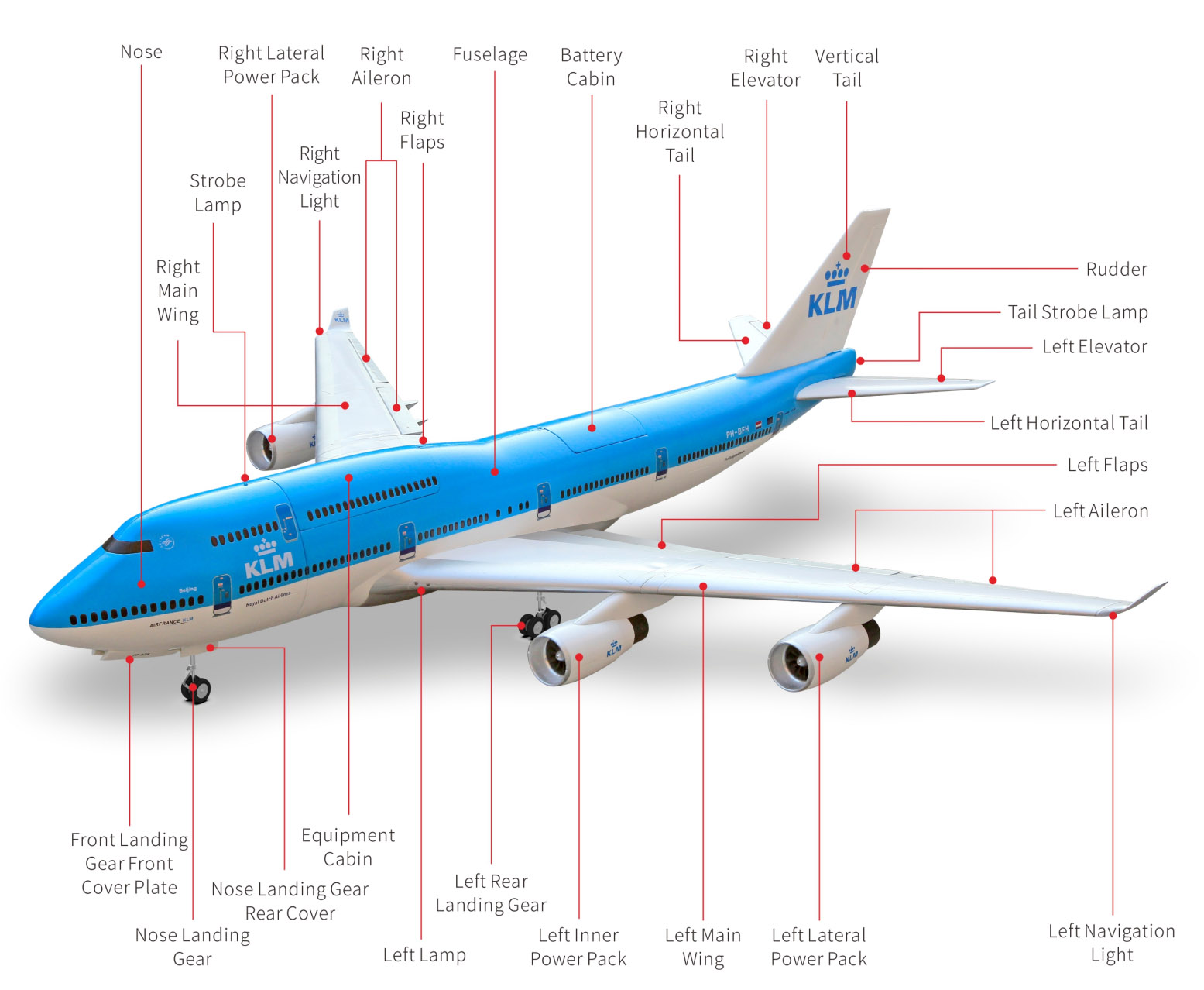

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2800mm (110.2 in)
Length: 3000mm (118.1 in)

Weight: 17000 g (37.5 lbs)
  • Wingspan: 2800 mm / 110.24 in
  • Length: 3000 mm / 118.11 in
  • Take off weight: 17kg / 37.51b
  • Flying time: 4~6 minutes
  • Main wing area: 103.6 dm²
  • Loading of airfoil surface: 164 g/dm²
  • Main material: 20 times the import of aeromodelling EPO
  • Body Surface Treatment: Matte environmental water-borne paint + decal
  • Remote control channel: 7CH (Selective configuration)
  • Control system: MFC-2085
  • Motor: 3560-1550KVX4 PCS (outer rotor)
  • EDF: S-EDF 90mm 12Blade ×4 PCS
  • ESC: 100A X 4 PCS
  • Power battery: 6S / 22.2V / 5200mAh / Li-Po X4 PCS (Selective configuration)
  • Receiver battery: 2S / 7.4V / 5200 mAh / Li-Po X2 PCS (Selective configuration)
  • Servo: 12g ×5 PCS / 25g X9 PCS (Hollow cup metal gear digital servo)
  • Landing gear: All metal hydraulic simulation electronic retractable landing gear
  • Brake function: Yes
  • LED Lighting System: Yes
  • Aileron: Yes
  • Flaps: Yes
  • Horizontal tail: Yes
  • Vertical tail: Yes
