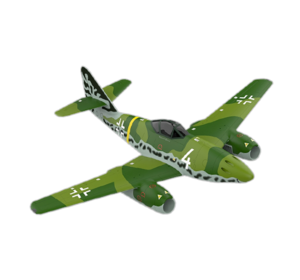

ME-262 from HSDjets

Details

HSDjets has invested in the independent development of an exclusive MFC-2085-DE control system to fully integrate the landing gear, various channel servos, power, lighting and other systems to reduce complicated wiring.

The whole machine is made of 35 times EPO and high-strength engineering plastics, with good crashworthiness.
The integral main wing, with carbon fiber rods and glass fiber rib frame embedded in the main wing, can significantly improve the strength and torque resistance.
The main wing, horizontal tail, vertical tail and fuselage are connected by high-precision integrated forming plug which is quick to assemble and reliable to connect.

The main wing navigation light adopts the international standard of left red and right green, and there are many kinds of flashing modes, such as fast flashing, slow flashing and constant lighting, which makes flying in the night more realistic and charming.

Referring to the angle of the real machine, the front landing gear is designed with 105 degree simulation, and the rear landing gear adopts 11mm diameter landing gear legs which are directly locked in the electric slot, so that the landing gear legs can withstand the impact of stronger force and not easy to bend.

CNC machining metal high simulation hydraulic shock absorber landing gear, higher strength, better damping effect.
The wheel is equipped with bearing and electromagnetic brake system, which makes the rotation more smooth and the brake more sensitive.

All servo angles are made of metal with high strength and zero virtual position.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1890mm (74.4 in)
Length: 1626mm (64 in)

Weight: 7000 g (15.4 lbs)
Wingspan 1890 mm (74.4 in)
Length 1626 mm (64 in)
Flying Weight 7kg (15.4 lb)
Flying time About 5 mins
Wing area 52.3 dm2
Wing load 133.8 g/dm2
Radio System 7 channel (required & not included)
Control System MFC-2085-DR
Motor 3560-1550KV(Outer rotor)×2 pcs
EDF S-EDF 90mm 12 Blade×2 pcs
ESC 100A×2 pcs
Servos

25g×2 Metal gear with 480mm lead (left & right ailerons forward)
25g×2 Metal gear with 330mm lead (left & right outer flap forward)
25g×1 Metal gear with 230mm lead (Vertical tail forward)
25g×4 Metal gear with 80mm lead (Elevator×2 & L/R inner flap forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Nose wheel steering forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Front wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Rear wheel cover plate forward)

Recommended Power Battery 6S,22.2V,5000~6000mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery 2S,7.4V,1800~2000mAh×2,LiPo with XT60 type plug(required & not included)
CG (Center of Gravity) 145~150mm from the leading edge of the Main Wing
Landing Gears All metal hydraulic simulation electric retractable landing gear×3
