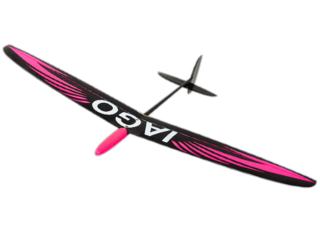

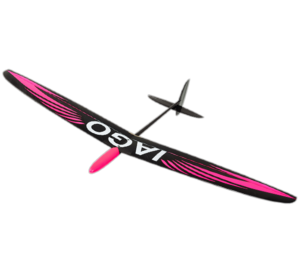

IAGO from High Quality

Details

IAGO is a modern 1-meter DLG that is provided by Nikolay Gorban from High Quality with an exceptional flying performance for a very reasonable price.
This model is an updated version of Hawk DLG and features a nose cone to access a fuselage pod interior, unlike the Hawk which has a hatch canopy.
The wing can be made in two carbon layups – regular and light.
The typical weights are identical to the original Hawk as shown on this page.
The fuse of this model is made as a combination of 2.4GHz friendly glass fiber on the front and carbon on the tail. So it is light and stiff, however, allows pilots to run their Rx antennas internally.
The nose is designed to fit in all 4 servos in the pod. Considering the overall small size of the model, the pod has enough space for them, but you will need some basic building skills to assemple the model.

The tail construction is very similar to the full-size DLGs with a removable horizontal stabilizer mounted underneath the tail boom. All the parts are molded which ensures the shiny surfaces, exceptional stiffness, and light weight.
The wing construction features a solid CNC-cut foam core with glass or carbon fiber layup. It comes almost-ready-to-go, with the pre-hinged ailerons and shiny graphics.

Pictures and Description from FlightPoint

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the IAGO in particular but at least we know they do distribute High Quality.

Wingspan: 1000mm (39.4 in)
Length: 717mm (28.2 in)

Weight: 120 g (4.2 oz)
  • Wingspan: 1000mm
  • Wing area: 10.9 dm2
  • Length: 717mm
  • Flying weight: from 120g
  • Wing airfoil: AG46
  • Recommended CG: 54-56 mm

Variants

IAGO
IAGO (Black Pink)
